Description
Two-piece practical snap flap, made of robust plastic (plastic), surface: black, 2033917, size: 62 mm (2-7/16″), version: magnetic
Application:
Sturdy push-to-open closure for furniture doors, cabinet doors, flaps and much more.
For use with hinges without a recoil spring.
The Push-To-Open closure 2033917 enables the convenient opening and closing of handle-free furniture doors at the touch of a button.
The pressure latch 2033917 has a wide plunger extension of 40 mm (1-37/64″).
Thanks to its compact plastic housing, the snap latch can 2033917 be screwed inconspicuously to the side of the body.
The system is low-wear and is particularly suitable for kitchens and bathrooms where frequent operation is required.
The Push-To-Open closure 2033917 is perfect for handle-free furniture concepts in living and working areas with high demands on functionality and design.
Thanks to the integrated magnet, the snap latch locks reliably 2033917 even with slight tolerances of the front.
The practical mounting plate of the snap lock 2033917 allows for relaxed installation.
The high-quality snap fasteners 2033917 are perfect for, among other things:
- Kitchen fronts
- Bathroom
- Furniture doors
- Doors
- Work out
Technical details:
- Design: magnetic
- Weight: 26 g
- Load capacity (load capacity): 7 kg (16 lbs) – for 2 pieces
- Size: 62 mm (2-7/16″)
- Easy installation, practical, stable
- Extension distance of ram: 40 mm (1-37/64″)
- Permissible door gap: 0 – 6 mm (15/64″)
- ideal for handle-free furniture fronts
- Reliable magnetic technology for a secure hold
- black
- robust
- high brand quality from UMAXO®
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done with Pozidriv countersunk chipboard screws 3 x 16 mm, self-tapping (not included)

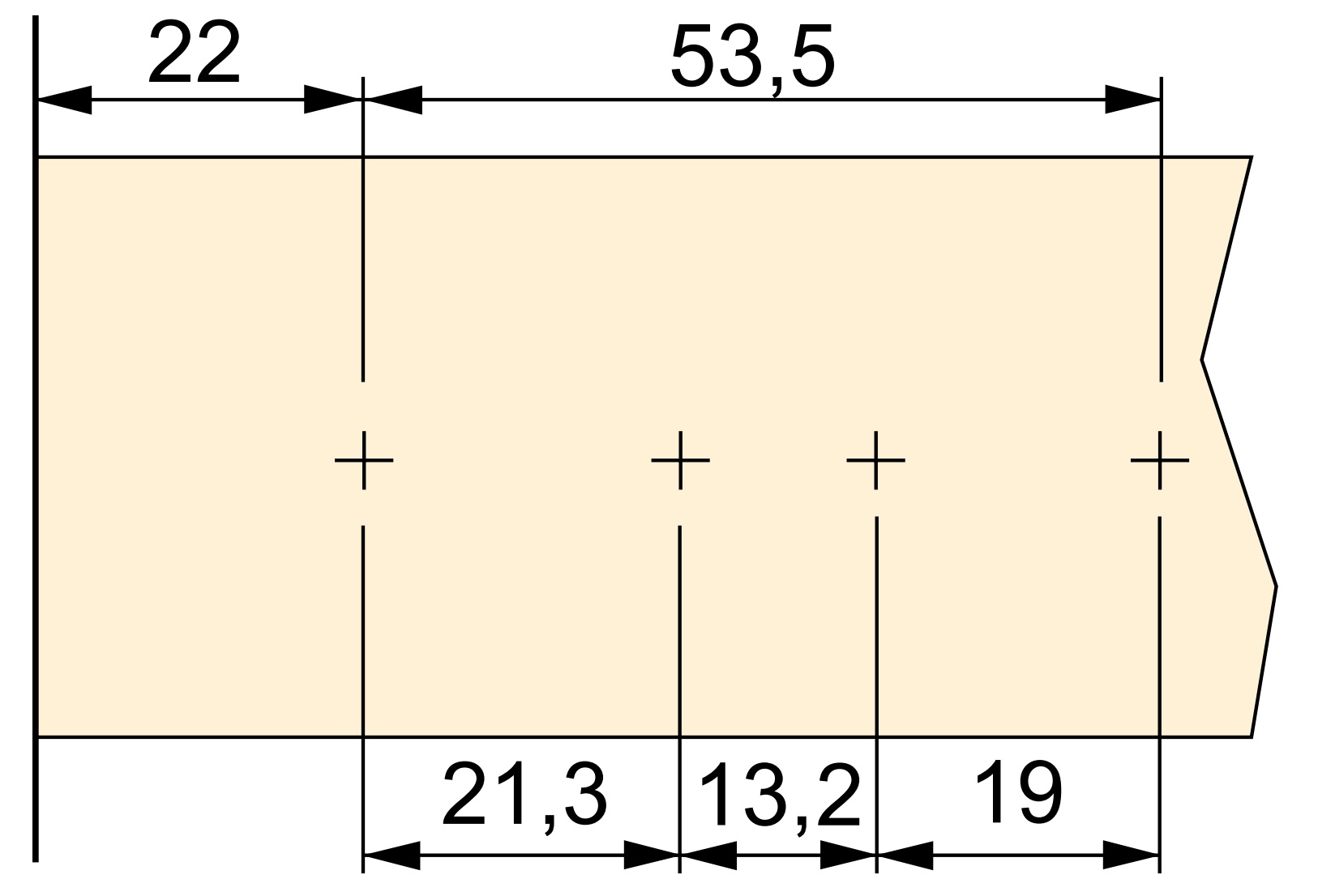

- The pressure latch 2033917 has four mounting holes
- The distance between the first and last mounting holes is 53.5 mm (2-7/64″)
- The latch is screwed onto the side of the body
- The distance between the push-to-open closure 2033917 and the edge of the door is 22 mm (55/64″)
- The counterpart (not included) is to be screwed onto the door, at the point that comes into contact with the snapper (for more details, see assembly drawing)
Dimensions:
- Total Slide Lock Length: 62 mm (2-7/16″)
- Mounting plate width: 16.5 mm (21/32″)
- Case height: 20 mm (25/32″)
For more dimensions and details, see technical drawing.
Material:
- The snap closures 2033917 are made of robust plastic (plastic)
- Plastic is lightweight and allows for easy assembly of components and furniture fittings without compromising stability
- It is corrosion-resistant, making it particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
- In addition, the flexible formability of plastic enables a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines
Included in delivery:
- Two pieces of pressure latches 2033917 made of robust plastic, black, version: magnetic
- Two pieces of plastic mounting plate, colour: black
- Attention: the counterpart is not included in the scope of delivery and must be ordered separately (e.g. 1050007 or 2030905)
Manufacturer’s part numbers:
- Article ID: 2033917
- EAN number: 8432393103051
Manufacturer: EMUCA
