Description

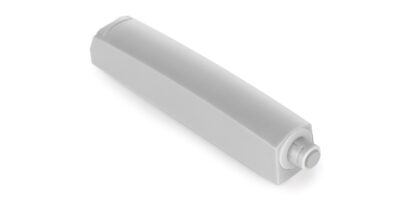

Two-piece practical pressure latch, with mounting housing, made of robust plastic (plastic), surface: grey, 1900221, version: non-magnetic
Application:
Stable push-to-open door opener for furniture doors, cabinet doors, flaps and much more.
For use with hinges with recoil spring.
The Push-To-Open Door Opener 1900221 enables the convenient opening and closing of handle-free furniture doors at the touch of a button.
The pressure latch 1900221 has a wide plunger extension of 37 mm (1-29/64″).
Thanks to its compact plastic housing, the snap latch can 1900221 be screwed inconspicuously onto the side of the carcass.
The system is low-wear and is particularly suitable for kitchens and bathrooms, where frequent operation is common.
The practical mounting housing of the pressure lock 1900221 allows for relaxed installation.
It is also possible to drill the door opener 1900221 directly into the side of the carcass without having to use the mounting housing.
The high-quality snap fasteners 1900221 fit perfectly to, among other things:
- Kitchen fronts
- Bathroom
- Furniture doors
- Doors
- Work out
Technical details:
- Type: non-magnetic
- Weight: 26 g
- Load capacity (load capacity): 2.5 kg (6 lbs)
- Size: 70 mm (2-3/4″)
- Easy installation, practical, stable
- Extension distance of ram: 37 mm (1-29/64″)
- Minimum door gap: 2.8 mm (7/64″)
- grey
- robust
- high brand quality from UMAXO®
Surface:
- Grey
- Grey offers a versatile and elegant base that combines well with other colours and materials, creating a calm, timeless atmosphere in both modern and classic spaces
- In addition, grey has the ability to highlight accents in a room without being dominant itself, making it ideal for creating harmonious and balanced interiors
Assembly:
- Fastening is done with Pozidriv countersunk chipboard screws 3 x 16 mm, self-tapping (not included)
- The pressure latch 1900221 has four mounting holes
- The distance between the first and last mounting holes is 52 mm (2-3/64″)
- The latch is screwed onto the side of the body
- The distance between the push-to-open door opener 1900221 and the door edge is 12 mm (15/32″) (for more details, see assembly drawing)
Dimensions:
- Total Slide Lock Length: 70 mm (2-3/4″)
- Mounting plate width: 15 mm (19/32″)
- Case Height: 15.3 mm (39/64″)
For more dimensions and details, see technical drawing.
Material:
- The snap fasteners 1900221 are made of robust plastic (plastic)
- Plastic is lightweight and allows for easy assembly of components and furniture fittings without compromising stability
- It is corrosion-resistant, making it particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
- In addition, the flexible formability of plastic enables a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines
Included in delivery:
- Two pieces of pressure latches 1900221 made of robust plastic, grey, version: non-magnetic
- Two Piece Mounting Housing
Watch the product video:
Additional information:
Manufacturer’s part numbers:
- Article ID: 1900221
- EAN number: 8432393283487
Manufacturer: EMUCA
