Description

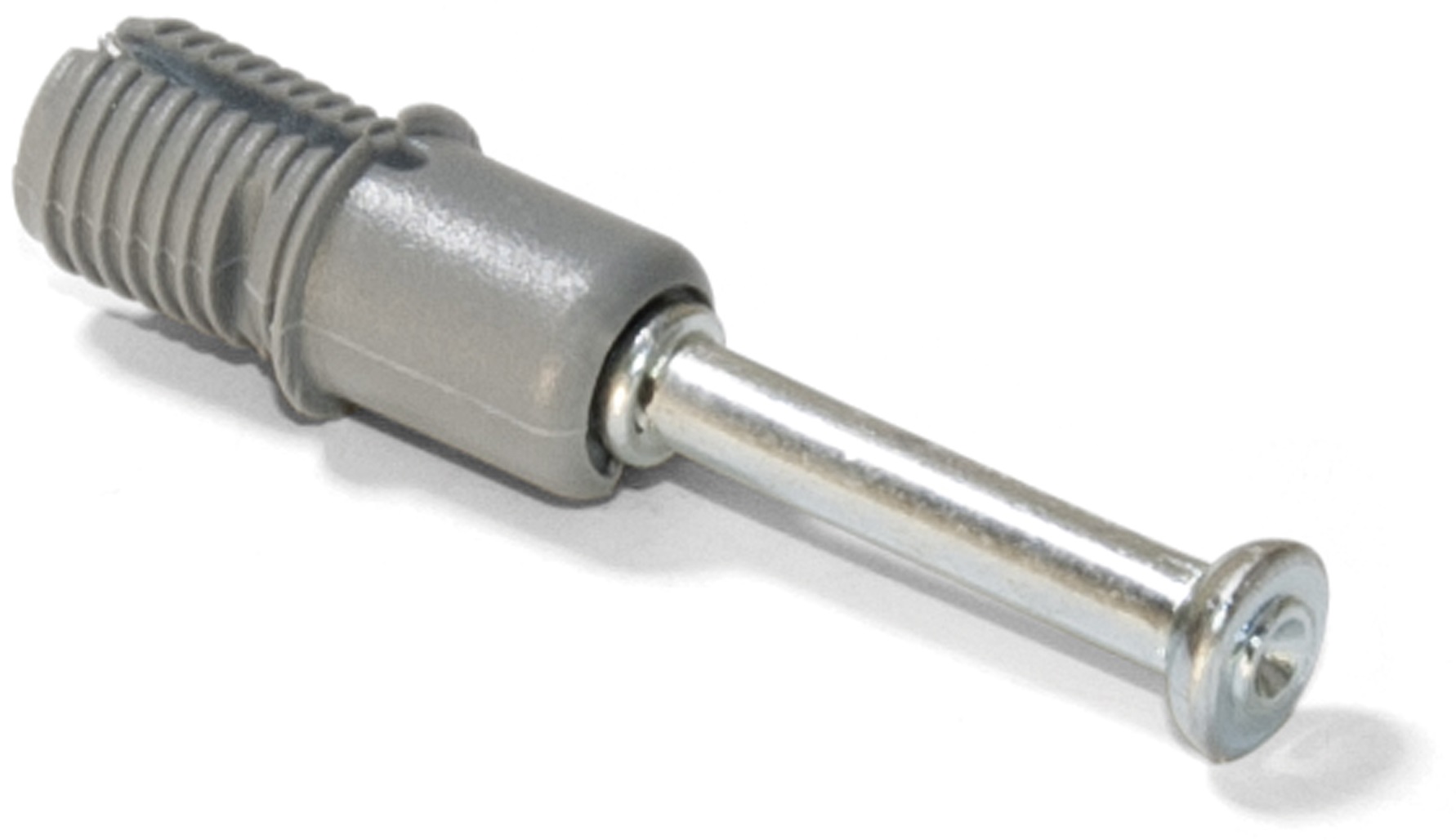

20 pieces practical expansion bolts, made of steel and robust plastic (steel and plastic), surface: galvanized, 5912805, size: 21.6 mm (27/32″)
Application:
Expandable connecting anchor for eccentric connectors, shelves, cabinet parts and much more.
The expansion bolt 5912805 connects furniture panels in combination with ⌀15 mm (19/32″) eccentric connectors concealed and precisely fitting.
When the eccentric is tightened, the integrated plastic segment spreads radially and locks the connecting anchor in the ⌀8 mm (5/16″) drill hole without play.
Galvanized steel provides high tensile and pull-out forces, while the plastic segment compensates for manufacturing tolerances and ensures long-lasting hold.
The detachable system 5912805 allows multiple assembly cycles without wear and tear and is perfect for dismountable furniture.
Thanks to its low installation depth, the expansion bolt can 5912805 be used in 16 mm (5/8″) panels, saving material.
The high-quality eccentric bolts 5912805 fit perfectly to, among other things:
- Boltless shelves
- Walls
- Corpus Pages
- Chipboard
- MDF boards
- Solid wood panels
- Kitchen Modules
- Furniture frame
- Eccentric Connectors
- Shelves
- Cabinet parts
Technical details:
- Weight: 3.54 g
- Size: 21.6 mm (27/32″)
- Easy installation, practical, stable
- High-strength steel core with zinc layer
- Expansion zone made of resistant plastic
- Quick assembly without special tools
- Compatible with 15 mm (19/32″) eccentric housings
- Suitable for panel thicknesses from 16 mm (5/8″)
- Solvable and relatable again
- Corrosion-protected for damp rooms
- Low installation depth saves material
- Low-noise tightening
- galvanized
- robust
- high brand quality from UMAXO®
Surface:
- Galvanized
- The galvanized surface protects against rust and corrosion
Assembly:
- First, an 8 mm (5/16 “) drill hole with a depth of 11 mm (7/16”) must be placed in the first furniture panel
- The expansion bolt 5912805 must be inserted into the drill hole until its head is flush
- Then a 15 mm (19/32″) eccentric housing must be countersunk into the counter plate and aligned so that its mounting slots point exactly to the screwed-in bolt

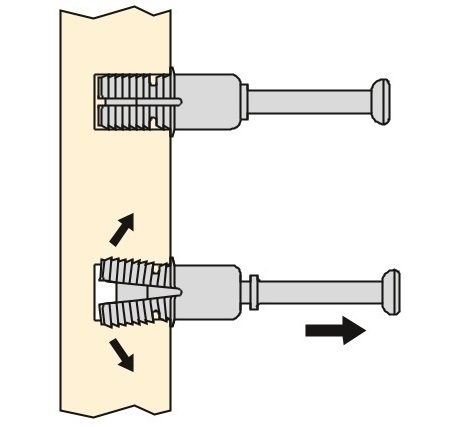

- Finally, the eccentric must be tightened by about half a turn; the plastic segment of the connector pin spreads 5912805 radially and pulls both plates tightly together without play and permanently (for further details, see assembly drawing)
Dimensions:
- Connector Pin Length 5912805: 21.6 mm (27/32″)
- Diameter: 8 mm (5/16″)
- Retractable Part Length: 10.5 mm (13/32″)

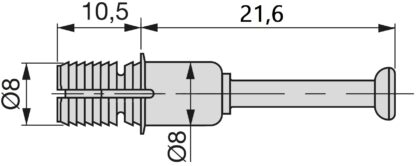

For more dimensions and details, see technical drawing.
Material:
- The eccentric bolts 5912805 are made of steel and robust plastic (steel and plastic)
- The combination of steel and plastic combines high strength with flexible adaptability – for resilient and versatile fittings.
- At the same time, this combination of materials ensures optimised function and an attractive design by combining stability with a wide range of design options.
Included in delivery:
- 20 5912805 expansion bolts made of steel and robust plastic, galvanised
Manufacturer’s part numbers:
- Article ID: 5912805
- EAN number: 8432393112909
Manufacturer: EMUCA
