Description
20 pieces sturdy connecting bolt, made of sturdy steel, surface: galvanized, 8057205, size: 10 mm (25/64″)
Application:
Sturdy eccentric pin for furniture connection and much more.

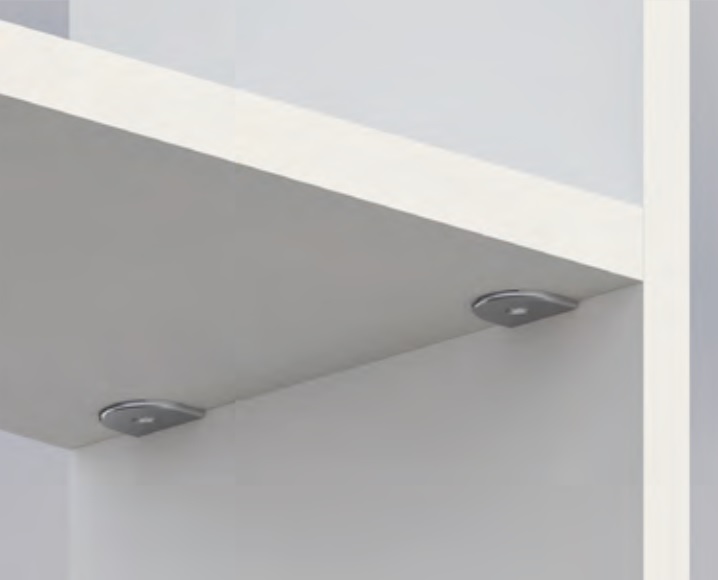

The practical eccentric pin 8057205 is a high-quality, robust connecting fitting for furniture construction and enables an almost invisible yet highly stable attachment of shelves in carcass furniture.
It has a wooden thread and is used for the fixed and invisible connection of carcass parts and is particularly suitable for shelves, cabinets and modular furniture.
The connecting bolt 8057205 is inserted into the side wall of a piece of furniture, for example, and connected to an eccentric connection in the underside of a shelf.
By simply putting it on and tightening, a form-fitting and force-fit connection is created, which at the same time secures the floor against lifting.
Turning the eccentric tightens the pin tightly and stabilizes the connection.
Suitable for the eccentric connectors 8470907, 8070907, 5054716 and 8049216.
The eccentric bolts 8057205 are perfect for applications where a precise, resilient and at the same time detachable connection is required.
Ideal for a wide range of furniture applications – enables quick and stable assembly and disassembly with common tools.
The high-quality connecting bolts 8057205 are perfect for, among other things:
- Carcass furniture
- Shelves
- Interior finish
- Shopfitting
- Exhibition
- Furniture connection
Technical details:
- Weight: 2.1 g
- Size: 10 mm (25/64″)
- Easy installation, practical, stable
- For bore ⌀3.5
- galvanized
- Steel (robust)
- high brand quality from UMAXO®
Surface:
- Galvanized
- The galvanized surface protects against rust and corrosion
Assembly:
- The connecting bolt is screwed 10 mm (25/64″) deep into the side or middle section
- The shelf is then placed on top so that the housing grips cleanly over the screw head
- By tightening the clamping screw in the housing, the floor is tightened in a force-fit manner and at the same time secured against lifting (for further details, see assembly drawing)
Dimensions:
- Outer diameter of connecting bolt: ⌀3.5 mm (9/64″)
- Length of the threaded part: 10 mm (25/64″)
- Flange thickness above the plate surface: 2 mm (5/64″)
- Exterior Length: 6.8 mm (17/64″)

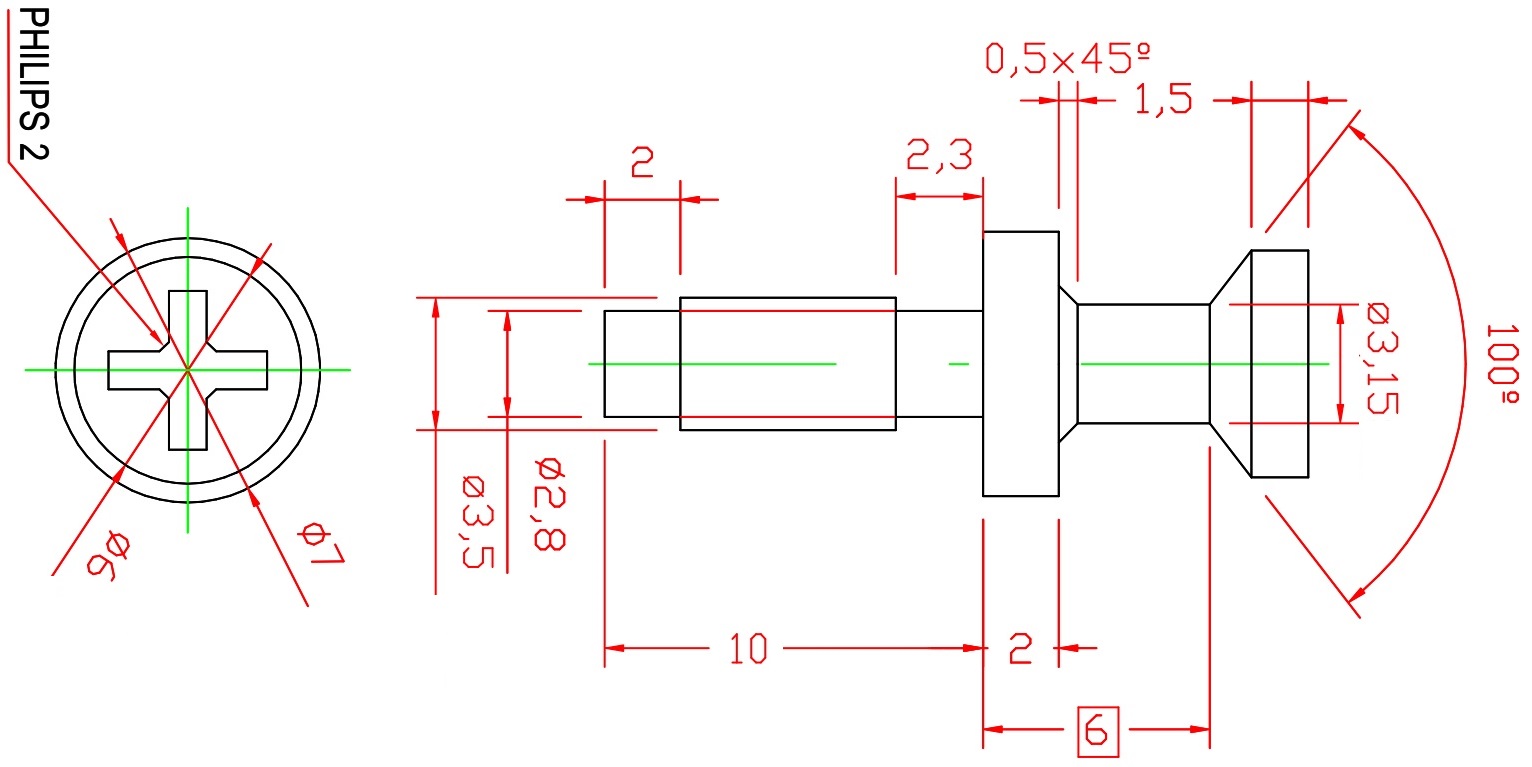

For more dimensions and details, see technical drawing.
Material:
- The connecting bolts 8057205 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:

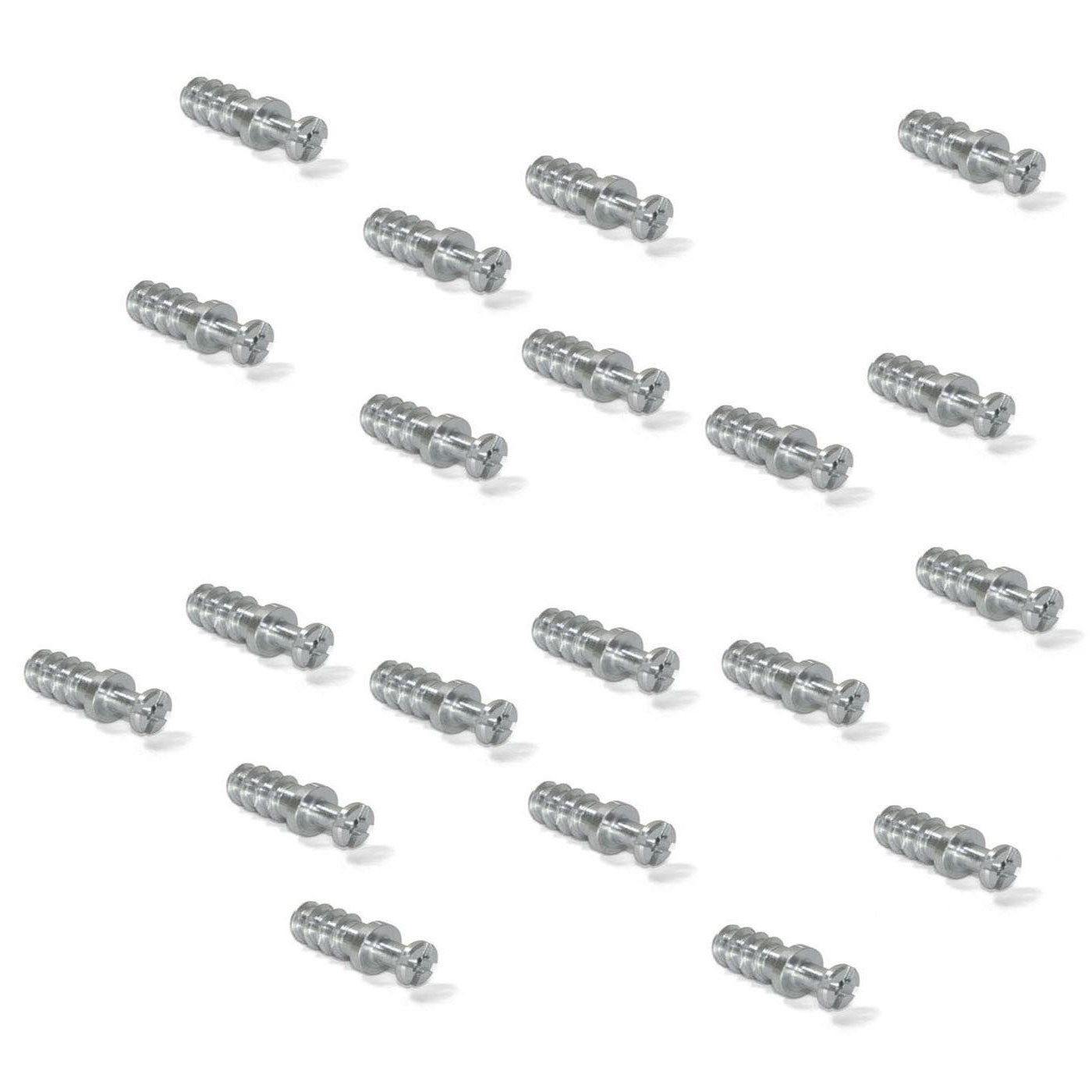

- 20 pcs connecting bolts 8057205 made of robust steel, galvanized
- The eccentric connectors 8470907, 8070907, 5054716, 8049216 are not included in the scope of delivery and must be ordered separately
Manufacturer’s part numbers:
- Article ID: 8057205
- EAN number: 8432393120447
Manufacturer: EMUCA
