Description
20 pieces of stable eccentric connection with flange and claw outer jacket for plate thickness 16 mm (5/8″), made of solid die-cast zinc, surface: nickel-plated, 8470907
Application:
Robust eccentric connector for furniture connection and much more.
The practical eccentric connector 8470907 is a high-quality, robust connecting fitting for furniture construction and enables an almost invisible yet highly stable fastening of shelves in carcass furniture.
It is used for the fixed and invisible connection of carcass parts and is particularly suitable for shelves, cabinets and modular furniture.
The visible edge cover allows for an elegant look with exposed joints, as shown in the application photo.
The eccentric connection 8470907 is inserted, for example, into the underside of a shelf and connected to an eccentric pin in the side wall.
By simply putting it on and tightening, a form-fitting and force-fit connection is created, which at the same time secures the floor against lifting.
Turning the eccentric tightens the pin tightly and stabilizes the connection.
Suitable for the eccentric pins 8057205, 8905205, 8905305, 8084001 and 8083901.
Typical application: Insertion into shelves or partitions with ⌀20 mm (25/32″) hole, 12.5 mm (31/64″) deep, in combination with matching eccentric pins.
Ideal for home and office furniture with flat packaging and quick assembly.
The high-quality eccentric connections 8470907 are perfect for, among other things:
- Carcass furniture
- Shelves
- Interior finish
- Shopfitting
- Exhibition
- Furniture connection
Technical details:
- Weight: 11.4 g
- Size: 16 mm (5/8″)
- Easy installation, practical, stable
- Specially designed for 16 mm (5/8″) plates
- Fast and safe installation thanks to claw anchoring
- Optically clean thanks to integrated flange
- Cup Bore: ⌀20 mm (25/32″)
- Drilling depth: 12.5 mm (31/64″)
- Mounting distance from edge (center hole): 9.5 mm (3/8″)
- Attachment: With claw sheath – no glue or additional fixation necessary
- nickel-plated
- Zamak (zinc die-casting)
- high brand quality from UMAXO®
Surface:
- Nickel-plated
- Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
- They offer an elegant, shiny look that looks modern and timeless at the same time
- They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean
Assembly:
- A ⌀20 mm (25/32″) hole is drilled 12.5 mm (31/64″) deep in the shelf; the center of the hole is 9.5 mm (3/8″) from the leading edge
- The special screw is screwed 8 mm (5/16″) deep into the side or middle part
- The shelf is then placed on top so that the housing grips cleanly over the screw head

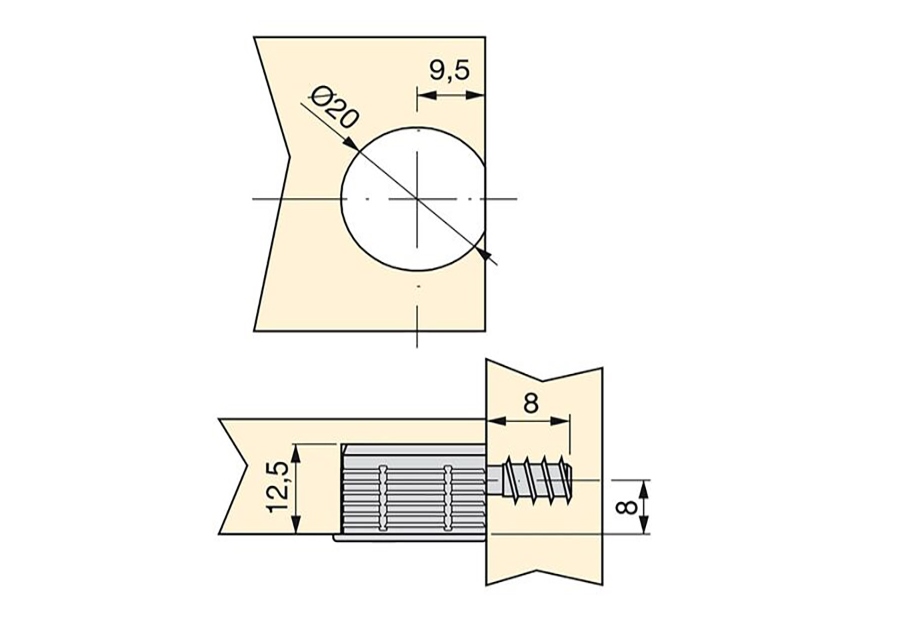

- By tightening the clamping screw in the housing, the floor is tightened in a force-fit manner and at the same time secured against lifting (for further details, see assembly drawing)
Dimensions:
- Outer diameter of the housing: ⌀20 mm (25/32″)
- Case width (bottom edge): 22 mm (55/64″) x 20 mm (25/32″)
- Flange Thickness Above Plate Surface: 1 mm (3/64″)
For more dimensions and details, see technical drawing.
Material:
- The eccentric connections 8470907 are made of solid die-cast zinc
- Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
- Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
- In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality
Included in delivery:
- 20 pieces of eccentric connection 8470907 made of solid die-cast zinc, nickel-plated
- The eccentric pins are not included and must be ordered separately
Manufacturer’s part numbers:
- Article ID: 8470907
- EAN number: 8432393122304
Manufacturer: EMUCA
