Description

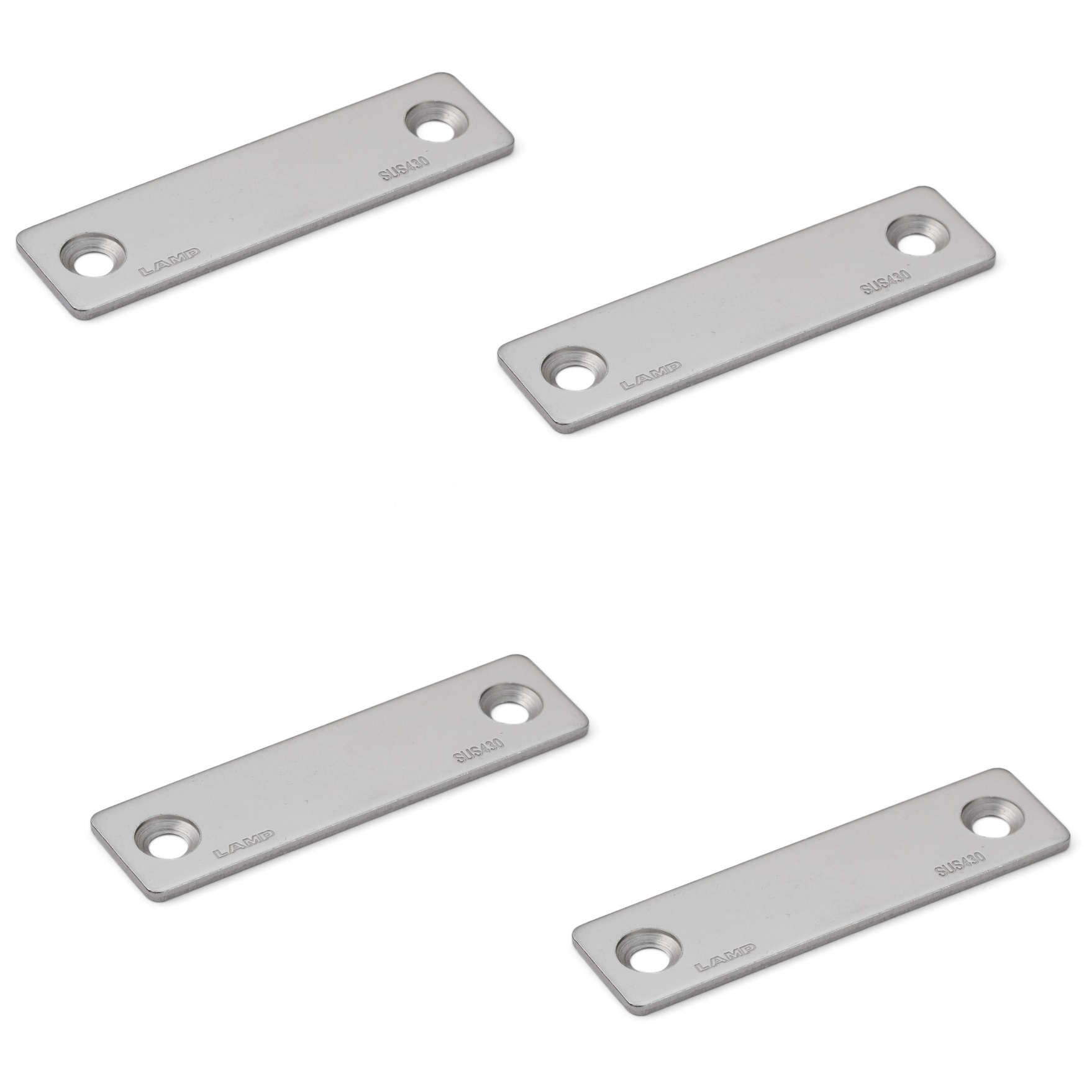

4 pieces corrosion-resistant magnetic counter plate, made of high-quality stainless steel SUS430 (1.4016 or X6Cr17), surface: glossy polished, AS-68 (140-050-138), size: 68 mm (2-43/64″)
Application:
Non-rusting magnetic counterpart for magnetic latches, outdoor furniture, magnetic closure, yacht interiors and much more.
The AS-68 (140-050-138) magnetic counter plate is made of high-quality SUS430 stainless steel.
This magnetic counterpart is specifically designed for use in damp, wet or weather-stressed areas where traditional steel counterparts would rust.
The magnetic counterpart AS-68 is suitable for corrosion-resistant magnetic latches and push magnetic closures.
For example, the AS-68 magnetic counter plate enables locking with a magnetic latch or convenient closing and opening without furniture handles, even in bathrooms, kitchens or outdoor furniture.
The high-quality AS-68 magnetic counter plates are perfect for, among other things:
- Bathroom furniture
- Balcony cabinet
- Boat furniture
- Caravan furniture
- Caravan furniture
- Patio cabinet
- Motorhome
- Campervan
- Spa
- Medicine cabinet
- Gastronomy furniture
- Garden shed
- Garden furniture
- Cabinet door
- Sauna furniture
- Magnetic flycatcher
- Outdoor furniture
- Magnetic closure
- Yacht Interior
Technical details:
- Weight: 17 g
- Size: 68 mm (2-43/64″)
- Easy installation, practical, stable
- Material thickness: 2 mm (5/64″)
- Glossy polished
- Weather-resistant, rust-free or corrosion-resistant
- High brand quality from Sugatsune / LAMP®.
Surface:
- Glossy polished
- Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, elegant appearance
- In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and dirt
Assembly:
- The magnetic counter plate AS-68 is screwed to the cabinet door
- The magnet counterpart AS-68 has 2 countersunk mounting holes
- The diameter of the mounting holes is 4.6 mm (3/16″)
- The distance between the mounting holes (hole spacing) is 53 mm (2-3/32″) (for more details, see assembly drawing)
Dimensions:
- Magnet Counterpart Length: 68 mm (2-43/64″)
- Width: 18 mm (45/64″)
- Material thickness: 2 mm (5/64″)
For more dimensions and details , see technical drawing.
Material:
- The AS-68 magnetic counter plates are made of high-quality SUS430 stainless steel (1.4016 or X6Cr17)
- SUS430 (1.4016) stainless steel provides solid corrosion resistance for dry to moderately humid interiors, making it well suited for furniture and industrial hardware without chloride exposure
- It is ferromagnetic and therefore ideal for magnetic latches, locking mechanisms and counterplates
Included in delivery:
- 4 pieces magnetic counter plate AS-68 (140-050-138) made of high-quality stainless steel SUS430, polished to a glossy finish
- This item does not include mounting screws
Manufacturer’s part numbers:
- Article ID: 140-050-138
- Item number: AS-68
- EAN number: 4510932017107
Manufacturer: Sugatsune / LAMP® (Japan)
