Description

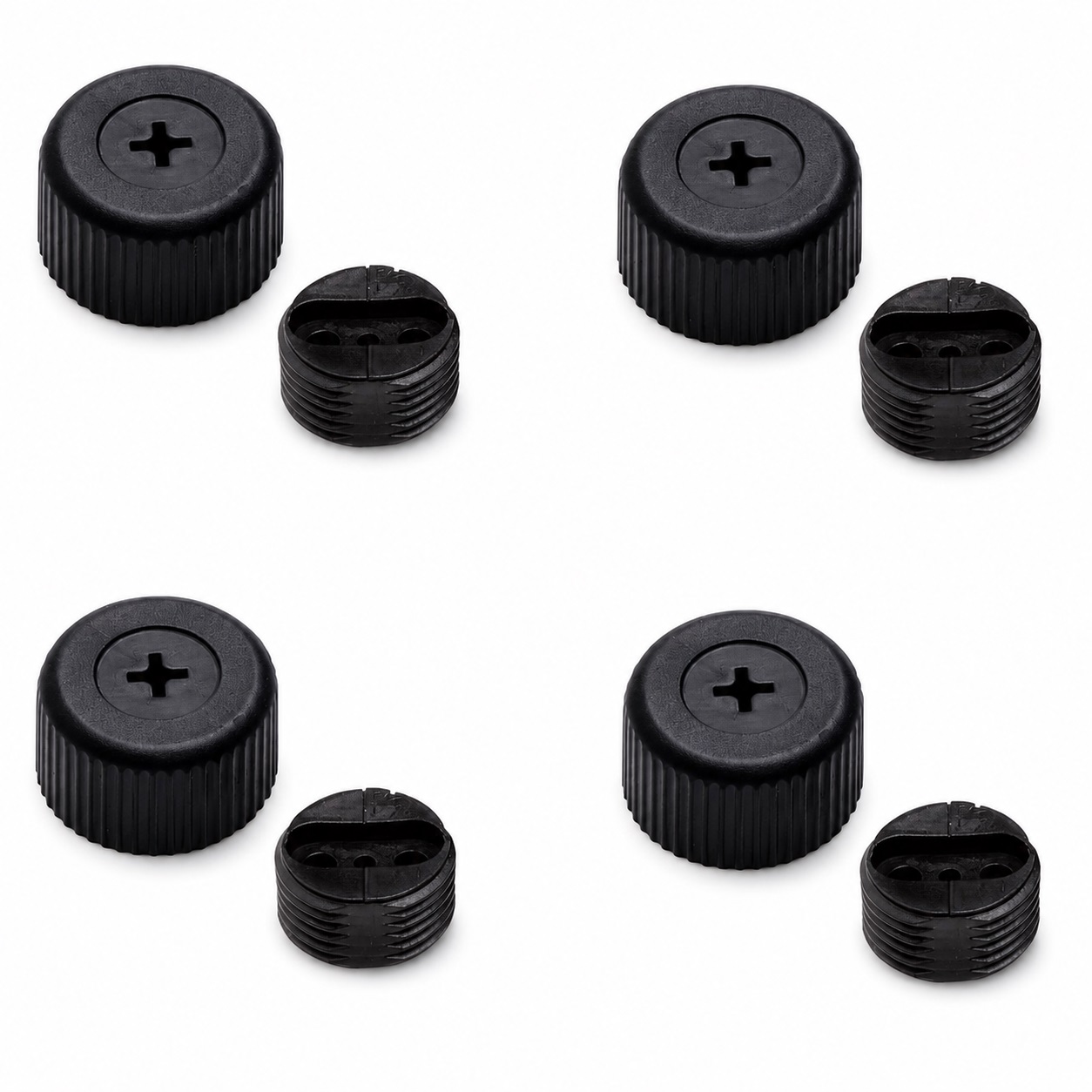

4 pieces robust furniture adjuster, made of robust polyacetal (POM), surface: black, B572-25-BK, diameter: ⌀25 mm (63/64″), version: with cross-head socket for screwdriver, load capacity: 600 kg (1323 lbs)
Application:
Adjustable foot for furniture and much more.

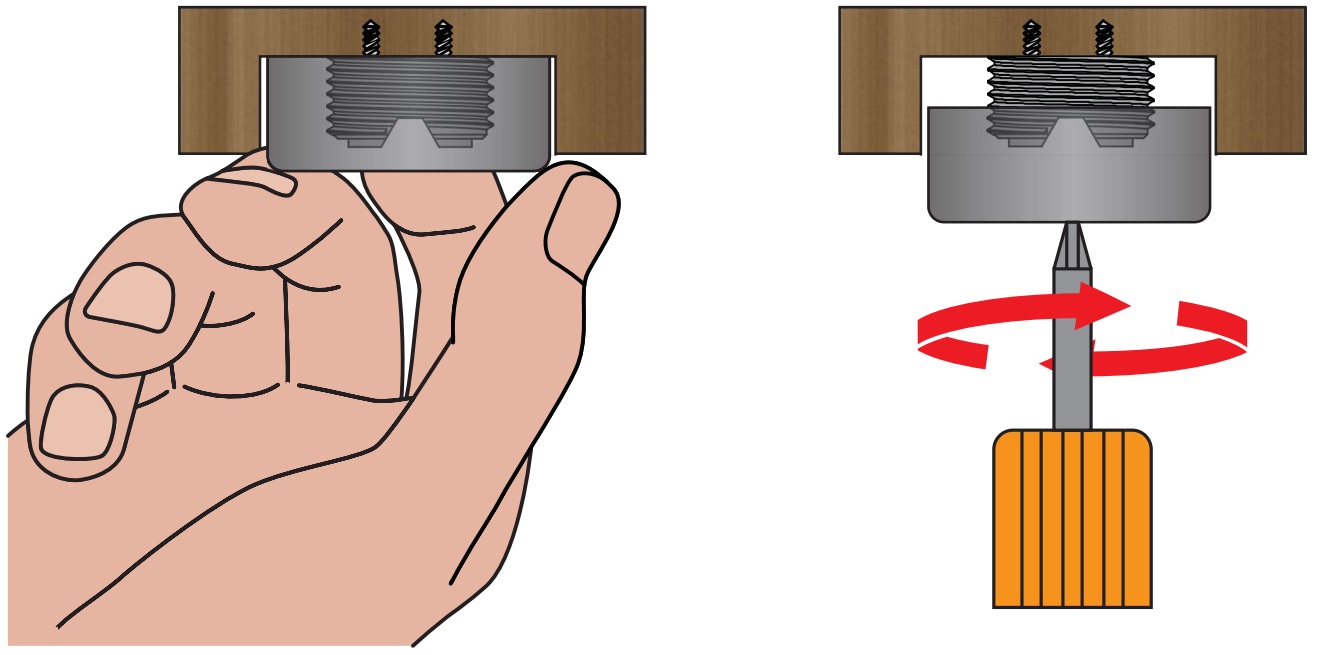

With Phillips recess for easy adjustment with a screwdriver – perfect when adjustment by hand is not possible.
The B572-25-BK furniture adjuster is a compact furniture adjuster for height compensation on furniture and fixtures indoors.
It is mounted on the surface and therefore does not require any time-consuming milling or processing of the furniture.
The 5 mm (13/64″) adjustment range helps to compensate for small unevenness in the floor and to keep furniture stably aligned.
The POM material is robust and particularly suitable for applications where an inconspicuous and lightweight plastic solution is desired.
Due to its compact design with ⌀25 mm (63/64″), the B572-25-BK adjustable foot fits well with table legs, cabinet feet, plinths and small furniture constructions.
The high-quality B572-25-BK furniture adjusters are perfect for, among other things:

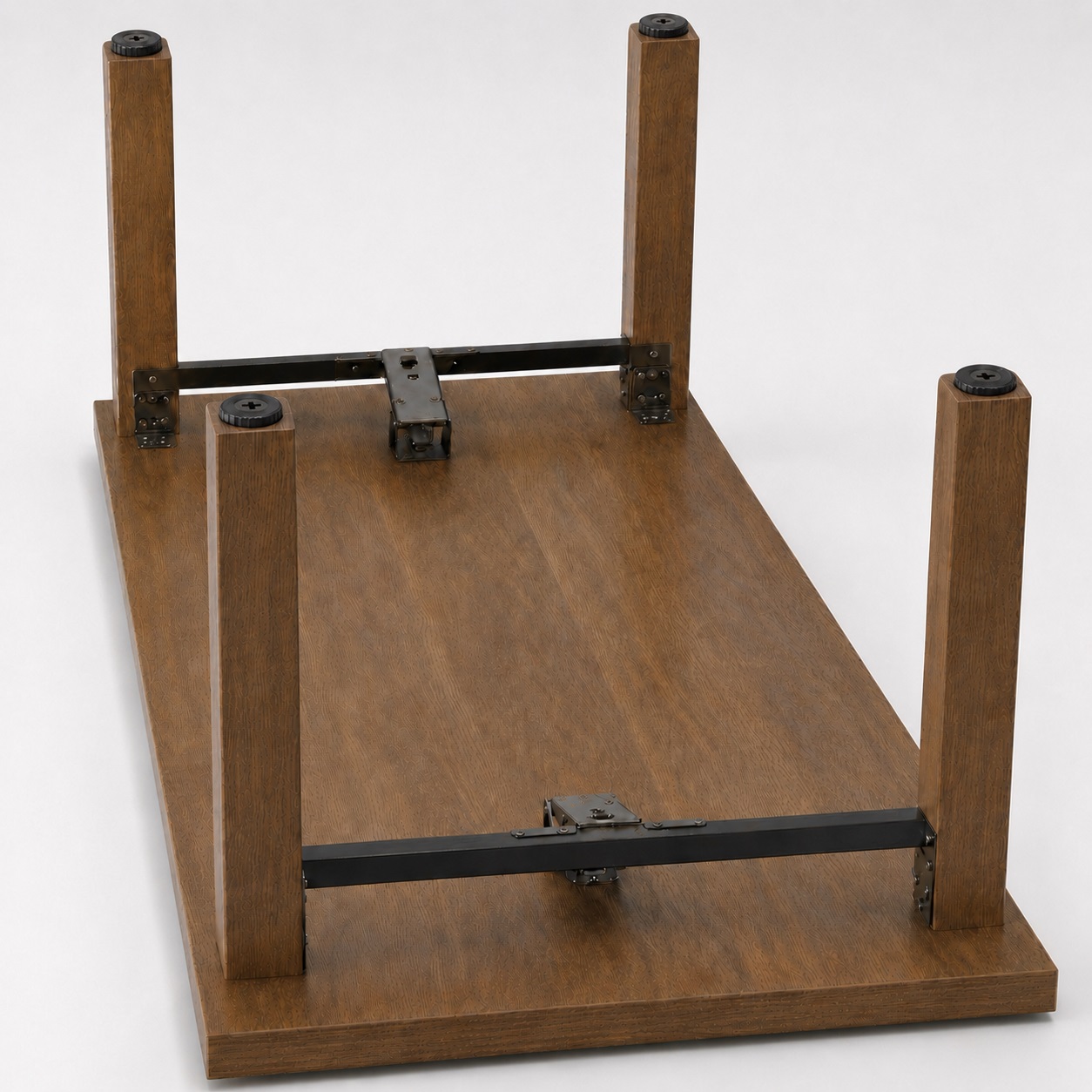

- Table
- Furniture legs
- Cabinet feet

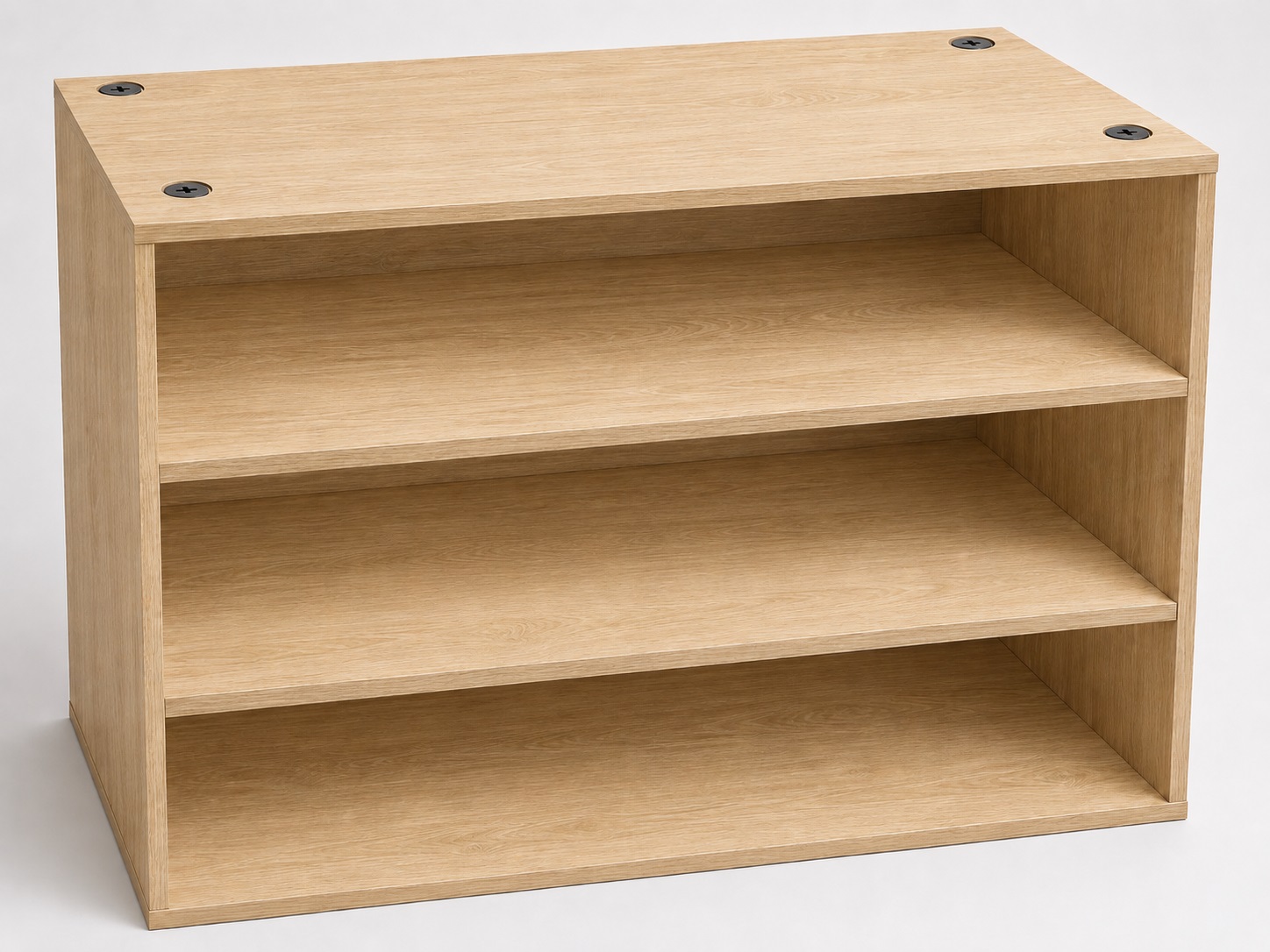

- Cabinet
- Sofa
- Table legs
- Shelf Feet
- Socket
- Small Furniture
- Built-in furniture
- Furniture
Technical details:
- Design: with Phillips receptacle for screwdriver
- Weight: 7 g (for 4 pieces: 28 g)
- Load capacity (load capacity): 600 kg (1323 lbs) – for 4 pieces
- Diameter: ⌀25 mm (63/64″)

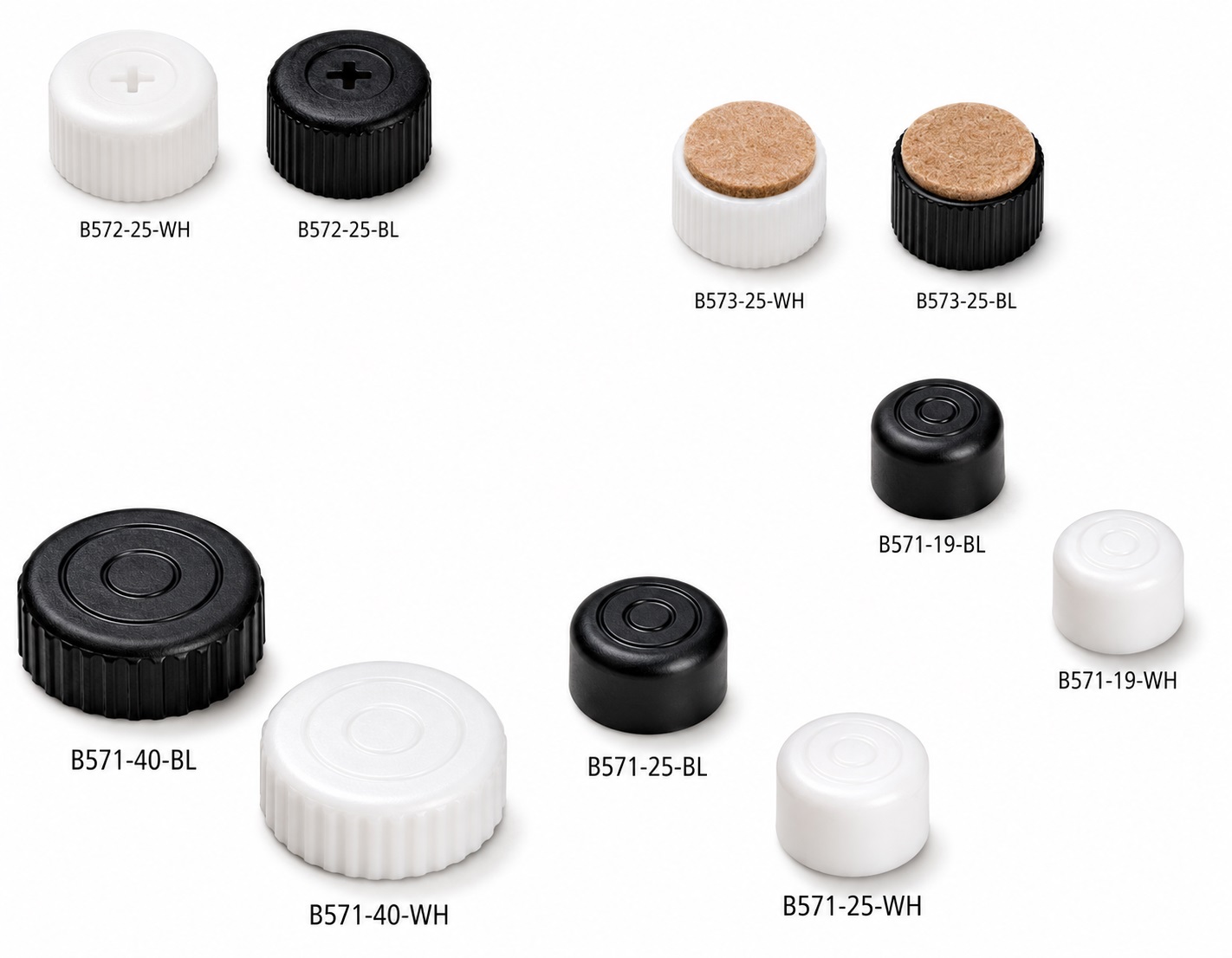

- Available in 2 surface colours: white and black
- Available in 3 diameters: ⌀ 19 mm, ⌀ 25 mm and ⌀ 40 mm
- Available in 3 versions: standard, with cross recess and with felt pad
- Easy installation, stable
- For indoor use
- Surface-mounted mounting without machining the wooden part
- Adjustment range: 5 mm (13/64″)
- Suitable for small and hard-to-reach mounting areas
- Black
- robust, lightweight
- High brand quality from Kojima (Japan)
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done with pan head screw ⌀3.5 mm screws (not included)
- The B572-25-BK adjustable foot has two mounting holes with a distance of 10 mm (25/64″). The mounting holes are ⌀3.6 mm (9/64″) in diameter

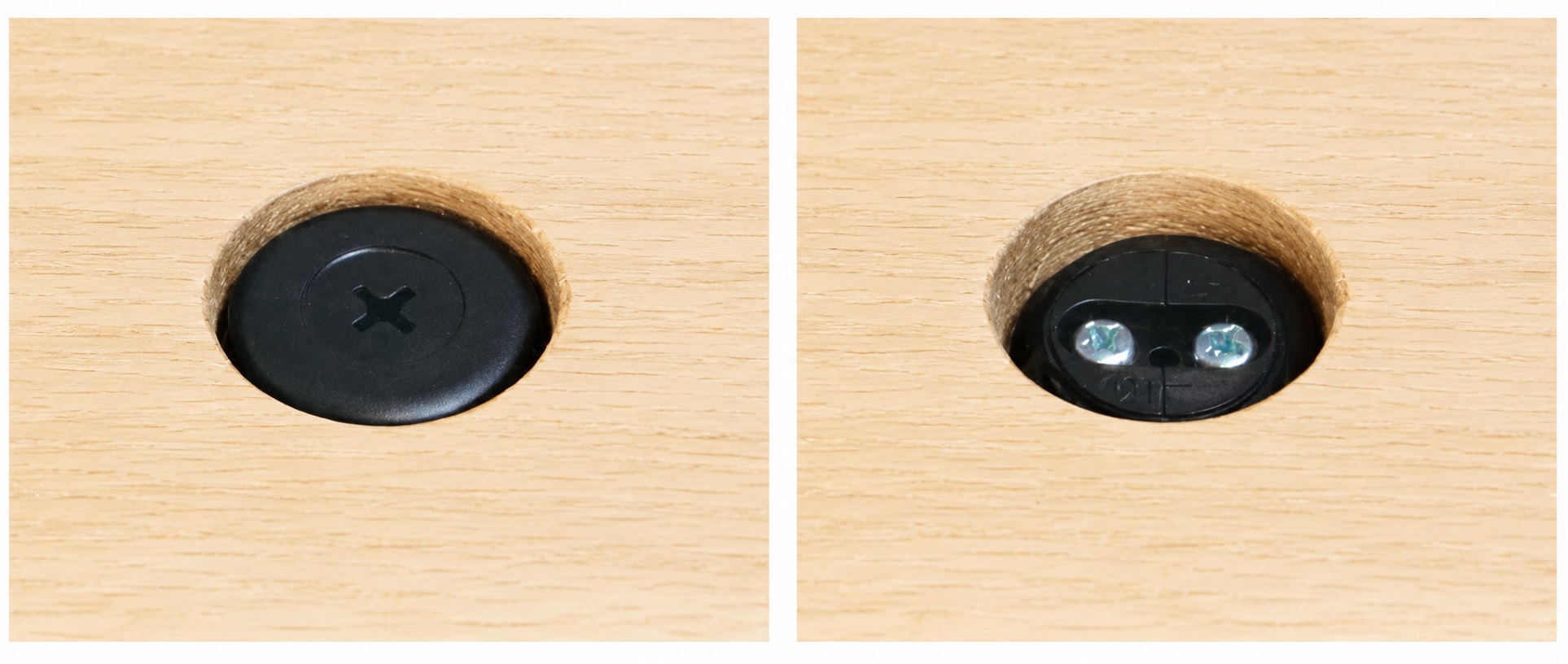

- The furniture adjuster is attached to the surface with two matching screws, without the need for milling into the wood
- Then the adjustment cap is placed on the adjustment foot or screwed on (for further details, see assembly drawing)
Dimensions:
- Diameter of the furniture adjuster: ⌀25 mm (63/64″)
- Height: 10 mm (25/64″)
- Height of the adjustment cap: 14 mm (35/64″)

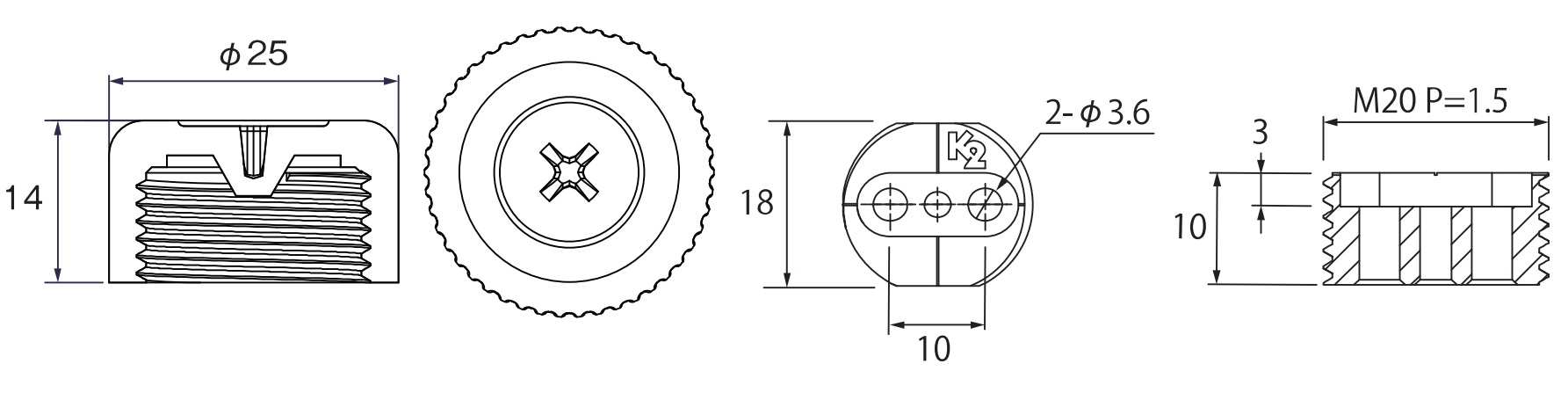

For more dimensions and details , see technical drawing.
Material:
- The B572-25-BK furniture adjusters are made of robust polyacetal (POM)
- Polyacetal (POM) combines very high abrasion and wear resistance with a low friction coefficient, so that fittings function smoothly over the long term
- Thanks to its high dimensional and dimensional stability, even with changing humidity, the accuracy of fit of hinges, pull-outs or locks is maintained
Included in delivery:
- 4 pieces of furniture adjuster B572-25-BK made of robust polyacetal, black, 25 mm (63/64″), version: with Phillips receptacle for screwdriver
- 4 pieces of adjustable cap
- This item does not include mounting screws
Watch the product video:
Additional information:
Manufacturer’s part numbers:
- Article ID: B572-25-BK
- GTIN number (EAN, UPC): 0618455525568
Manufacturer: Kojima (Japan)
