Description

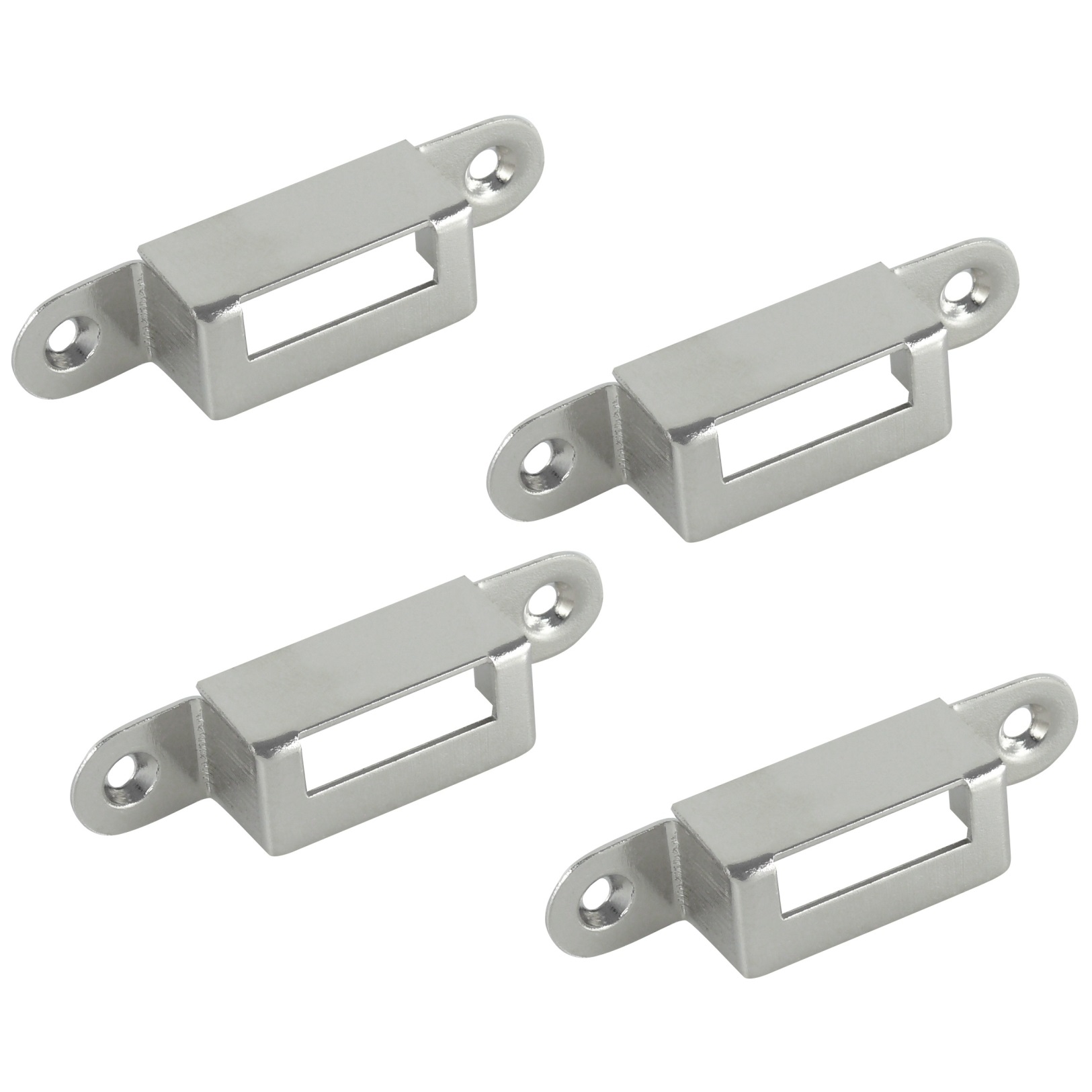

Four pieces of high-quality lock box with hook 14.01.500-1, made of robust steel, surface: nickel-plated, size: 63 mm (2-31/64″)
Application:
Counter box for roller shutter lock, sliding door lock, furniture lock and much more.
Practical counter box 14.01.500-1 is used to lock roller shutters and furniture sliding doors. It picks up latches or latches and secures the closed position.
The two locking hooks spread in the strike plate after closing and thus ensure a stable locking of roller blinds or sliding doors.
The 14.01.500-1 strike plates are suitable for installation in new furniture as well as for repairing existing cabinets.
The high-quality strike plates 14.01.500-1 are perfect for, among other things:
- Roller shutter lock
- Sliding door lock
- Furniture lock
Technical details:
- Weight: 11 g
- Size: 63 mm (2-31/64″)
- Easy installation, practical, stable
- Can be used on the left or right
- nickel-plated
- Steel
- robust
- high brand quality from UMAXO®
Surface:
- Nickel-plated
- Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
- They offer an elegant, shiny look that looks modern and timeless at the same time
- They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean
Assembly:
- Fastening is done with 2.5 mm to 2.9 mm screws (not included)
- Lock box 14.01.500-1 is for screwing
- The counter box 14.01.500-1 has two mounting holes with a diameter of ⌀3 mm
- The distance between the mounting holes is 50 mm (1-31/32″) (see assembly drawing for more details)
Dimensions:
- Strike plate height: 63 mm (2-31/64″)
- Width: 13 mm (33/64″)
- Depth: 13.75 mm (35/64″)
- Latchuck Width: 22 mm (55/64″)
- Latchuck Height: 7 mm (9/32″)
- Lock box width: 32 mm (1-17/64″)
For more dimensions and details, see technical drawing.
Material:
- The 14.01.500-1 strike plates are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:
- Four lock box 14.01.500-1 made of robust steel, nickel-plated
Additional information:
Manufacturer’s part numbers:
- Article ID: 14.01.500-1
- EAN number: 5704866446242
Manufacturer: SISO Denmark
