Description

4 pieces High-quality table leg folding fitting, made of robust steel, surface: galvanized, yellow, B205-KTL-BK

Application:

Foldable table leg attachment for low tables, coffee tables, wooden table legs and much more.



The table leg folding fitting B205-KTL-BK is a compact metal fitting for folding table legs on low tables with leg lengths of up to 300 mm (11-13/16″).

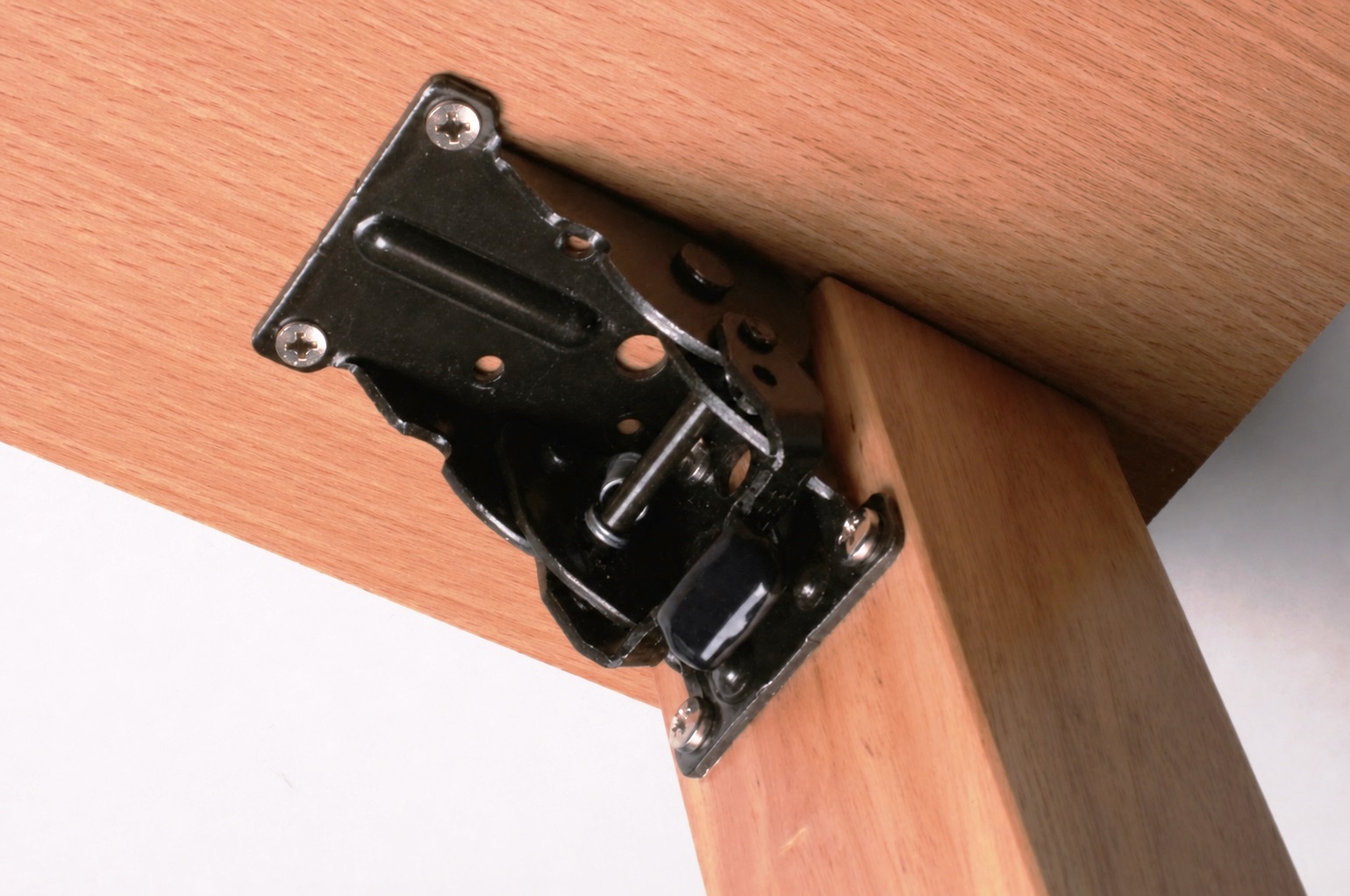

The table leg attachment B205-KTL-BK connects the table leg stably to the table top and allows the leg to be folded in a space-saving manner.

The integrated lever makes the folding mechanism easy to unlock and operate.

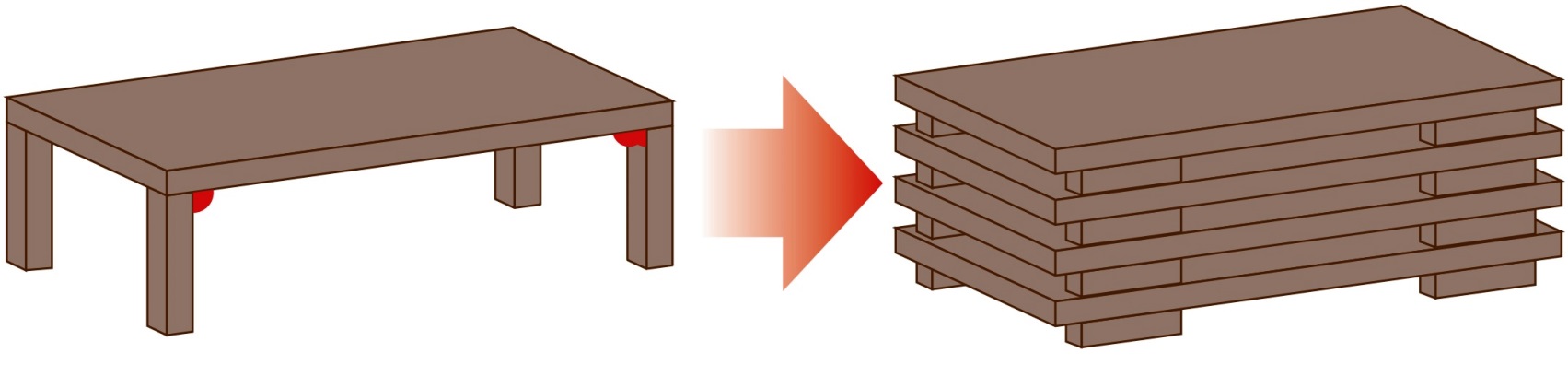

The B205-KTL-BK folding table leg fitting is particularly suitable for furniture that needs to be stored flat or space-saving after use.

The sturdy steel construction ensures a reliable connection between leg and tabletop.

The fitting is a practical solution for low tables and flexible furniture constructions with foldable table legs indoors.



The high-quality table leg folding fittings B205-KTL-BK are perfect for, among other things:

• Folding legs
• mobile furniture
• Space-saving furniture
• low tables
• Coffee Tables
• Wooden Table Legs

Technical details:

• Weight: 200 g
• Size: 71 mm (2-51/64″)

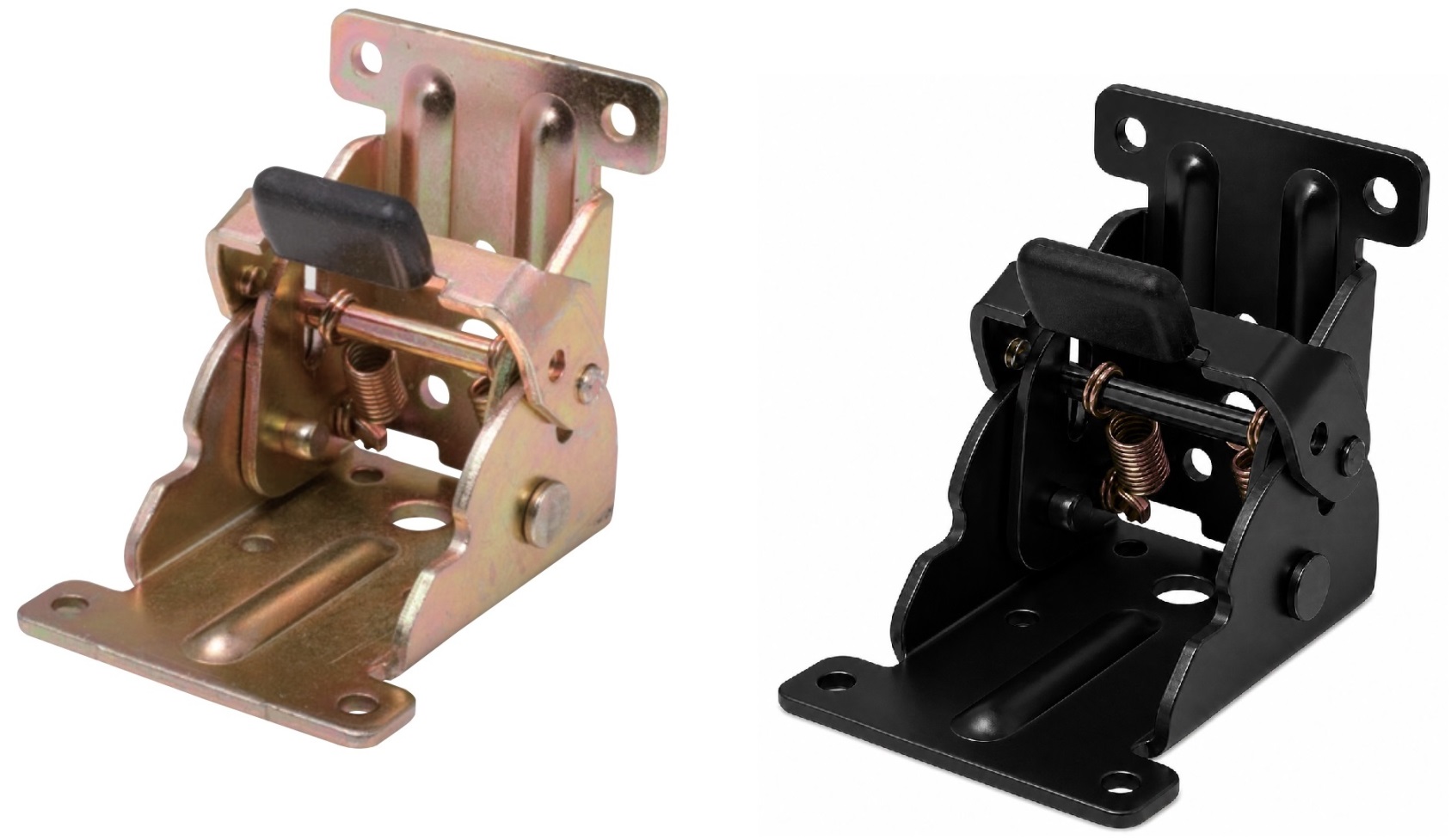

• Available in 2 surface colours: yellow galvanised or black
• Easy installation, stable
• suitable for low tables
• Compact design
• Stable metal mechanism
• Material thickness: 2.6 mm (7/64″)
• Table leg can be folded by lever
• suitable for table legs from approx. 50 x 50 mm (1-31/32″)
• Suitable for table legs up to approx. 300 mm (11-13/16″) high
• Fastening via several screw points
• Galvanized, yellow
• steel, robust
• High brand quality from Kojima (Japan)

Surface:

• Galvanized, yellow
• The galvanized surface protects against rust and corrosion

Assembly:

• The fastening is done with a semi-round head screw ⌀3.5 mm. Flat round head screws are not suitable (not included)

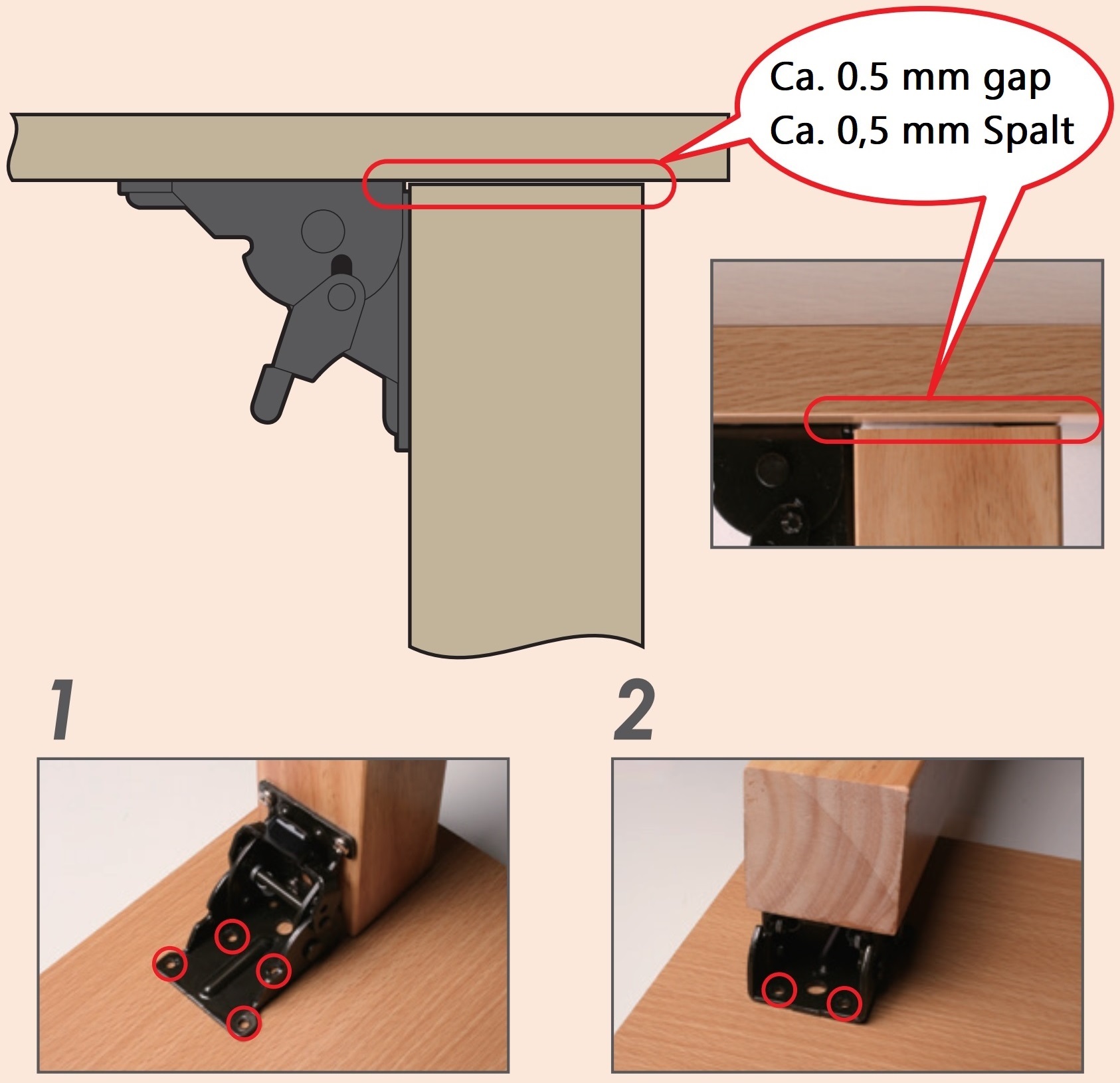

• A gap of approx. 0.5 mm must be provided between the table top and the table leg. Without this small distance, the fitting cannot lock correctly
• The table leg attachment has 11 mounting holes with a diameter of ⌀4.5 mm (11/64″)
• The table leg folding fitting B205-KTL-BK is first attached to the table leg with five fastening screws when locked
• Then the leg is fixed to the tabletop at four marked attachment points with screws
• Then the leg is folded in and the two other attachment points are screwed together (for more details, see assembly drawing)



Dimensions:

• Length of the table leg folding fitting: 71 mm (2-51/64″)
• Depth: 63 mm (2-31/64″)
• Width: 53 mm (2-3/32″)

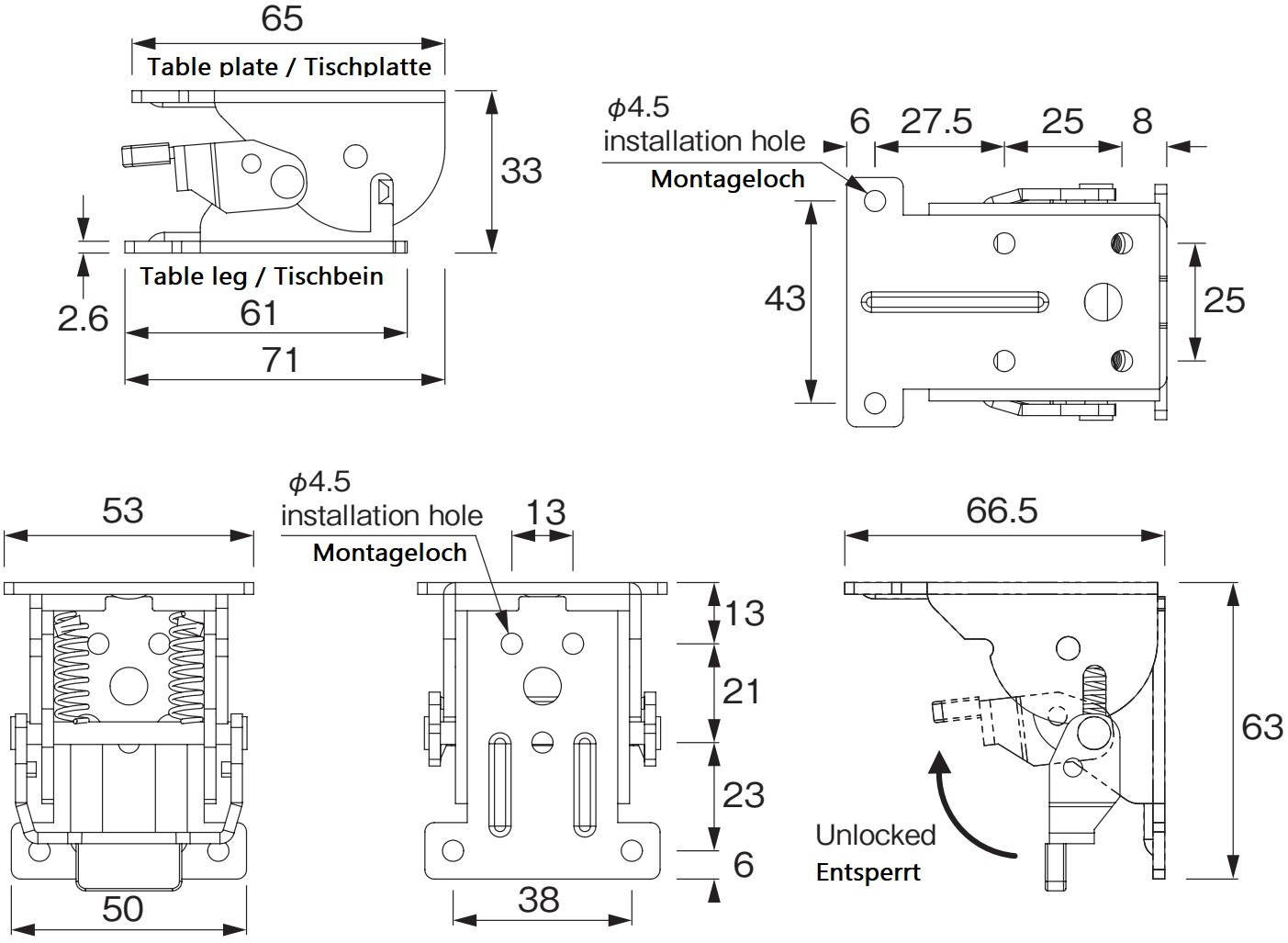

For more dimensions and details , see technical drawing.

Material:

• The table leg hinged fittings B205-KTL-BK are made of robust steel
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Included in delivery:

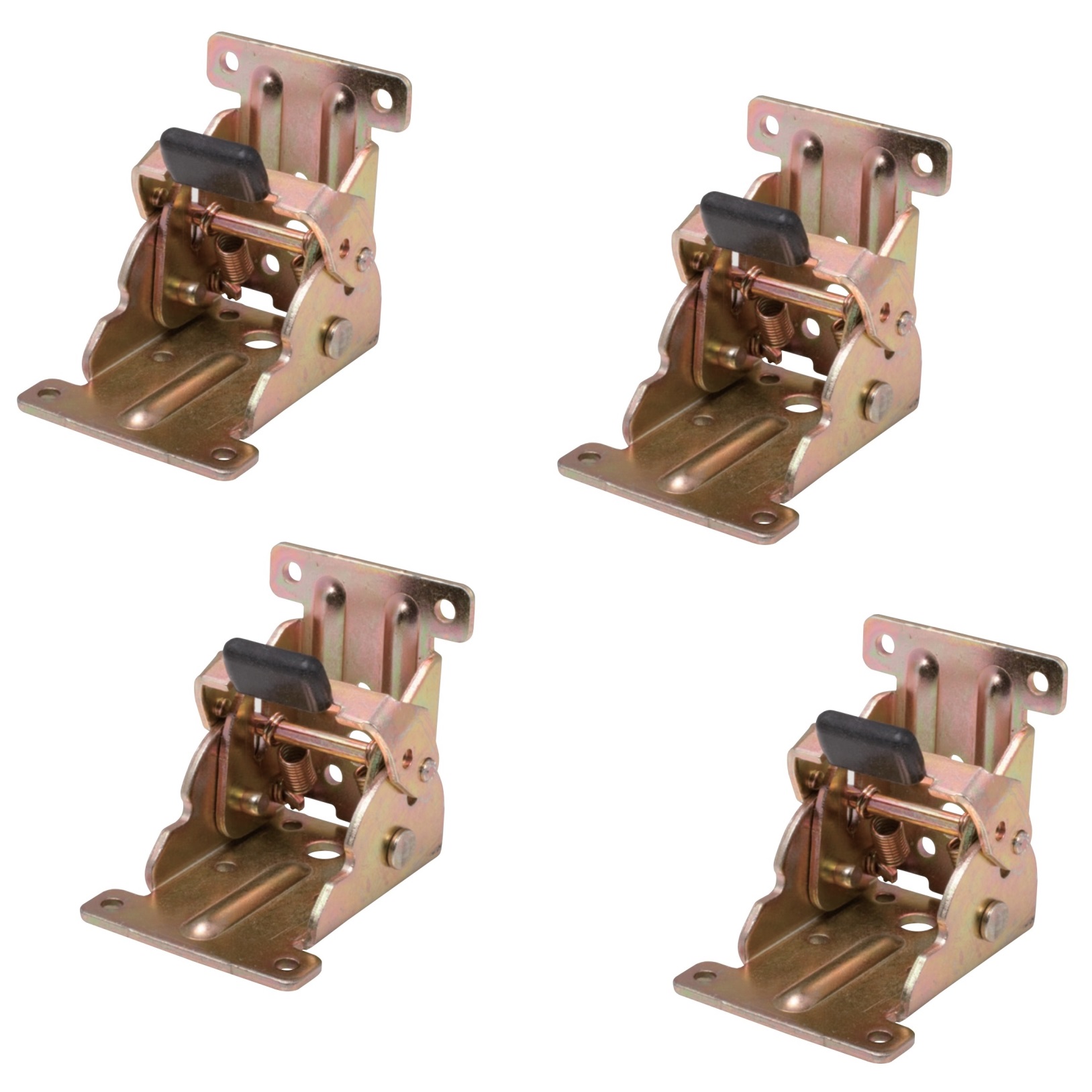

• 4 pieces table leg hinged fitting B205-KTL-BK made of robust steel, galvanized, yellow
• This item does not include mounting screws

Watch the product video:

Additional information:

• Download assembly instructions

Manufacturer’s part numbers:

• Article ID: B205-KTL-BK
• GTIN number (EAN, UPC): 0618455525476

Manufacturer: Kojima (Japan)
