Description
4pcs Corrosion Resistant Magnetic Counter Plate Coated with SUS304 (V2A) Stainless Steel Made of Sturdy Steel, Surface: SUS304 Stainless Steel, MC-JM49 (140-050-149)
Application:
Stainless magnetic counterpart for magnetic latches, magnetic lock, cabinet door and much more.
MC-JM49 (140-050-149) magnetic counter plate is made of steel and coated with SUS304 stainless steel.
This magnetic counterpart is specifically designed for use in damp, wet or weather-stressed areas where traditional steel counterparts would rust.
The MC-JM49 magnetic counterpart is suitable for corrosion-resistant magnetic latches and push magnetic closures.
For example, the MC-JM49 magnetic counter plate enables convenient closing and opening without furniture handles, even in bathrooms, kitchens or outdoor furniture.
The high-quality MC-JM49 magnetic counter plates are perfect for, among other things:
- Outdoor furniture
- Bathroom furniture
- Balcony cabinet
- Boat furniture
- Yacht Interior
- Caravan furniture
- Caravan furniture
- Patio cabinet
- Motorhome
- Campervan
- Sauna furniture
- Spa
- Medicine cabinet
- Gastronomy furniture
- Garden shed
- Magnetic flycatcher
- Magnetic closure
- Cabinet door
Technical details:
- Weight: 10 g
- Size: 45 mm (1-49/64″)
- Easy installation, practical, stable
- Material thickness: 2 mm (5/64″)
- Stainless Steel SUS304
- steel, robust
- High brand quality from Sugatsune / LAMP®.
Surface:
- Stainless Steel SUS304
- SUS304 stainless steel is characterized by its high corrosion resistance and durability, which makes it ideal for use in demanding environments
- In addition, it offers an attractive, polished or satin finish that is both modern and easy to maintain
Assembly:
- The MC-JM49 magnetic counter plate is screwed onto the cabinet door
- The MC-JM49 magnet counterpart has 2 mounting holes
- The distance between the mounting holes is 40 mm (1-37/64″) (for more details, see assembly drawing)
Dimensions:
- Magnet Counterpart Length: 45 mm (1-49/64″)
- Width: 15 mm (19/32″)
- Material thickness: 2 mm (5/64″)

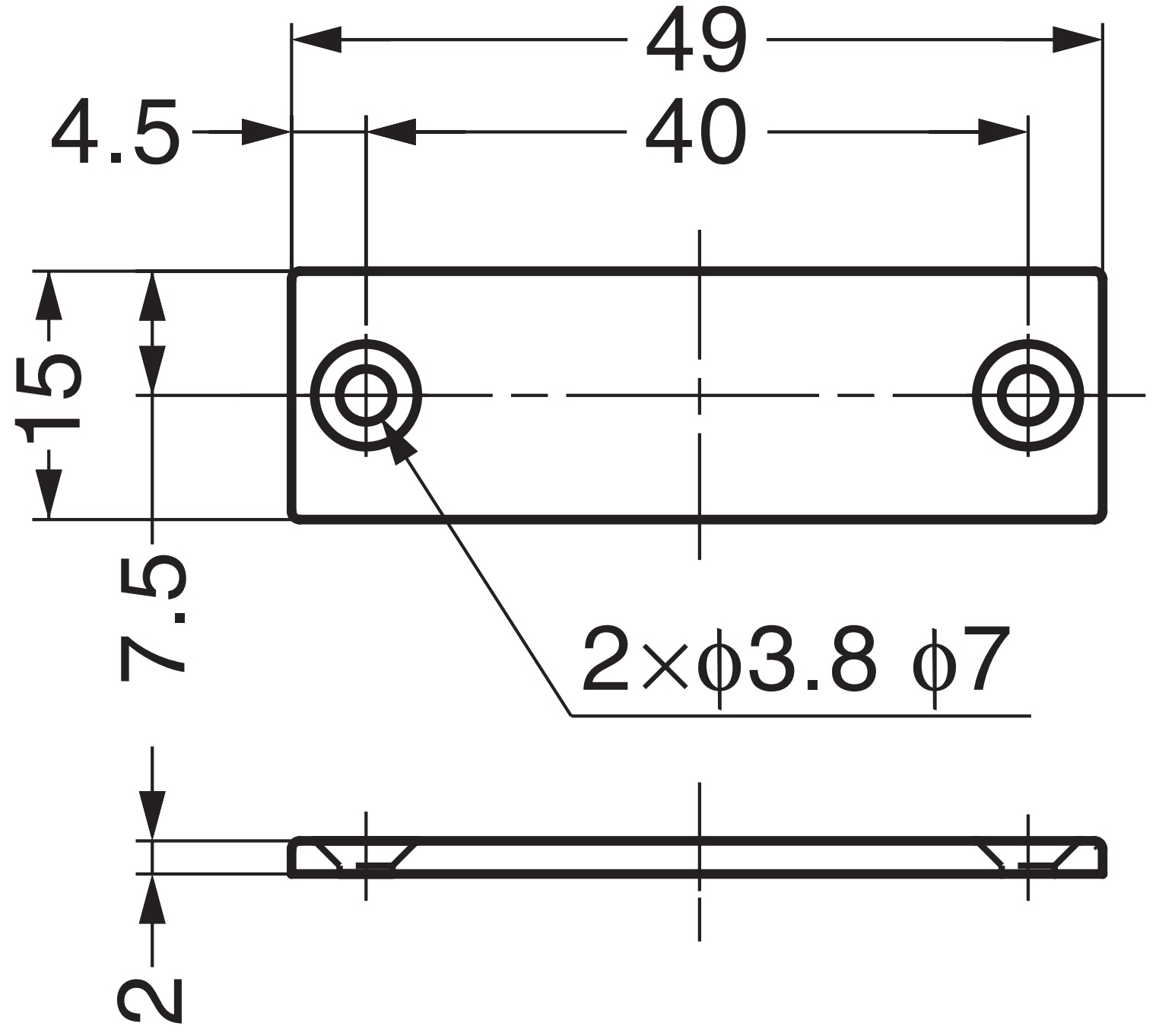

For more dimensions and details , see technical drawing.
Material:
- The MC-JM49 magnetic counter plates are made of sturdy steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:

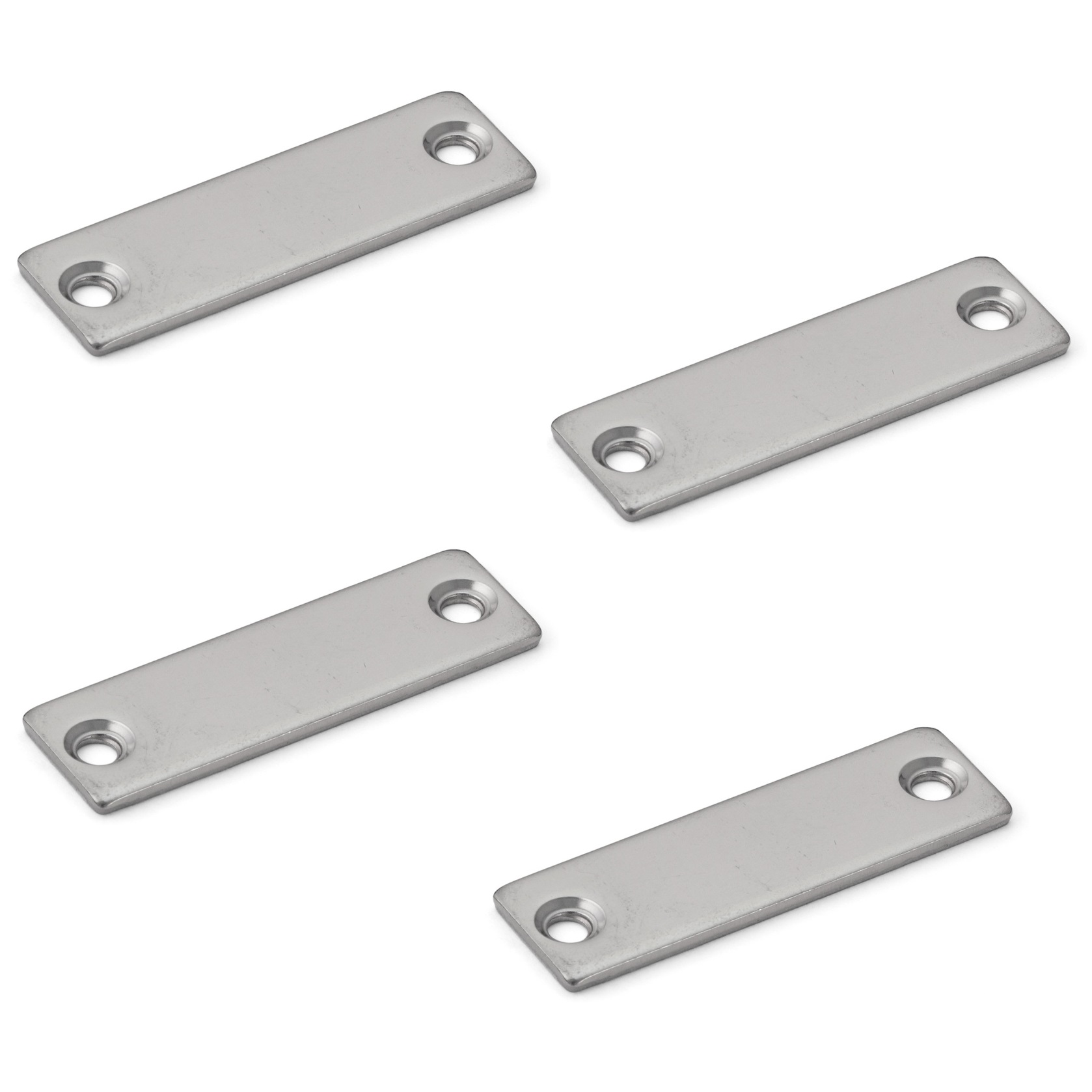

- 4 pcs magnetic counter plate MC-JM49 (140-050-149) made of sturdy steel, stainless steel SUS304
- This item does not include mounting screws
Manufacturer’s part numbers:
- Article ID: 140-050-149
- Item number: MC-JM49
- EAN number: 4510932002240
Manufacturer: Sugatsune / LAMP® (Japan)
