6 pieces robust screw-on strike plate, made of steel, surface: nickel-plated, 50 mm (1-31/32″), 14.01.510-1.

Description

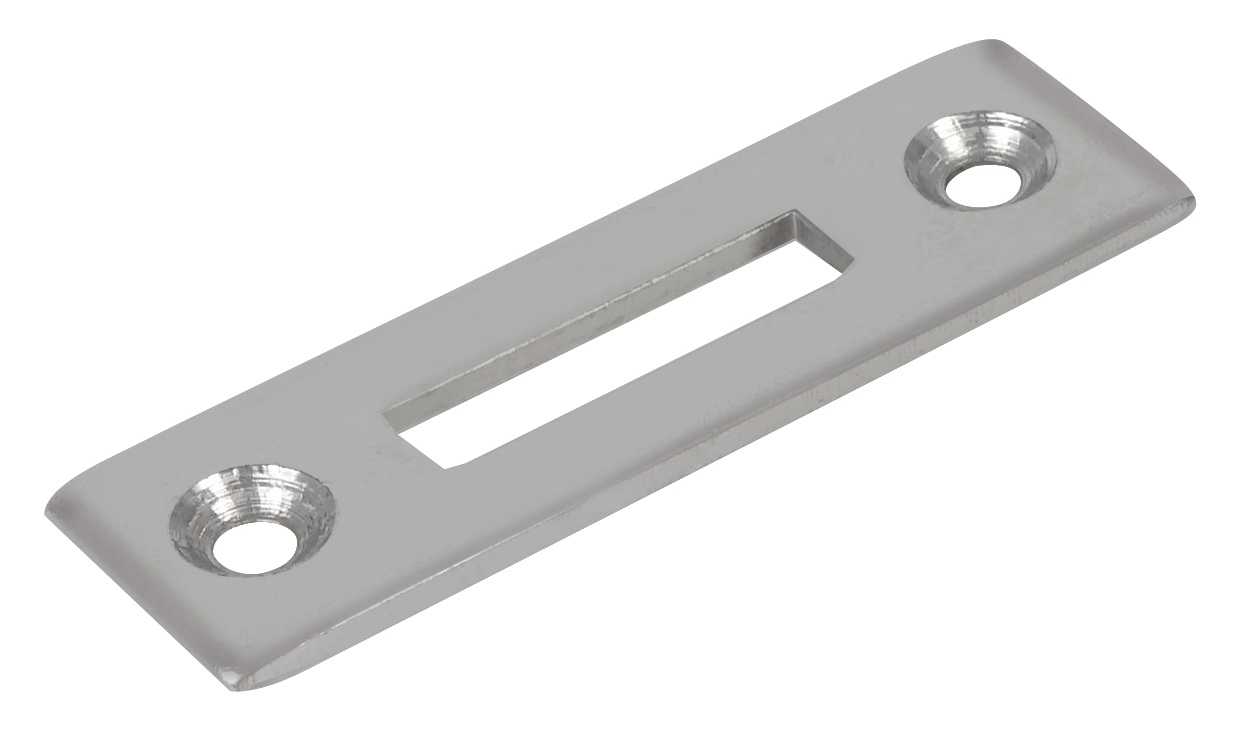

Six pieces of solid screw-on strike plate 14.01.510-1, made of robust steel, surface: nickel-plated, size: 50 mm (1-31/32″)

Application:

Screw-on counter plate for roller shutter lock, sliding door lock, furniture lock and much more.

Practical screw-on counter plate 14.01.510-1 is used to lock roller shutters and furniture sliding doors. It picks up bolts or latches and secures the closed position.



The two locking hooks spread in the strike plate after closing and thus ensure a stable locking of roller blinds or sliding doors.

The strike plates 14.01.510-1 are suitable for installation in new furniture as well as for repairing existing cabinets.

The high-quality strike plates 14.01.510-1 are perfect for, among other things:

• Roller shutter lock
• Sliding door lock
• Furniture lock

Technical details:

• Weight: 11 g
• Size: 50 mm (1-31/32″)
• Easy installation, practical, stable
• Can be used on the left or right
• nickel-plated
• Steel
• robust
• high brand quality from UMAXO®

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that looks modern and timeless at the same time
• They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• Fastening is done with 2.5 mm to 2.9 mm screws (not included)
• Screw-on strike plate 14.01.510-1 is for screwing
• The screw-on counter plate 14.01.510-1 has two mounting holes with a diameter of ⌀3 mm
• The distance between the mounting holes is 38 mm (1-1/2″)

Dimensions:

• Strike plate height: 50 mm (1-31/32″)
• Width: 15 mm (19/32″)
• Latchuck Width: 22 mm (55/64″)
• Latchuck Height: 7 mm (9/32″)

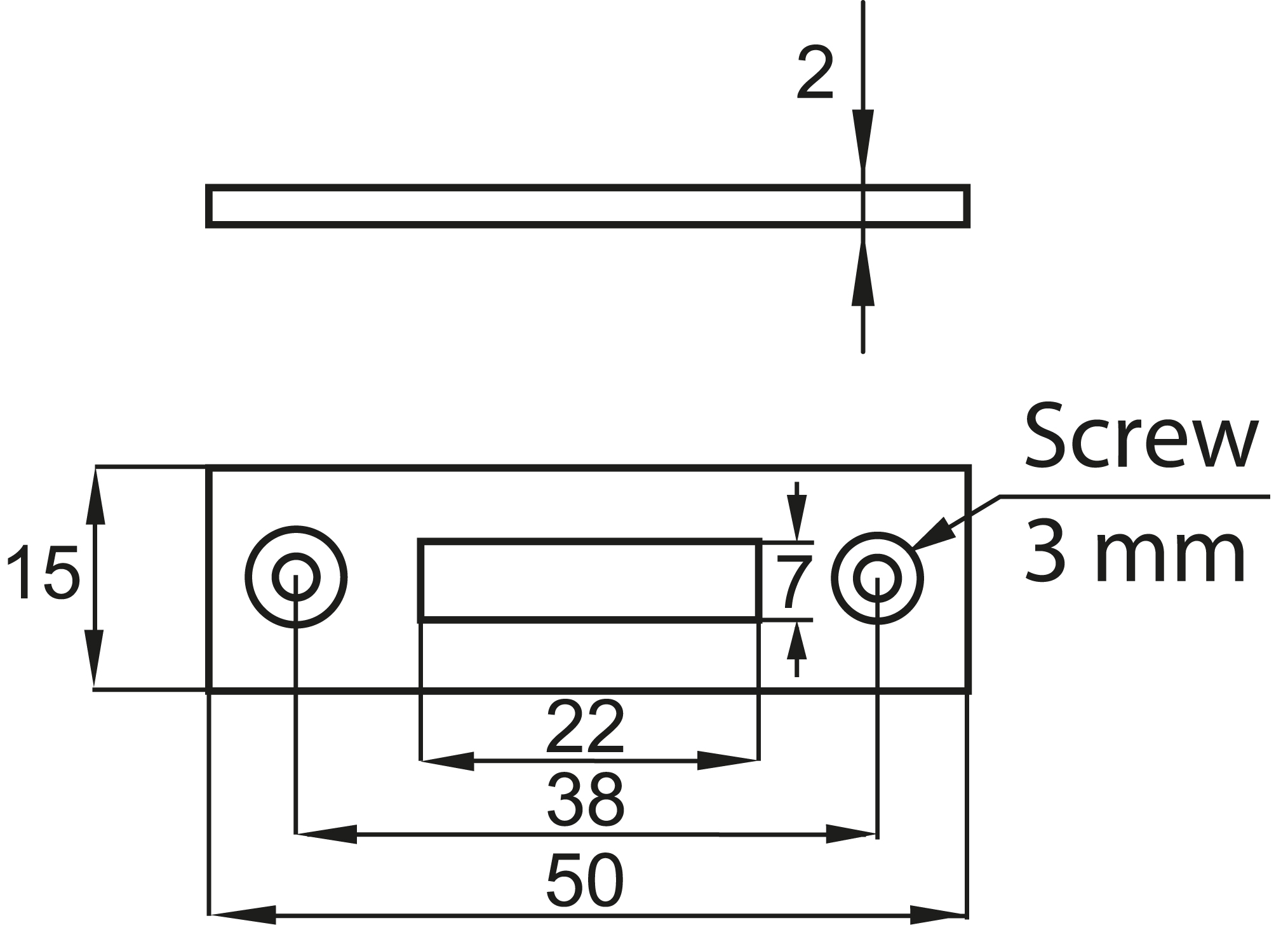

For more dimensions and details, see technical drawing.

Material:

• The 14.01.510-1 strike plates are made of robust steel
• Material thickness: 2 mm (5/64″)
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Included in delivery:

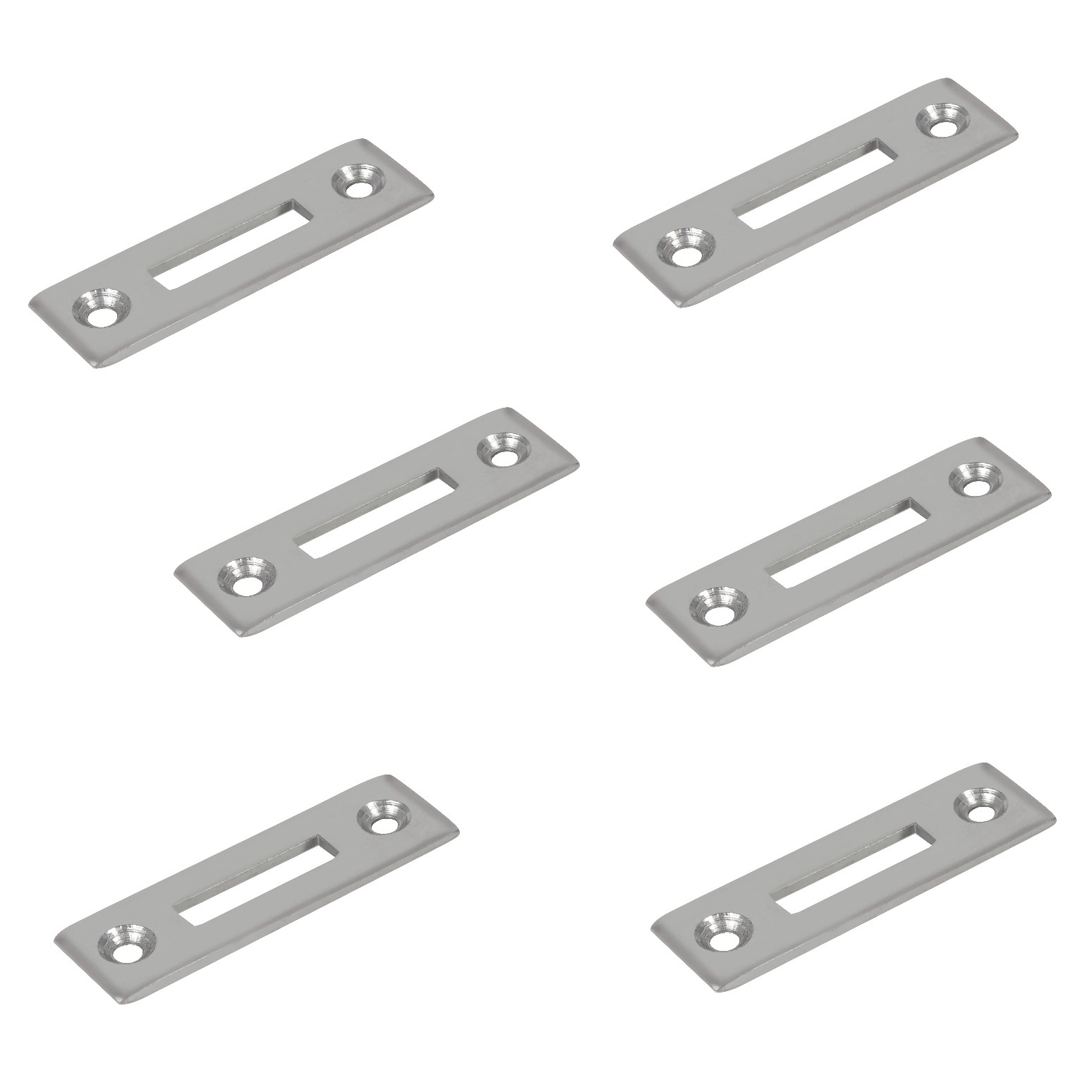

• Six screw-on strike plate 14.01.510-1 made of robust steel, nickel-plated

Additional information:

• Download Reach Declaration

Manufacturer’s part numbers:

• Article ID: 14.01.510-1
• EAN number: 5704866033732

Manufacturer: SISO Denmark
