Description
Practical drawer set, with extra thin frames, frame height 88 mm (3-15/32″), made of robust steel, surface: anthracite grey, 3275135, drawer depth: 350 mm (13-25/32″), version: partial extension with soft-close
Application:

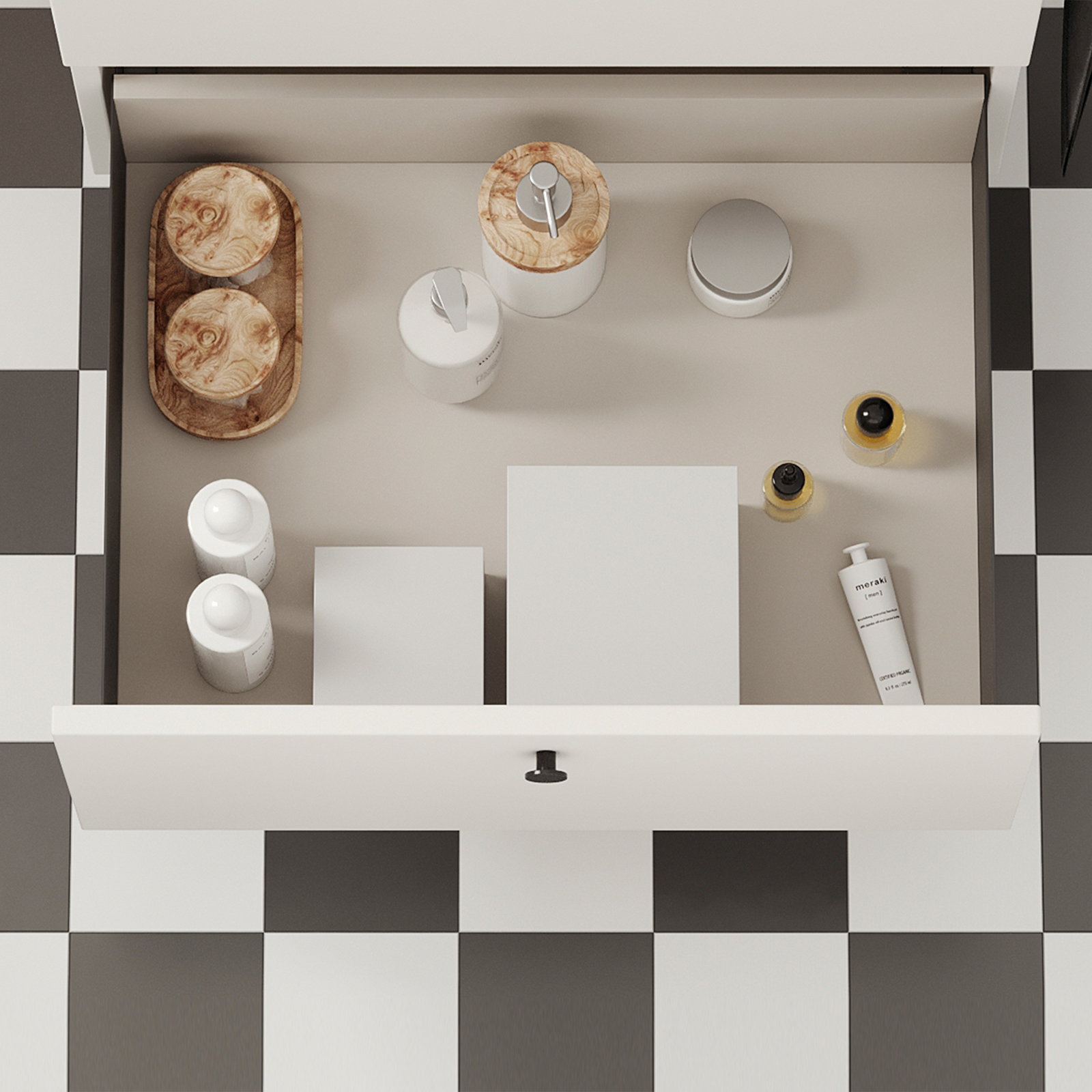

Drawer set for kitchen furniture and much more.
The guide rails offer partial extension, self-closing and soft close for comfortable and quiet closing.
The high-quality drawers 3275135 are perfect for most pieces of furniture in the kitchen and living area, as well as for use in bathroom furniture and office furniture.
The sides have a height of 88 mm (3-15/32″), are extra thin and thus offer more interior space and allow for a clean, straightforward look.
The front can be easily adjusted on the frame (height adjustment: ±2 mm, side adjustment: ±1.5 mm), the rails themselves also allow a vertical adjustment of +5 mm (11/64″).
For everyday use, this means: smooth running, easy installation and reliable function with compact installation dimensions.
Can be installed in a body with the minimum height of 113 mm (4-29/64″).
The load capacity of the drawer 3275135 is 25 kg (56 lbs).
The high-quality drawers 3275135 are perfect for, among other things:
- Bathroom
- Office furniture
- Living room furniture
- Sideboards
- Chests of drawers
- Pharmacy extracts small
- Workshop cabinets
- Storage cabinets
- Nightstands
- Wardrobe Chests
- Kitchen furniture
Technical details:
- Design: Partial pull-out with soft-close
- Weight: 1690 g
- Load capacity (load capacity): 25 kg (56 lbs)
- Drawer depth: 350 mm (13-25/32″)
- Available in 5 nominal lengths: 300 mm, 350 mm, 400 mm, 450 mm and 500 mm
- Available in 3 versions: Soft-Close Full Extension with Self-Closing Closure, Soft-Close Partial Extension with Self-Closing and Push-to-open Partial Extension
- Available in 3 heights: 88 mm, 122 mm and 159 mm
- Available in 2 surface colours: white and anthracite grey
- Also available with rectangular railings
- Easy installation, stable
- Drawer depth: 340 mm (13-25/64″)
- Maximum Bottom Thickness: 19 mm (3/4″)
- Height adjustment: +5.0 mm (11/64″)
- Side adjustment: ±1.5 mm

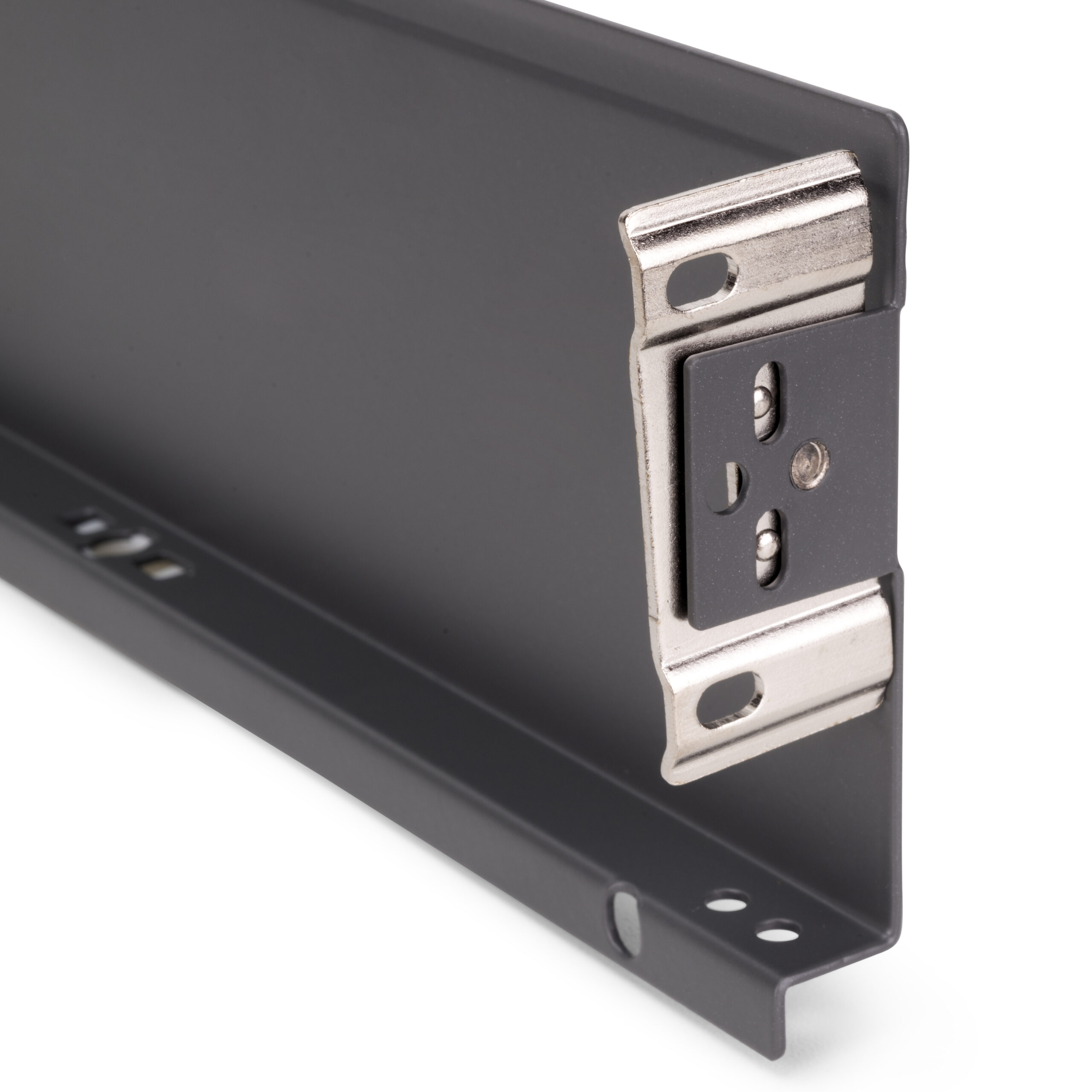

- Integrated front mounting and rear wall bracket
- Tool-free disassembly of the drawer via the integrated release
- Anthracite grey
- steel, robust
- High brand quality from UMAXO®
Surface:
- Anthracite grey
- Anthracite grey fittings and components look modern and discreet at the same time, which means that they can be harmoniously integrated into different living styles
- The hard-wearing surface conceals fingerprints and minor signs of use

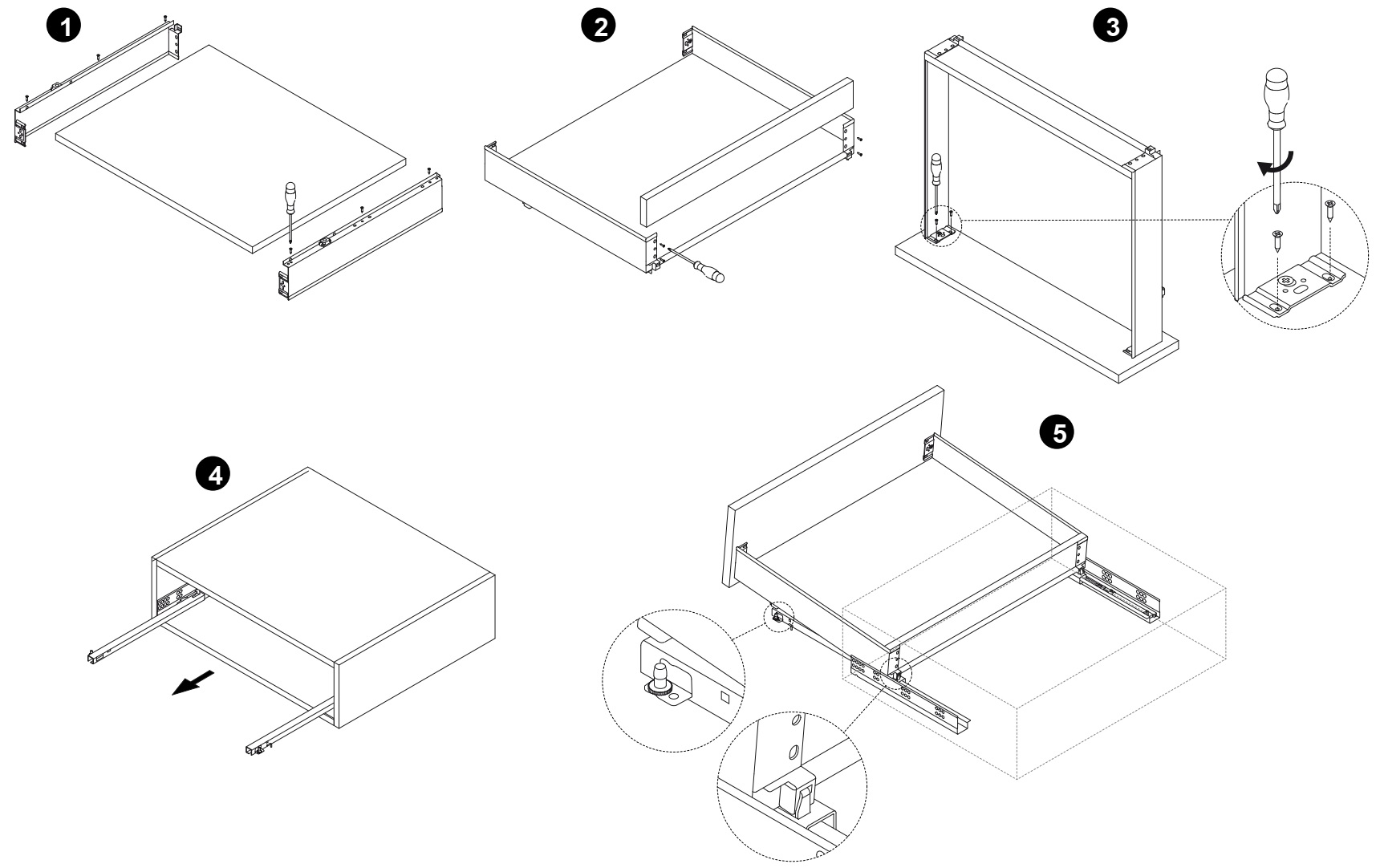

Assembly:
- First, the furniture body for the drawer rails must be drilled; the rails are attached to the body with 3.5 x 16 mm screws or Euro screws ⌀6.3 x 13 mm
- Then the wooden drawer bottom is prepared according to the drilling pattern and screwed to the frames with the help of the chipboard screws 3.5 x 14 mm countersunk lens head

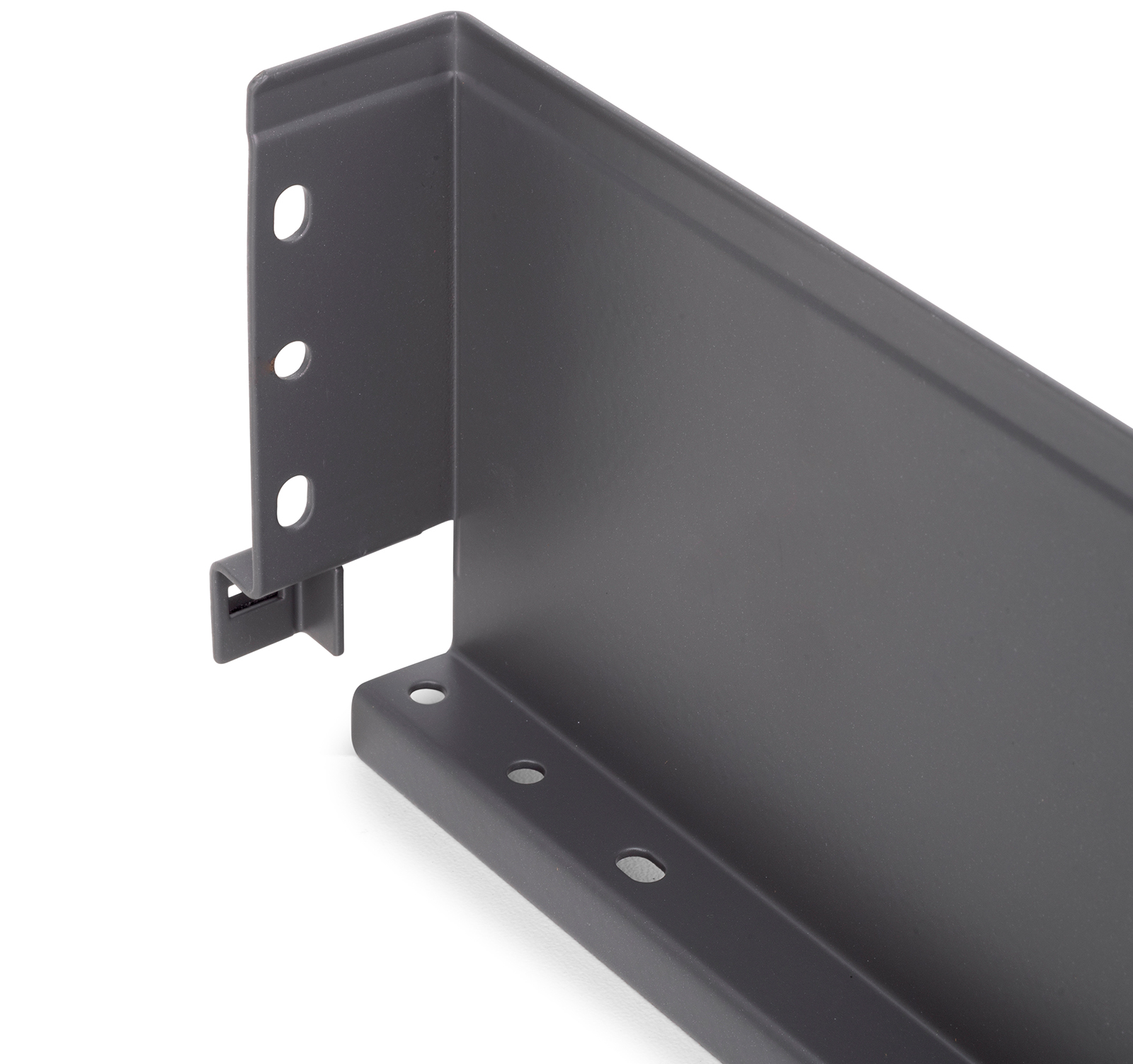

- Then the back wall is pushed into the frames and screwed into place. The height of the back panel should be 60 mm (2-23/64″)
- Next, the front is attached to the drawer with screws (e.g. 3.5 x 16 mm)
- The finished drawer is then placed on the guide rails and pushed in
- Then the front is aligned vertically and ±1.5 mm horizontally using an eccentric ±2 mm and then tightened with the screw

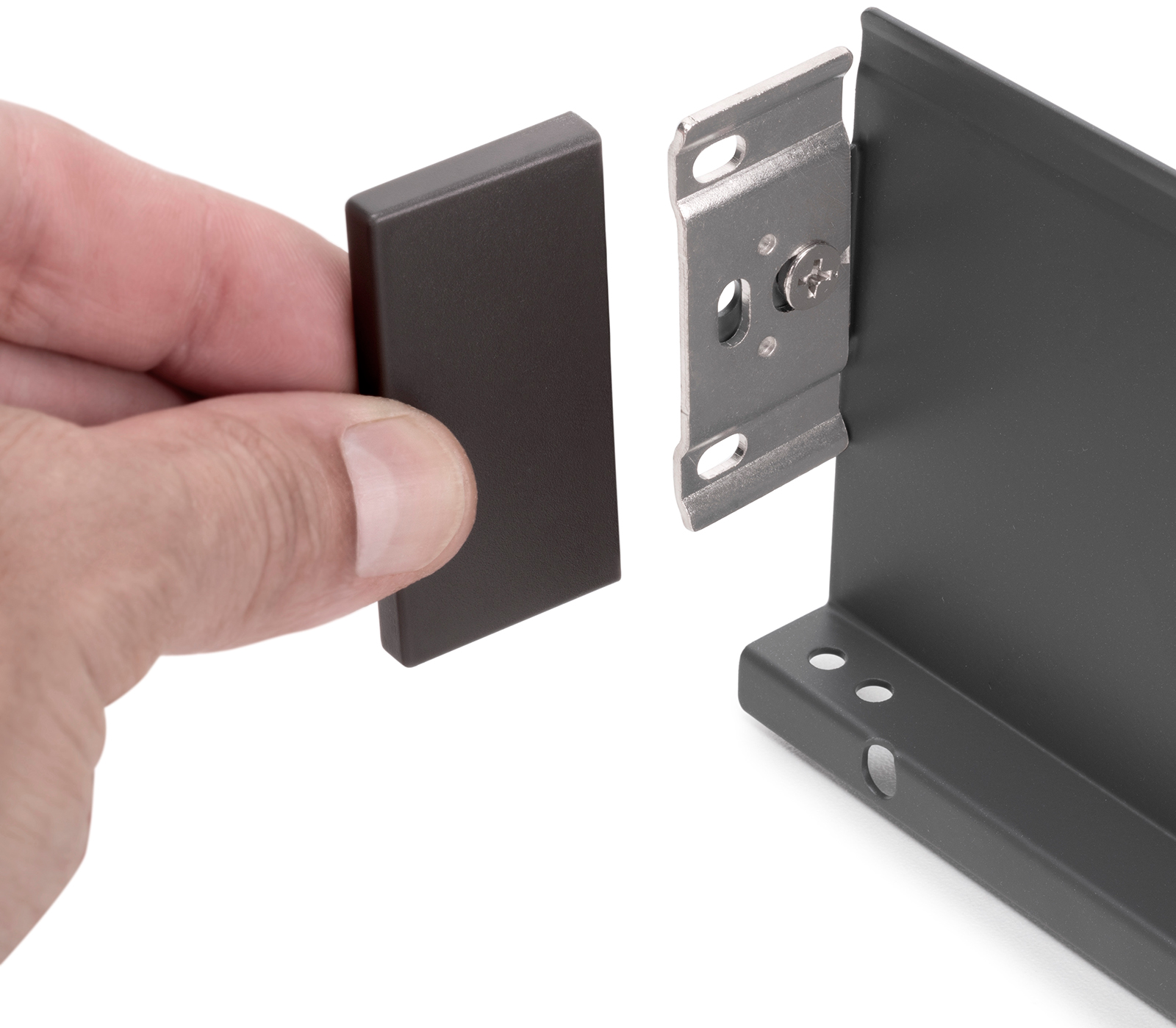

- Finally, the two cover caps are put on (for more details, see assembly drawing)
Dimensions:
- Drawer depth: 350 mm (13-25/32″)
- Height of sides: 88 mm (3-15/32″)

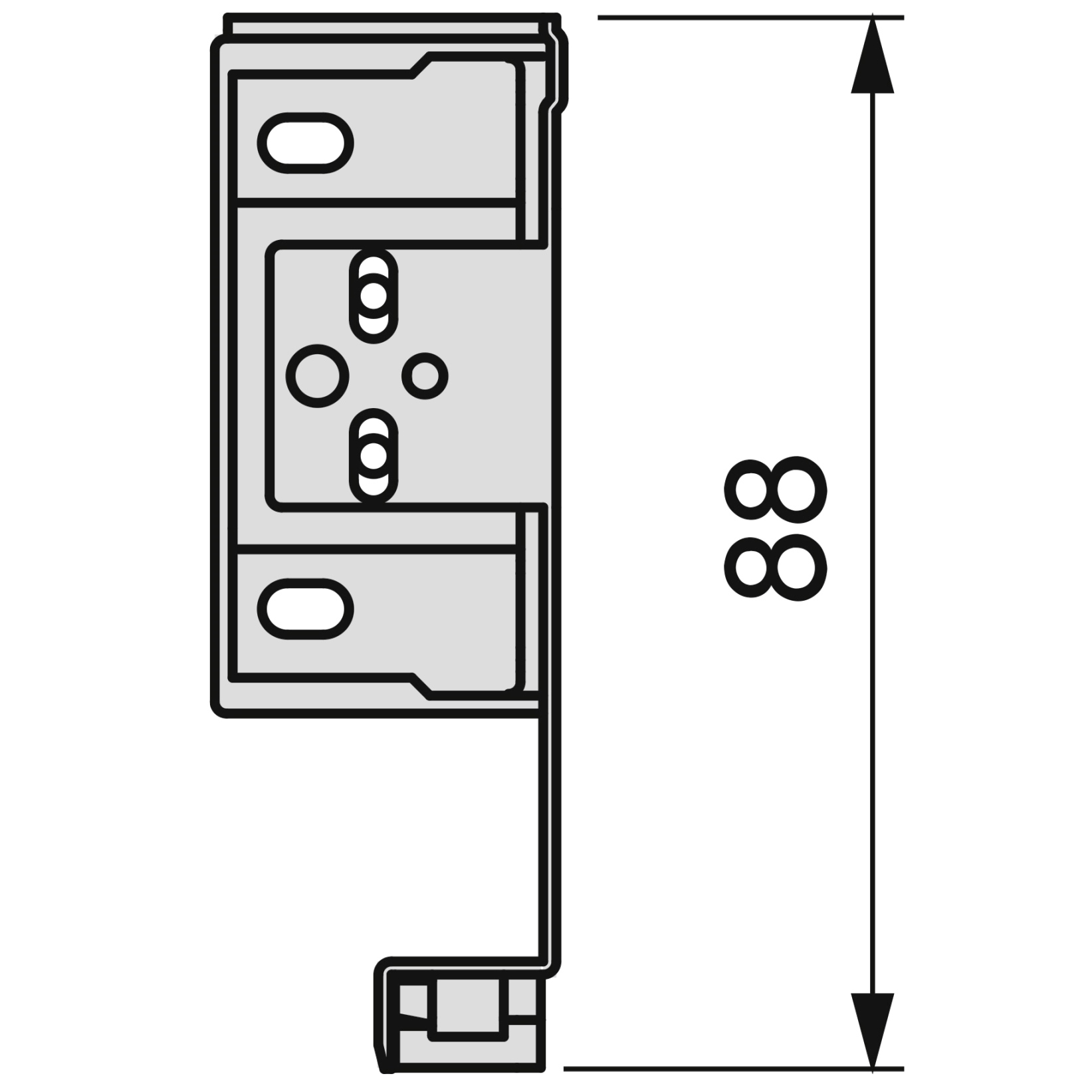

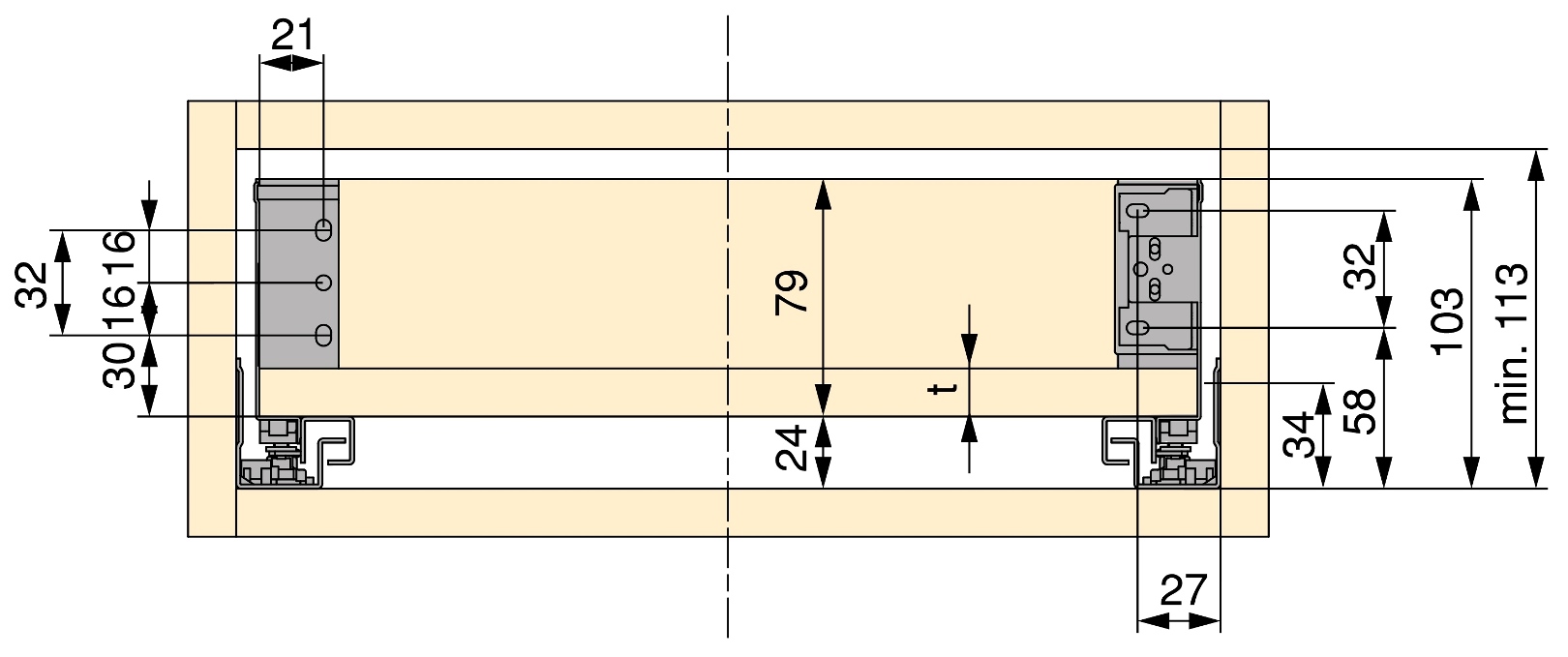

For more dimensions and details , see technical drawing.
Material:
- The drawers 3275135 are made of sturdy steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

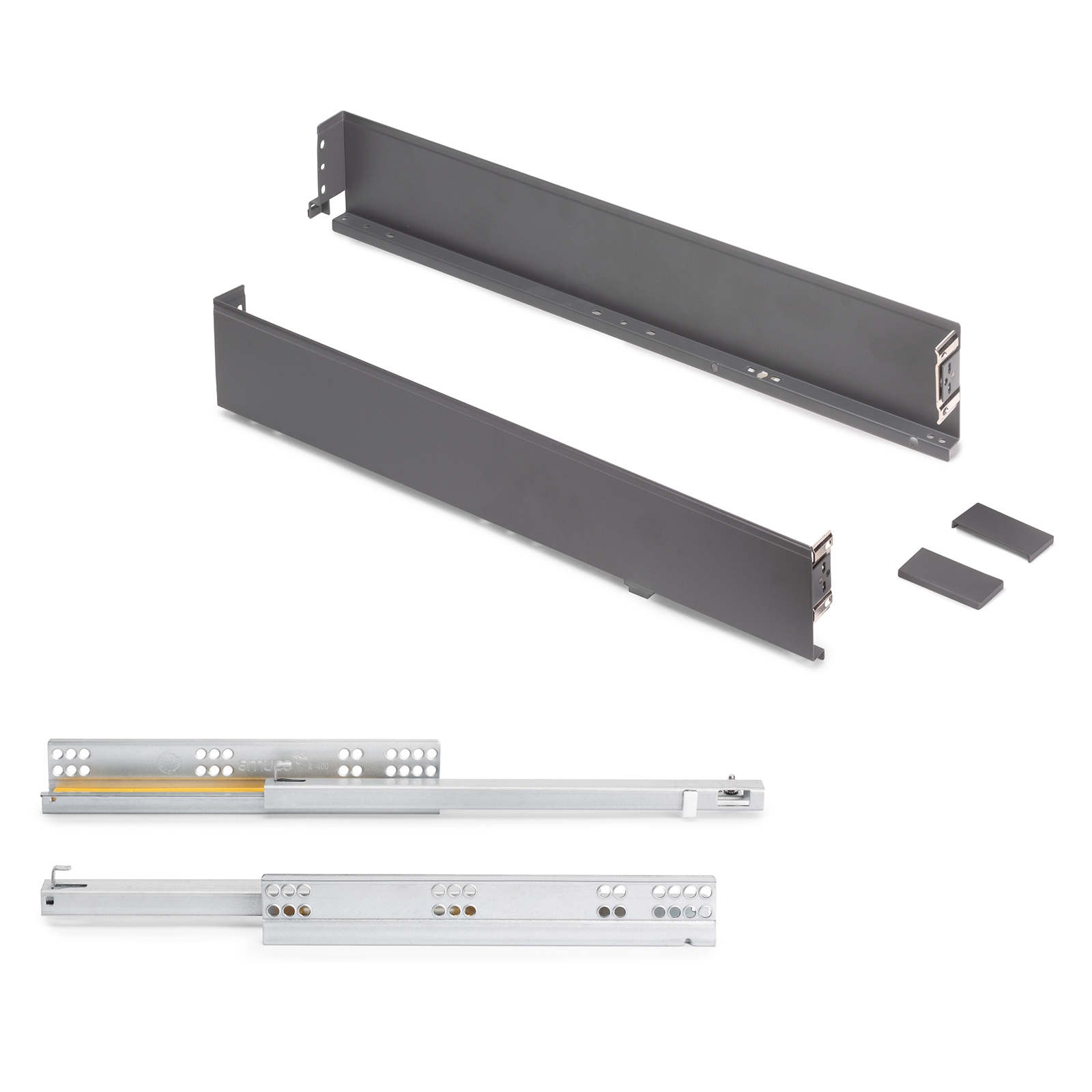

Included in delivery:
- 1 set of drawers 3275135 made of robust steel, anthracite grey, 350 mm (13-25/32″)
- 1 pair of guide rails, nominal length: 350 mm (13-25/32″), design: partial extension with soft-close
- 2 pieces cover caps, colour: anthracite grey
- This item does not include mounting screws
Watch the product video:
Additional information:
Manufacturer’s part numbers:
- Article ID: 3275135 and 3019205
- EAN number: 8432393311609 and 8432393127033
Manufacturer: EMUCA
