Description
Practical drawer set, with extra thin frames, frame height 88 mm (3-15/32″), made of robust steel, surface: anthracite grey, 3275335, drawer depth: 440 mm (17-21/64″), version: partial extension with push-to-open
Application:
Drawer set for kitchen furniture and much more.
The guide rails offer partial extension and push-to-open for convenient, handle-free opening by simply pressing the front.

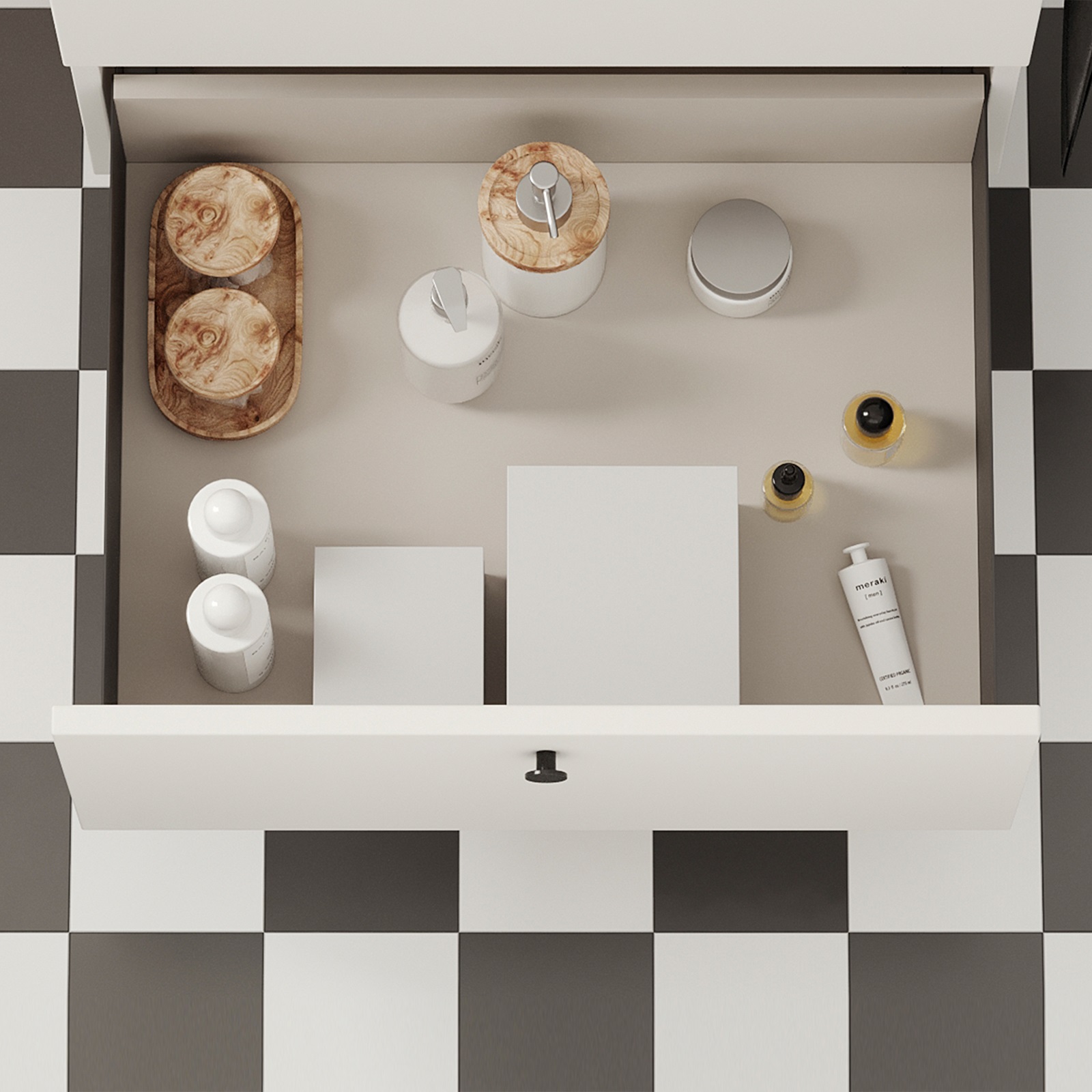

The high-quality drawers 3275335 are perfect for most pieces of furniture in the kitchen and living area, as well as for use in bathroom furniture and office furniture.
The drawer frames have a height of 88 mm (3-15/32″), are extra thin and thus offer more interior space and allow for a clean, straightforward look.
The drawer front can be conveniently adjusted on the frame (height adjustment: ±2 mm, side adjustment: ±1.5 mm), the rails themselves also allow a vertical adjustment of +5 mm (11/64″).
For everyday use, this means: smooth running, easy installation and reliable function with compact installation dimensions.
The 3275335 drawer set can be installed in a furniture body with a minimum height of 113 mm (4-29/64″).
The load capacity of the drawer 3275335 is 25 kg (56 lbs).
The high-quality drawers 3275335 are perfect for, among other things:
- Bathroom
- Office furniture
- Living room furniture
- Sideboards
- Chests of drawers
- Pharmacy extracts small
- Workshop cabinets
- Storage cabinets
- Nightstands
- Wardrobe Chests
- Kitchen furniture
Technical details:
- Design: Partial extension with push-to-open
- Weight: 1953 g
- Load capacity (load capacity): 25 kg (56 lbs)
- Drawer depth: 440 mm (17-21/64″)
- Available in 5 nominal lengths: 290 mm, 340 mm, 390 mm, 440 mm and 490 mm
- Available in 3 versions: Soft-Close Full Extension with Self-Closing Closure, Soft-Close Partial Extension with Self-Closing and Push-to-open Partial Extension
- Available in 3 heights: 88 mm, 122 mm and 159 mm

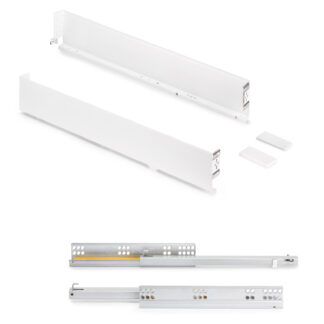

- Available in 2 surface colours: white and anthracite grey
- Also available with rectangular railings
- Easy installation, stable
- Maximum Bottom Thickness: 19 mm (3/4″)
- Height adjustment: +5.0 mm (11/64″)
- Side adjustment: ±1.5 mm

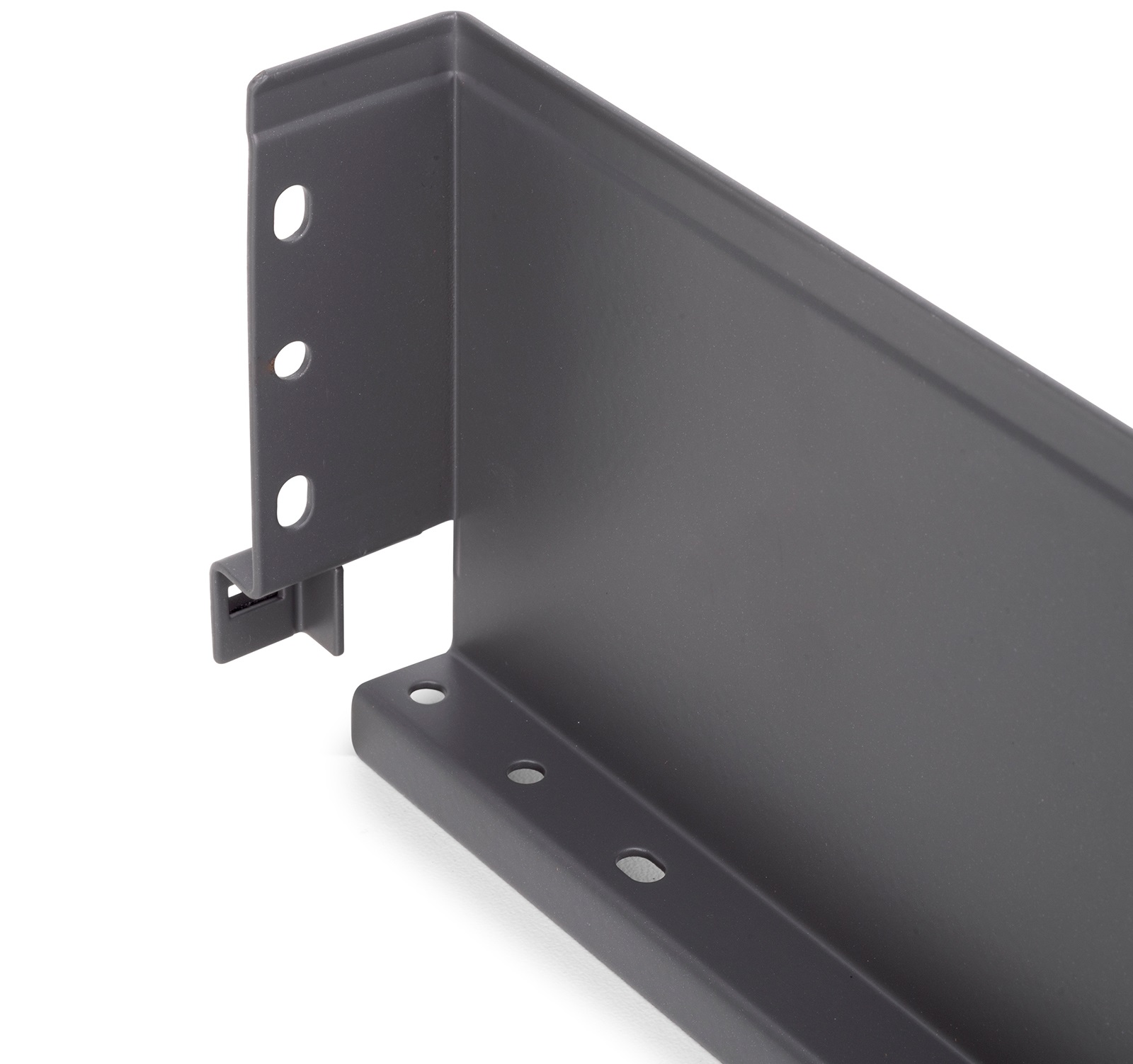

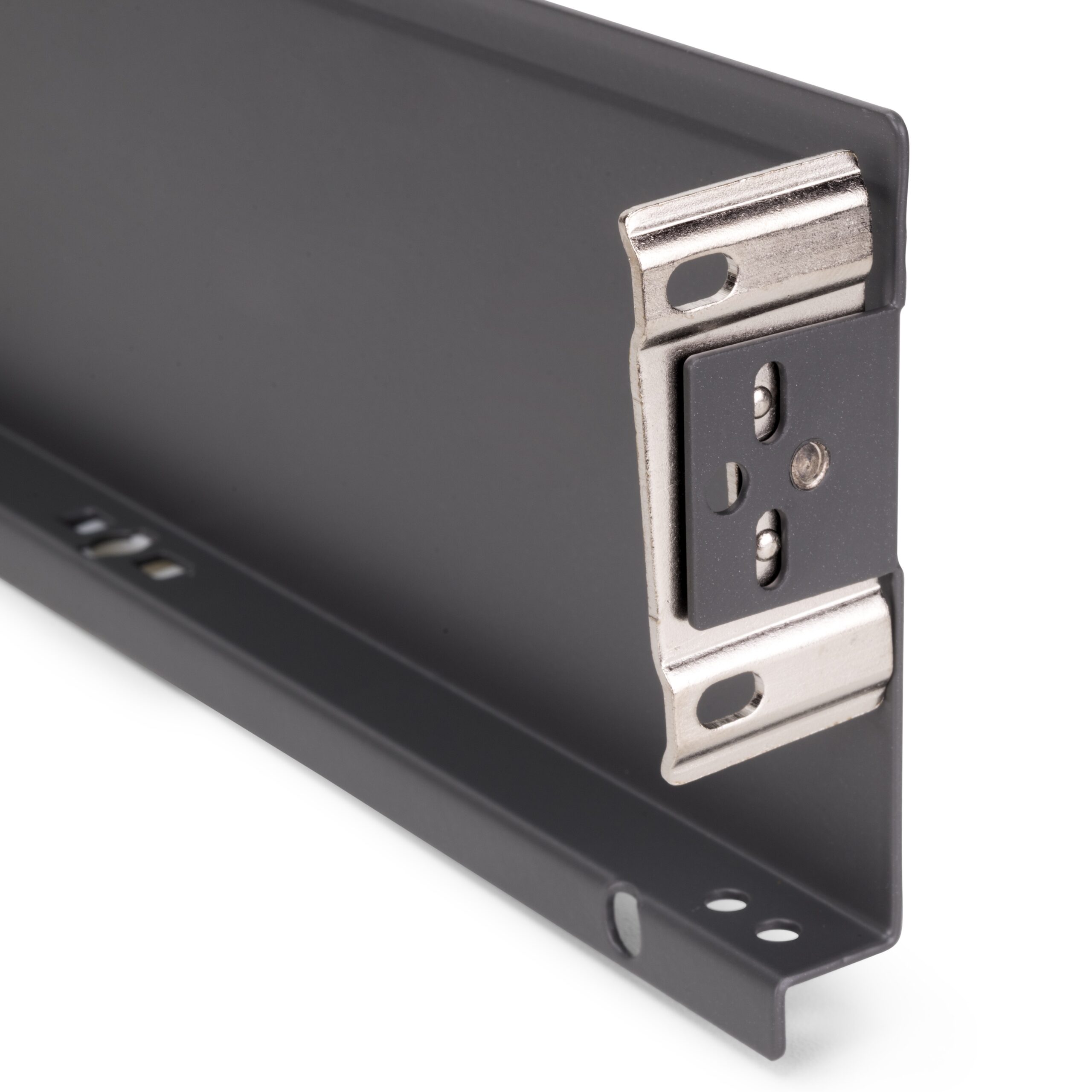

- Integrated front mounting and rear wall bracket
- Tool-free disassembly of the drawer via the integrated release
- Anthracite grey
- steel, robust
- High brand quality from UMAXO®
Surface:
- Anthracite grey
- Anthracite grey fittings and components look modern and discreet at the same time, which means that they can be harmoniously integrated into different living styles
- The hard-wearing surface conceals fingerprints and minor signs of use

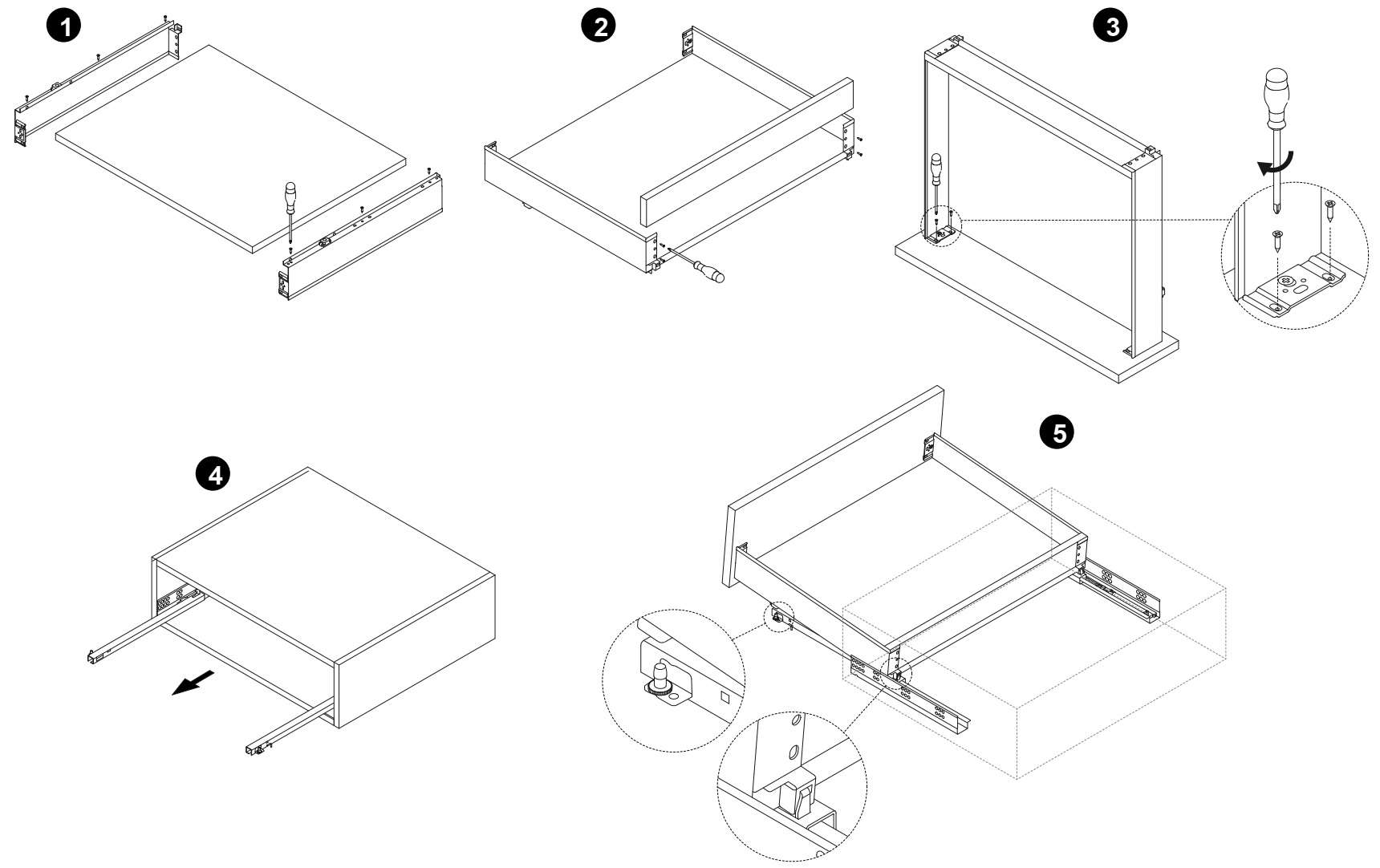

Assembly:
- First, the furniture body for the drawer rails must be drilled; the rails are attached to the body with 3.5 x 16 mm screws or Euro screws ⌀6.3 x 13 mm
- Then the wooden drawer bottom is prepared according to the drilling pattern and screwed to the frames with the help of the chipboard screws 3.5 x 14 mm countersunk lens head
- Then the back wall is pushed into the frames and screwed into place. The height of the back panel should be 60 mm (2-23/64″)
- Next, the front is attached to the drawer with screws (e.g. 3.5 x 16 mm)
- The finished drawer is then placed on the guide rails and pushed in
- Then the front is aligned vertically and ±1.5 mm horizontally using an eccentric ±2 mm and then tightened with the screw

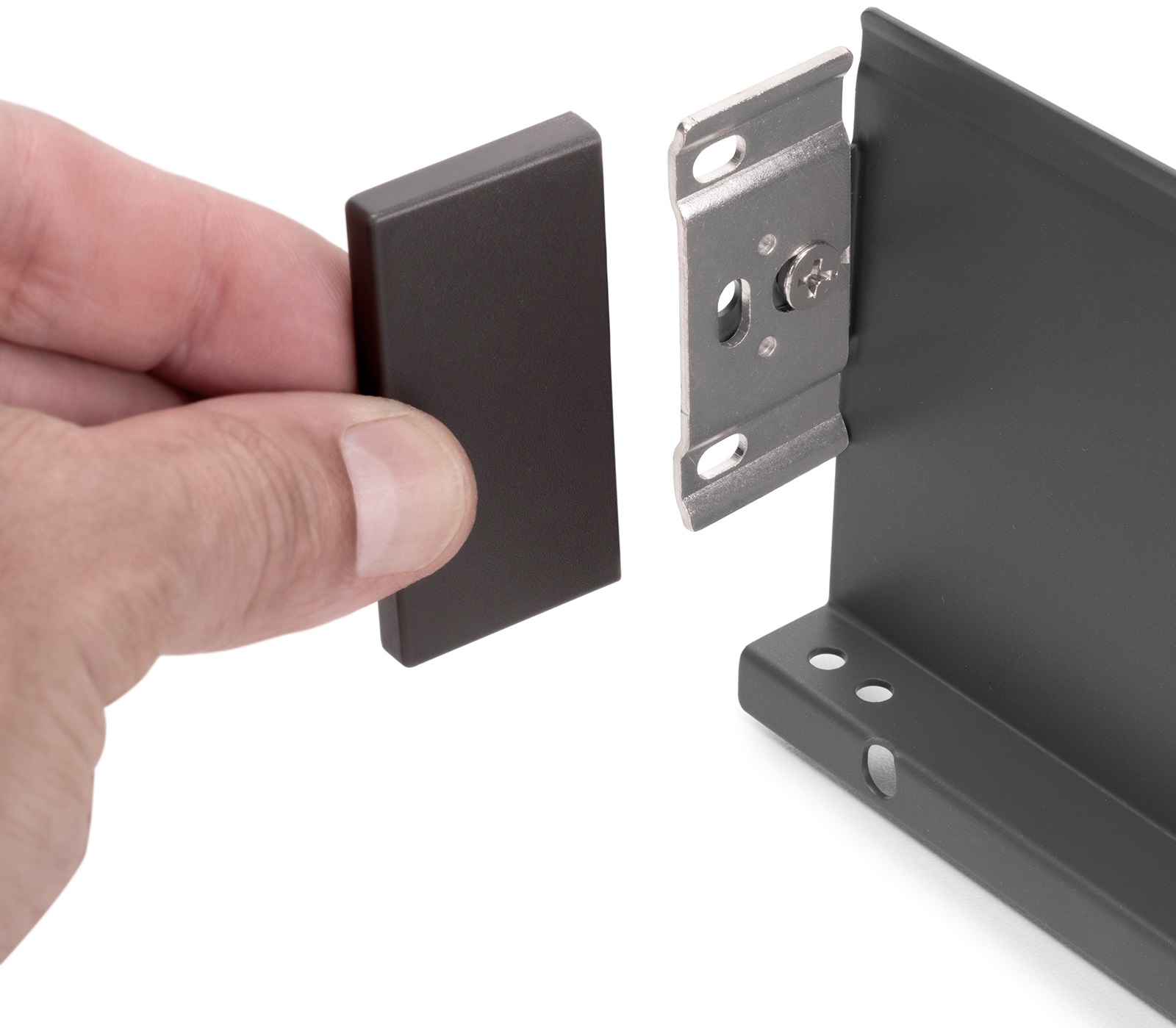

- Finally, the two covers are put on (for more details, see assembly drawing)
Dimensions:
- Drawer depth: 440 mm (17-21/64″)

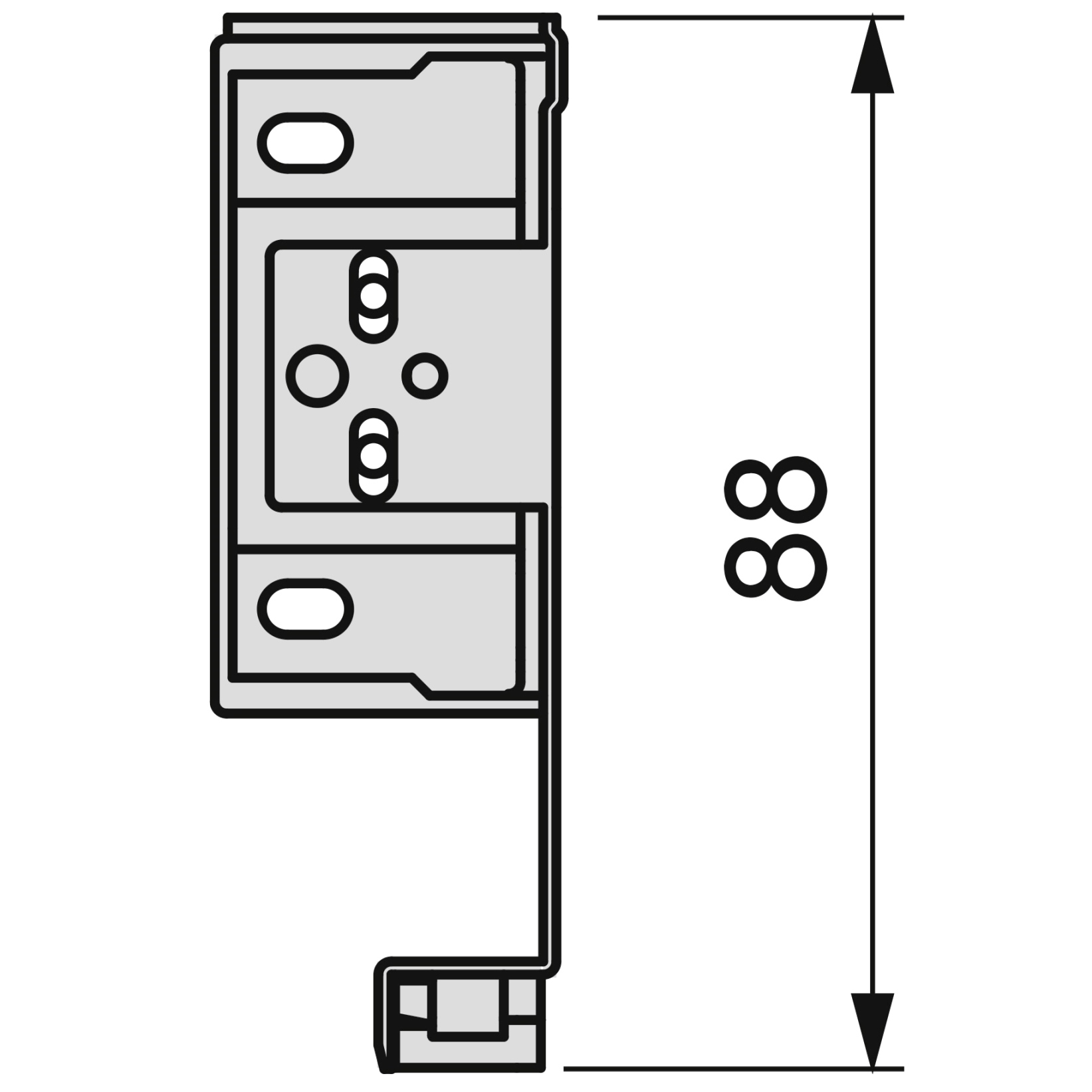

- Height of drawer frames: 88 mm (3-15/32″)

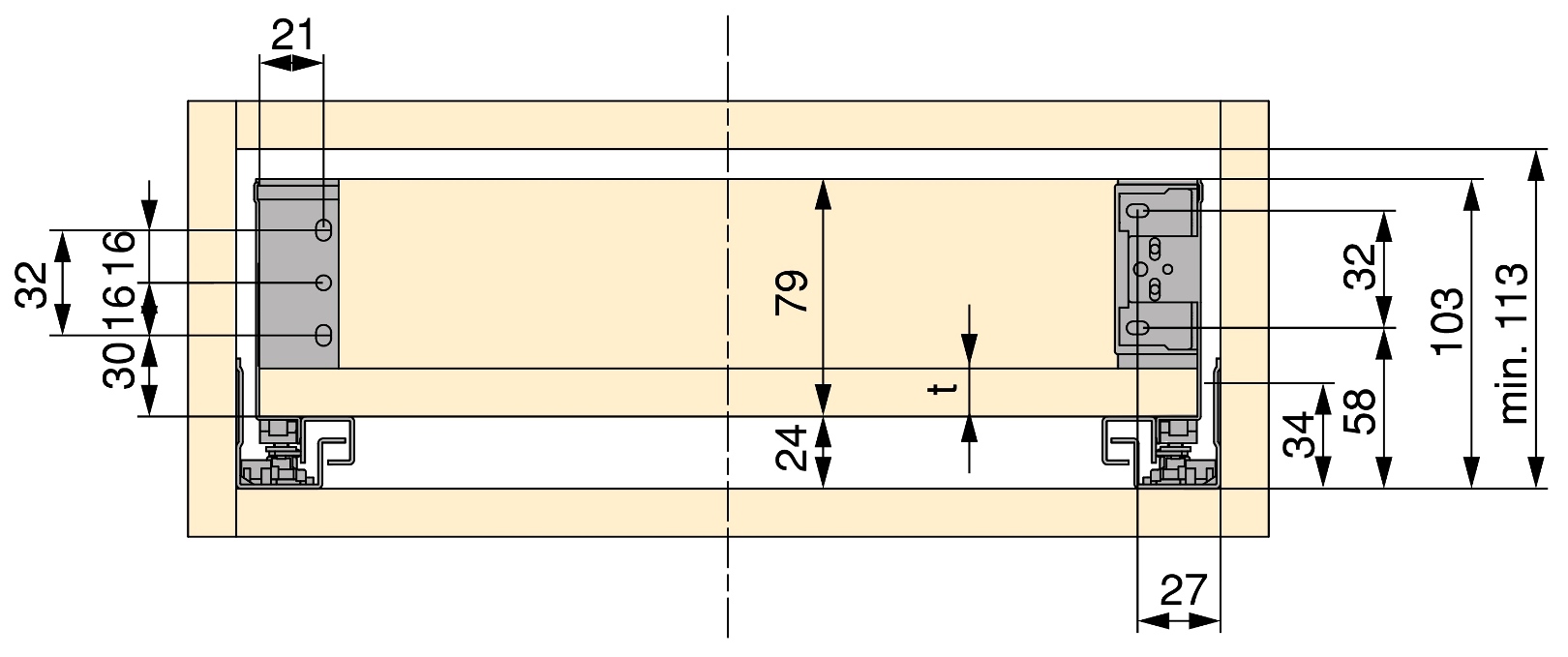

For more dimensions and details , see technical drawing.
Material:
- The drawers 3275335 are made of sturdy steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

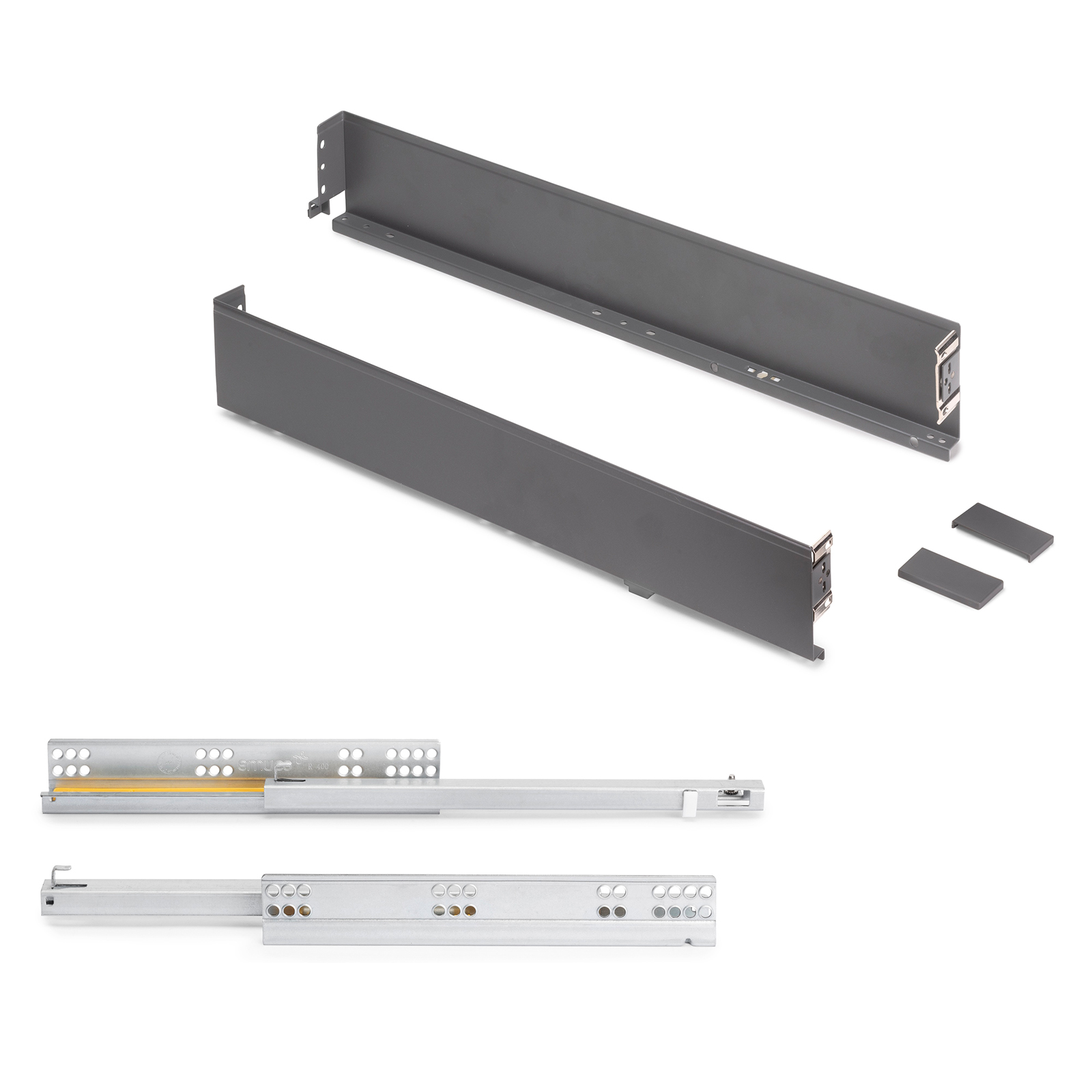

Included in delivery:
- 1 set of drawers 3275335 made of robust steel, anthracite grey, 440 mm (17-21/64″)
- 1 pair of guide rails, nominal length: 440 mm (17-21/64″), version: partial extension with push-to-open
- 2 pieces of covers, colour: anthracite grey
- This item does not include mounting screws
Watch the product video:
Additional information:
Manufacturer’s part numbers:
- Article ID: 3275335 and 3123405
- EAN number: 8432393311647 and 8432393135342
Manufacturer: by EMUCA
