Drawer set, with extra thin frames, height: 88 mm (3-15/32″), surface: white, 400 mm (15-3/4″), version: partial pull-out with soft-close, 3275212. drawer set for kitchen furniture and much more, by EMUCA

Description

Practical drawer set, with extra thin frames, frame height 88 mm (3-15/32″), made of robust steel, surface: white, 3275212, drawer depth: 400 mm (15-3/4″), version: partial extension with soft-close

Application:

Drawer set for kitchen furniture and much more.

The guide rails offer partial extension, self-closing and soft close for comfortable and quiet closing.

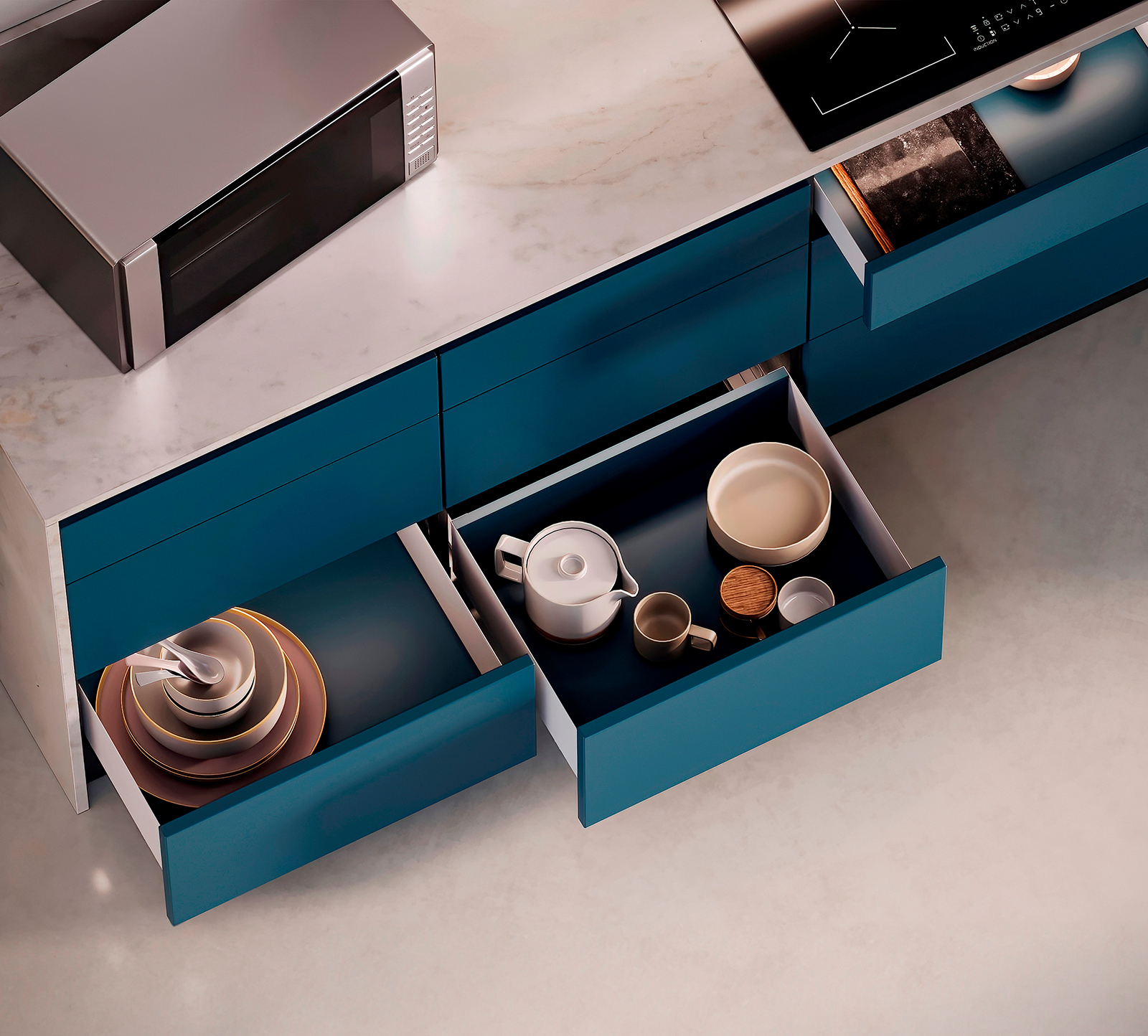

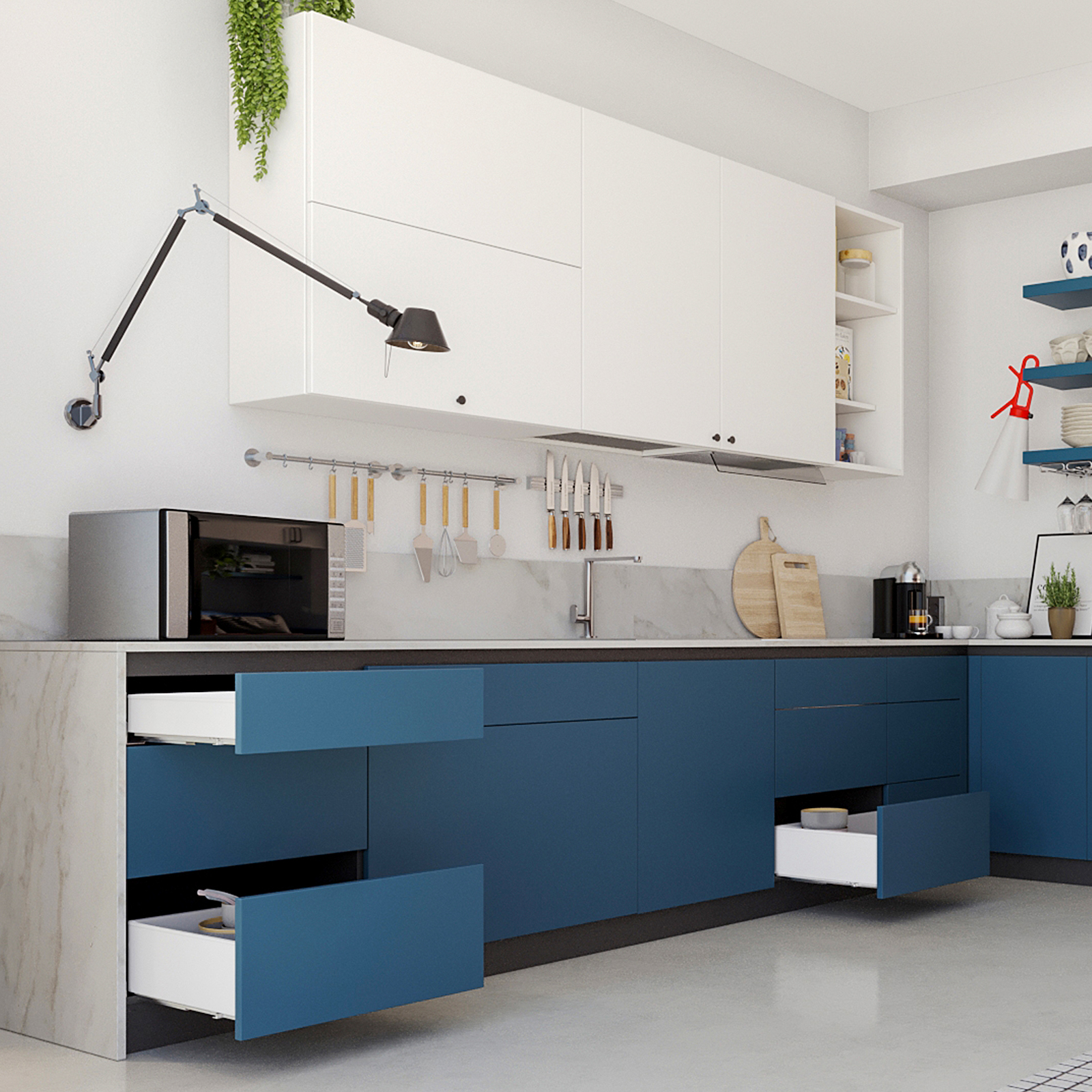

The high-quality drawers 3275212 are perfect for most pieces of furniture in the kitchen and living area, as well as for use in bathroom furniture and office furniture.

The sides have a height of 88 mm (3-15/32″), are extra thin and thus offer more interior space and allow for a clean, straightforward look.

The front can be easily adjusted on the frame (height adjustment: ±2 mm, side adjustment: ±1.5 mm), the rails themselves also allow a vertical adjustment of +5 mm (11/64″).



For everyday use, this means: smooth running, easy installation and reliable function with compact installation dimensions.

The 3275212 drawer set can be installed in a furniture body with a minimum height of 113 mm (4-29/64″).

The load capacity of the drawer 3275212 is 25 kg (56 lbs).



The high-quality drawers 3275212 are perfect for, among other things:

• Bathroom
• Office furniture
• Living room furniture
• Sideboards
• Chests of drawers
• Pharmacy extracts small
• Workshop cabinets
• Storage cabinets
• Nightstands
• Wardrobe Chests
• Kitchen furniture

Technical details:

• Design: Partial pull-out with soft-close
• Weight: 1842 g
• Load capacity (load capacity): 25 kg (56 lbs)
• Drawer depth: 400 mm (15-3/4″)
• Available in 5 nominal lengths: 300 mm, 350 mm, 400 mm, 450 mm and 500 mm
• Available in 3 versions: Soft-Close Full Extension with Self-Closing Closure, Soft-Close Partial Extension with Self-Closing and Push-to-open Partial Extension
• Available in 3 heights: 88 mm, 122 mm and 159 mm
• Available in 2 surface colours: white and anthracite grey
• Also available with rectangular railings
• Easy installation, stable
• Drawer depth: 390 mm (15-23/64″)
• Maximum Bottom Thickness: 19 mm (3/4″)
• Height adjustment: +5.0 mm (11/64″)
• Side adjustment: ±1.5 mm

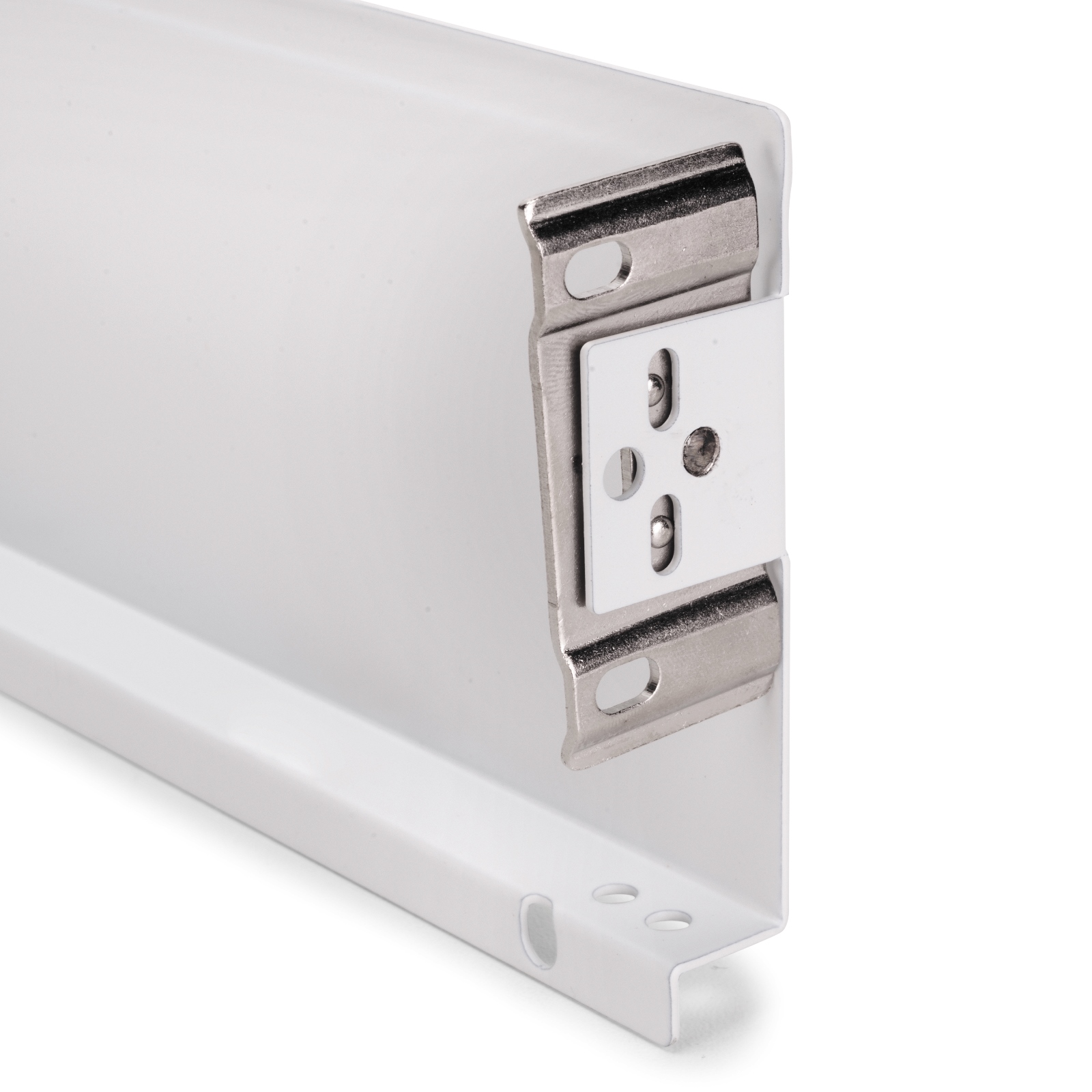

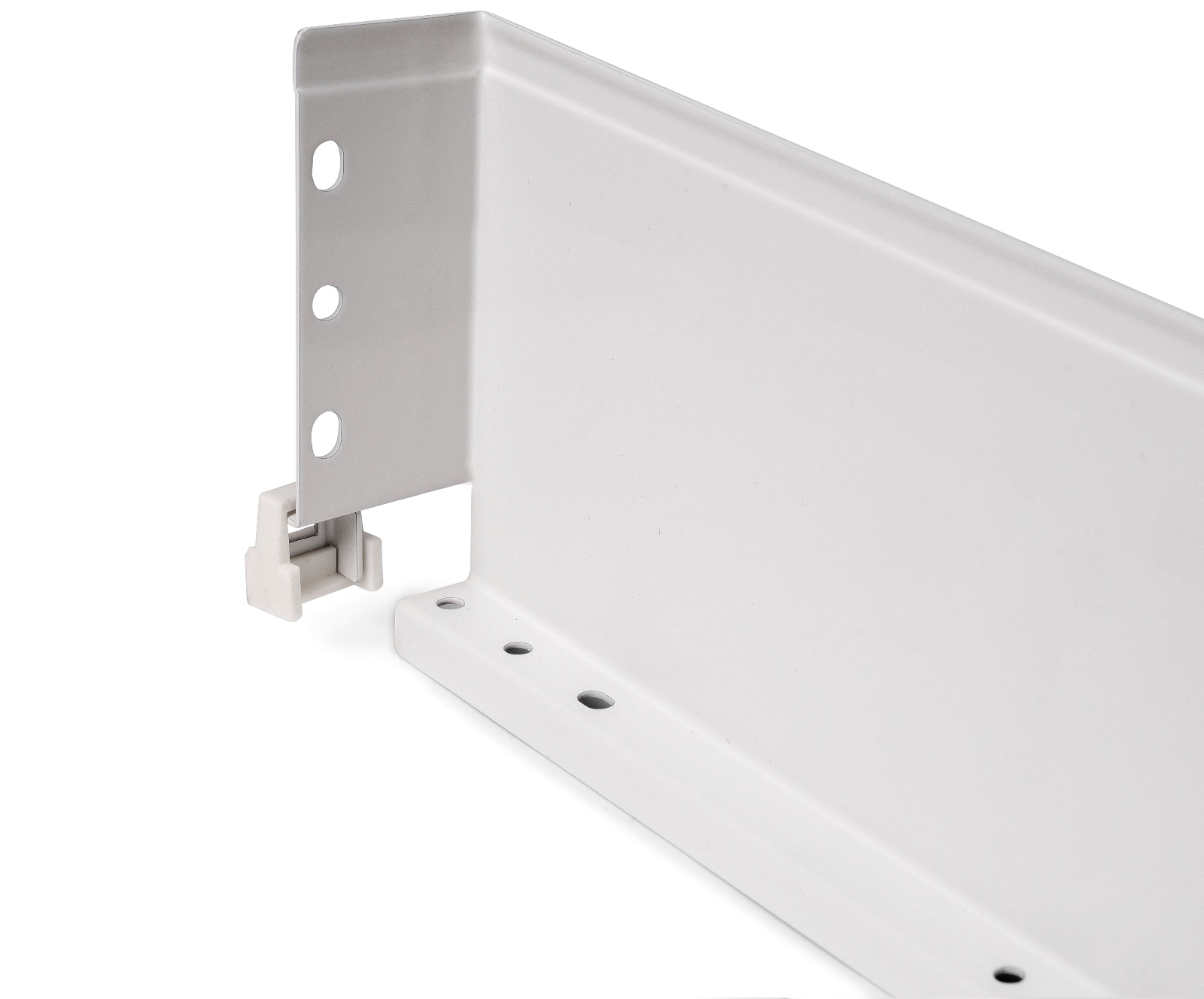

• Integrated front mounting and rear wall bracket
• Tool-free disassembly of the drawer via the integrated release
• White
• steel, robust
• High brand quality from UMAXO®

Surface:

• White
• White finishes convey a clean and modern aesthetic
• The colour white reflects light effectively, making rooms look brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

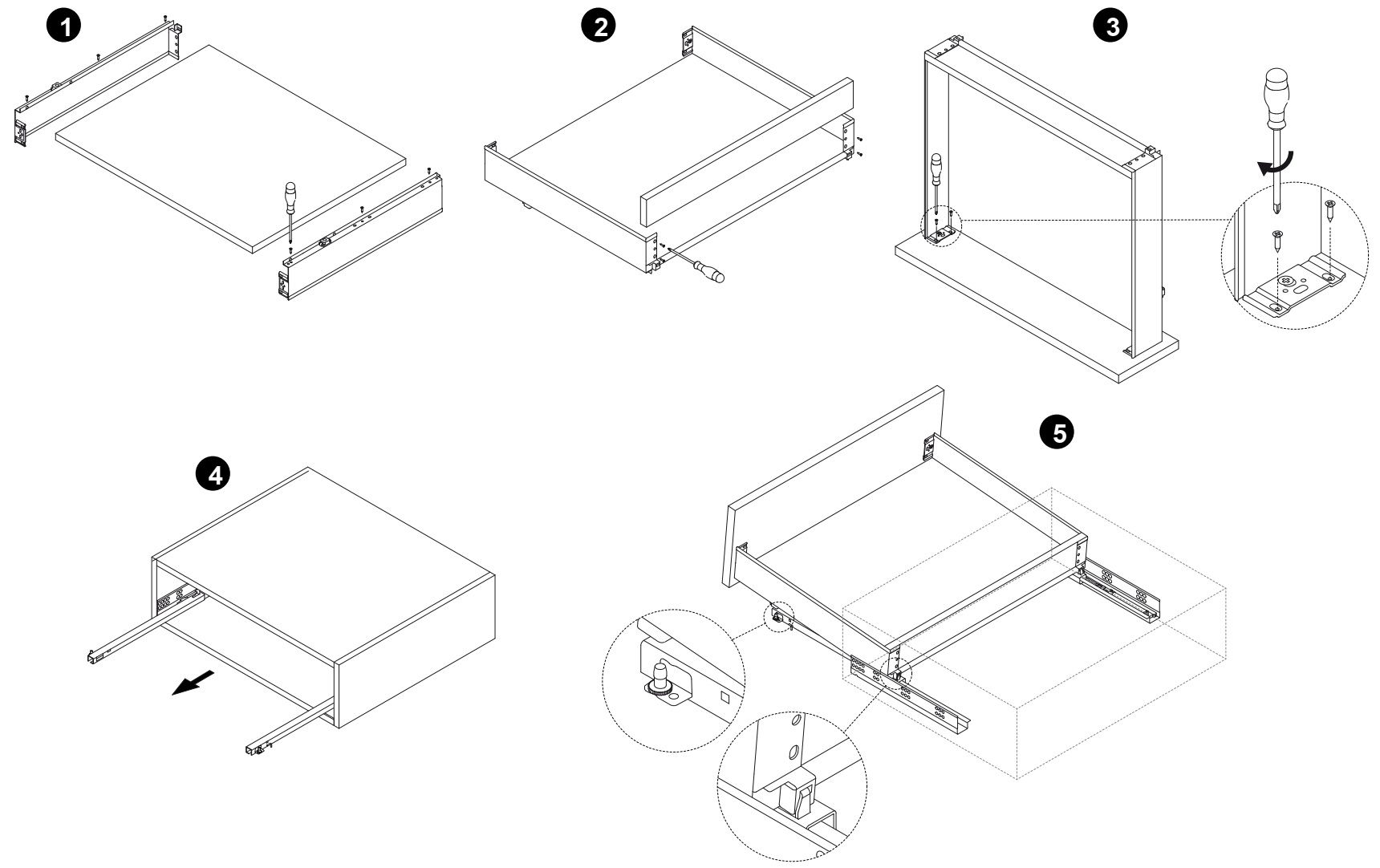

Assembly:

• First, the furniture body for the drawer rails must be drilled; the rails are attached to the body with 3.5 x 16 mm screws or Euro screws ⌀6.3 x 13 mm
• Then the wooden drawer bottom is prepared according to the drilling pattern and screwed to the frames with the help of the chipboard screws 3.5 x 14 mm countersunk lens head
• Then the back wall is pushed into the frames and screwed into place. The height of the back panel should be 60 mm (2-23/64″)
• Next, the front is attached to the drawer with screws (e.g. 3.5 x 16 mm)
• The finished drawer is then placed on the guide rails and pushed in
• Then the front is aligned vertically and ±1.5 mm horizontally using an eccentric ±2 mm and then tightened with the screw

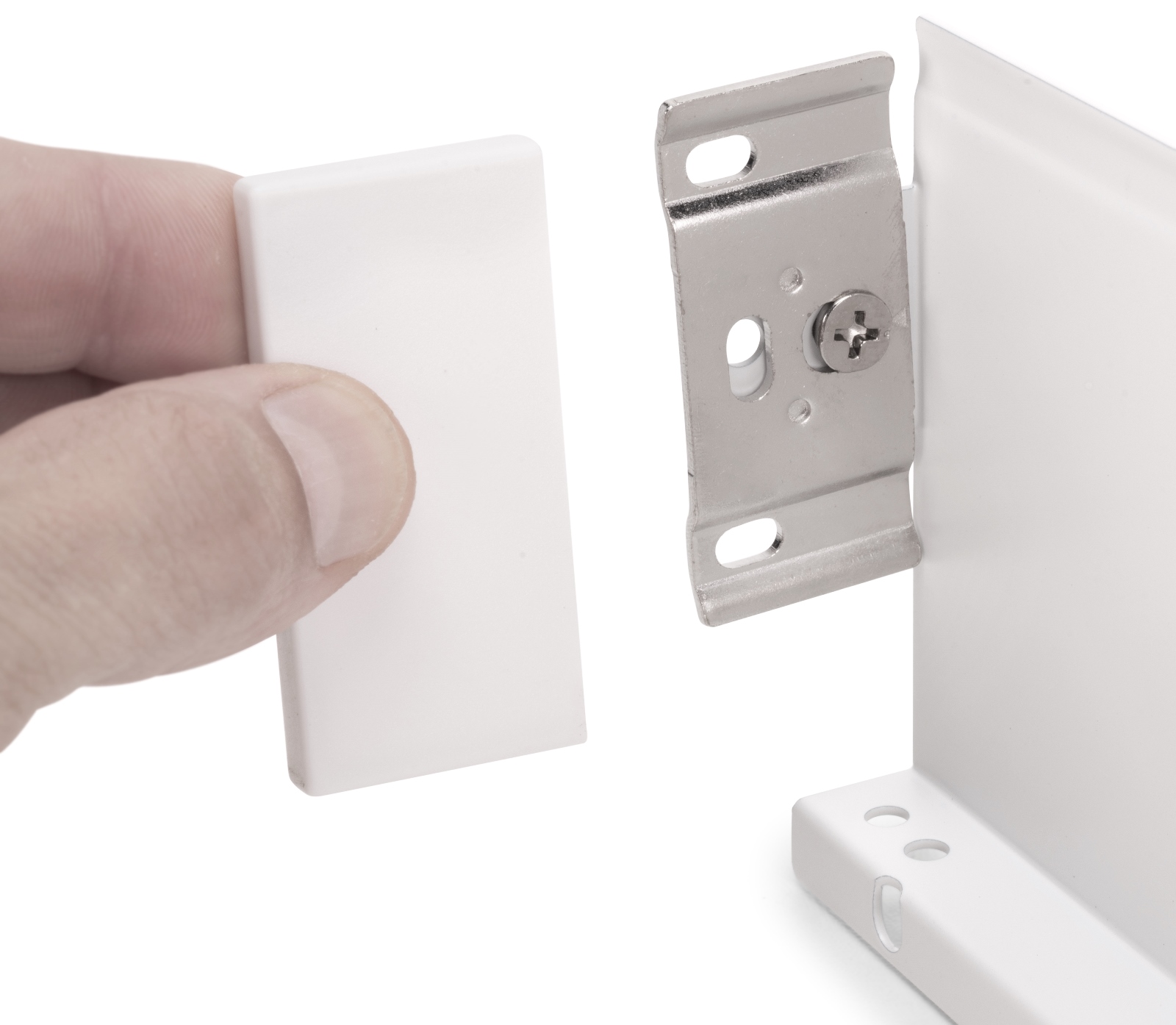

• Finally, the two cover caps are put on (for more details, see assembly drawing)



Dimensions:

• Drawer depth: 400 mm (15-3/4″)
• Height of sides: 88 mm (3-15/32″)

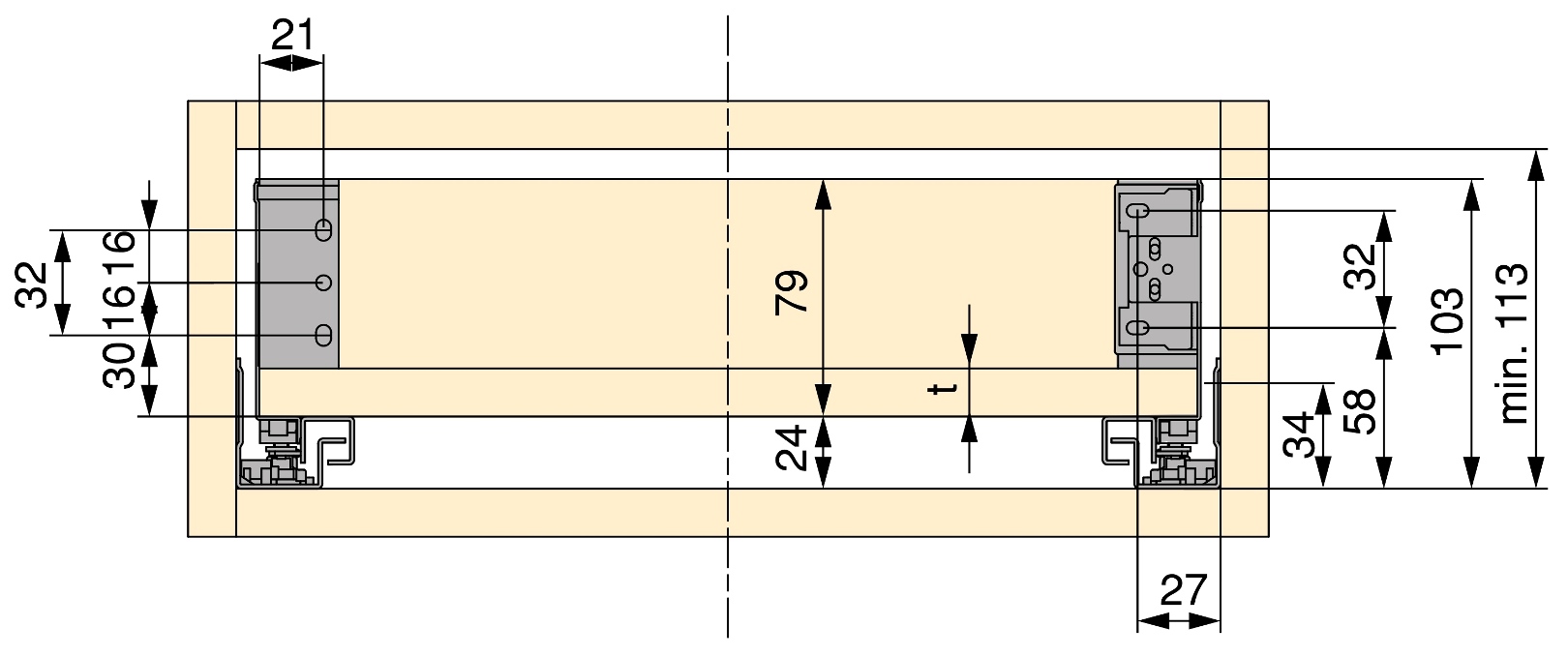

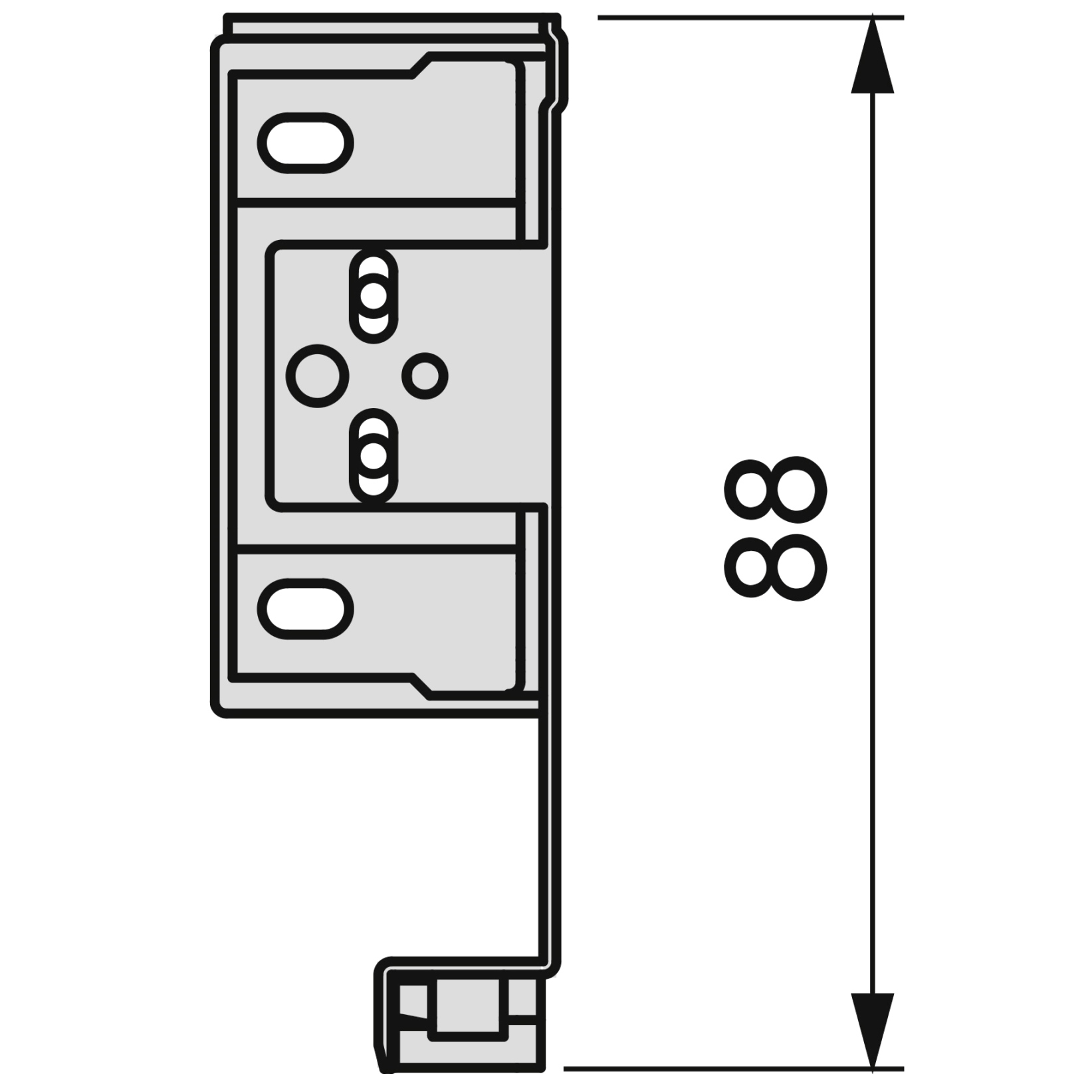

For more dimensions and details , see technical drawing.

Material:

• The drawers 3275212 are made of sturdy steel
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Included in delivery:

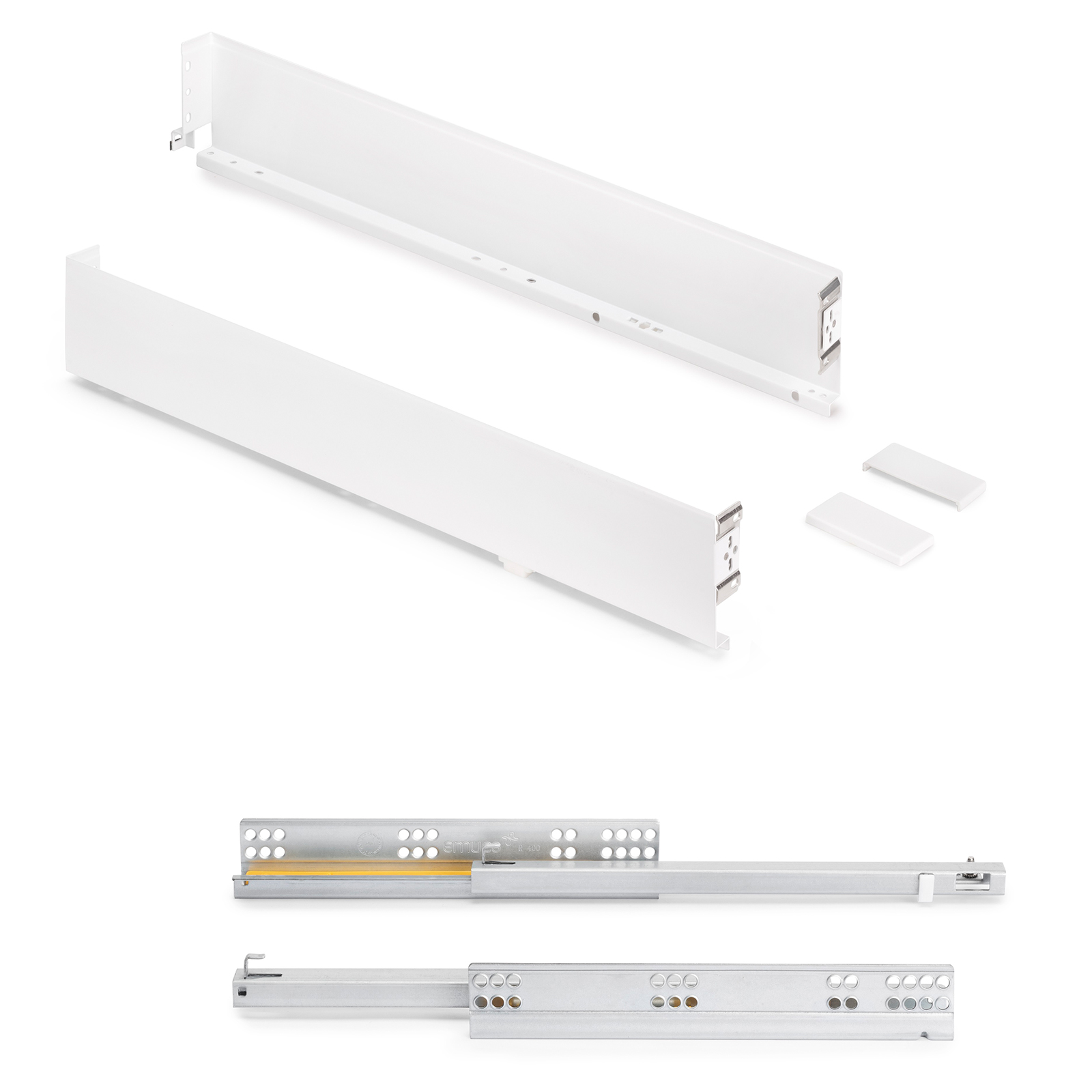

• 1 set of 3275212 drawers made of robust steel, white, 400 mm (15-3/4″)
• 1 pair of guide rails, nominal length: 400 mm (15-3/4″), version: partial extension with soft-close
• 2 pieces cover caps, colour: white
• This item does not include mounting screws

Watch the product video:

Additional information:

• Download assembly instructions

Manufacturer’s part numbers:

• Item ID: 3275212 and 3019305
• EAN number: 8432393311616 and 8432393127040

Manufacturer: EMUCA
