Description
High-quality flap fitting, made of metal and robust plastic (metal and plastic), surface: grey, 1010421, load capacity: 6 kg (13 lbs)
Application:

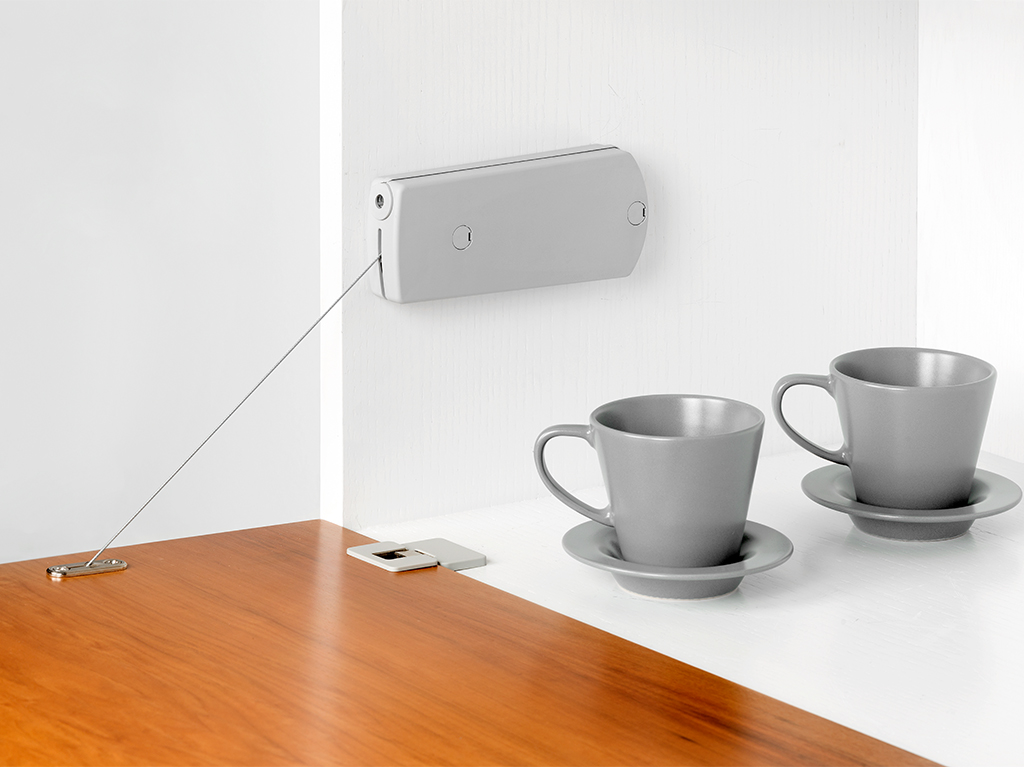

Robust rope flap holder for furniture flaps, cabinet flaps, secretary flaps, bar flaps and much more.
The flap fitting 1010421 (Microwinch) is a compact flap holder for downward-opening furniture flaps and works with a heavy-duty steel cable.
When opened, the mechanism slows down the downward movement of the flap and thus prevents it from falling uncontrollably.
The end position of the open flap can be adjusted so that the opening path can be adapted to the furniture and use.
The 6 kg (13 lbs) braking force version is intended for flap heights from 210 to 480 mm (8-17/64″ – 18-57/64″); the allowable combination of flap height, flap weight and number of mechanisms is determined according to the selection table.
Since the rope flap holder can 1010421 be mounted either horizontally or vertically as well as on the right or left, it can also be used flexibly in flatter furniture frames.
The combination of steel and plastic ensures a compact, robust construction and makes the fitting particularly suitable for home, office and cabinet furniture.
The high-quality rope flap holders 1010421 are perfect for, among other things:
- Living room furniture
- Office furniture
- Wall cabinets
- Sideboards
- Furniture flaps
- Cabinet flaps
- Secretary flaps

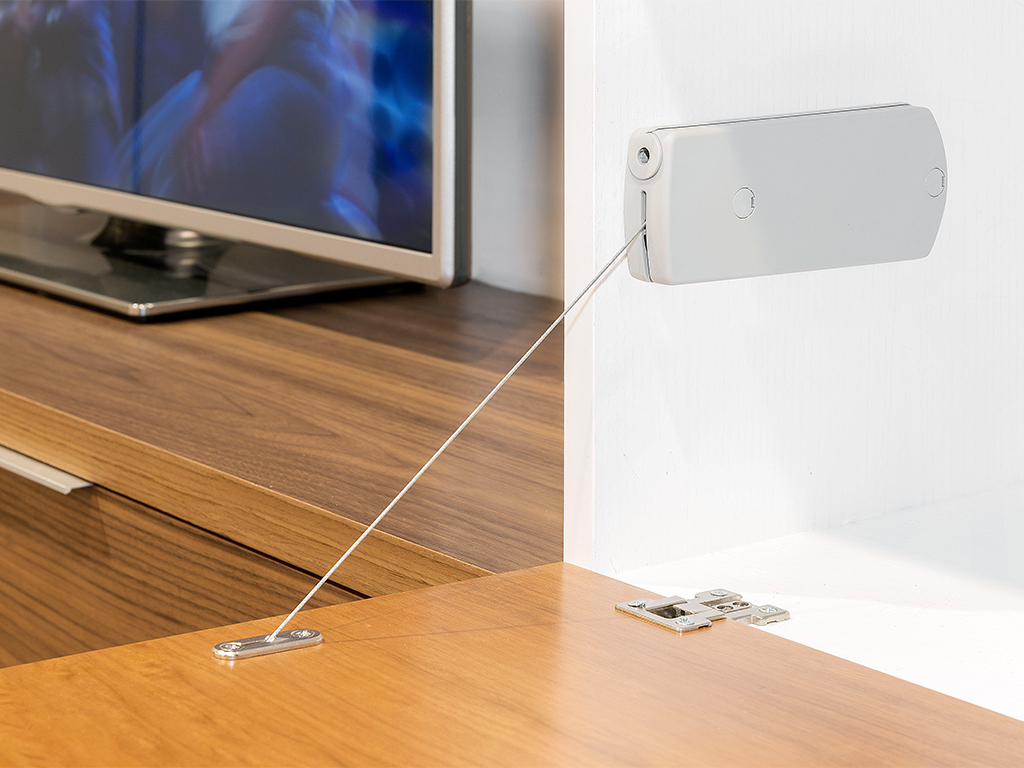

- Bar flaps
Technical details:
- Weight: 300 g
- Load capacity (load capacity): 6 kg (13 lbs)
- Size: 160.5 mm (6-5/16″)
- Available in 4 versions: 4 kg, 6 kg, 10 kg, 14 kg
- Easy installation, stable
- Damped downward movement of the furniture flap
- Adjustable opening end position
- With steel cable
- Can be used on the right and left
- Can be mounted horizontally and vertically
- For flap heights from 210 to 480 mm (8-17/64″ – 18-57/64″)
- For panel thicknesses from 16 to 22 mm (5/8″ – 55/64″)
- Compact design
- Suitable for flat furniture carcasses
- Use with furniture hinges
- One or two mechanisms depending on the weight of the flap and the height of the flap
- Grey
- robust
- High brand quality from UMAXO®
Surface:
- Grey
- Grey offers a versatile and elegant base that combines well with other colours and materials, creating a calm, timeless atmosphere in both modern and classic spaces
- In addition, grey has the ability to highlight accents in a room without being dominant itself, making it ideal for creating harmonious and balanced interiors
Assembly:
- Fastening is done using the six screws included in the scope of delivery (Euro screws)
- The rope flap holder 1010421 has 2 mounting holes with ⌀6.5 mm at a distance of 110 mm; the separate flap connection also has two attachment points
- First of all, the number of mechanisms matching the flap height and the flap weight must be determined on the basis of the selection table
- Then the attachment points on the carcase side are marked according to the desired horizontal or vertical installation position and pre-drilled for the mechanism with ⌀5 mm x 12 mm
- In the case of a wood-based or wood-based key, two holes of ⌀5 mm (13/64″) x 13 mm and the middle hole of ⌀10 mm x 11 mm are made for the flap connection
- The flap holder and the flap connection are then mounted with the provided fastening screws

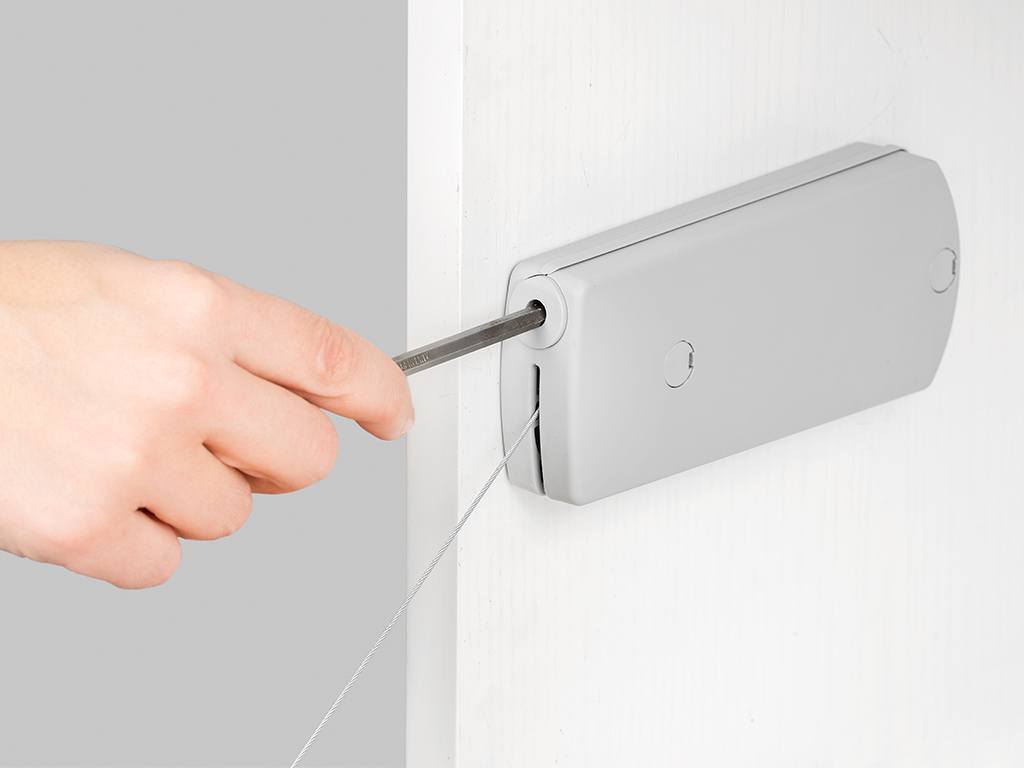

- Then the steel cable is connected to the flap connection and checked for correct running. Finally, the end opening position is adjusted, whereby the flap is to be relieved during adjustment (for further details, see assembly drawing)
Dimensions:
- Length: 160.5 mm (6-5/16″)
- Maximum height: 68.5 mm (2-45/64″)
- Case height at the narrower end: 62.7 mm (2-15/32″)
- Depth: 26 mm (1-1/32″)
- Mounting hole spacing: 110 mm (4-21/64″)
- Mounting holes on mechanism: ⌀6.5 mm (1/4″)

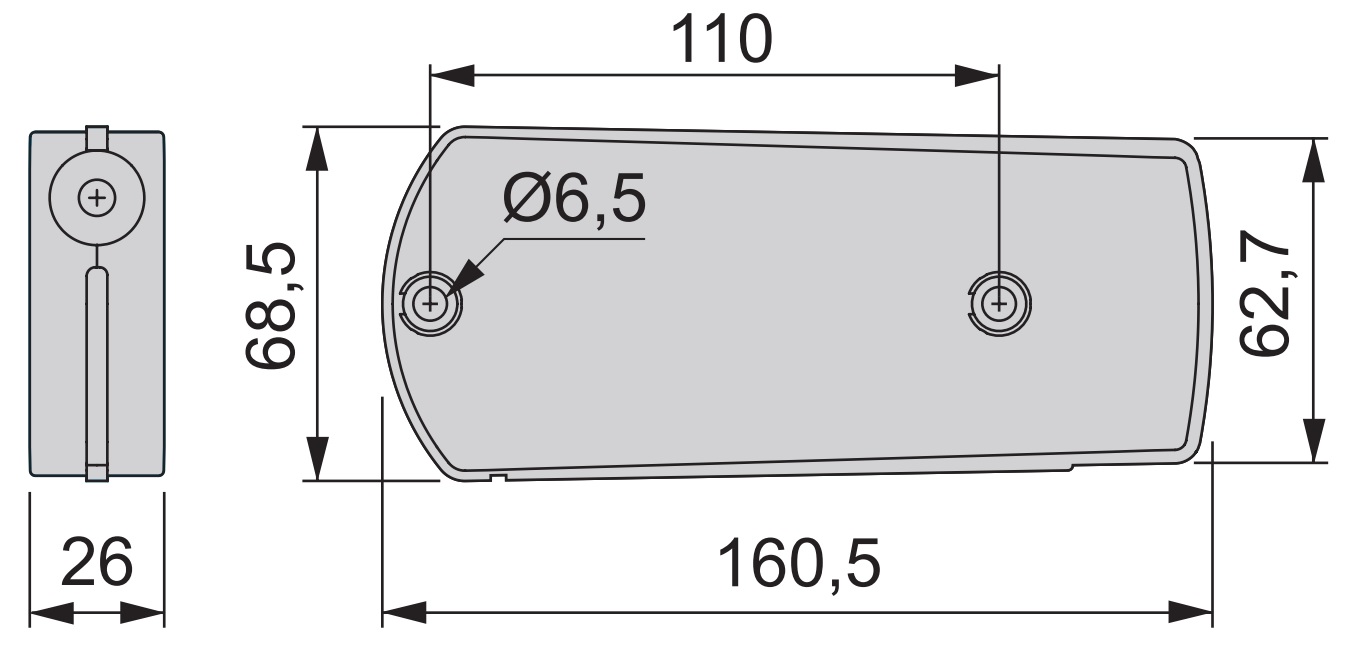

For more dimensions and details , see technical drawing.
Material:
- The 1010421 rope flap holders are made of metal and robust plastic (metal and plastic)
- Steel rope
- The combination of metal and plastic provides an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
- In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options

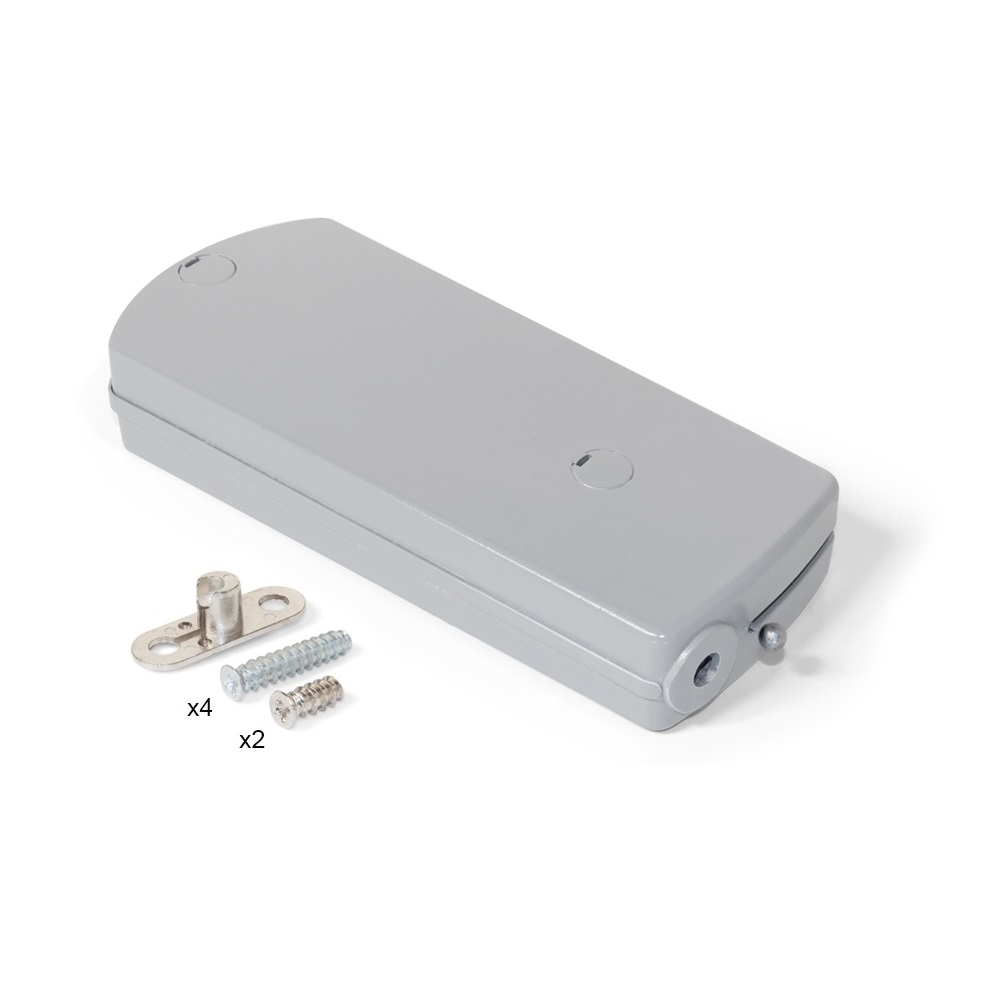

Included in delivery:
- 1 set of rope flap holders 1010421 made of metal and robust plastic, grey
- 6 pieces of Euro screws
Additional information:
Manufacturer’s part numbers:
- Article ID: 1010421
- GTIN number (EAN, UPC): 8432393100654
Manufacturer: EMUCA
