Description

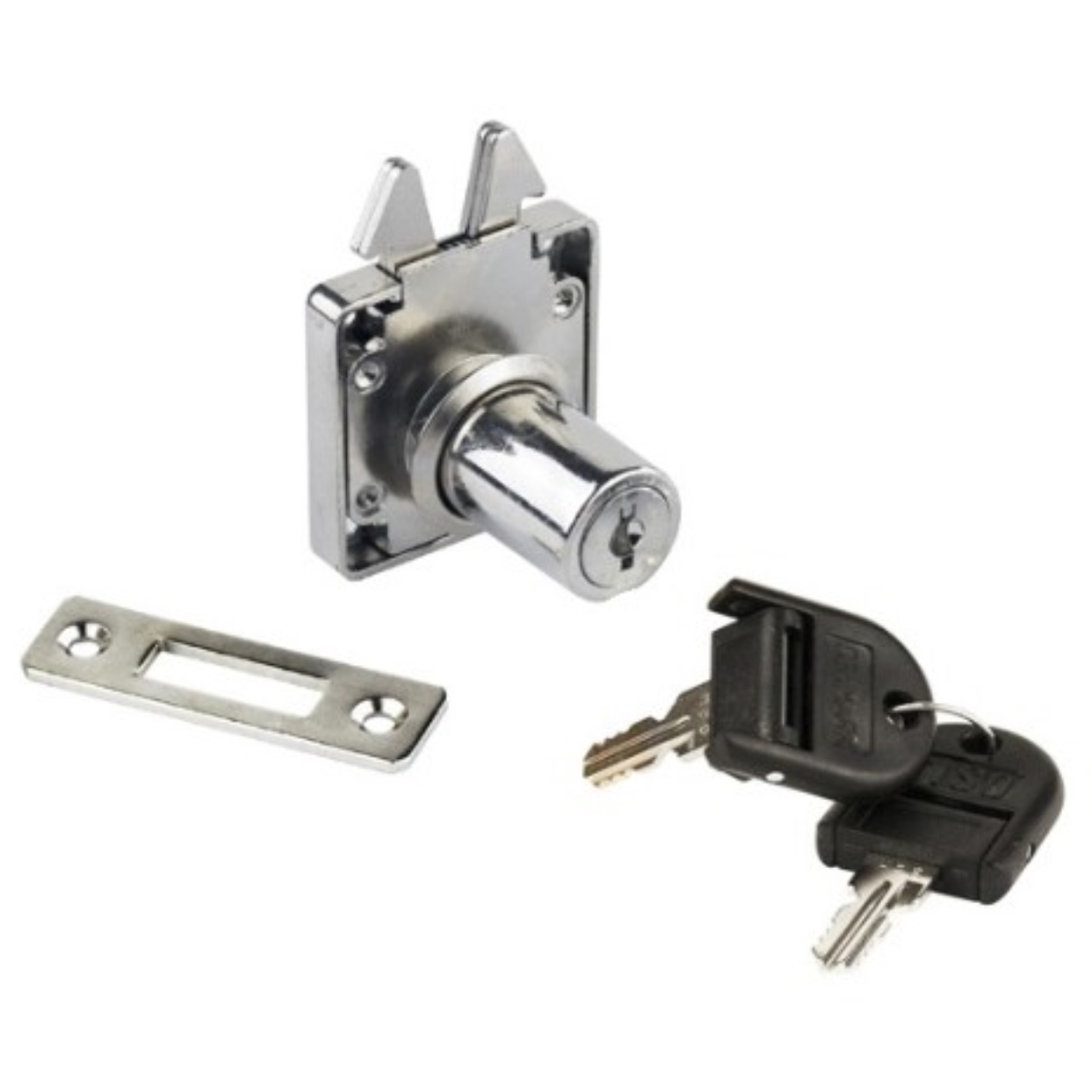

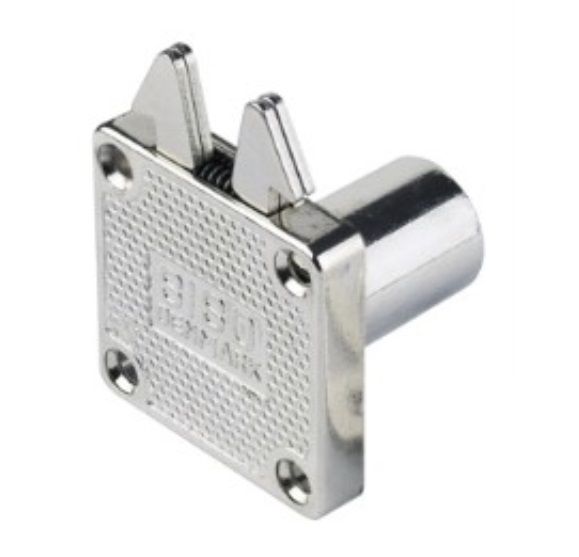

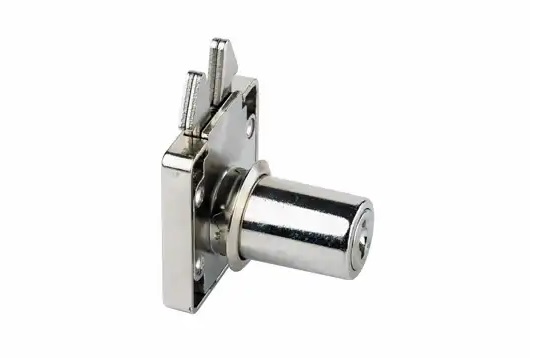

High-quality roller shutter lock with hook 14.01.459-1, with the possibility of using master key J11, with cylinder rosette and two foldable keys, incl. strike plate, made of robust steel, surface: nickel-plated
Application:
Sliding door lock for roller shutters, furniture sliding door and much more.
Practical sliding door lock 14.01.459-1 is used to lock roller shutters and furniture sliding doors.
The two locking hooks spread automatically in the strike plate after closing and thus ensure stable locking of roller blinds or sliding doors.
The roller shutter lock 14.01.459-1 is a drop lock and has a permanently mounted pin cylinder.
No need to lock: the key can be removed in the open and closed position.
The roller shutter locks are suitable for installation in new furniture as well as for repairing existing cabinets.
The high-quality roller shutter locks 14.01.459-1 are perfect for, among other things:
- Living room furniture
- Office furniture
- Shutter
- Furniture sliding door
Technical details:
- Weight: 120 g
- Size: 19 mm (3/4″)
- Available in three surface colours: black, brass and nickel-plated
- Available in two cylinder lengths: 22 mm and 32 mm
- Available in two cylinder diameters: ⌀16.5 mm and ⌀19 mm
- Available in two variants: keyed differently and keyed alike
- Easy installation, practical, stable
- Drop lock for roller shutters and sliding doors, for screwing
- Matching the master key S.MK. J11 (the master key S.MK. J11 is not included)
- Backset: 25 mm (63/64″)
- Can be used on the left or right
- Cylinder diameter: ⌀19 mm (3/4″)
- with permanently mounted cylinder
- Cylinder length: 32 mm (1-17/64″)
- with clip-on rosette
- with cylinder core
- with flat strike plate
- without compulsory closing
- Cylindrical Shape: Round Cylinder
- Closing movement: 90 degrees
- 400 different key variants
- nickel-plated
- Steel
- robust
- high brand quality from UMAXO®
Surface:
- Nickel-plated
- Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
- They offer an elegant, shiny look that looks modern and timeless at the same time
- They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean
Assembly:
- Fastening is done with 3 mm and 3.5 mm screws (not included)
- Roller shutter lock 14.01.459-1 is for screwing
- To install the sliding door lock, a hole with a diameter of ⌀20 mm (25/32″) must be drilled
- The strike plate has two mounting holes with a diameter of ⌀3 mm
Dimensions:
- Height and width of the sliding door lock: 40 mm (1-37/64″) x 40 mm (1-37/64″)
- Depth: 7.5 mm (19/64″)
- Cylinder length: 32 mm (1-17/64″)
- Backset: 25 mm (63/64″)
- Cylinder diameter: ⌀19 mm (3/4″)

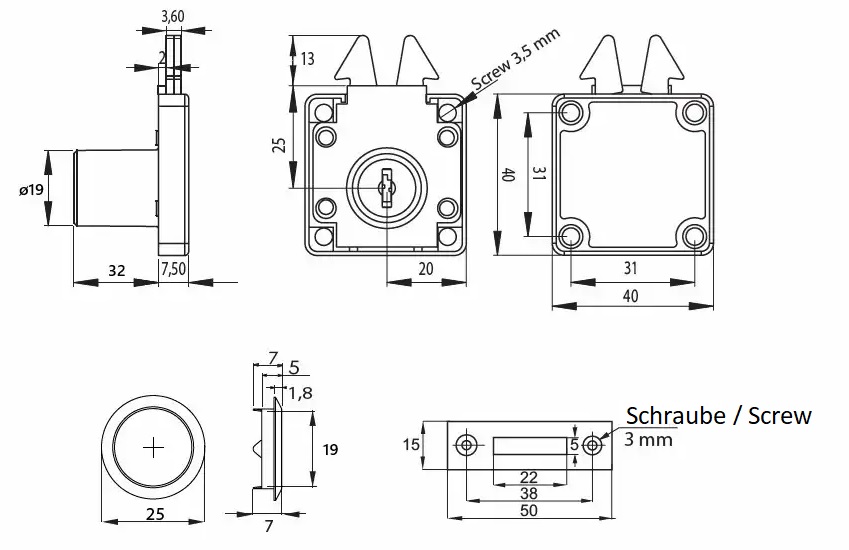

For more dimensions and details, see technical drawing.
Material:
- The roller shutter locks 14.01.459-1 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:
- 1 piece roller shutter lock 14.01.459-1 made of robust steel, nickel-plated
- 1 piece of strike plate
- Two pieces of wrench
- 1 piece cylindrical rosette
- The master key S.MK. J11 must be ordered separately if required
Additional information:
Manufacturer’s part numbers:
- Article ID: 14.01.459-1
- EAN number: 5704866033565
Manufacturer: SISO Denmark
