Description

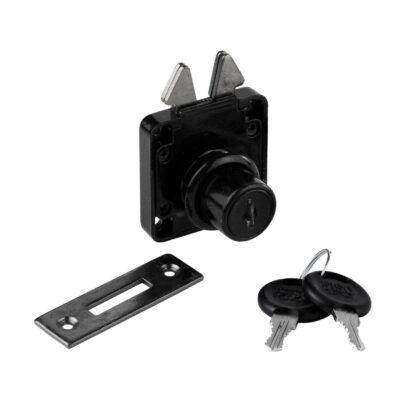

High-quality screw-on roller shutter lock with hook 14.01.456-0, with cylinder rosette and two keys, incl. strike plate, made of robust steel, surface: black anodised, design: keyed differently
Application:
Sliding door lock for roller shutters, furniture sliding door and much more.
Practical sliding door lock 14.01.456-0 is used to lock roller shutters and furniture sliding doors.

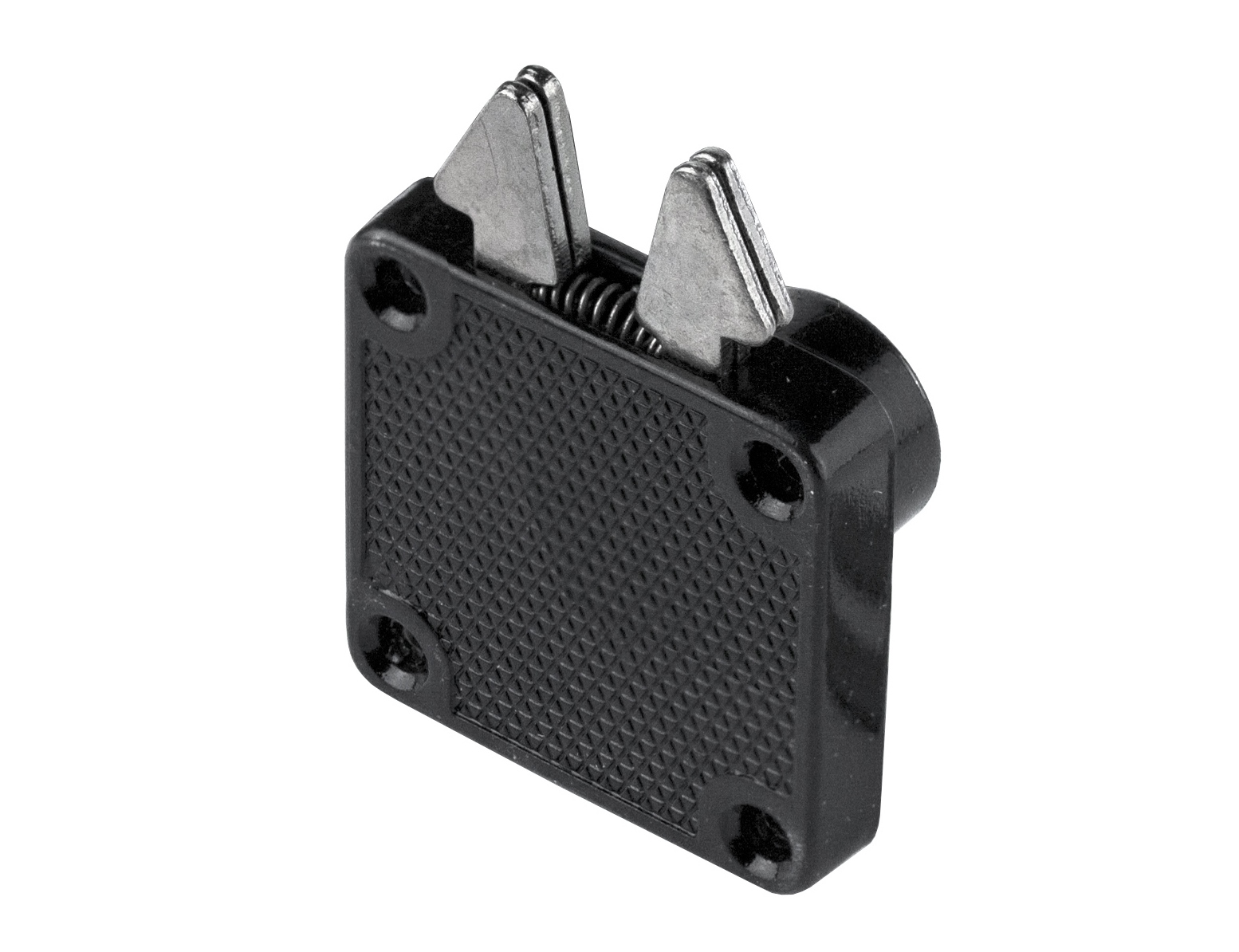

The two locking hooks spread automatically in the strike plate after closing and thus ensure stable locking of roller blinds or sliding doors.

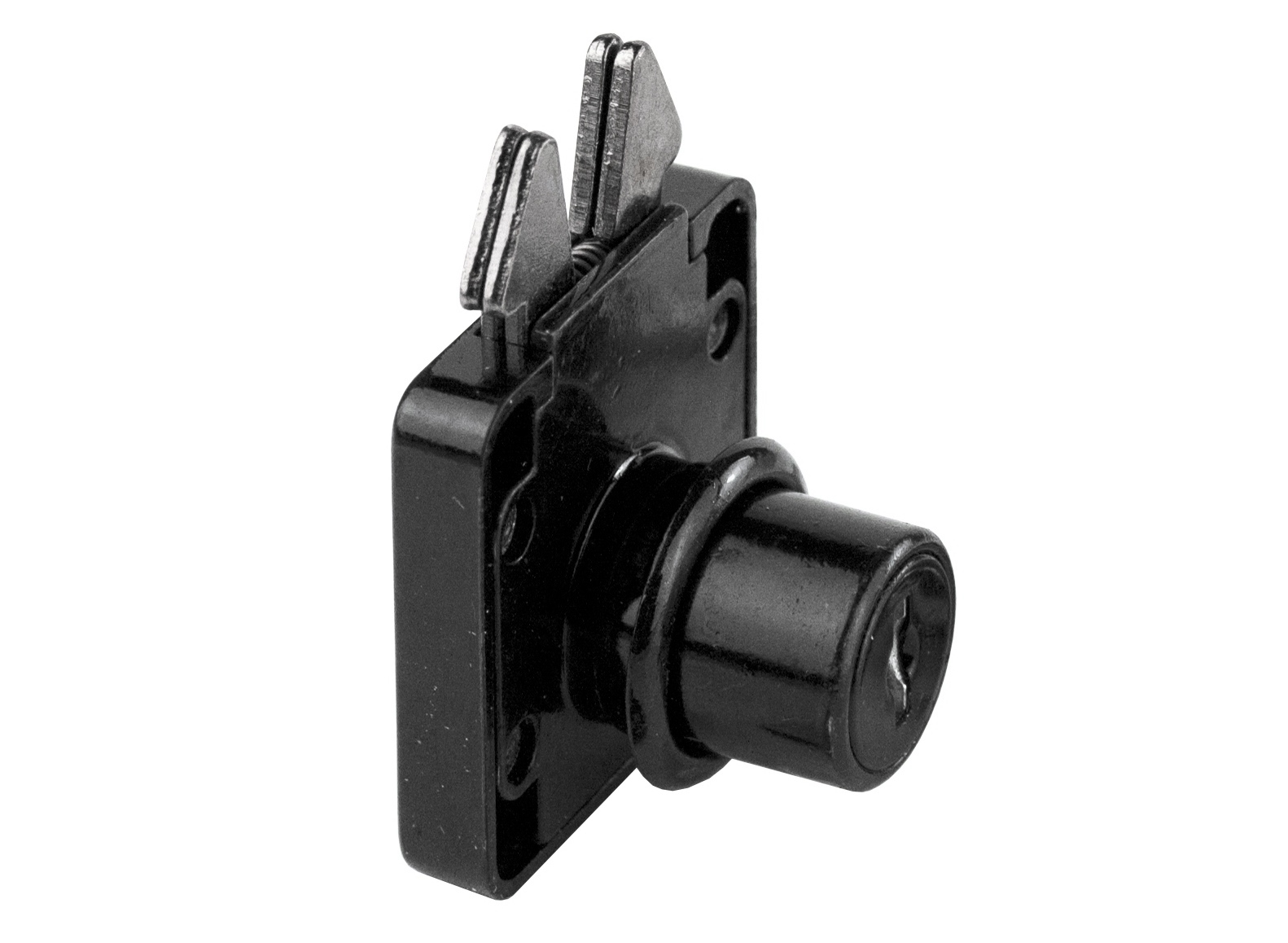

The screw-on roller shutter lock 14.01.456-0 is a drop lock and has a permanently mounted pin cylinder.
No need to lock: the key can be removed in the open and closed position.
The roller shutter locks are suitable for installation in new furniture as well as for repairing existing cabinets.
The high-quality roller shutter locks 14.01.456-0 are perfect for, among other things:
- Living room furniture
- Office furniture
- Shutter
- Furniture sliding door
Technical details:
- Design: different-closing
- Weight: 120 g
- Size: 19 mm (3/4″)
- Available in three surface colours: black, brass and nickel-plated
- Available in two cylinder lengths: 22 mm and 32 mm
- Available in two cylinder diameters: ⌀16.5 mm and ⌀19 mm
- Available in two variants: keyed differently and keyed alike
- Easy installation, practical, stable
- Drop lock for roller shutters and sliding doors, for screwing
- Backset: 25 mm (63/64″)
- Can be used on the left or right
- Cylinder diameter: ⌀19 mm (3/4″)
- with permanently mounted plate cylinder
- Cylinder length: 22 mm (55/64″)
- with clip-on rosette
- Locking system: Normal profile
- with cylinder core
- with flat strike plate
- without compulsory closing
- Cylindrical Shape: Round Cylinder
- Closing movement: 90 degrees
- 400 different key variants
- black anodized
- Steel
- robust
- high brand quality from UMAXO®
Surface:
- Black anodized
- Black anodized finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black anodized finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done with 3 mm and 3.5 mm screws (not included)
- Screw-on roller shutter lock 14.01.456-0 is for screwing
- To install the sliding door lock, a hole with a diameter of ⌀20 mm (25/32″) must be drilled
- The strike plate has two mounting holes with a diameter of ⌀3 mm
Dimensions:
- Height and width of the sliding door lock: 40 mm (1-37/64″) x 40 mm (1-37/64″)
- Depth: 7.5 mm (19/64″)
- Cylinder length: 22 mm (55/64″)
- Backset: 25 mm (63/64″)
- Cylinder diameter: ⌀19 mm (3/4″)
For more dimensions and details, see technical drawing.
Material:
- The roller shutter locks 14.01.456-0 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:
- 1 piece screw-on roller shutter lock 14.01.456-0 made of robust steel, black anodised, version: keyed differently
- 1 piece of strike plate
- Two pieces of wrench
- 1 piece cylindrical rosette
Additional information:
Manufacturer’s part numbers:
- Article ID: 14.01.456-0
- EAN number: 5704866033510
Manufacturer: SISO Denmark
