High-quality snap fastener with handle function, made of zinc alloy (ZDC), surface: gold-coloured, glossy polished, finish: oval, DPL-OV-G. Solid snap fastener for motorhome, boat and much more, by Sugatsune / LAMP® (Japan)

Description

Exclusive DPL-OV-G snap fastener, made of solid zinc alloy (ZDC), surface: gold-coloured, glossy polished, finish: oval

Application:

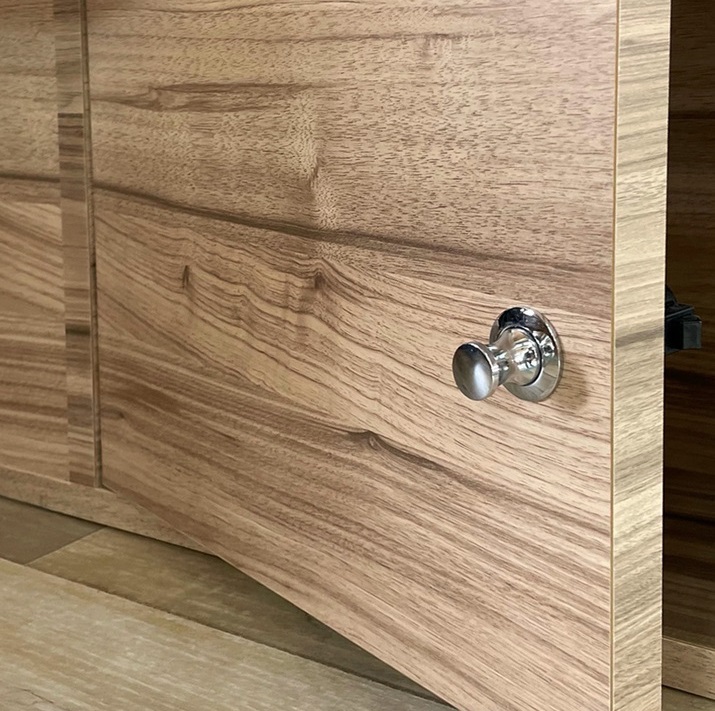

Massive push button for RV, boat and much more. The high-quality push-button closure DPL-OV-G is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cabinet doors do not open unintentionally during the journey or flight.

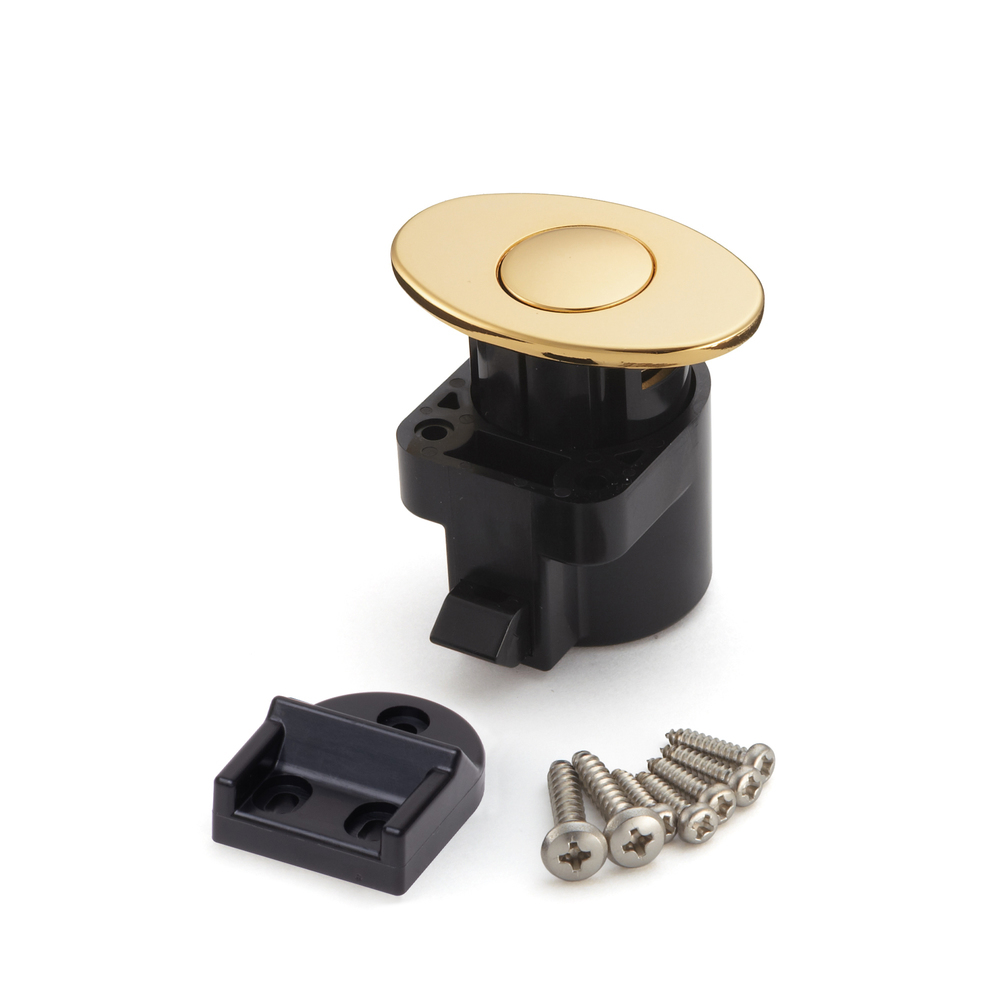

When closed, the push button is recessed and thus protects against collisions. To open the furniture door, the handle of the DPL-OV-G snap fastener must be pressed and thus released.



The DPL-OV-G push button serves as a practical handle when open. These features make the DPL-OV-G snap fastener perfect for private planes and motorhomes and caravans.



The DPL-OV-G push button is suitable for doors with a thickness of 15 mm (19/32″) to 25 mm (63/64″).

• Caravan
• Private plane
• Yacht
• Caravan
• Camper
• Boat

Technical details:

• Design: oval
• Weight: 72 g
• Load capacity (load capacity): 10 kg (23 lbs)
• Size: 32 mm (1-17/64″)

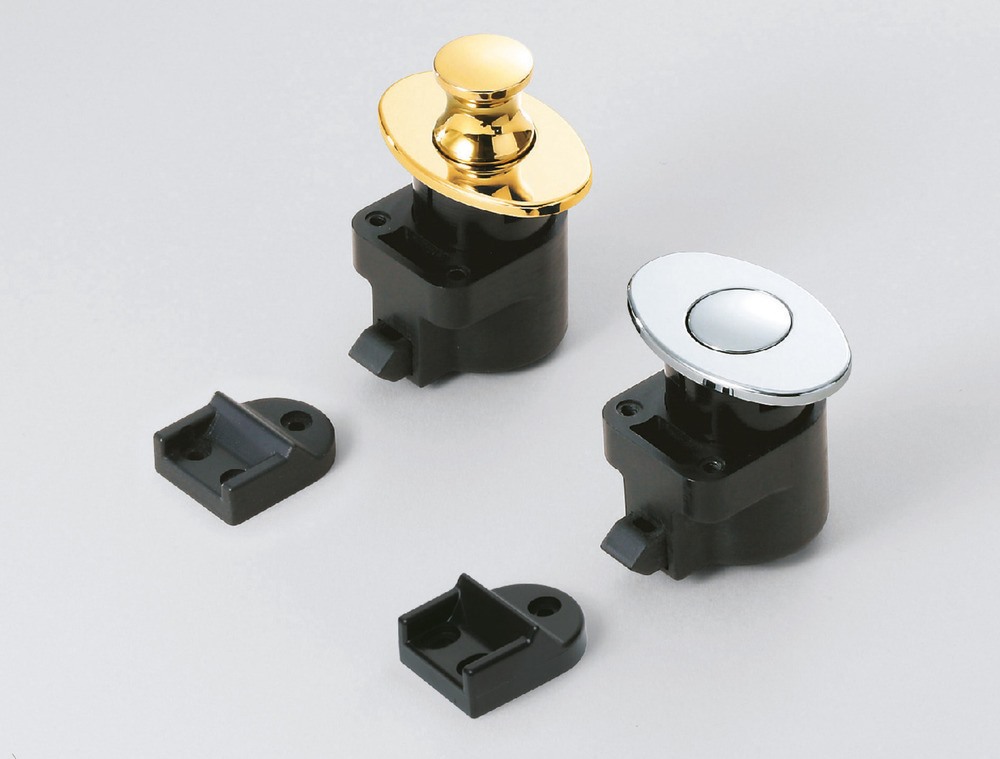

• Available in two surface colours: gold-coloured and chrome-plated
• Easy to assemble
• Practical
• stable
• Elaborately processed surface
• Exclusive, high-quality optics
• gold-coloured, glossy polished
• Zinc alloy
• ZDC
• high brand quality of Sugatsune / LAMP®

Surface:



• Gold-coloured, shiny polished
• Gold-coloured surfaces give rooms a luxurious and elegant character that exudes warmth and exclusivity
• They reflect light in a subtle way, creating a welcoming atmosphere.
• They can also be combined in a variety of ways with different colours and materials to emphasise modern or classic designs.
• The DPL-OV-G snap fasteners look solid and extremely high-quality
• Available in two surface colours: gold-coloured and chrome-plated



Assembly:

• The fastening is done using the seven screws included in the scope of delivery (screws: two pan head screws, self-tapping 4 x 20 mm and five pieces flat head self-tapping screw 3 x 14 mm)
• For installation, a hole with a diameter of ⌀28 mm (1-7/64″) must be drilled in the front
• The distance between the door edge and the bore is 38 mm (1-1/2″)
• The DPL-OV-G push button is inserted into the front and the housing is screwed on from the back using the supplied screw
• The strike plate is then attached to the carcass side using the screws supplied (for further details, see assembly drawing)



Dimensions:



• Snap closure diameter: ⌀32 mm (1-17/64″)
• Snap Diameter: ⌀19 mm (3/4″)
• Closing Housing Length: 30 mm (1-3/16″)



For more dimensions and details, see technical drawing.

Material:

• The DPL-OV-G snap fasteners are made of solid zinc alloy (ZDC)

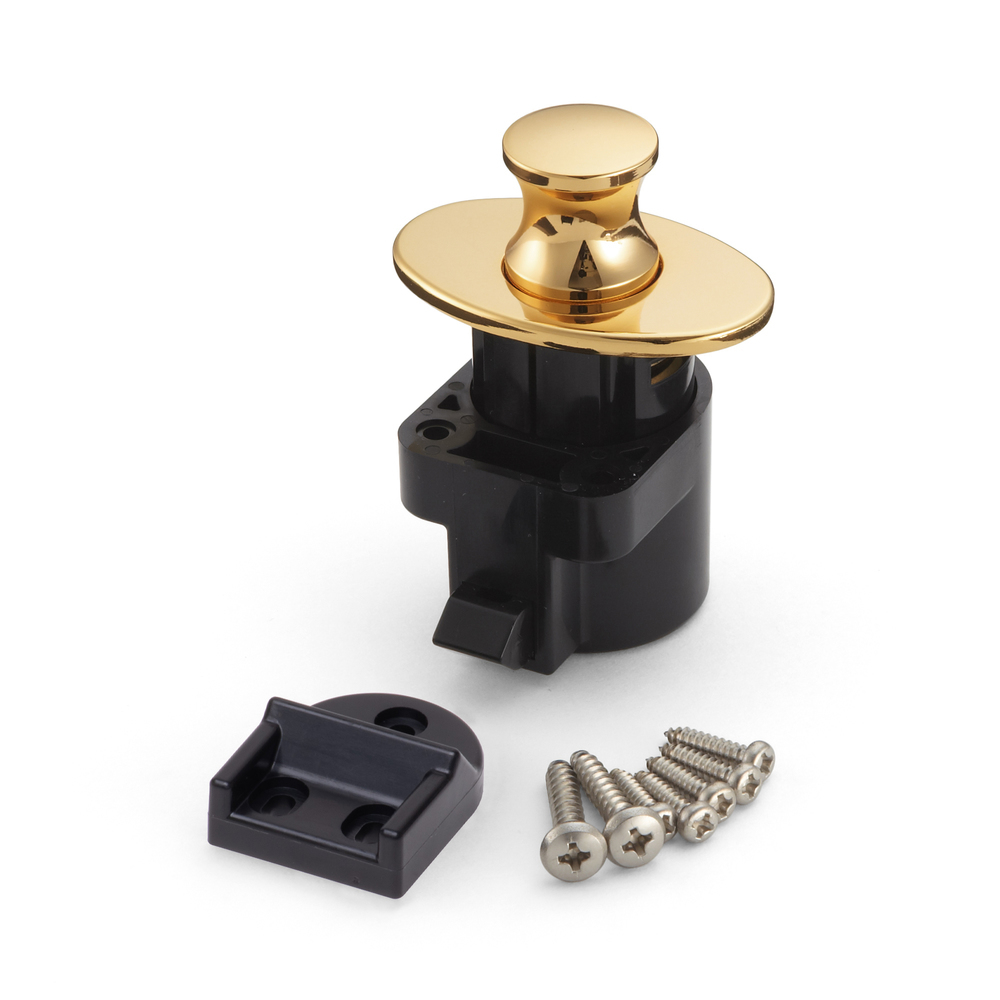

Included in delivery:

• 1 piece Snap fastener DPL-OV-G made of solid zinc alloy, gold-coloured, glossy polished, version: oval
• Seven pieces of screws: two pieces of pan head screw, self-tapping 4 x 20 mm and five pieces of flat head self-tapping screw 3 x 14 mm made of stainless steel
• 1 piece housing
• 1 piece counterpart

Watch the product video:

Additional information:

• • Download assembly instructions

Manufacturer’s part numbers:

• • • Article ID: 140-014-734
    • SKU: DPL-OV-G
    • EAN number: 4510932016766

Manufacturer: Sugatsune / LAMP® (Japan)
