Description
Practical connecting rod for one-handed operation, made of robust aluminium alloy (aluminium), surface: anodised, EB-907561 and EB-907572, version: for three folding consoles
Application:
One-handed connection lever for ROCA’s Robust Soft and EB-DA folding console.
Three folding consoles can be operated with one hand at the same time.

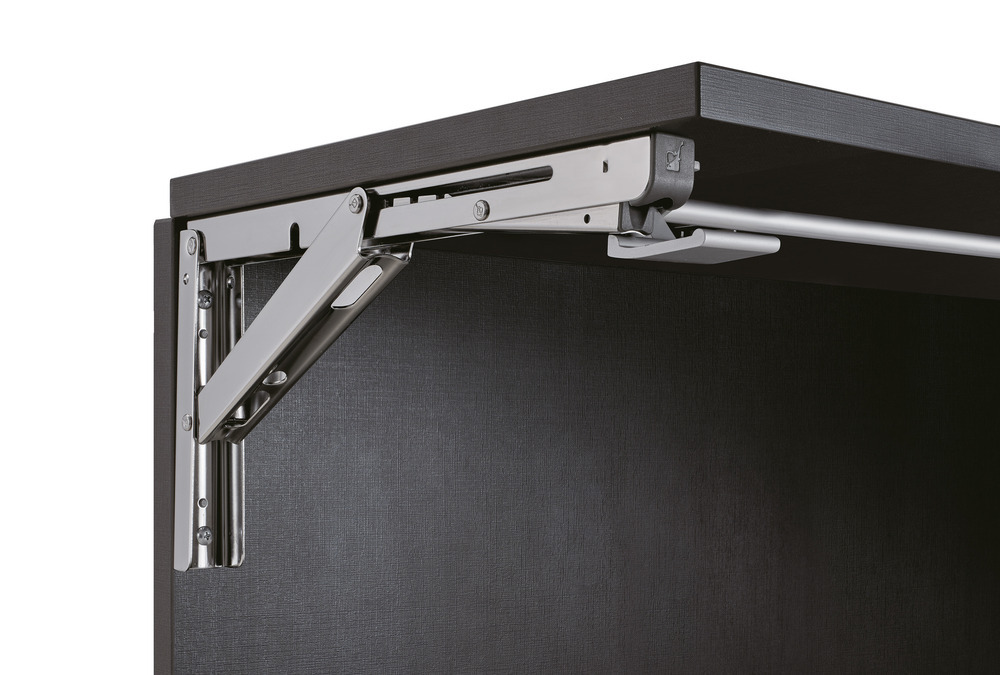

The practical connecting rod made of aluminium alloy, aluminium, robust connects three Sugatsune EB-DA or three ROCA Robust Soft folding brackets into one synchronised unit.

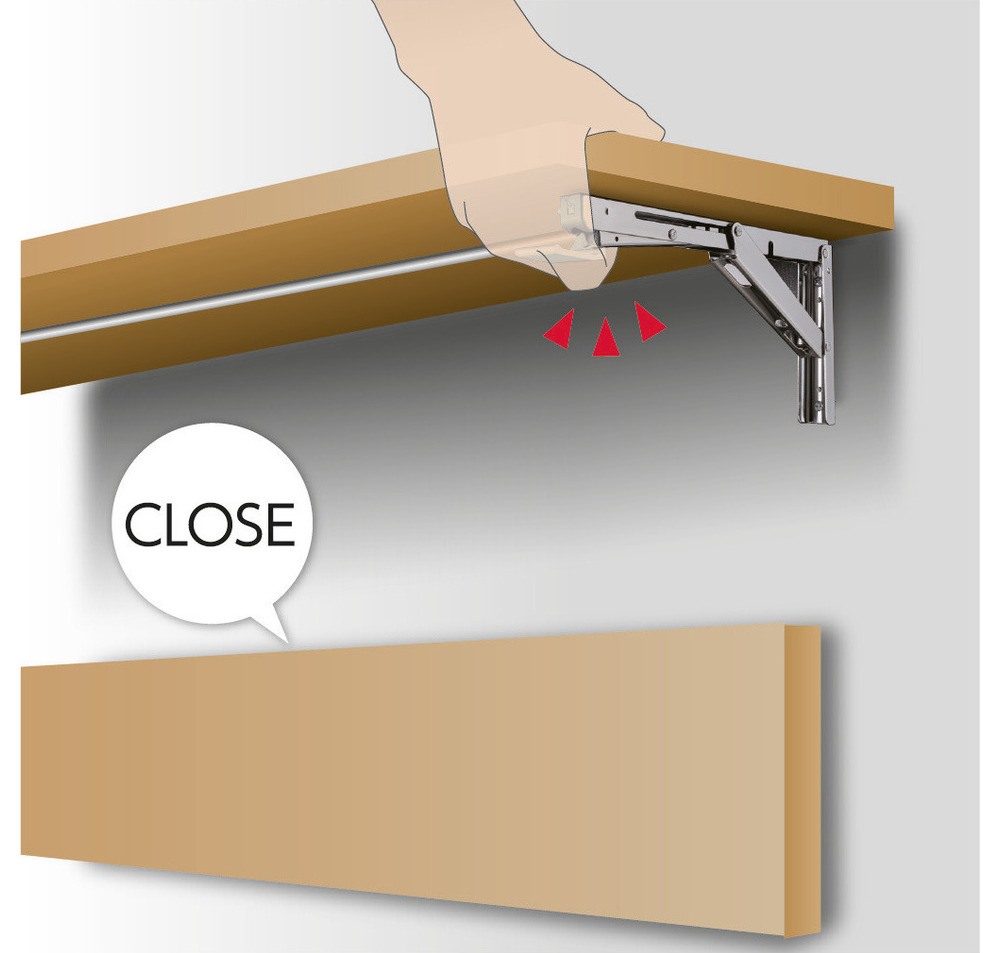

Thanks to the coupling, wide folding tables can be folded in and out with just one hand.
The aluminium rod can be shortened (cut to length) to fit the desired width and remains torsion-resistant.
An optional centre bearing prevents bending on spans over 700 mm (27-9/16″).
The high-quality connecting rods 120-046-396 and 120-046-397 are perfect for, among other things:
- Robust Soft from ROCA and EB-DA folding console
Technical details:
- Version: for three folding brackets
- Weight: 414 g
- Size: 1500 mm (59-1/16″)
- Available in two versions: for two folding brackets and for three folding brackets
- Easy installation, practical, stable
- Multiple levers for one-handed operation
- Maximum distance between folding consoles: 1539 mm (60-19/32″)
- Rod can be individually shortened (cut to length)
- Can be retrofitted to existing EB-DA or ROCA Robust folding brackets
- anodized
- Aluminum alloy (aluminum, sturdy)
- high brand quality of Sugatsune / LAMP®
Surface:
- Anodized
- Anodized surfaces offer increased durability and corrosion resistance, making them extra durable and easy to maintain, ideal for high-wear areas such as kitchens and bathrooms
- In addition, their metallic look and variety of colours give modern interiors a stylish and high-quality appearance
Assembly:
- The fastening is done with pan head self-tapping screws 4.5 mm (not included)
- Before installation, the connecting rod must be shortened to the clear distance between the lever axles of the EB-DA or ROCA Robust Soft brackets minus 39 mm (1-17/32″)
- The shortened rod must then be pushed into the two lever arms via the supplied guide bushes and secured with the cotter pins
- The lever arms must be aligned flush with the external tabs of the consoles and screwed firmly with 4.5 mm pan head self-tapping screws
- The mounting plates must lie flat; Uneven surfaces may need to be lined to avoid tension

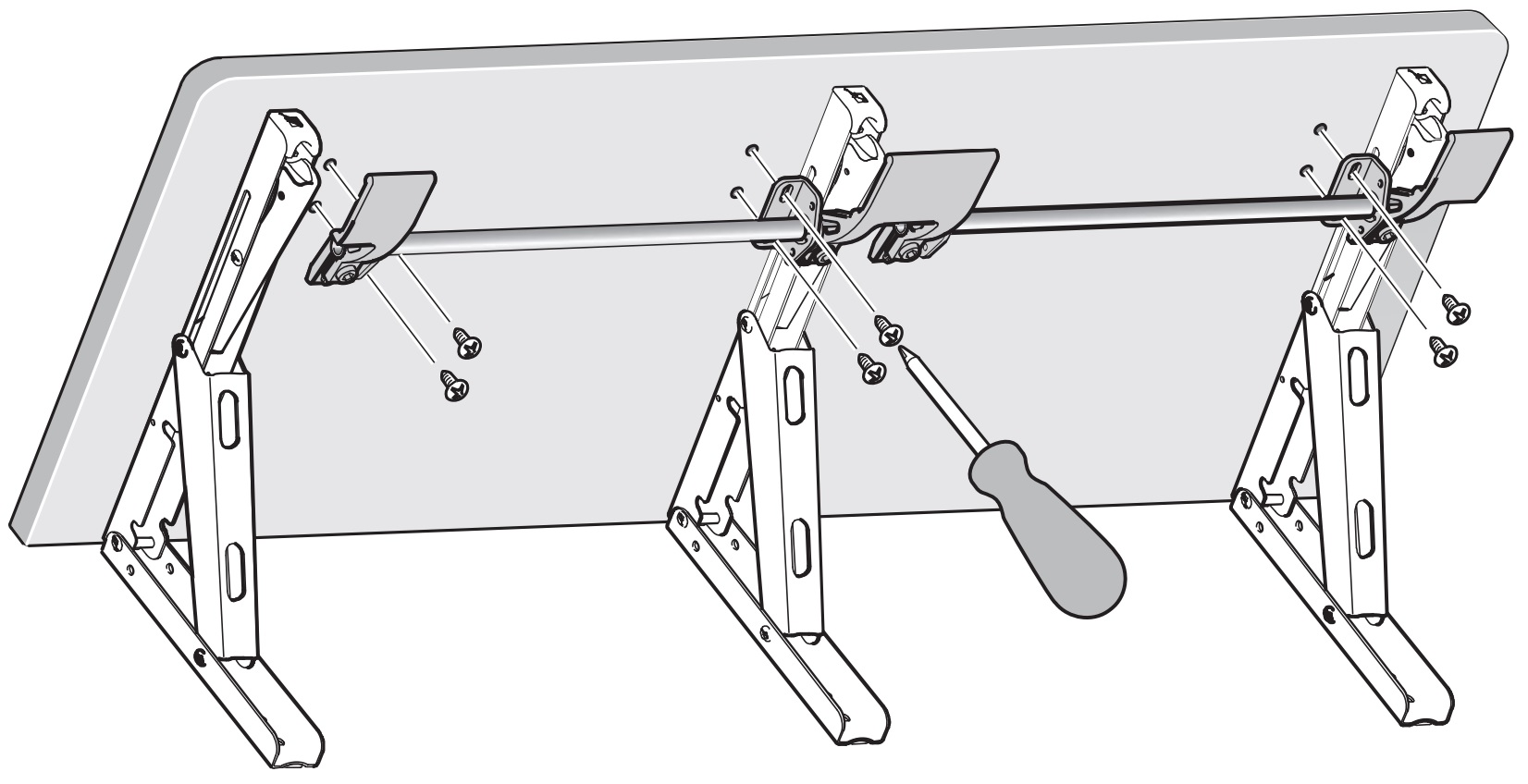

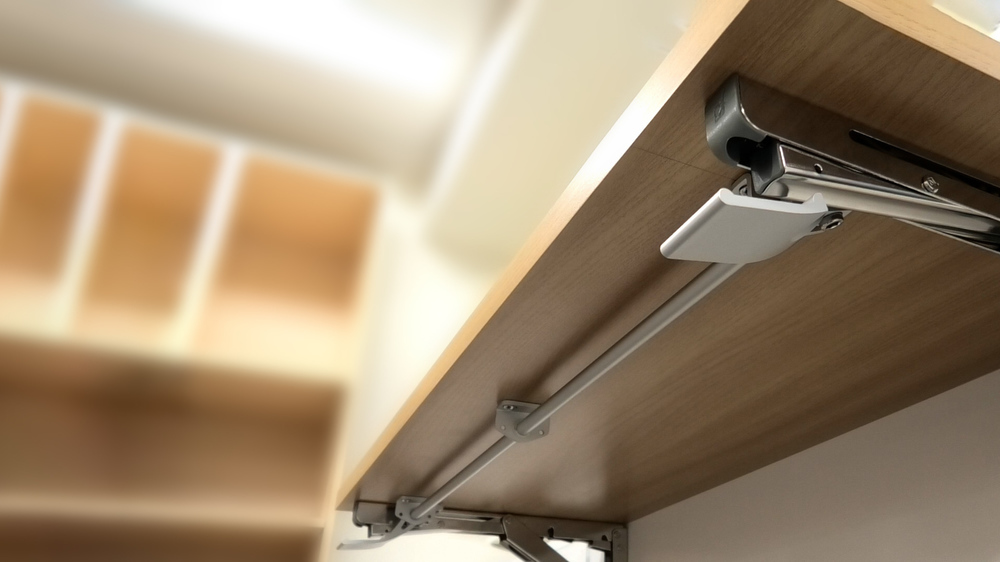

- For spans over 700 mm (27-9/16″), the optionally usable center bearing must be screwed in the middle so that the rod does not bend (for more details, see assembly drawing)
Dimensions:
- Connecting rod length: 1500 mm (59-1/16″)
- Connecting rod material thickness: ⌀10 mm (25/64″)
- Length of the lever arm: 66 mm (2-19/32″)
- Lever arm depth: 48 mm (1-57/64″)

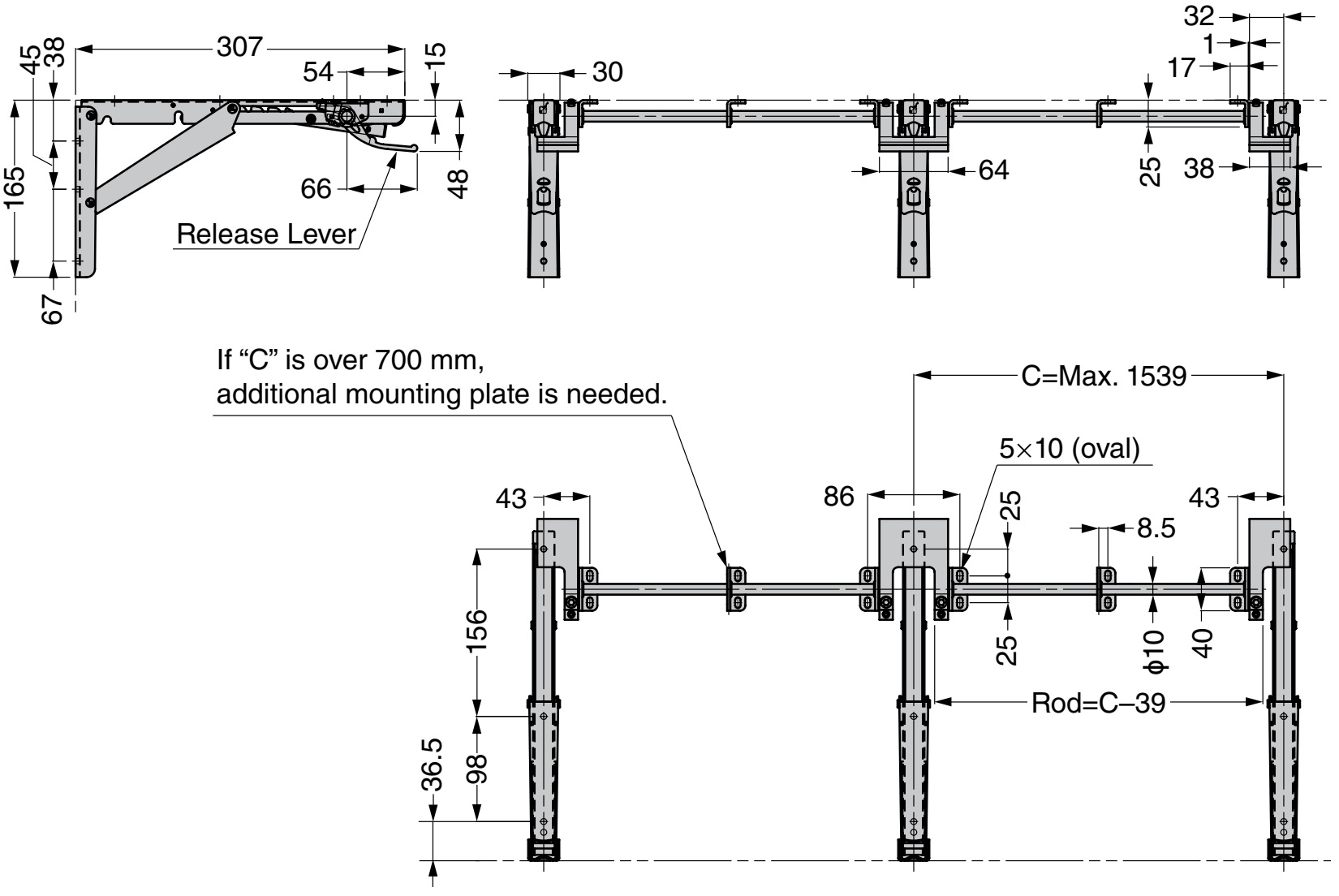

For more dimensions and details, see technical drawing.
Material:
- The connecting rods 120-046-396 and 120-046-397 are made of robust aluminum alloy (aluminum)
- Aluminum alloy offers excellent corrosion resistance and durability, making it ideal for use in furniture hardware
- It is also lightweight yet strong, making it easier to handle and install without sacrificing stability
Included in delivery:

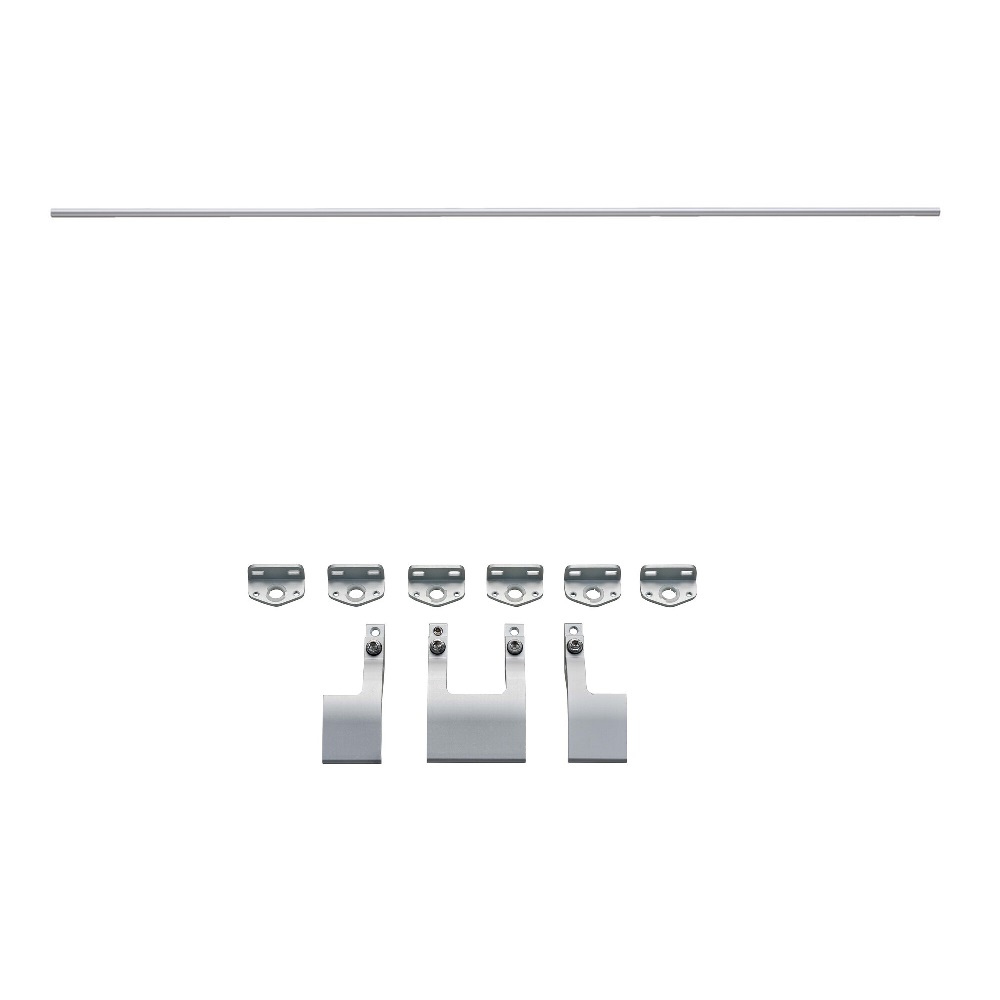

- 1 piece connecting rod 120-046-396 and 120-046-397 made of robust aluminium alloy, anodised, version: for three folding brackets
- Three pieces aluminum alloy lever arms
- Six pieces of aluminum alloy guide bushings
- Attention: the connecting screws are not included in the scope of delivery
Watch the product video:
Additional information:
Manufacturer’s part numbers:
- Article ID: 120-046-396 and 120-046-397
- Item number: EB-907561 and EB-907572
- EAN number: 4510932219884 and 4510932219891
Manufacturer: Sugatsune / LAMP® (Japan)
