Description

Robust, high-quality heavy-duty furniture strap, incl. screws, made of solid stainless steel (similar to V2A, SUS304), surface: satin matt, F136-50-RAW, size: 120 mm (4-23/32″)

Application:

Heavy-duty hinge for extra heavy door, extra heavy flap and much more.

The F136-50-RAW heavy-duty furniture belt is intended for applications where high strength and robust storage are required.



The cast stainless steel body provides a very stable base for long-lasting connections.

The stainless steel rotary axis ensures clean, backlash-free running even with frequent opening and closing.

Due to the large contact surfaces, the load is better distributed between the door and frame, which reduces tearing and warping.

The designed head seats guide the screw heads flush and improve appearance and touch safety.

This makes the F136-50-RAW heavy-duty hinge particularly suitable for demanding constructions in furniture and interior fittings, including high-quality interior fittings of ships and yachts (e.g. for heavy doors, flaps and service hatches in the interior).

The high-quality F136-50-RAW heavy-duty furniture belts are perfect for, among other things:

• Technical enclosures
• Lid
• Hatches
• Covers
• heavy door
• heavy flap

Technical details:

• Weight: 260 g
• Size: 120 mm (4-23/32″)

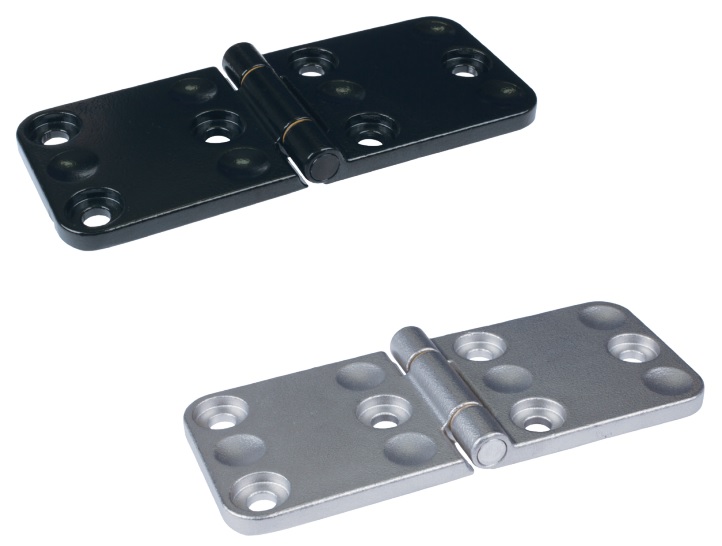

• Available in 2 surface colours: sandblasted black and sandblasted natural (raw)
• Easy installation, stable
• Beam angle: 180°
• Heavy-duty design with large contact surface
• Material thickness: 5.5 mm (7/32″)
• Suitable for corrosion-stressed interior applications and robust constructions
• with head seat or countersink for pan head screws
• Satin matt
• Weather-resistant, rust-free or corrosion-resistant
• High brand quality from Kojima (Japan)

Surface:

• Satin matt
• Matte surfaces are less sensitive to fingerprints and dirt, which makes them easier to maintain
• They also give objects a modern, noble look and harmonise well with different materials and colours

Assembly:

• The fastening is done using the six screws included in the scope of delivery (pan head screw 6×20 mm, black lacquered)
• The fastening screws are also made of stainless steel

Dimensions:

• Heavy Duty Hinge Length: 120mm (4-23/32″)
• Width: 50 mm (1-31/32″)
• Height: 11 mm (7/16″)
• Mounting hole diameter: ⌀6.2 mm (1/4″)
• Outer Diameter of Mounting Hole (Countersink): ⌀12.5 mm (31/64″)
• Mounting hole diameter: ⌀5 mm (13/64″)

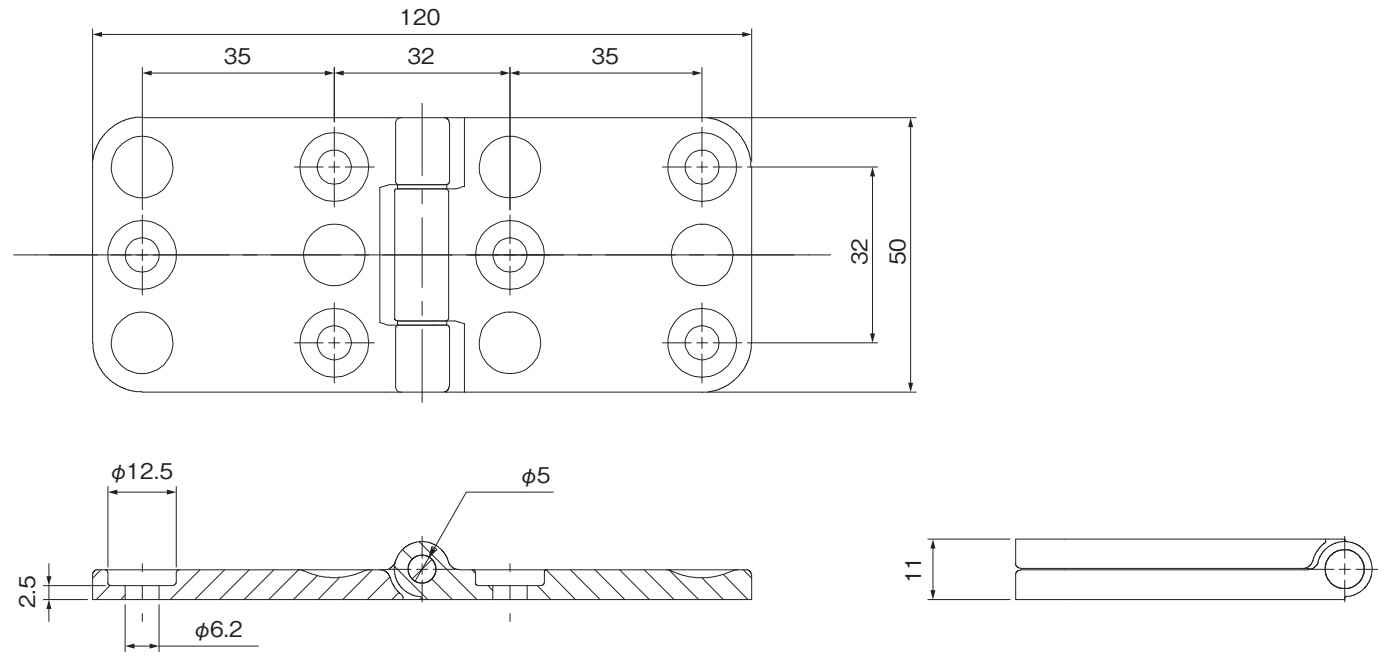

For more dimensions and details , see technical drawing.

Material:

• The F136-50-RAW heavy-duty furniture belts are made of solid stainless steel (similar to V2A, SUS304)
• SUSXM7 stainless steel rotary axis
• Brass washer
• Stainless steel SCS13 (similar to AISI 304 / V2A) offers very good corrosion resistance, hygienic surface and high durability for furniture fittings and interior fittings – even with moisture, cleaning agents and changing temperatures
• This high-quality stainless steel provides a high degree of robustness and dimensional stability for furniture fittings and ship interiors, so that fittings function reliably even with frequent use, loads and vibrations

Included in delivery:

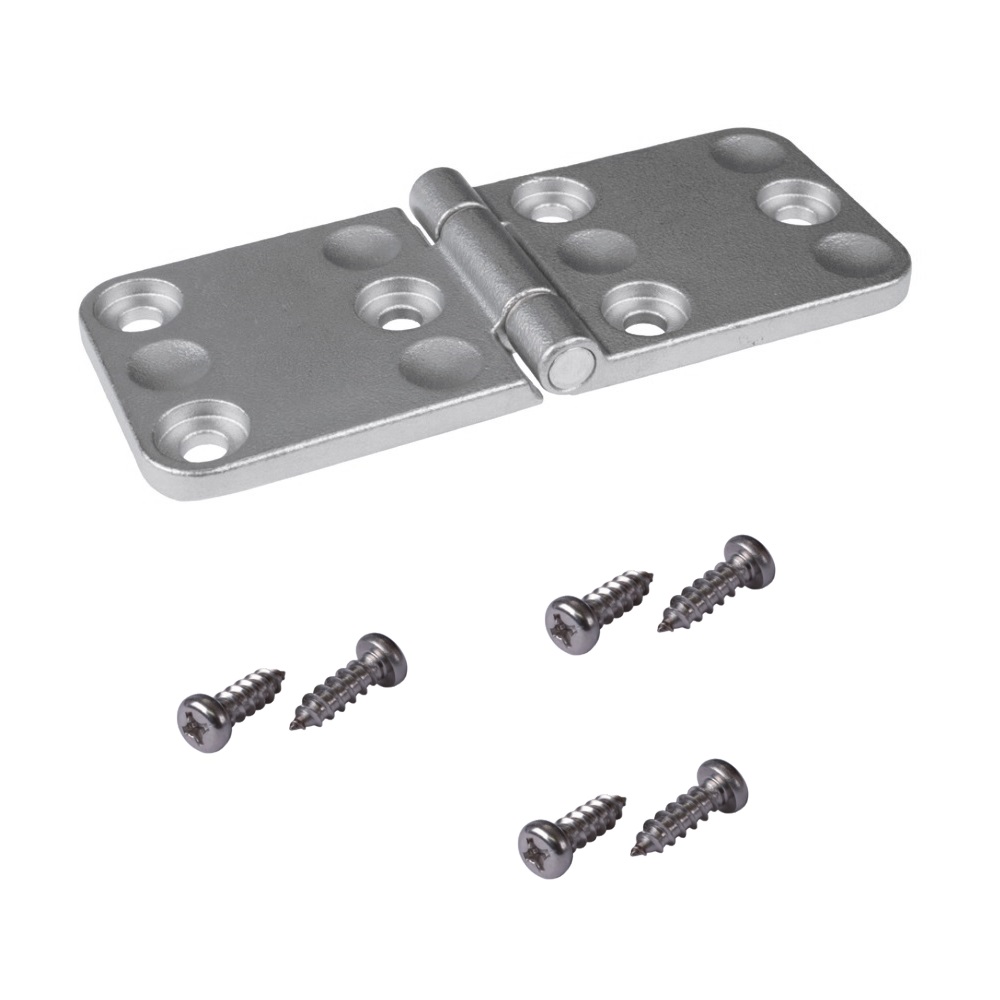

• 1 piece Heavy Duty Furniture Hinge F136-50-RAW made of solid stainless steel, satin matt, 120 mm (4-23/32″)
• 6 pan head screws 6×20 mm, black lacquered, made of stainless steel

Manufacturer’s part numbers:

• Article ID: F136-50-RAW
• GTIN number (EAN, UPC): 0618455525469

Manufacturer: Kojima (Japan)
