Description

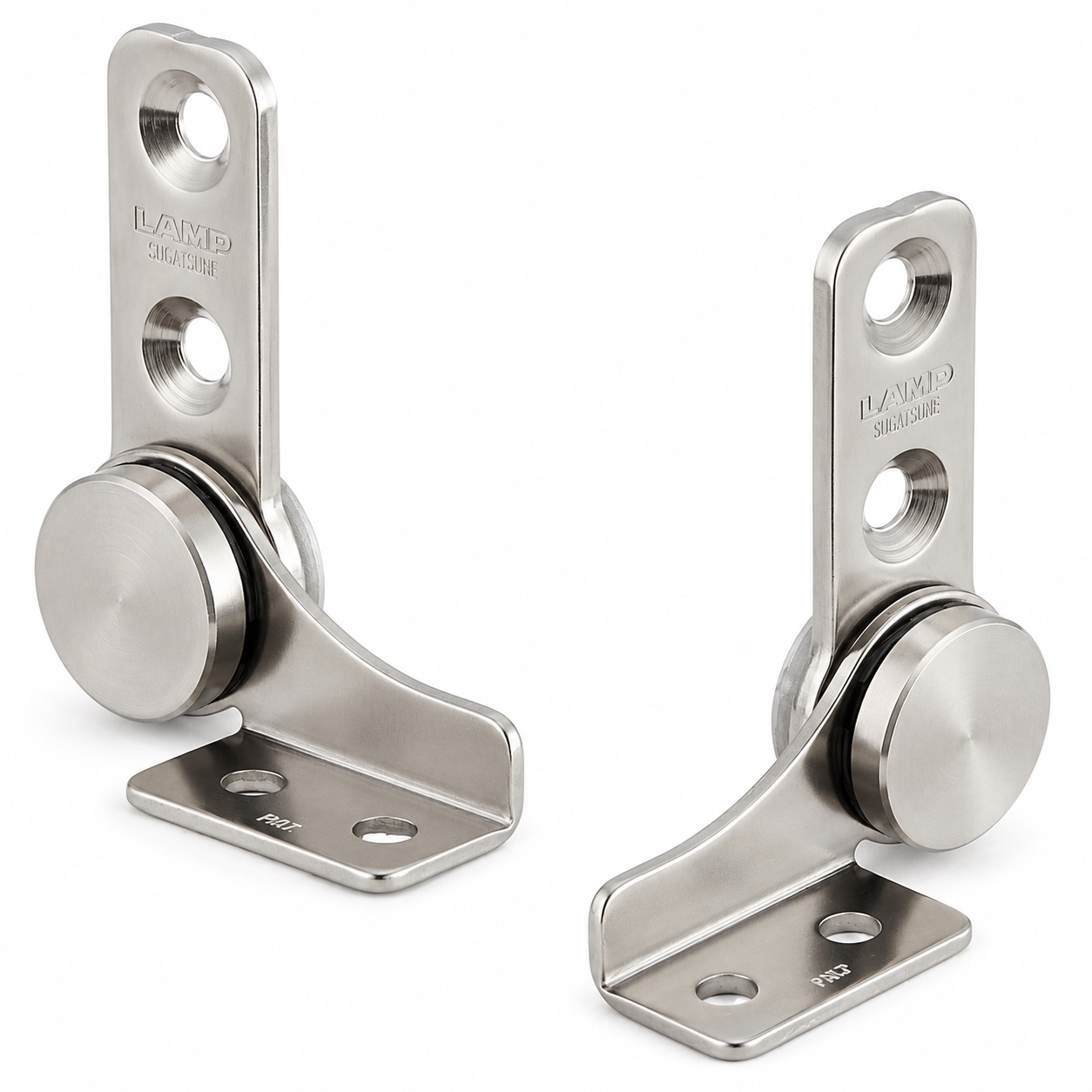

Set of 2 high-quality friction hinges (left + right), torque: 9 N·m, made of high-quality stainless steel SUS430 (1.4016 or X6Cr17), surface: natural (unprocessed), HG-TB45 (HG-TB45L and HG-TB45R)

Application:

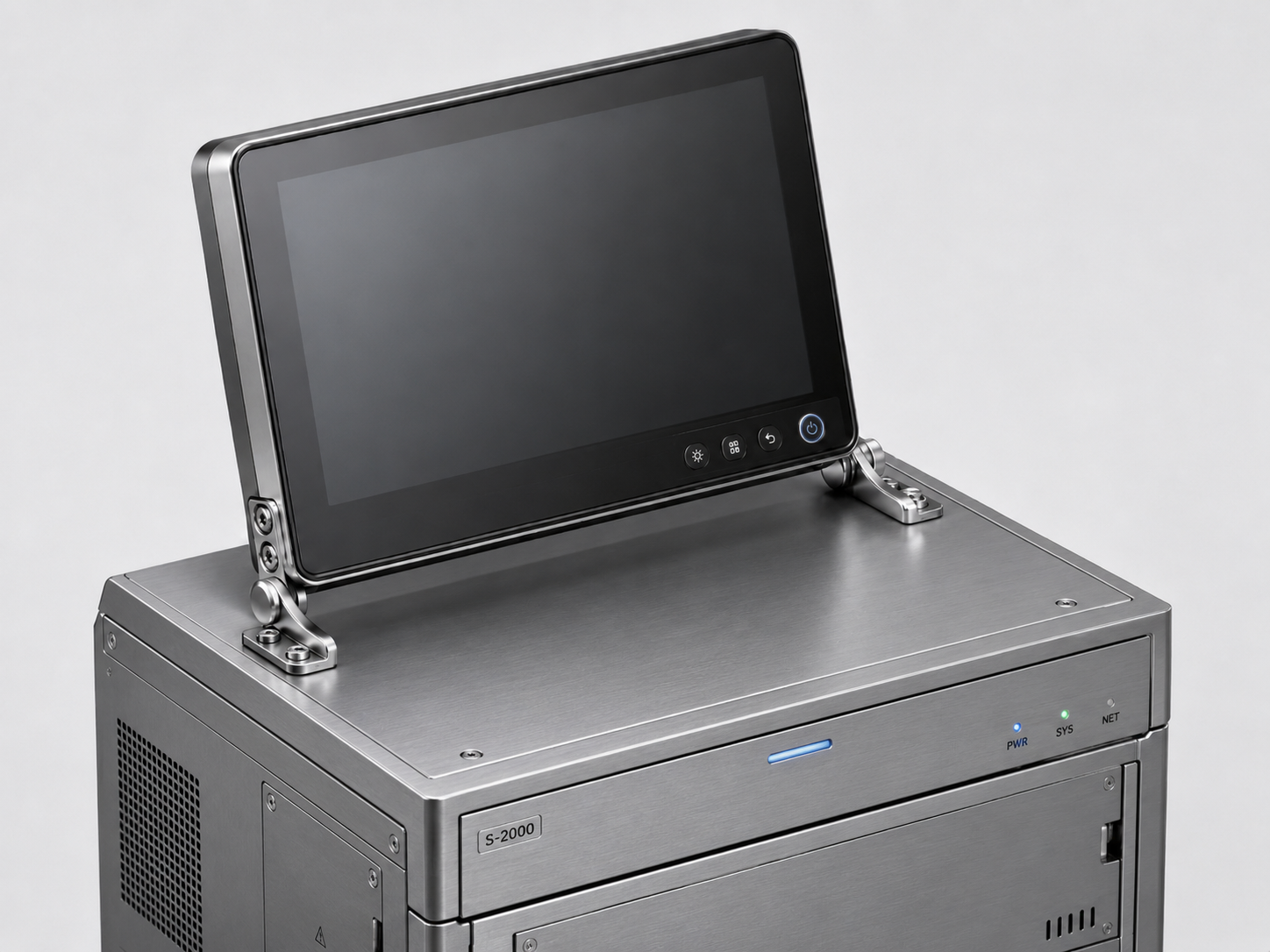

2 high-quality friction hinges for device lids, furniture flaps, monitor housings and much more.

The HG-TB45 torque hinge set consists of a left (HG-TB45L) and a right (HG-TB45R) hinge for a symmetrical, horizontally mounted flap guide.



Each hinge generates a constant torque of 4.5 N·m, thus enabling the flap to be continuously positioned within the appropriate load range.

Together, both hinges provide a nominal total torque of 9 N·m and distribute the load evenly on both sides.



The free-stop function holds the lid, displays or device flaps in the desired position without additional detent.

The mirror-image left-right design ensures clean installation and stable, controlled movement in both directions of rotation.



The robust SUS430 stainless steel structure is particularly suitable for appliances, furniture and technical installations.

The high-quality HG-TB45 friction hinges are perfect for, among other things:

• LCD mounts
• Surveillance cameras
• Control panels
• Machine covers
• Display units
• Consoles
• technical housings
• Device lid
• Furniture flaps
• Monitor Enclosures

Technical details:

• Torque: 9 N·m
• Weight: 134 g
• Size: 61 mm (2-13/32″)

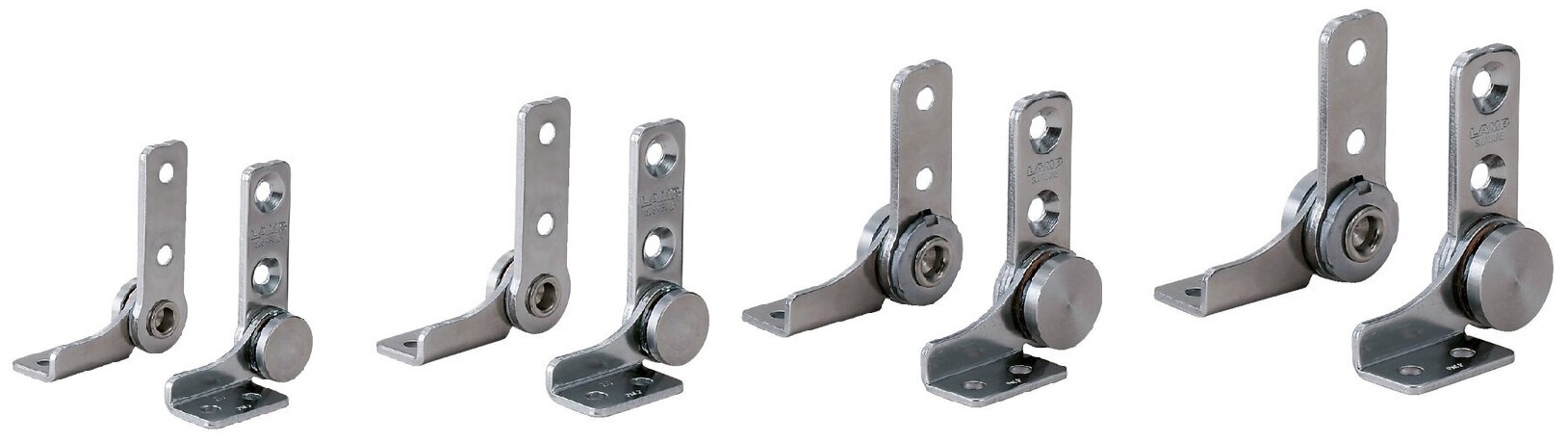

• Available in four different torque levels: 1.4 N·m (HG-TB7), 4 N·m (HG-TB20), 6 N·m (HG-TB30) and 9 N·m (HG-TB45)
• Easy installation, stable
• Set of one left and one right torque hinge
• HG-TB45L for the left side
• HG-TB45R for the right side
• Constant torque in both directions of movement
• Stepless free-stop function
• Opening angle up to 360°
• For horizontal mounting
• Main Material Stainless Steel SUS430
• Operating temperature from 0 °C to 40 °C
• Tested in-house with 20,000 opening and closing cycles
• Mirror-image left-right design
• Suitable for technical and industrial applications
• Material thickness: 3 mm (1/8″)
• Natural (unprocessed)
• Weather-resistant, rust-free or corrosion-resistant
• High brand quality from Sugatsune / LAMP®.

Surface:

• Natural (unprocessed)
• The material surface remains visible and is not covered by an additional coating

Assembly:

• First, the fastening positions on the flap and on the body or device housing must be marked and pre-drilled using the technical dimensional drawing
• The HG-TB45L is mounted on the left side and the HG-TB45R on the right side
• Both hinge axes must be exactly at the same height, aligned horizontally and aligned with each other
• For the required alignment margin, the mounting holes must be made slightly excessive according to the manufacturer’s specifications with a tolerance of C0.5
• The vertical legs are securely fastened with M5 countersunk screws and the horizontal legs with M5 pan head or cylinder head screws
• The flap must then be operated over the entire range of motion and the safe positioning in different opening positions must be checked

Dimensions:

• The measurements apply to the left and right hinges; the two versions are mirror images
• Torque hinge height: 61 mm (2-13/32″)
• Depth: 53 mm (2-3/32″)
• Width: 24.5 mm (31/32″)

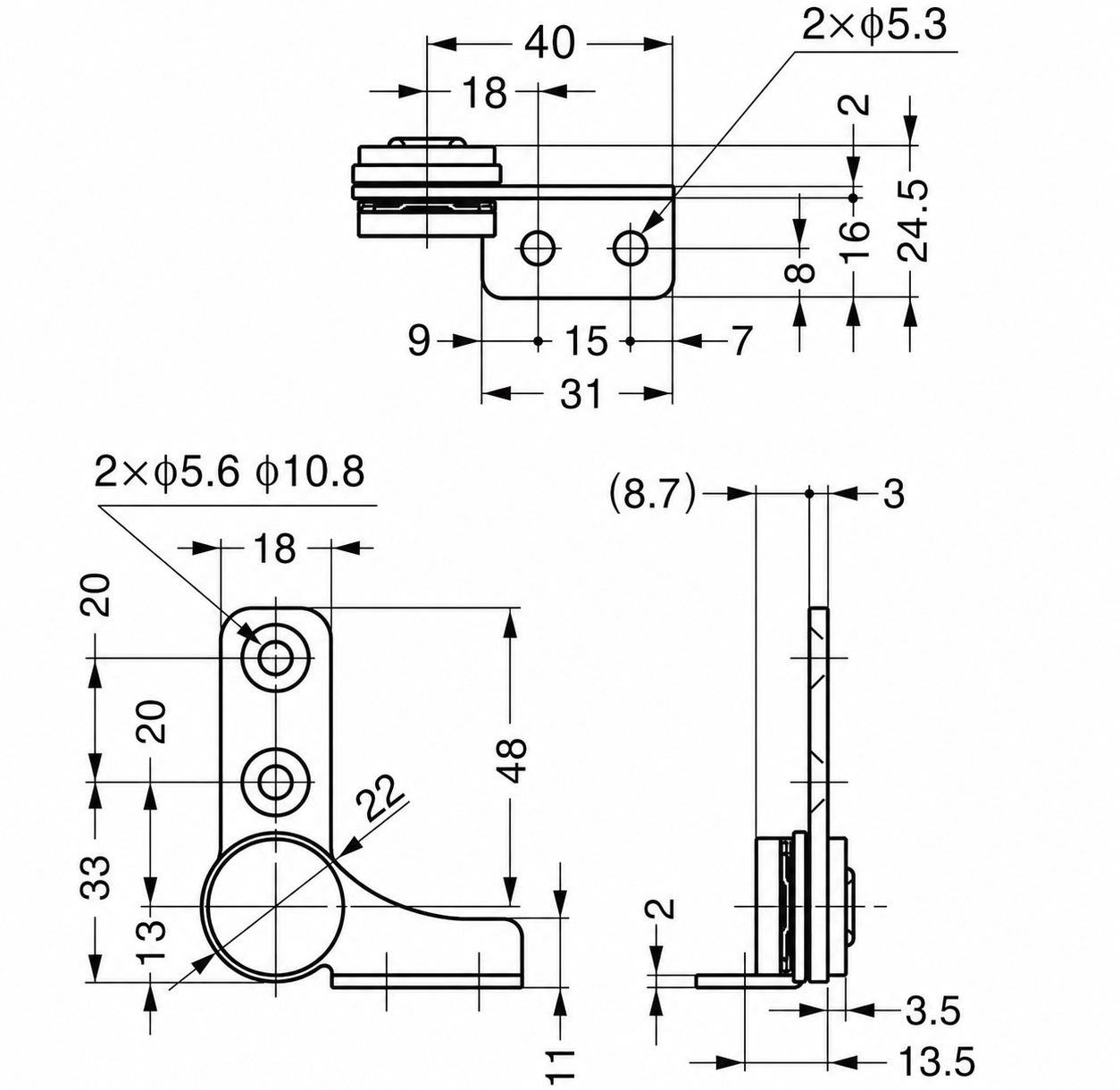

For more dimensions and details , see technical drawing.

Material:

• HG-TB45 friction hinges are made of high-quality SUS430 stainless steel (1.4016 or X6Cr17)
• SUS430 (1.4016) stainless steel provides solid corrosion resistance for dry to moderately humid interiors, making it well suited for furniture and industrial hardware without chloride exposure
• It is ferromagnetic and therefore ideal for magnetic latches, locking mechanisms and counterplates

Included in delivery:

• 1 set of torque hinges HG-TB45 (HG-TB45L and HG-TB45R) made of high-quality stainless steel SUS430, natural (unprocessed)
• This item does not include mounting screws

Watch the product video:

Manufacturer’s part numbers:

• Item ID: HG-TB45L and HG-TB45R (alternatively: 170-012-418 and 170-012-417)
• Item number: HG-TB45
• GTIN number (EAN, UPC): 4510932004121 and 4510932004138

Manufacturer: Sugatsune / LAMP® (Japan)
