Description

2 pieces high-quality screw-on hinge, made of solid stainless steel SUS304 (V2A or 1.4301), surface: glossy polished, B-1059-2 (10658), size: 76 mm (2-63/64″), load capacity: 10 kg (22 lbs)

Application:

Robust flat hinge for machine doors, housing doors, maintenance hatches and much more.

The B-1059-2 (10658) screw-on hinge connects doors or flaps to a body or frame and allows for easy, permanent rotational movement.



The flat design is particularly suitable for screw-on applications on housings, machine covers and cabinets.

SUS304 stainless steel offers good corrosion resistance, making the hinge suitable for humid or more demanding environments.

The polished surface ensures a clean, high-quality look and makes cleaning easier.

6 countersunk holes enable stable fastening, whereby the screw heads can be largely flush with the hinge blades.

When using two hinges vertically, the reference door weight is up to 10 kg (22 lbs) for a door size of 800 mm (31-1/2″) x 400 mm (15-3/4″).

The high-quality flat hinges B-1059-2 are perfect for, among other things:

• Machine covers
• Stainless steel housing
• Control cabinets
• Device flaps
• Cabinet doors
• Machine doors
• Enclosure doors
• Maintenance hatches

Technical details:

• Weight: 40 g (for 2 pieces: 80 g)
• Load capacity (load capacity): 10 kg (22 lbs) – for 2 pieces
• Size: 76 mm (2-63/64″)

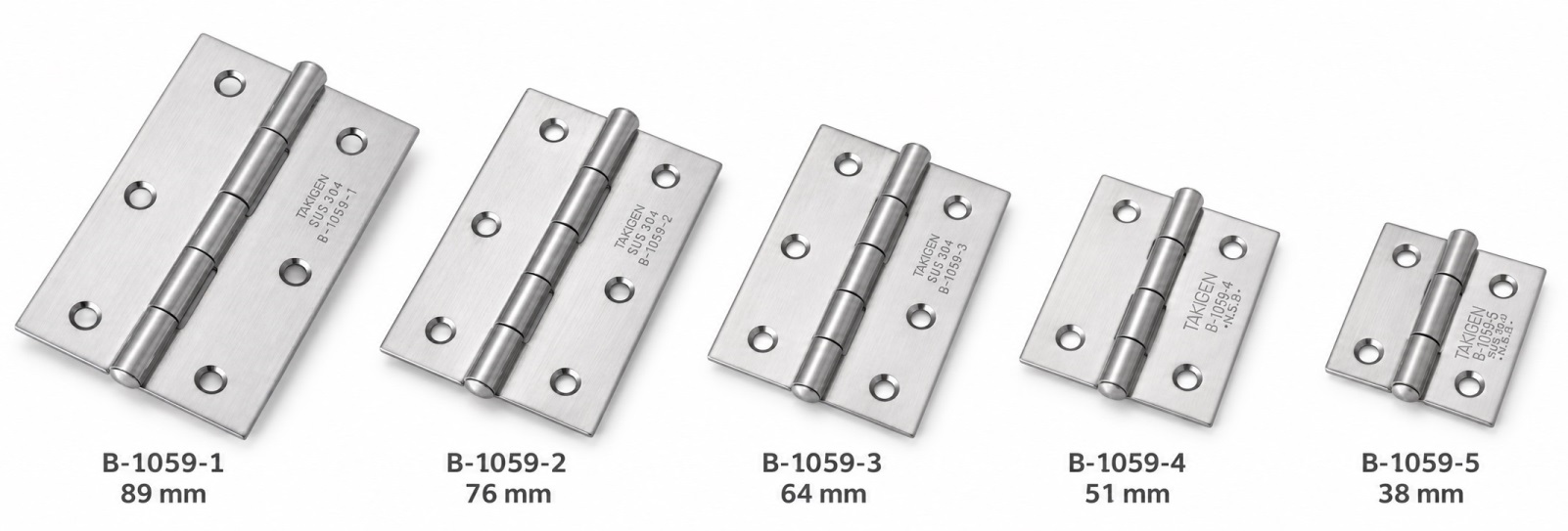

• Available in 5 sizes: 38 mm, 51 mm, 64 mm, 76 mm and 89 mm
• Easy installation, stable
• Material thickness 1 mm (3/64″)
• 6 recessed mounting holes
• Mounting holes with ⌀4.5 mm
• Countersink with ⌀6 mm
• ⌀4.5 mm hinge pin
• Hinge roller with ⌀6 mm outer diameter
• Five joint segments
• Reference door for weight specification: 800 mm (31-1/2″) x 400 mm (15-3/4″)
• Suitable for different door and flap applications
• Glossy polished
• Weather-resistant, rust-free or corrosion-resistant
• High brand quality from TAKIGEN®

Surface:

• Glossy polished
• Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, elegant appearance
• In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and dirt

Assembly:

• The fastening is done with 6 x countersunk screws made of stainless steel V2A, approx. ⌀3.5 mm (not included)
• The flat hinge has 6 mounting holes with countersink
• The flat hinge is first aligned with the door or flap and frame in the desired position
• The 6 attachment points are marked according to the hole pattern and, depending on the material used, pre-drilled or threaded
• The hinge is then fastened with suitable countersunk screws
• For a visually clean installation, the screw heads should be as flush as possible in the countersinks
• Before the final tightening, it must be checked whether the door or flap can be moved freely and without bracing

Dimensions:

• Length: 76 mm (2-63/64″)
• Width: 45.5 mm (1-51/64″)
• Material thickness: 1 mm (3/64″)
• Hole Pattern: 56 mm (2-13/64″)
• Number of joint segments: 5

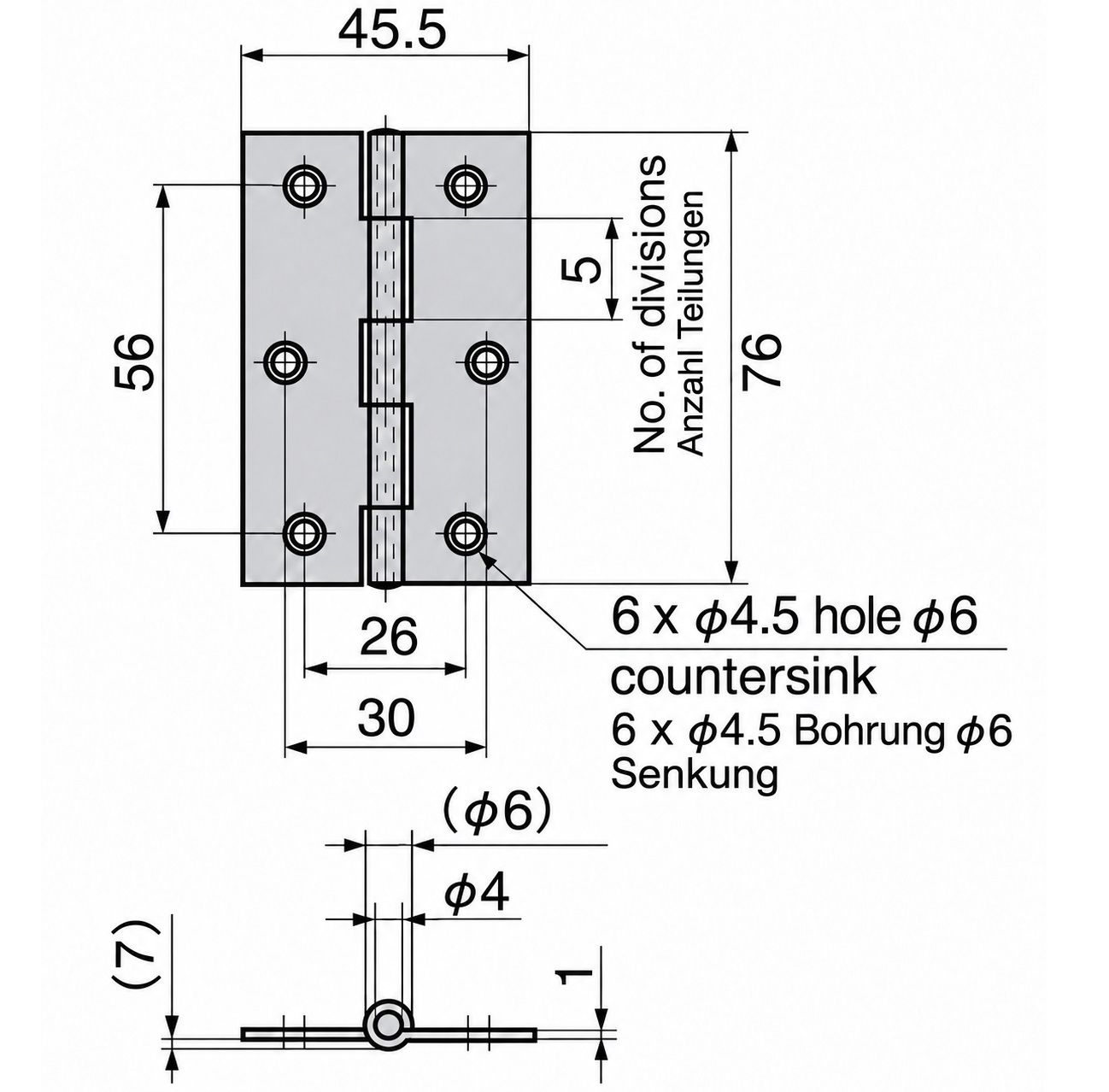

For more dimensions and details , see technical drawing.

Material:

• The flat hinges B-1059-2 are made of solid stainless steel SUS304 (V2A or 1.4301)
• SUS304 stainless steel is characterized by its high corrosion resistance and durability, which makes it ideal for use in demanding environments
• In addition, it offers an attractive interface that is both modern and easy to maintain

Included in delivery:

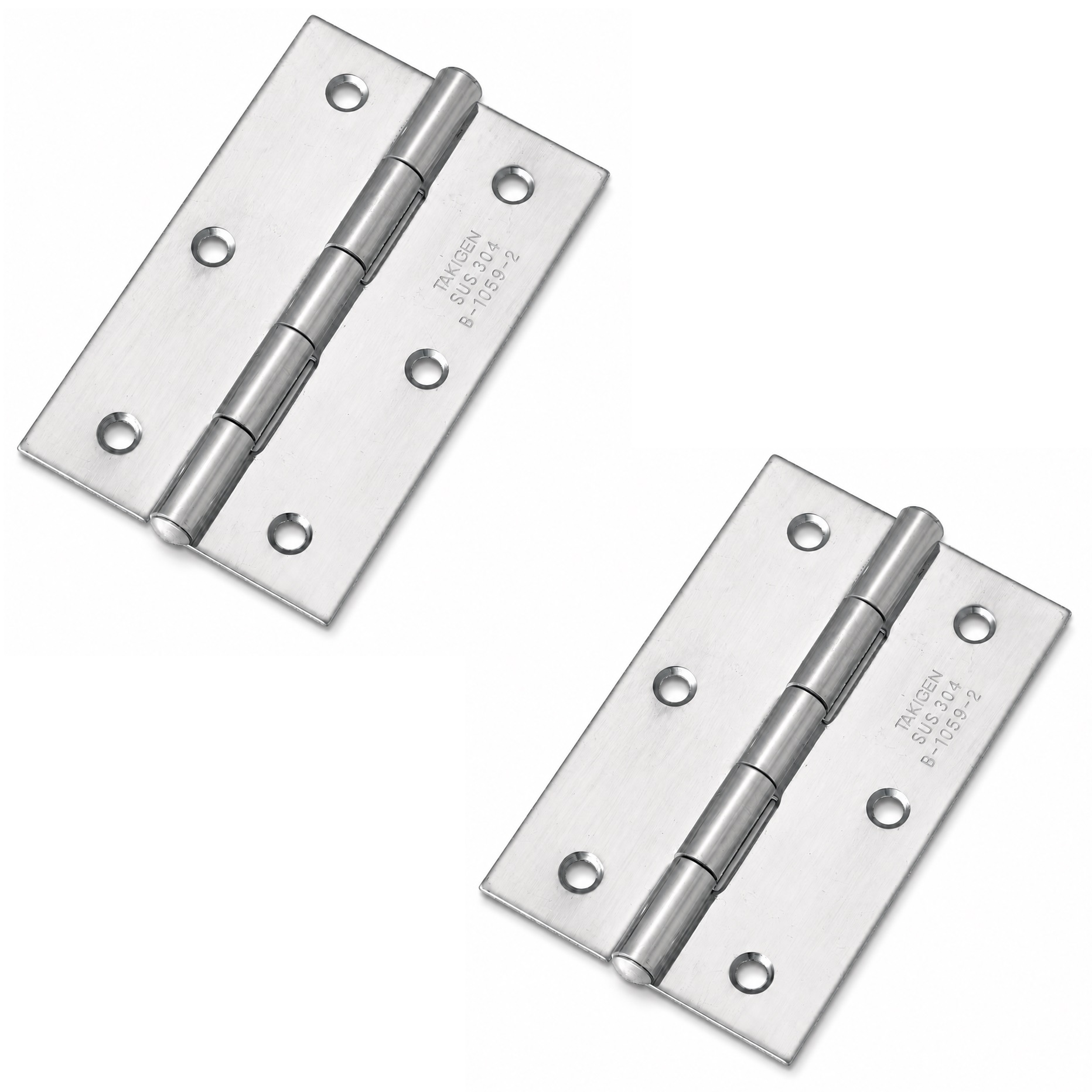

• 2pcs flat hinge B-1059-2 (10658) made of solid stainless steel SUS304, glossy polished, 76 mm (2-63/64″)
• This item does not include mounting screws

Manufacturer’s part numbers:

• Article ID: 10658
• Item number: B-1059-2

Manufacturer: TAKIGEN (Japan)
