Description
2 pieces of high-quality magnetic snap latches, made of metal and robust plastic (metal and plastic), surface: black, ML-120BL, size: 70 mm (2-3/4″), version: with long plunger
Application:
Push-to-open door openers for furniture doors, cabinet doors and much more.
The long ram increases the lifting distance, so that the door is opened further.
The ML-120BL magnetic snap latch enables the convenient opening and closing of handle-free furniture doors by printing.
The ML-120BL push-to-open door opener has a ram extension distance of 40 mm (1-37/64″).
Thanks to its compact plastic housing, the ML-120BL magnetic slide latch can be inconspicuously screwed to the side of the carcass.
The high-quality magnetic snap latches 140-047-124 are perfect for, among other things:
- Cabinet flaps
- Kitchen cabinet doors
- Bathroom furniture doors
- Furniture doors
- Doors
Technical details:
- Version: with long plunger
- Weight: 53 g
- Load capacity (load capacity): 23.5 N (2.4 kp)
- Size: 70 mm (2-3/4″)
- Available in 3 colours: black, white and brown
- Easy installation, practical, stable
- Extension distance of ram: 40 mm (1-37/64″)
- Minimum door gap: 3.5 mm
- black
- robust
- high brand quality of Sugatsune / LAMP®
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done using the six screws included in the scope of delivery (countersunk self-tapping screw, 4 x 16 mm)
- The ML-120BL magnetic snap latch has 2 mounting holes
- The distance between the mounting holes is 34 mm (1-11/32″)
- The latch is screwed onto the side of the body

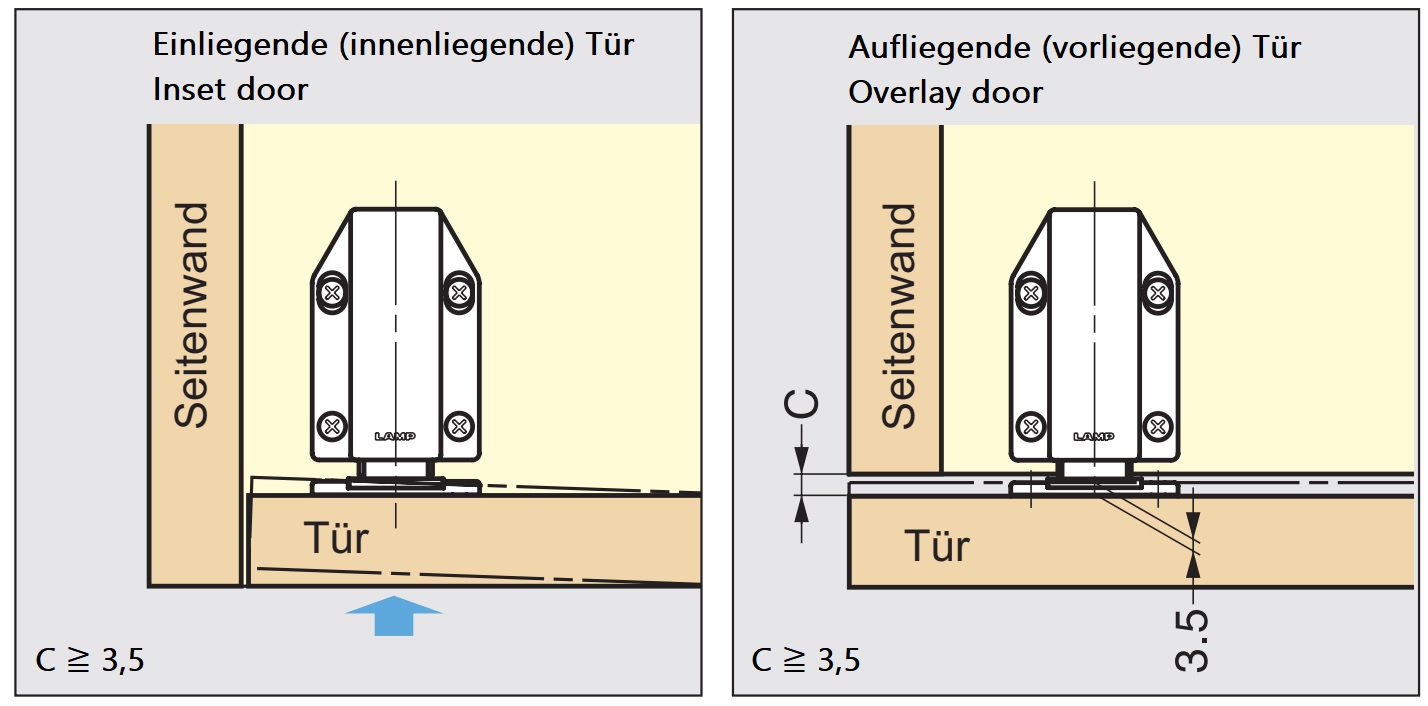

- The minimum distance between the door and the furniture body is 3.5 mm (for more details, see assembly drawing)
Dimensions:
- Magnetic snapper width: 46 mm (1-13/16″)
- Magnetic snapper depth: 70 mm (2-3/4″)
- Height: 15 mm (19/32″)
- Mounting plate width: 46 mm (1-13/16″)
- Mounting plate depth: 12 mm (15/32″)
For more dimensions and details, see technical drawing.
Material:
- The magnetic snap latches 140-047-124 are made of metal and robust plastic (metal and plastic)
- The combination of metal and plastic provides an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
- In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options

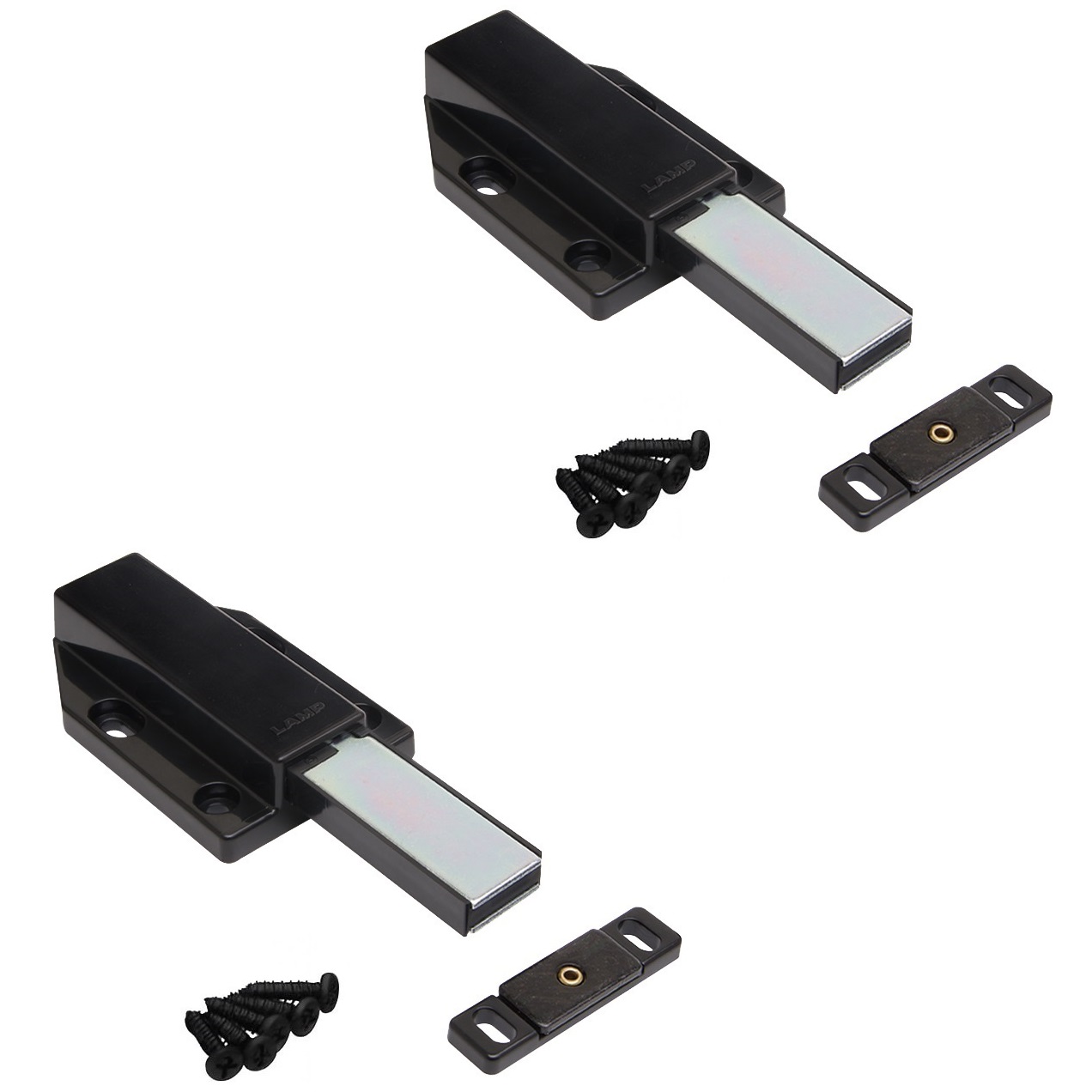

Included in delivery:
- 2 magnetic snap latches 140-047-124 made of metal and robust plastic, black, version: with long plunger
- 2 pieces counter plate made of steel, nickel-plated
- 2 times: 6 pieces countersunk self-tapping screw 4 x 16 mm
Manufacturer’s part numbers:
- Article ID: 140-047-124
- Item number: ML-120BL
- EAN number: 4510932191234
Manufacturer: Sugatsune / LAMP® (Japan)
