Description

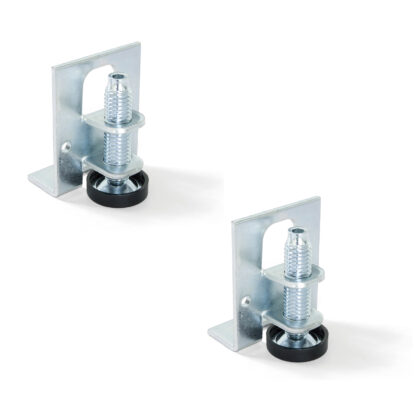

Two-piece sturdy adjustable foot, made of sturdy steel, surface: galvanized, 3016805, load capacity: 120 kg (265 lbs)
Application:
Stable height adjuster for cabinets, kitchen furniture, industrial furniture and much more.
This leveler is the perfect solution for aligning kitchen, bathroom or technical furniture quickly and permanently with precision.
The height-adjustable adjustable foot 3016805 enables precise alignment of furniture on uneven floors.
Its robust steel bracket is screwed to the inside of the body and supports up to 60 kg per foot.
The foot can be adjusted by approx. 25 mm (63/64″) with a 4 mm Allen key via the integrated M10 threaded pin.
The base made of black plastic with ⌀23 mm (29/32″) protects sensitive floor coverings and ensures a non-slip grip.
A discreet cover cap conceals the hole for adjustment and gives the construction a clean appearance.
Thanks to the galvanized surface, the height adjuster is 3016805 reliably protected against corrosion and is perfect for kitchen, bathroom and workshop furniture.
The high-quality adjustable feet 3016805 are perfect for, among other things:
- Bathroom cabinets
- Workbenches
- Office shelves
- Shop counters
- Desks
- Showcases
- RV Furniture
- Cupboards
- Kitchen furniture
- Industrial furniture
Technical details:
- Weight: 73.8 g
- Load capacity (load capacity): 120 kg (265 lbs) – for 2 pieces
- Size: 23 mm (29/32″)
- Easy installation, practical, stable
- Internally adjustable furniture leveling foot with M10 threaded pin
- Adjustment range approx. 25 mm (63/64″) (minimum height 46 mm / maximum height 71 mm)
- Adjustment via 4 mm Allen key
- Base ⌀23 mm (29/32″) made of black plastic protects sensitive floors
- Robust corner bracket made of galvanized steel 40 mm (1-37/64″) x 52 mm (2-3/64″)
- Material thickness: 2.5 mm
- Secure screwing on the side of the body
- Galvanized steel parts for high corrosion protection
- Plastic cap conceals the adjustment
- Load capacity up to 60 kg per foot (approx. 240 kg per piece of furniture for four legs)
- galvanized
- Steel (robust)
- high brand quality from UMAXO®
Surface:
- Galvanized
- The galvanized surface protects against rust and corrosion
Assembly:
- Fastening is done with pan head wood screw with 3.5 x 16 mm screws (not included)
- The adjustable foot 3016805 has two mounting holes with a diameter of ⌀4 mm (5/32″)
- The distance between the mounting holes is 32 mm (1-17/64″)
- The steel bracket of the height adjuster 3016805 is screwed flush to the inner wall of the furniture
- The foot of the height adjuster is then adjusted to the desired height from the inside with a 4 mm Allen key until the body is horizontal
- The integrated plastic cap protects the floor; an additional sliding pad is not required

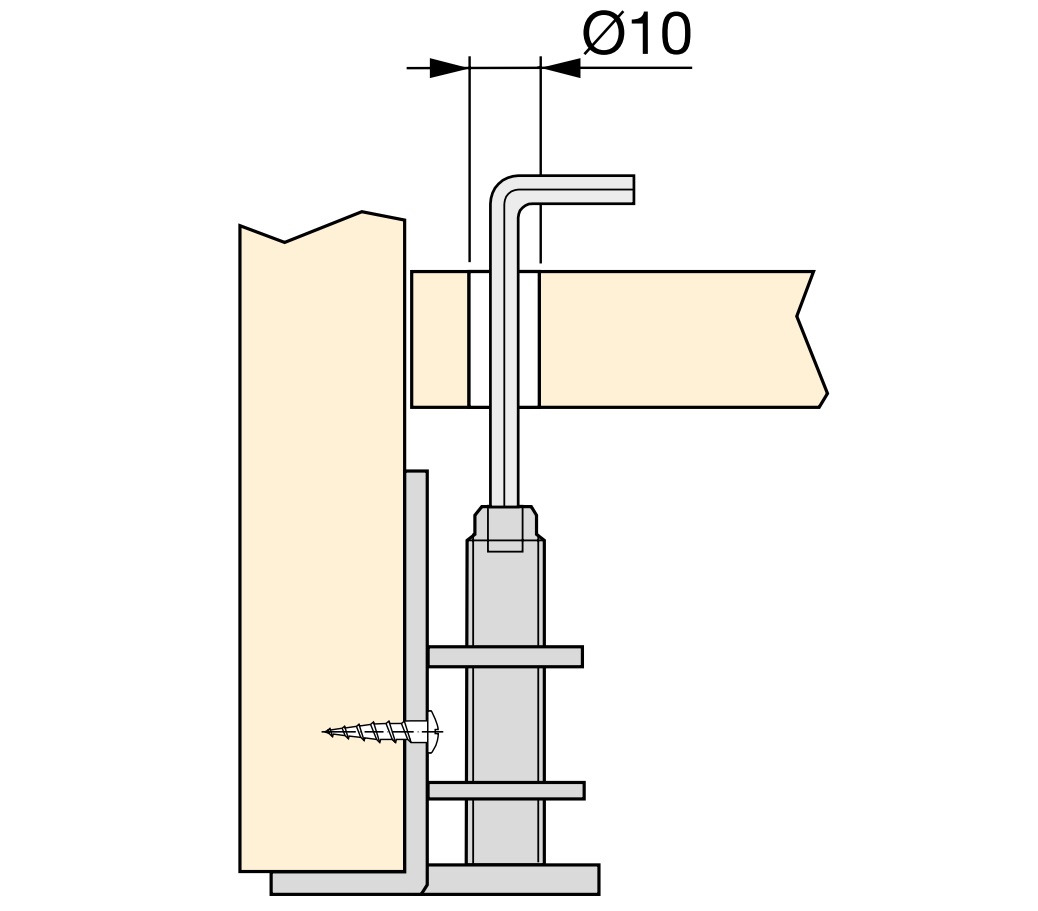

- To adjust the height adjuster 3016805, a hole with a diameter of ⌀25 mm (63/64″) must be drilled in the bottom of the cabinet (for more details, see assembly drawing)
Dimensions:
- Height adjuster height: 52 mm (2-3/64″)
- Foot/Cover Cap Diameter: ⌀23 mm (29/32″)
- Mounting bracket depth: 18 mm

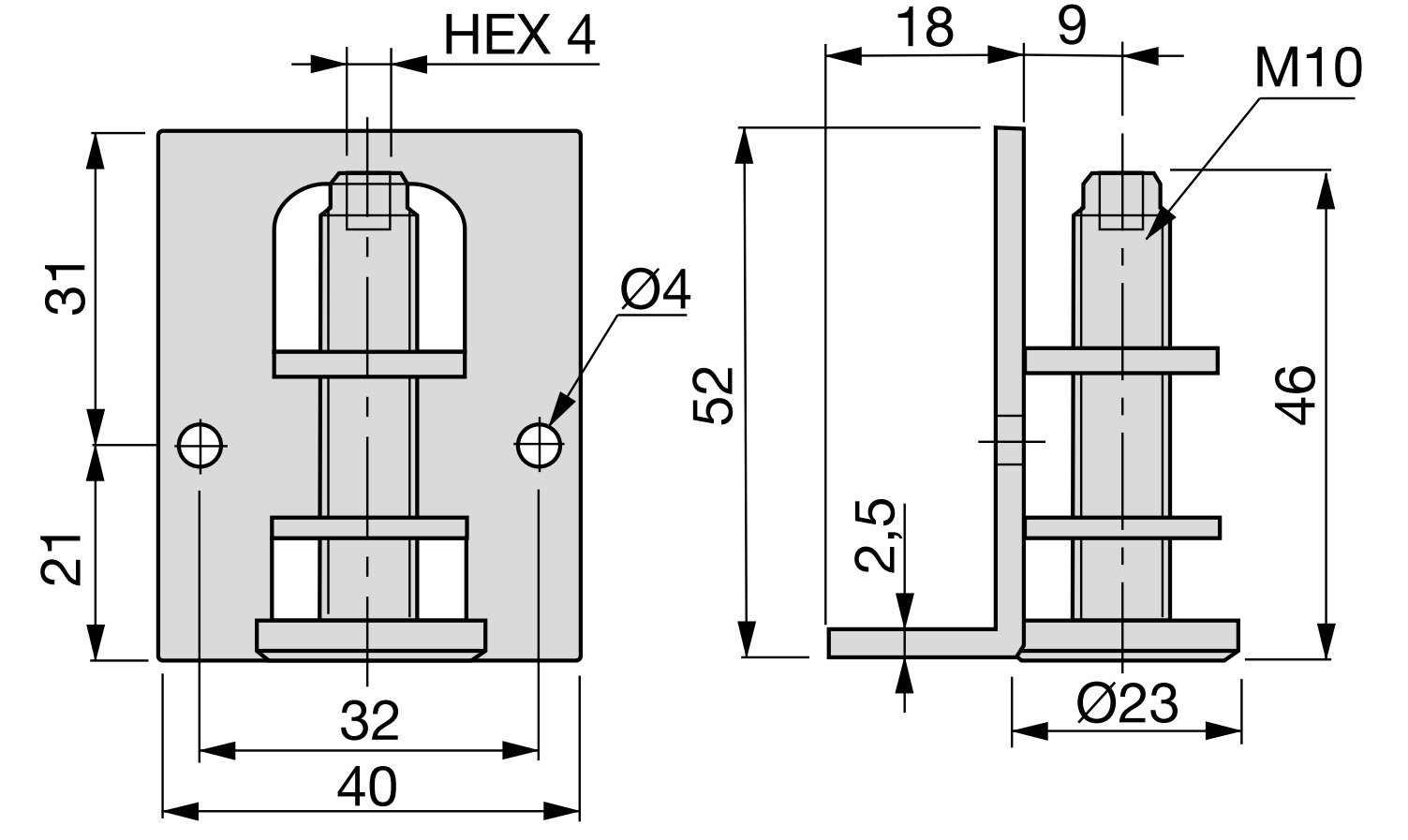

For more dimensions and details, see technical drawing.
Material:
- The adjustable feet 3016805 are made of robust steel
- The base and cover cap are made of black plastic (PA 6); The plastic cover protects sensitive floor coverings and ensures a non-slip grip
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:
- Two pieces of adjustable foot 3016805 made of robust steel, galvanized
- Plastic cover cap to cover the adjustment hole
- Attention: the 4 mm Allen key is not included in the scope of delivery
Manufacturer’s part numbers:
- Article ID: 3016805
- EAN number: 8432393104478
Manufacturer: EMUCA
