Description

2 pieces high-quality hatch hinge, made of high-quality stainless steel SUS316 (1.4401 or V4A), surface: glossy polished, B-1013 (13343), size: 70 mm (2-3/4″)

Application:

Robust marine hinge for ship hatches, deck hatches, floor flaps, maintenance hatches and much more.

The marine hinge B-1013 (13343) is used for the movable connection of hatches, flaps and covers, especially in shipbuilding and in areas at risk of corrosion.

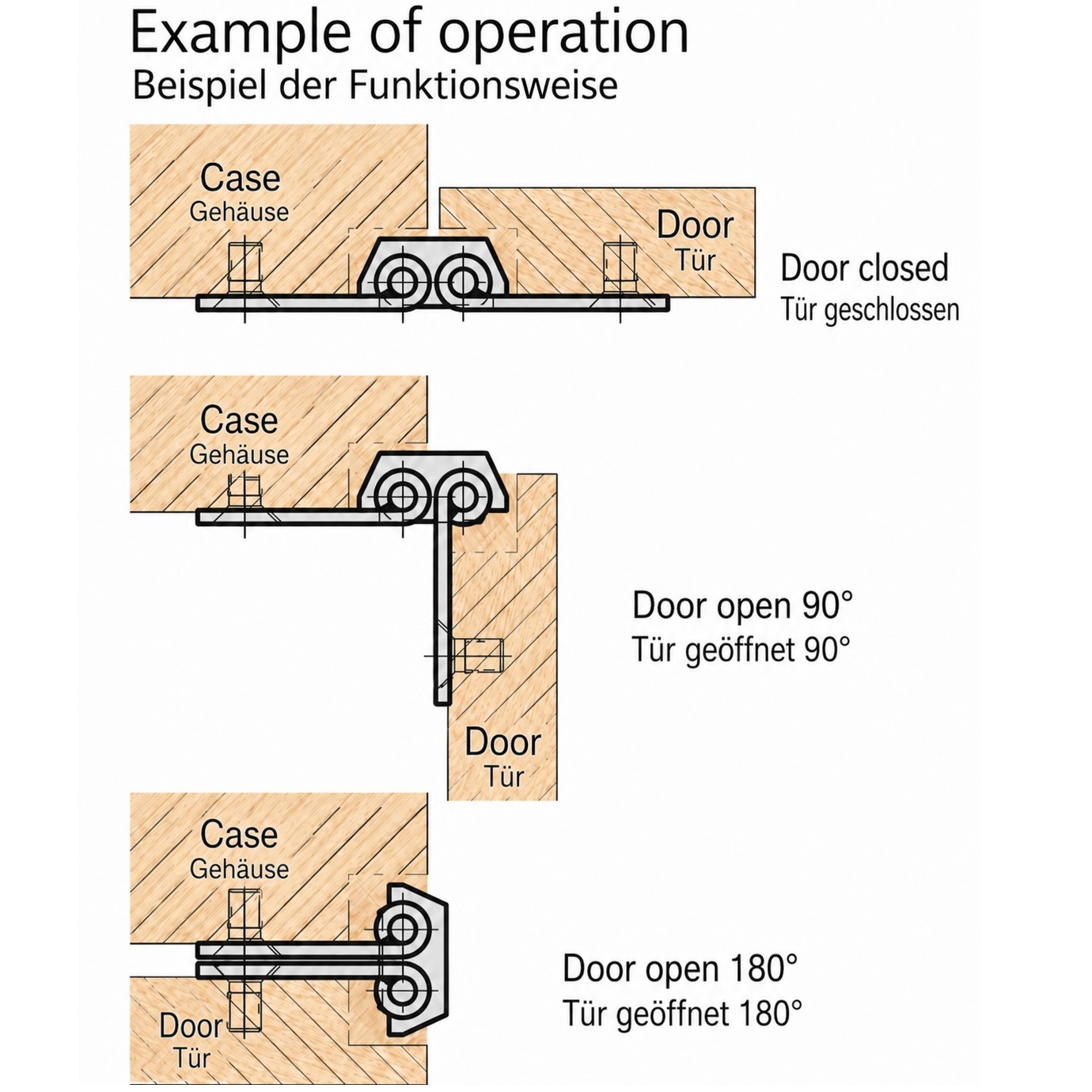

Due to its design with two rotation axes, the hinge allows a large opening angle of up to 180°.

The special joint geometry ensures that the flap can move around the adjacent edge in a controlled manner when opened.

The robust SUS316 stainless steel offers very good corrosion resistance and is therefore particularly suitable for applications with humidity and saline environments.

The flat design with only a few protruding parts reduces annoying protrusions and also allows use on floor flaps.

The four countersunk holes allow for a stable bolting to the flap and frame, making the B-1013 a rugged solution for demanding flap and hatch applications.

The high-quality marine hinges B-1013 are perfect for, among other things:

• Cover hoods
• Fairing flaps
• Ship hatches
• Deck hatches
• Bottom flaps
• Maintenance hatches

Technical details:

• Weight: 70 g (for 2 pieces: 140 g)
• Size: 70 mm (2-3/4″)
• Easy installation, stable
• Two-axis joint design
• Beam angle up to 180°
• Made of corrosion-resistant SUS316 stainless steel
• Particularly suitable for the marine sector
• Flat and compact design
• Only small protrusions on the surface
• Designed for M5 countersunk screws
• Can be used for right and left
• Glossy polished
• Weather-resistant, rust-free or corrosion-resistant
• High brand quality from TAKIGEN®

Surface:

• Glossy polished
• Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, elegant appearance
• In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and dirt

Assembly:

• Fastening is done with 4 x M5 countersunk screws (not included)
• The hatch hinge B-1013 (13343) has four mounting holes with countersink
• First of all, the positions of the two-axis hinge on the flap and frame must be determined and the four mounting holes must be prepared according to the hole pattern
• Hole spacing is 2-13/64″ (56 mm) horizontally and 1-1/32″ (26 mm) vertically
• The hinge is then positioned so that the two articulated axes can move freely and the flap does not collide with the frame when opened
• The marine hinge B-1013 is then fastened with four M5 countersunk screws
• The screw length is to be selected according to the material thickness of the flap or frame
• Finally, the flap must be moved up to 180° over the entire opening area and checked for free, stress-free function

Dimensions:

• Overall width: 70 mm (2-3/4″)
• Overall height: 40 mm (1-37/64″)
• Plate thickness: 4 mm (5/32″)
• Hole spacing horizontal: 56 mm (2-13/64″)
• Hole spacing vertical: 26 mm (1-1/32″)
• Mounting holes: 4 x ⌀6.5 mm
• Mounting Hole Lowering: ⌀10 mm (25/64″)

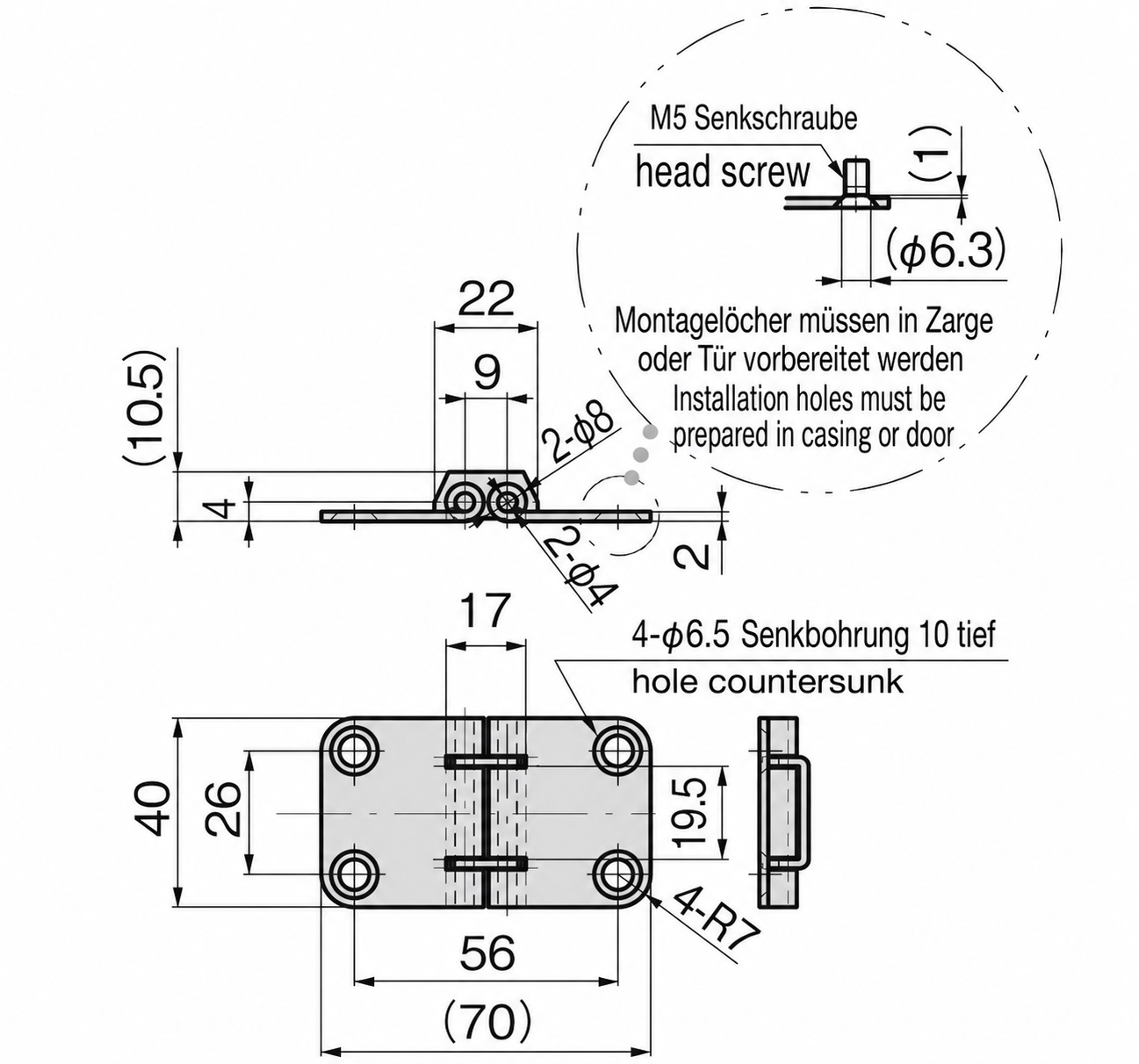

For more dimensions and details , see technical drawing.

Material:

• The marine hinges B-1013 are made of high-quality stainless steel SUS316 (1.4401 or V4A)
• SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance
• Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used for use near the coast and are expressly recommended

Included in delivery:

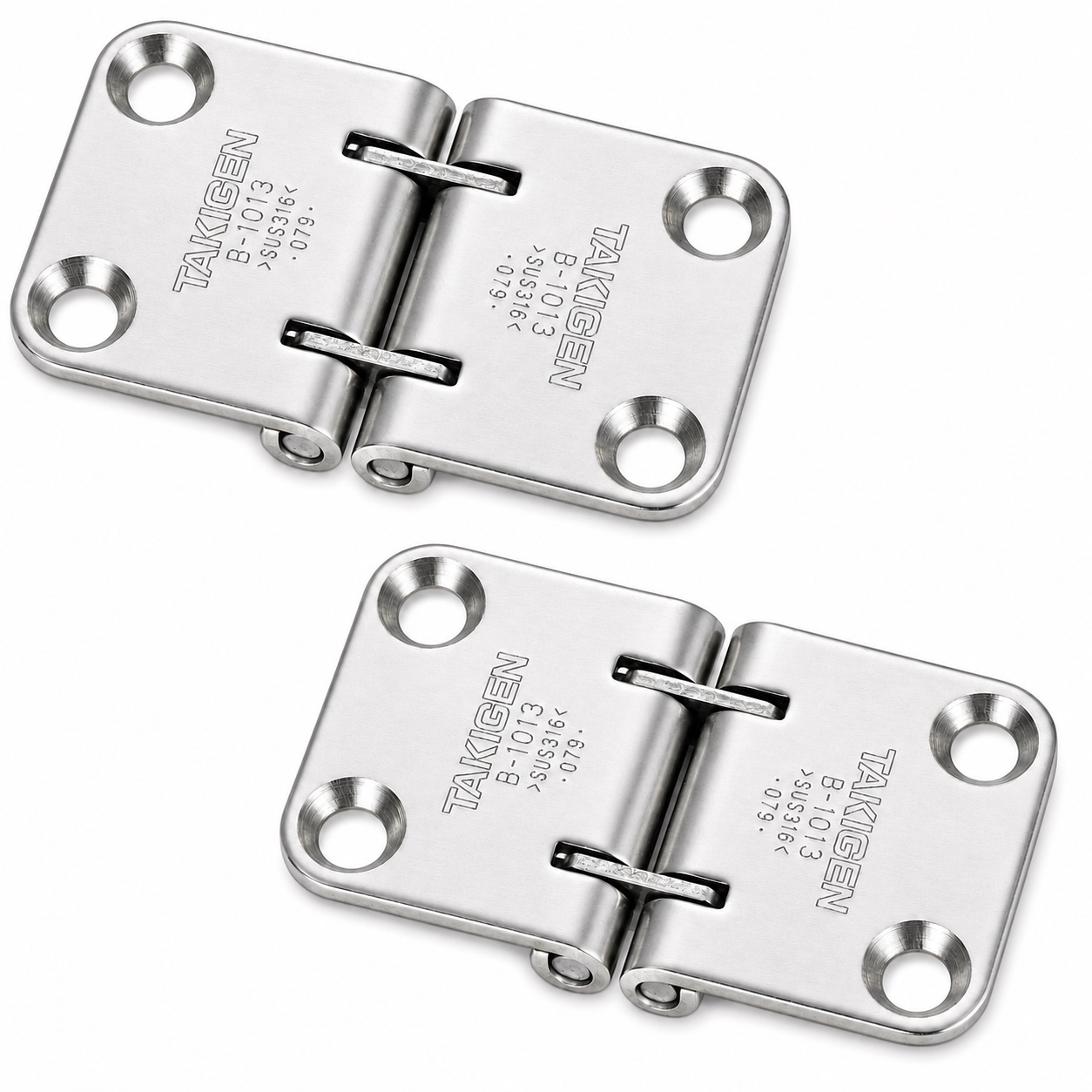

• 2 pieces marine hinge B-1013 (13343) made of high quality stainless steel SUS316, glossy polished, 70 mm (2-3/4″)
• This item does not include mounting screws

Manufacturer’s part numbers:

• Article ID: 13343
• Item number: B-1013

Manufacturer: TAKIGEN (Japan)
