Description

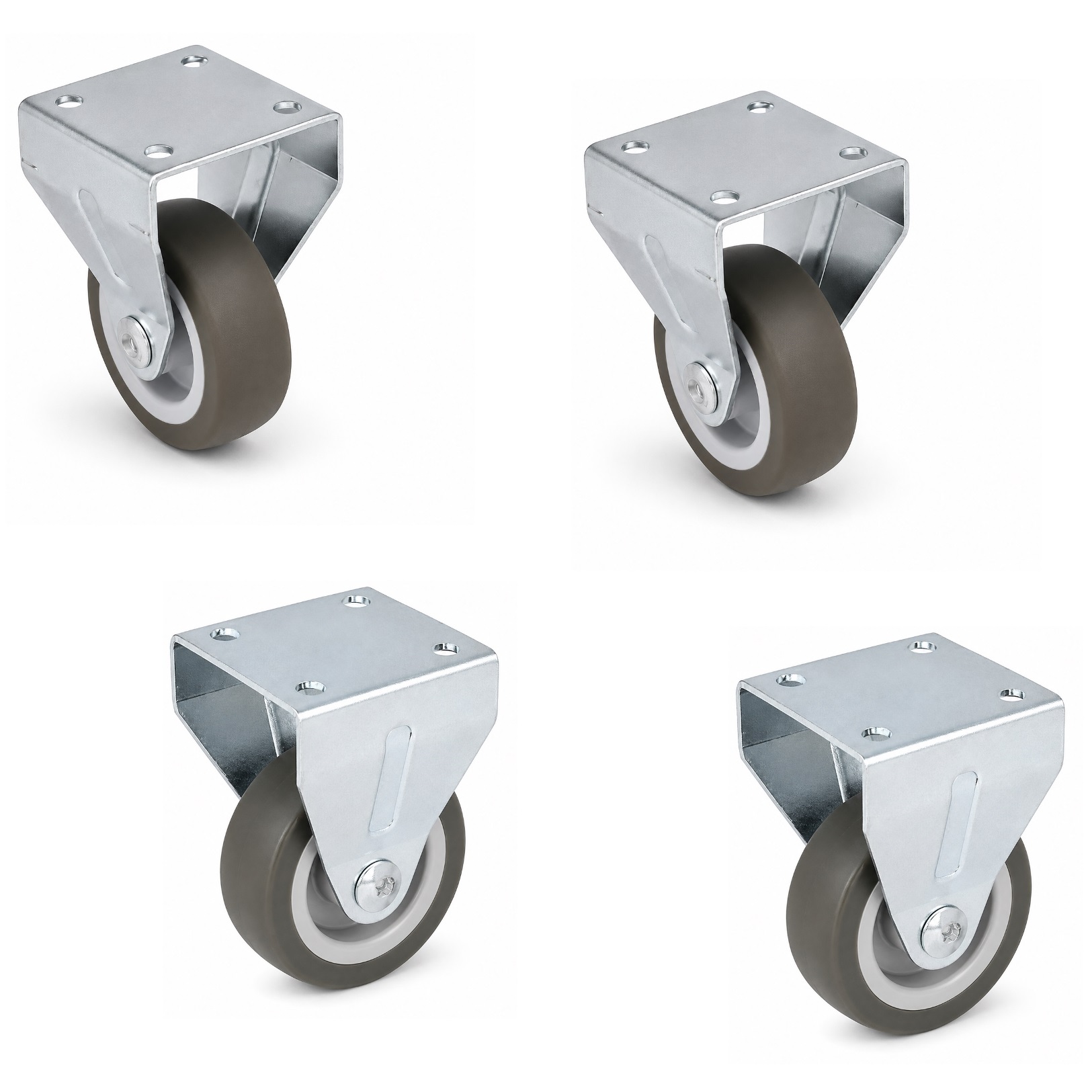

4 pieces soft furniture castor, made of sturdy steel, surface: galvanized, 08.12.150-1, diameter: ⌀50 mm (1-31/32″), load capacity: 120 kg (265 lbs)
Application:
Soft fixed castor for furniture, cabinets, roll containers, shelves, side tables and much more.
The fixed castor 08.12.150-1 from SISO serves as a robust castor for movable furniture, equipment and smaller transport structures.
The ⌀50 mm (1-31/32″) wheel with grey soft rubber tread allows for smooth and soil-friendly running and is particularly recommended for hard ground surfaces.
The fixed roller fork allows the wheel to move in one direction in a targeted manner and thus offers stable tracking.
The 45 x 45 mm (1-49/64″) screw-on plate enables compact and resilient attachment to furniture floors and substructures.
With a dynamic load capacity of 30 kg per castor, the fixed castor is also suitable for comparatively heavy furniture and mobile installations.
The combination of galvanized steel and a soft rubber tread combines a robust construction with pleasant running characteristics and is particularly suitable for furniture, shop and interior design.
The high-quality furniture castors 08.12.150-1 are perfect for, among other things:
- Serving trolley
- Devices
- Transport trolley
- Sales displays
- mobile furniture
- Furniture
- Cupboards
- Containers
- Shelves
- Side Tables
Technical details:
- Weight: 102.5 g (for 4 pieces: 410 g)
- Load capacity (load capacity): 120 kg (265 lbs) – for 4 pieces
- Diameter: ⌀50 mm (1-31/32″)
- Easy installation, stable
- Dynamic load capacity 30 kg
- Static load capacity 45 kg
- Fixed, non-swivelling roller fork
- Metal parts made of 1.5 mm thick steel
- Metal parts bright galvanized
- Grey tread made of soft rubber
- Suitable for hard floor surfaces
- Without brake
- Galvanized
- steel, robust
- High brand quality from UMAXO®
Surface:
- Galvanized
- The galvanized surface protects against rust and corrosion
- Wheel core: black
- Tread: grey
Assembly:
- Fastening is done with wood screws ⌀4.5 to 5 mm (not included)
- First of all, the desired position of the fixed castor on the underside of the piece of furniture must be determined
- Then the 45 x 45 mm (1-49/64″) screw-on plate is aligned and the position of the four mounting holes is marked with a hole spacing of 30 x 30 mm (1-3/16″)
- In the case of wood and wood-based materials, the screw holes should be pre-drilled if necessary, depending on the material used
- The fixed castor is then firmly screwed to the furniture floor with four suitable wood screws through the ⌀5.5 mm (7/32″) mounting holes
- If there are several castors, the fixed castors must be aligned parallel to each other so that the piece of furniture runs cleanly straight ahead
Dimensions:
- Wheel diameter: ⌀50 mm (1-31/32″)
- Wheel width: 20 mm (25/32″)
- Height: 73 mm (2-7/8″)
- Bolt-on plate: 45 x 45 mm (1-49/64″)
- Plate thickness: 1.5 mm (1/16″)
- Hole spacing: 30 x 30 mm (1-3/16″)
- Mounting hole diameter: ⌀5.5 mm (7/32″)

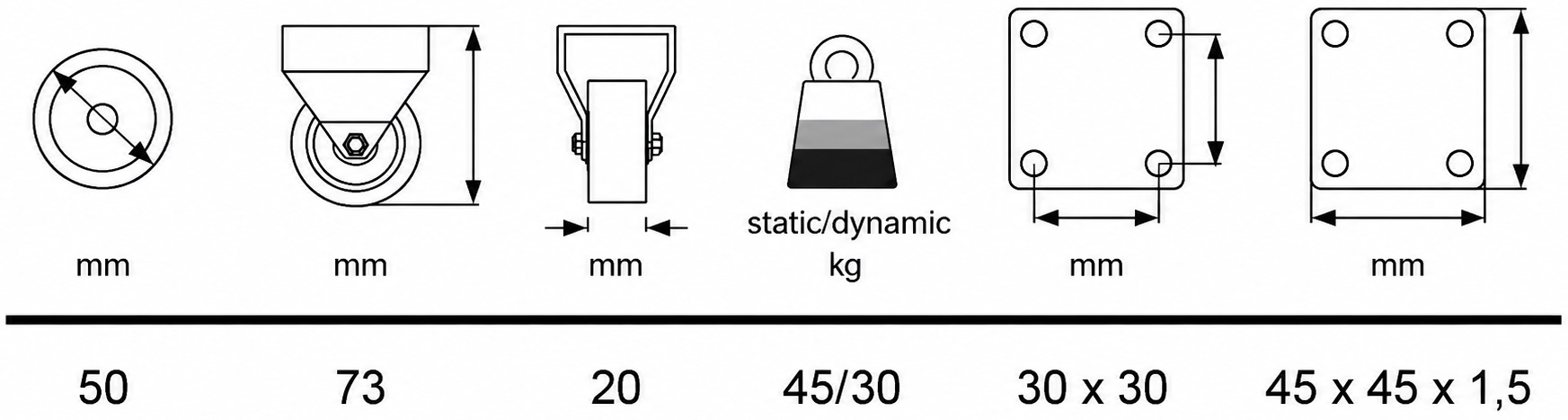

For more dimensions and details , see technical drawing.
Material:
- The furniture castors 08.12.150-1 are made of robust steel
- Fork and bolt-on plate: sheet steel, 1.5 mm
- Surface of metal parts: bright galvanized
- Tread: Soft rubber
- Steel is ideal for furniture fittings and industrial fittings because it is both robust and durable, which ensures high resilience and long service life of the fittings
Included in delivery:
- 4 pieces fixed castor 08.12.150-1 made of robust steel, galvanized, 50 mm (1-31/32″)
- This item does not include mounting screws
Additional information:
Manufacturer’s part numbers:
- Article ID: 08.12.150-1
- GTIN number (EAN, UPC): 5704866457538
Manufacturer: SISO Denmark
