Description

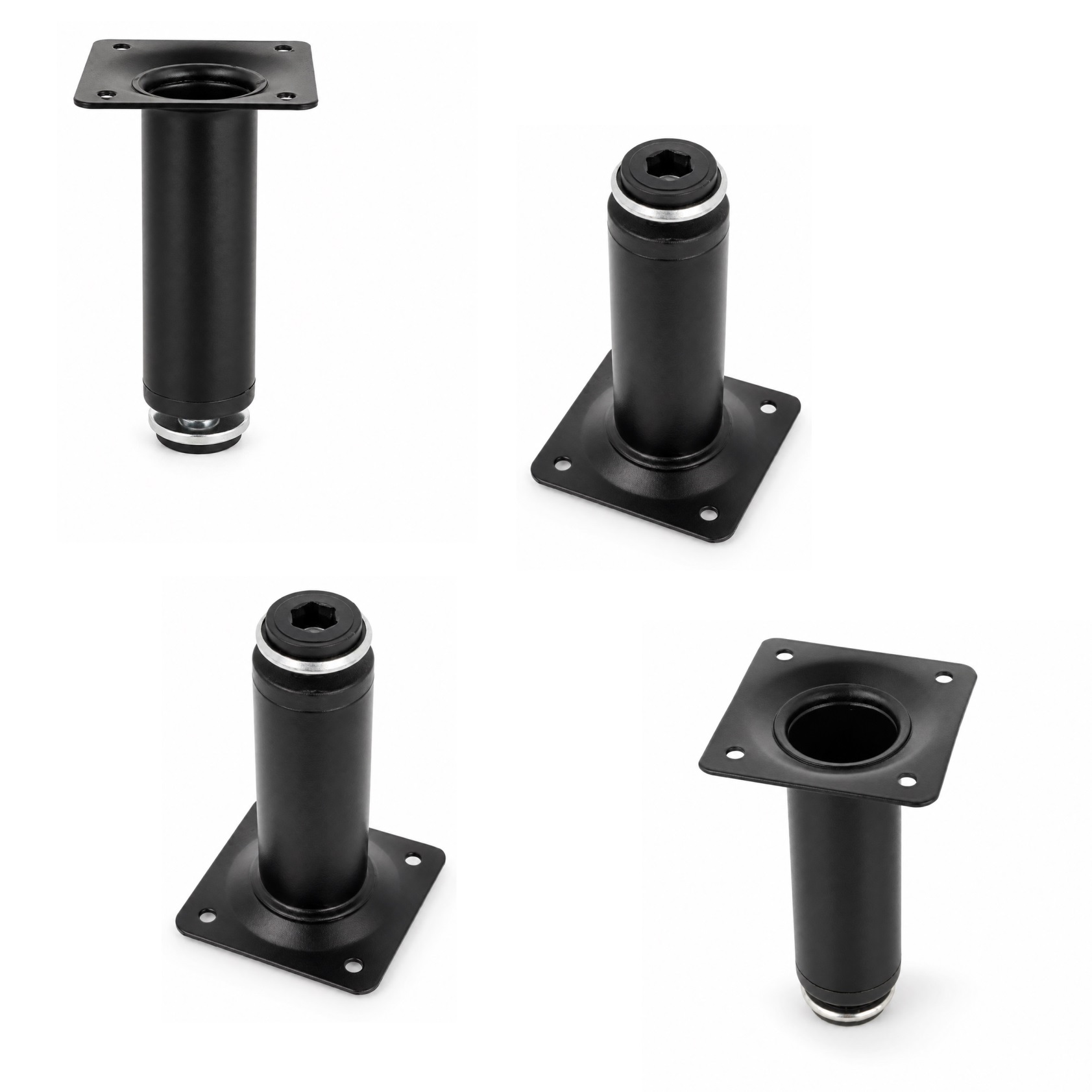

4 pieces high-quality robust furniture leg, made of robust steel, surface: black, 06.09.412-0, size: 100 mm (3-15/16″)
Application:
Robust furniture base for sofas, armchairs, cabinets, chests of drawers, sideboards, tables, side tables and much more.
The furniture base 06.09.412-0 serves as a stable and at the same time visually discreet support for sofas, cabinets, tables and other pieces of furniture.
The robust round tube made of steel with ⌀30 mm (1-3/16″) ensures a resilient construction with a slim appearance.
The pre-assembled 60 x 60 mm (2-23/64″) mounting plate allows for easy and secure screwing to the underside of the furniture.
Thanks to the integrated glider, the height can be adjusted from 100 mm (3-15/16″) to up to 110 mm (4-21/64″) and thus compensate for unevenness of the floor.
The black plastic glider forms gentle contact with the ground and prevents the steel pipe from coming into direct contact with the floor surface.
The matt black surface gives the 06.09.412-0 furniture leg a modern, inconspicuous look and can be combined particularly well with contemporary furniture constructions.
The high-quality furniture legs 06.09.412-0 are perfect for, among other things:
- Seating
- TV Cabinet
- Sofas
- Armchair
- Cupboards
- Chests of drawers
- Sideboards
- Tables
- Side Tables
Technical details:
- Weight: 105 g (for 4 pieces: 420 g)
- Size: 100 mm (3-15/16″)
- Easy installation, stable
- Robust steel construction
- Round leg with ⌀30 mm (1-3/16″)
- Height adjustable from 100 mm (3-15/16″) up to 110 mm (4-21/64″) mm
- 10 mm (25/64″) height adjustment
- With integrated glider
- With black PP floor glider
- Square Mounting Plate 60 x 60 mm (2-23/64″)
- Mounting plate 1.5 mm thick
- Hole spacing 44 x 44 mm (1-47/64″)
- Four ⌀4 mm (5/32″) mounting holes
- Pre-assembled mounting plate
- Suitable for compensating for small uneven floors
- Simple cylindrical shape
- Suitable for furniture made of wood and wood-based materials
- Black
- steel, robust
- High brand quality from UMAXO®
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done with chipboard or wood screws 4 x 16 mm with lens or panhead head (not included)
- First, the desired position of the furniture base on the underside of the furniture must be determined and the 60 x 60 mm (2-23/64″) mounting plate must be aligned
- The four attachment points must then be marked with a hole spacing of 44 x 44 mm (1-47/64″) and pre-drilled to fit if necessary
- The furniture leg 06.09.412-0 is then fastened with suitable wood or chipboard screws via the four ⌀4 mm mounting holes of the mounting plate
- After setting up the piece of furniture, the slider is turned out or in until the furniture is stable and horizontal
Dimensions:
- Height: up to 110 mm (4-21/64″)
- Height adjustment: 10 mm (25/64″)
- Tube diameter: ⌀30 mm (1-3/16″)
- Mounting plate: 60 x 60 x 1.5 mm
- Hole spacing center/center: 44 x 44 mm (1-47/64″)
- Mounting holes: ⌀4 mm (5/32″)
- Outer diameter of glider: ⌀28 mm
- Bottom diameter of the glider: ⌀23.5 mm
- Total height of glider: 27 mm
- Set pin of the glider: 10 mm
- Hex nut: 13 mm

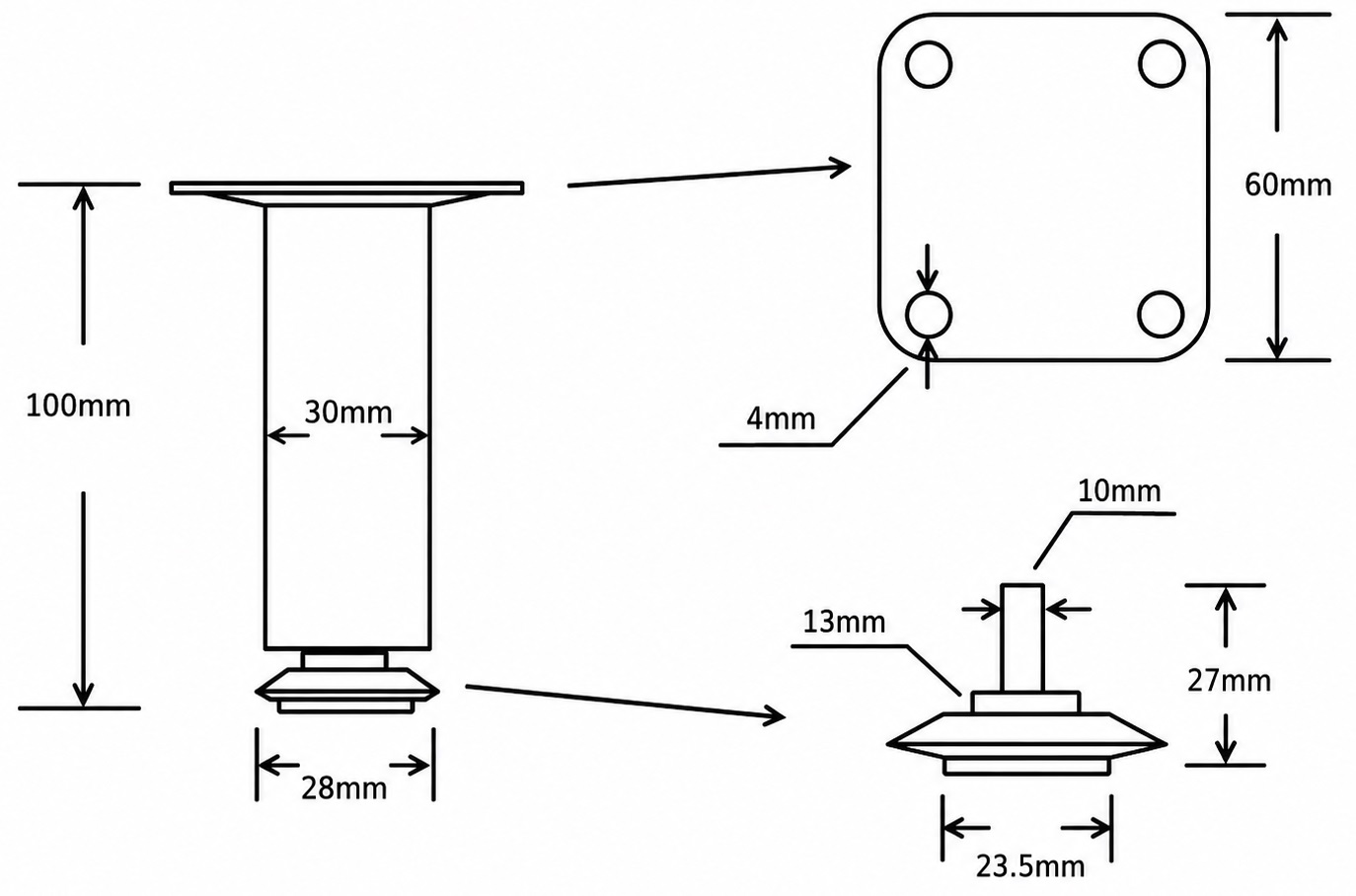

For more dimensions and details , see technical drawing.
Material:
- The furniture legs 06.09.412-0 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:
- 4 pieces furniture base 06.09.412-0 made of robust steel, black, 100 mm (3-15/16″)
- This item does not include mounting screws
Additional information:
Manufacturer’s part numbers:
- Article ID: 06.09.412-0
- GTIN number (EAN, UPC): 5704866511636
Manufacturer: SISO Denmark
