Description
4 pieces robust furniture adjuster, made of robust polyacetal (POM), surface: white, B573-25-WH, diameter: ⌀25 mm (63/64″), version: with felt pad, load capacity: 600 kg (1323 lbs)
Application:

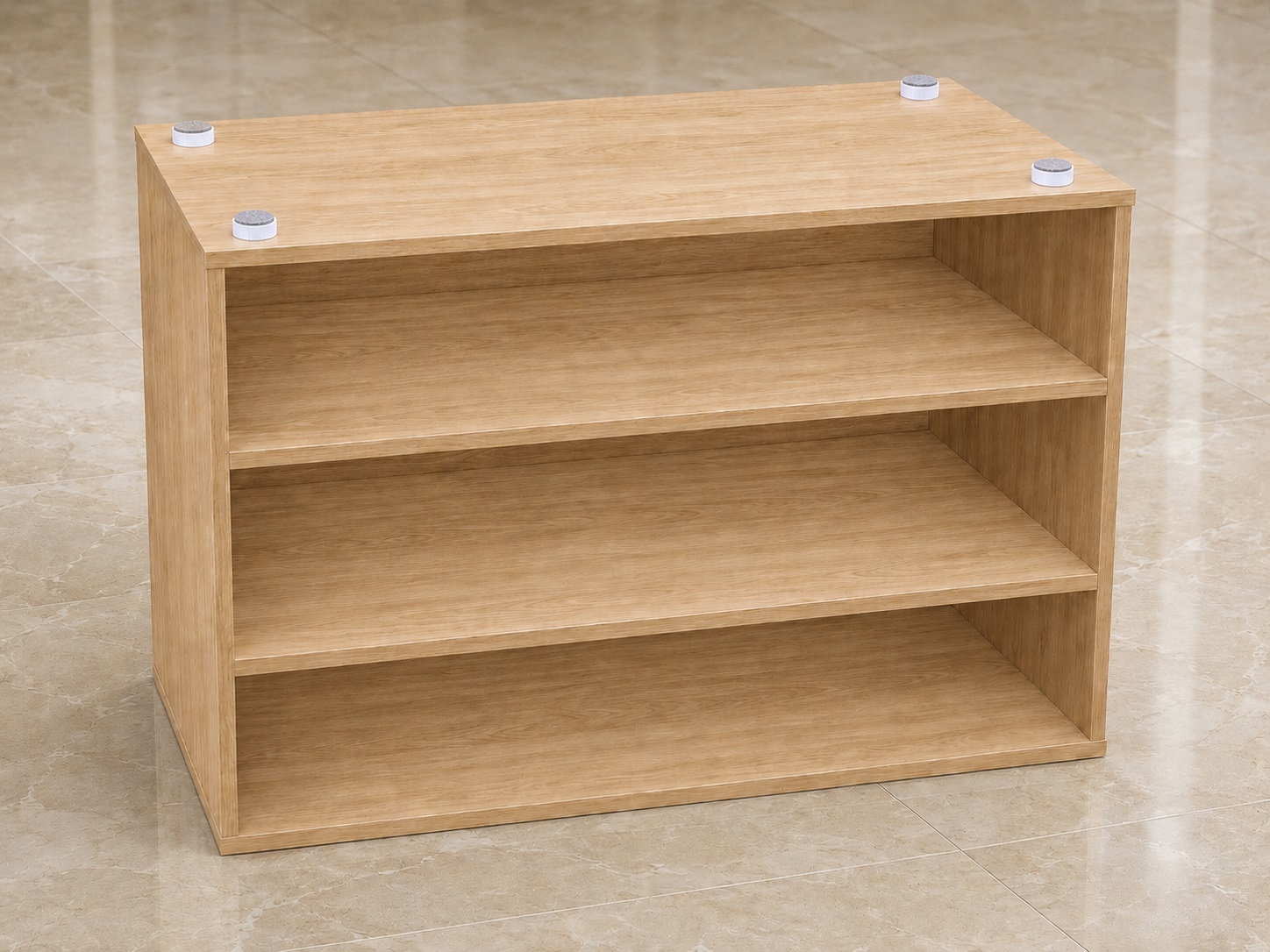

Adjustable foot for furniture, table, cabinet, table legs and much more.
Finish: with felt pad. Ideal for protecting sensitive flooring and reducing distracting noise when moving furniture.
The B573-25-WH furniture adjuster is a compact furniture adjuster for height compensation on furniture and fixtures in indoor areas.
It is mounted on the surface and therefore does not require any time-consuming milling or processing of the furniture.
The 5 mm (13/64″) adjustment range helps to compensate for small unevenness in the floor and to keep furniture stably aligned.
The POM material is robust and particularly suitable for applications where an inconspicuous and lightweight plastic solution is desired.
Due to its compact design with ⌀25 mm (63/64″), the B573-25-WH adjustable foot fits well with table legs, cabinet feet, bases and small furniture constructions.
The high-quality B573-25-WH furniture adjusters are perfect for, among other things:
- Furniture legs
- Cabinet feet
- Sofa
- Shelf Feet
- Socket
- Small Furniture
- Built-in furniture
- Furniture
- Table
- Cabinet
- Table legs
Technical details:
- Design: with felt pad
- Weight: 8 g (for 4 pieces: 32 g)
- Load capacity (load capacity): 600 kg (1323 lbs) – for 4 pieces
- Diameter: ⌀25 mm (63/64″)

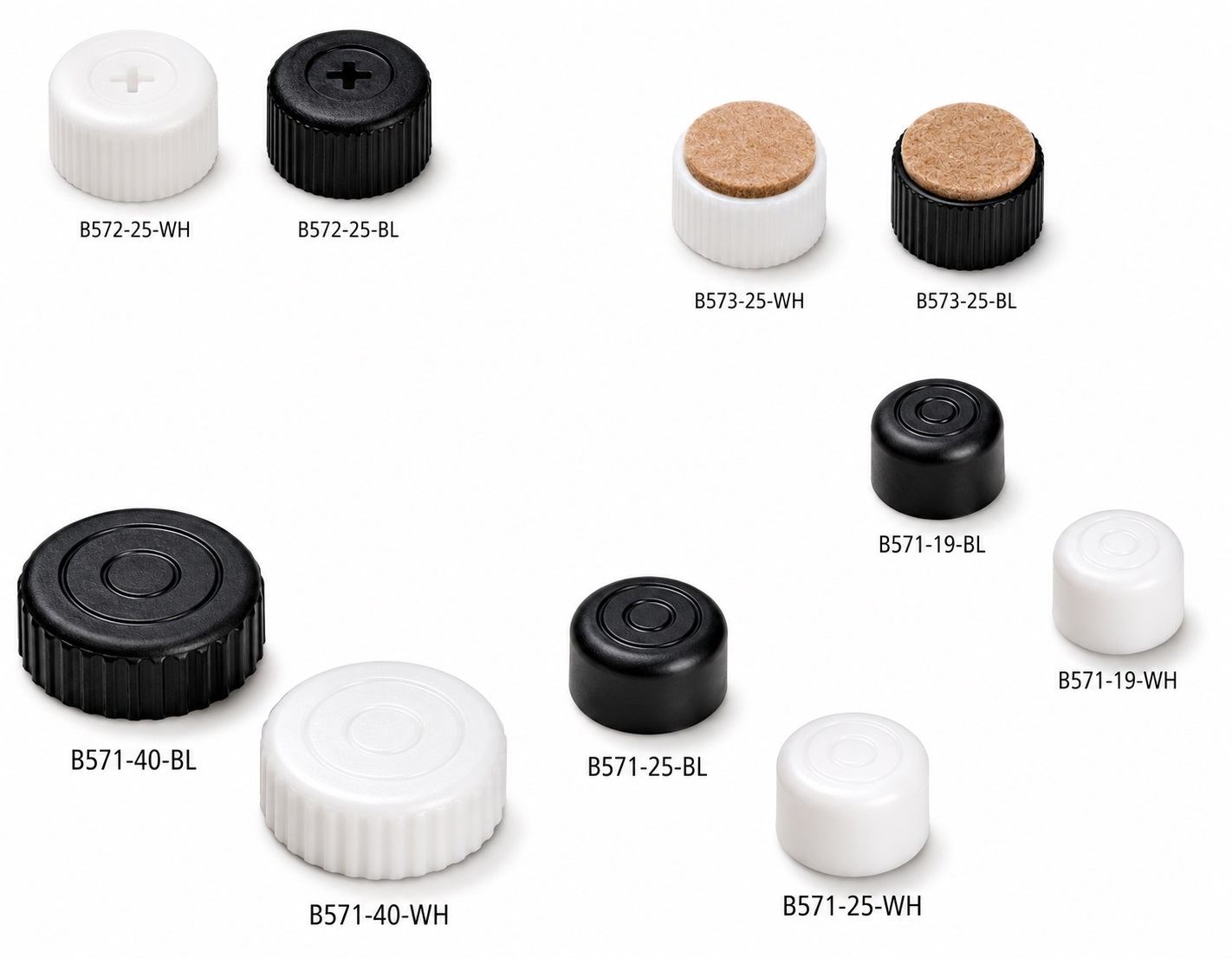

- Available in 2 surface colours: white and black
- Available in 3 diameters: ⌀ 19 mm, ⌀ 25 mm and ⌀ 40 mm
- Available in 3 versions: standard, with cross recess and with felt pad
- Easy installation, stable
- For indoor use
- Adjustment range: 5 mm (13/64″)
- Suitable for small and hard-to-reach mounting areas
- White
- robust, lightweight
- High brand quality from Kojima (Japan)
Surface:
- White
- White finishes convey a clean and modern aesthetic
- The colour white reflects light effectively, making rooms look brighter and visually larger
- In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

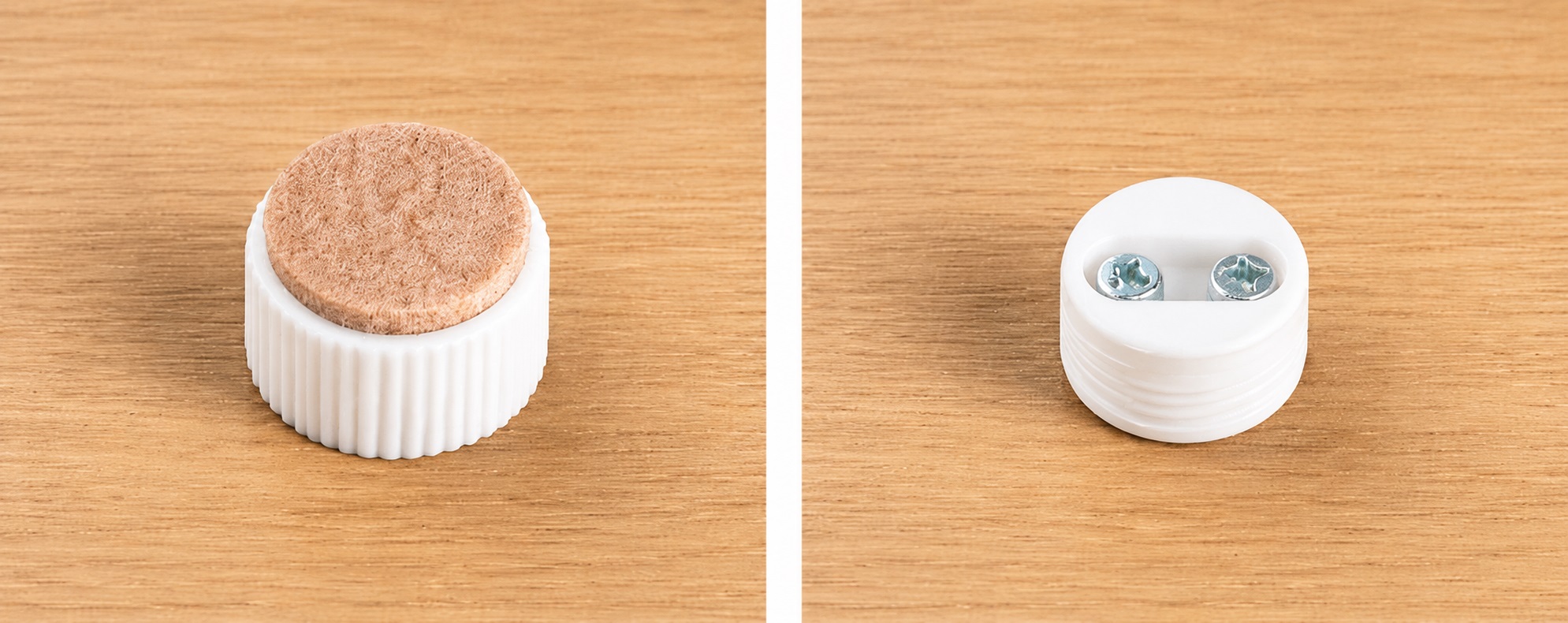

Assembly:
- Fastening is done with pan head screw ⌀3.5 mm screws (not included)
- The B573-25-WH adjustable foot has two mounting holes with a distance of 10 mm (25/64″). The mounting holes are ⌀3.6 mm (9/64″) in diameter

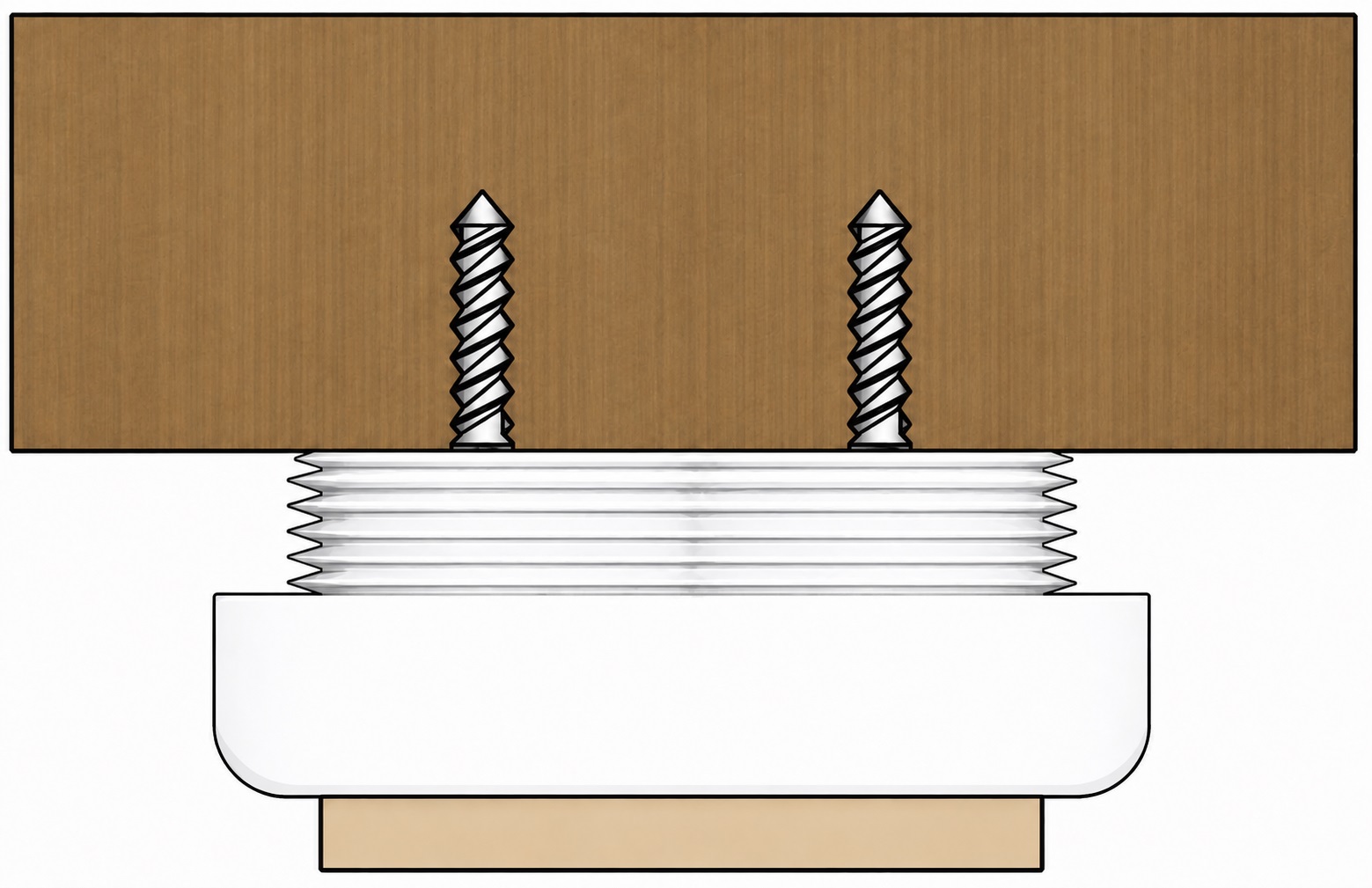

- The furniture adjuster is attached to the surface with two matching screws, without the need for milling into the wood
- Then the adjustment cap is placed on the adjustment foot or screwed on (for further details, see assembly drawing)
Dimensions:
- Diameter of the furniture adjuster: ⌀25 mm (63/64″)
- Height: 10 mm (25/64″)
- Height of the adjustment cap: 14 mm (35/64″)

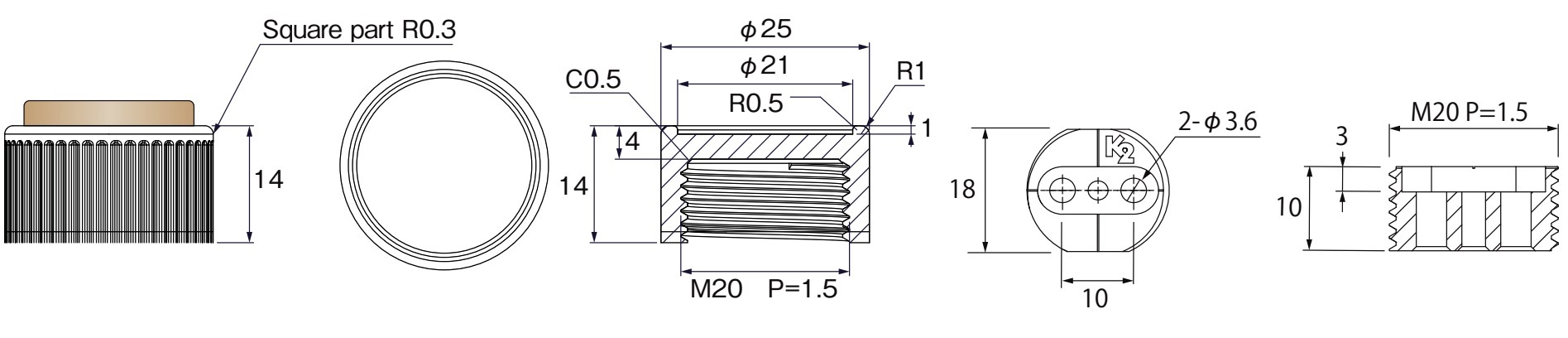

For more dimensions and details , see technical drawing.
Material:
- The B573-25-WH furniture stands are made of robust polyacetal (POM)
- Polyacetal (POM) combines very high abrasion and wear resistance with a low friction coefficient, so that fittings function smoothly over the long term
- Thanks to its high dimensional and dimensional stability, even with changing humidity, the accuracy of fit of hinges, pull-outs or locks is maintained

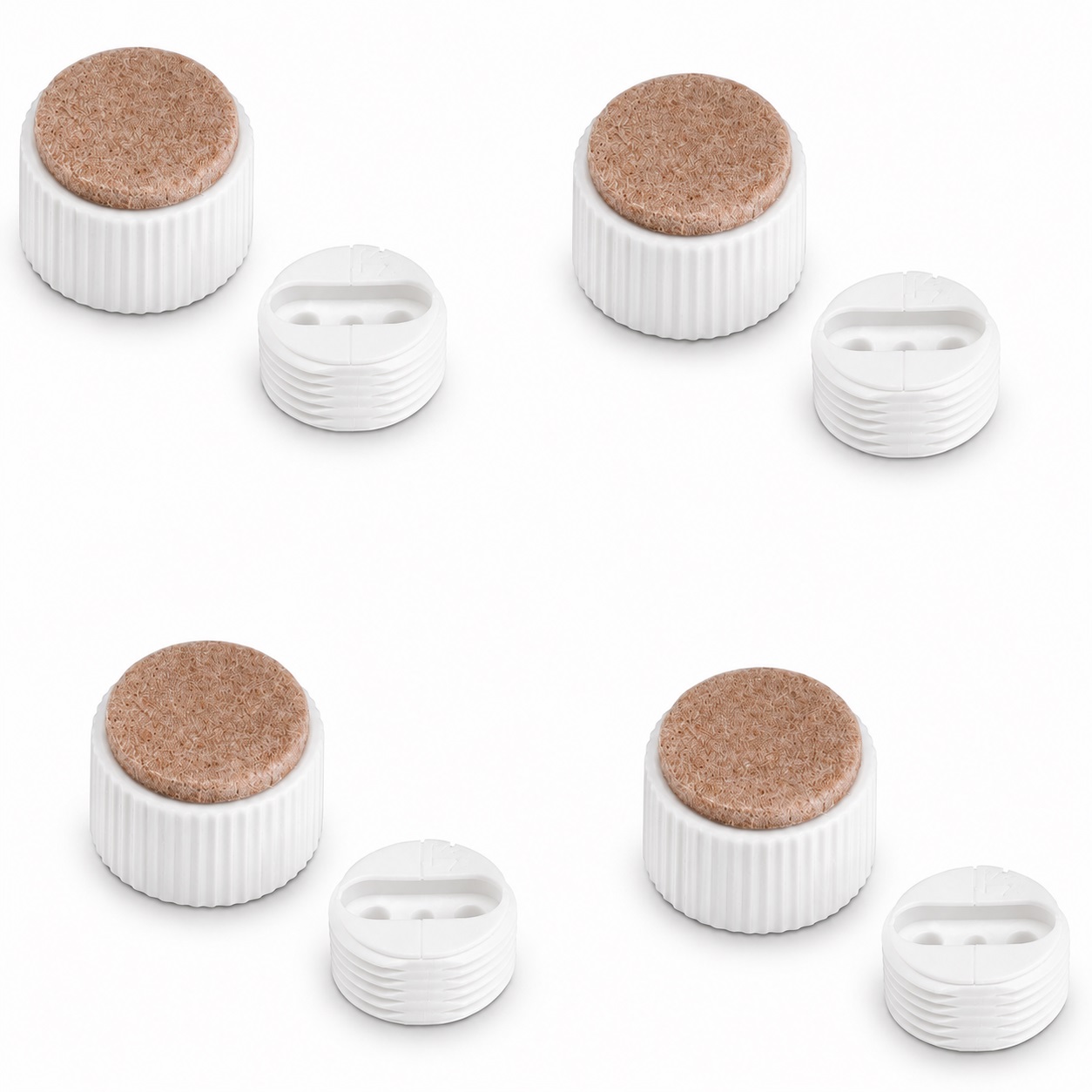

Included in delivery:
- 4 pieces furniture adjuster B573-25-WH made of robust polyacetal, white, 25 mm (63/64″), version: with felt pad
- 4 pieces of adjustable cap
- This item does not include mounting screws
Watch the product video:
Additional information:
Manufacturer’s part numbers:
- Article ID: B573-25-WH
- GTIN number (EAN, UPC): 0618455525599
Manufacturer: Kojima (Japan)
