Description

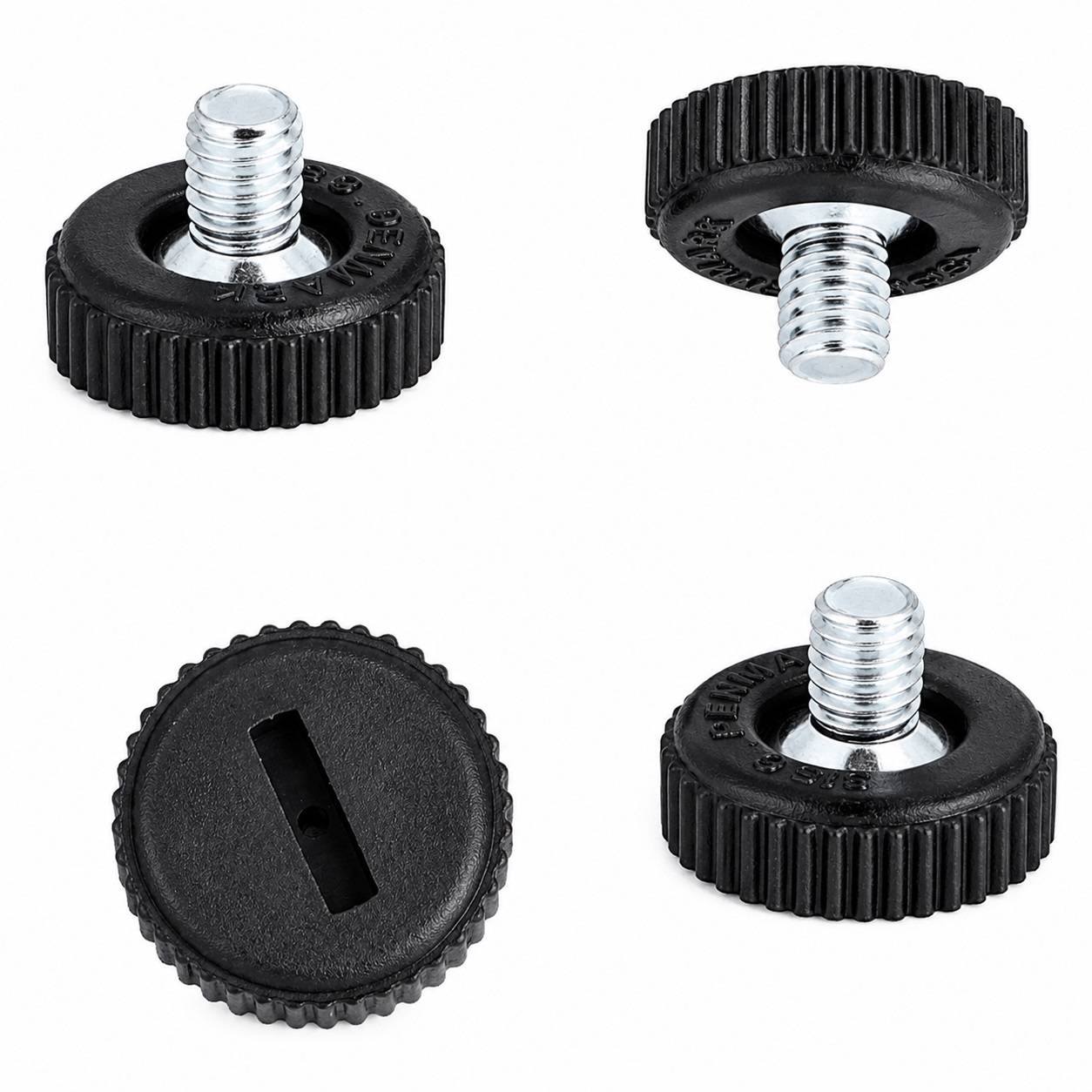

4 pieces robust adjustable foot, made of metal and robust plastic (metal and plastic), surface: black, 10.17.047, height: 15 mm (19/32″)
Application:
Stable height adjuster for cabinets, machines and much more.
This leveler is the perfect solution for aligning kitchen, bathroom or technical furniture quickly and permanently with precision.
The height-adjustable adjustable foot 10.17.047 enables precise alignment of furniture, machines and equipment on uneven floors.
Using the integrated M6 threaded pin and grooves on the edge of the base, the height adjuster can be adjusted by approx. 8 mm (5/16″) without tools.
The round support surface distributes the load evenly and protects the furniture floor from direct contact with the floor.
Alternatively, the adjustable foot 10.17.047 can be adjusted with a flat-head screwdriver.
The base made of black plastic with ⌀20 mm (25/32″) protects sensitive floor coverings and ensures a non-slip grip.
Thanks to the galvanised surface, the height adjuster 10.17.047 is reliably protected against corrosion and is perfect for kitchen, bathroom and workshop furniture.
The high-quality adjustable feet 10.17.047 are perfect for, among other things:
- Kitchen furniture
- Devices
- Shelves
- Chests of drawers
- Sideboards
- Tables
- Furniture carcasses
- Furniture legs
- Pitches
- uneven floors
- Bathroom cabinets
- Workbenches
- Office shelves
- Shop counters
- Motorhome furniture
- Metal cabinets
- Cupboards
- Machines
Technical details:
- Weight: 5.33 g (for 4 pieces: 21.32 g)
- Height: 15 mm (19/32″)
- Easy installation, stable
- adjustable furniture leveling foot with M6 threaded pin
- Adjustment range approx. 8 mm (5/16″)
- Adjustment without tools or via flat-head screwdriver
- Base ⌀20 mm (25/32″) made of black plastic protects sensitive floors
- Galvanized steel thread for high corrosion protection
- Black
- robust
- High brand quality from UMAXO®
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
- Thread: galvanized
Assembly:
- First, a suitable M6 thread holder must be prepared on the underside of the furniture.
- Depending on the design, an M6 drive nut, M6 screw-in sleeve or another M6 threaded insert is used for this purpose.
- The adjustable foot is then screwed into the holder with the M6 threaded screw.
- The fine adjustment of the height is made without tools or via the slot in the bottom of the base with a flat-head screwdriver.
Dimensions:
- Height adjuster: 15 mm (19/32″)
- Foot Diameter: ⌀20 mm (25/32″)
- Footprint Height: 7 mm (9/32″)

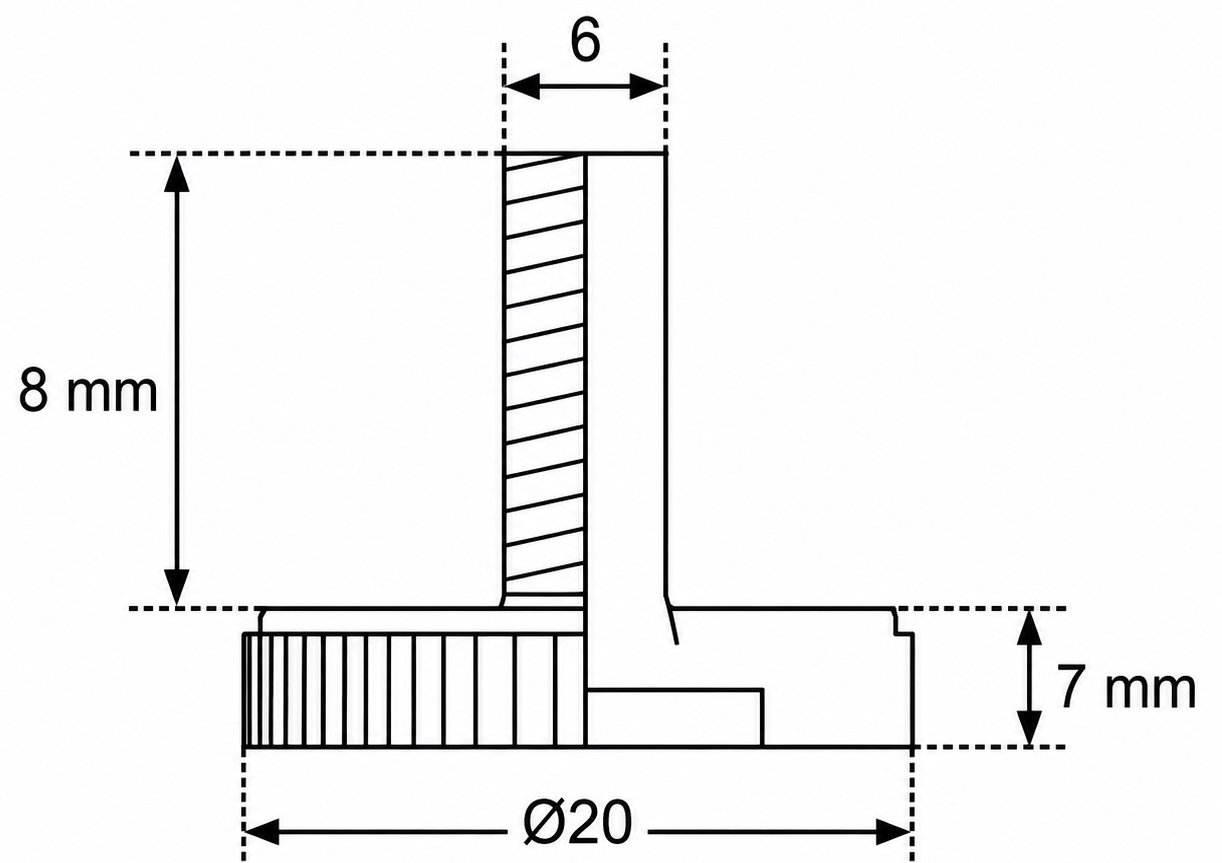

For more dimensions and details , see technical drawing.
Material:
- The 10.17.047 adjustable feet are made of metal and robust plastic (metal and plastic)
- base made of black plastic (PA); The plastic cover protects sensitive floor coverings and ensures a non-slip grip
- The combination of metal and plastic provides an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
- In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options
Included in delivery:
- 4 pieces Adjustable foot 10.17.047 made of metal and robust plastic, black, 15 mm (19/32″)
- This item does not include mounting screws
Additional information:
Manufacturer’s part numbers:
- Item ID: 10.17.047 (alternative: 10.17.047-0)
- GTIN number (EAN, UPC): 5704866009232
Manufacturer: SISO Denmark
