Description

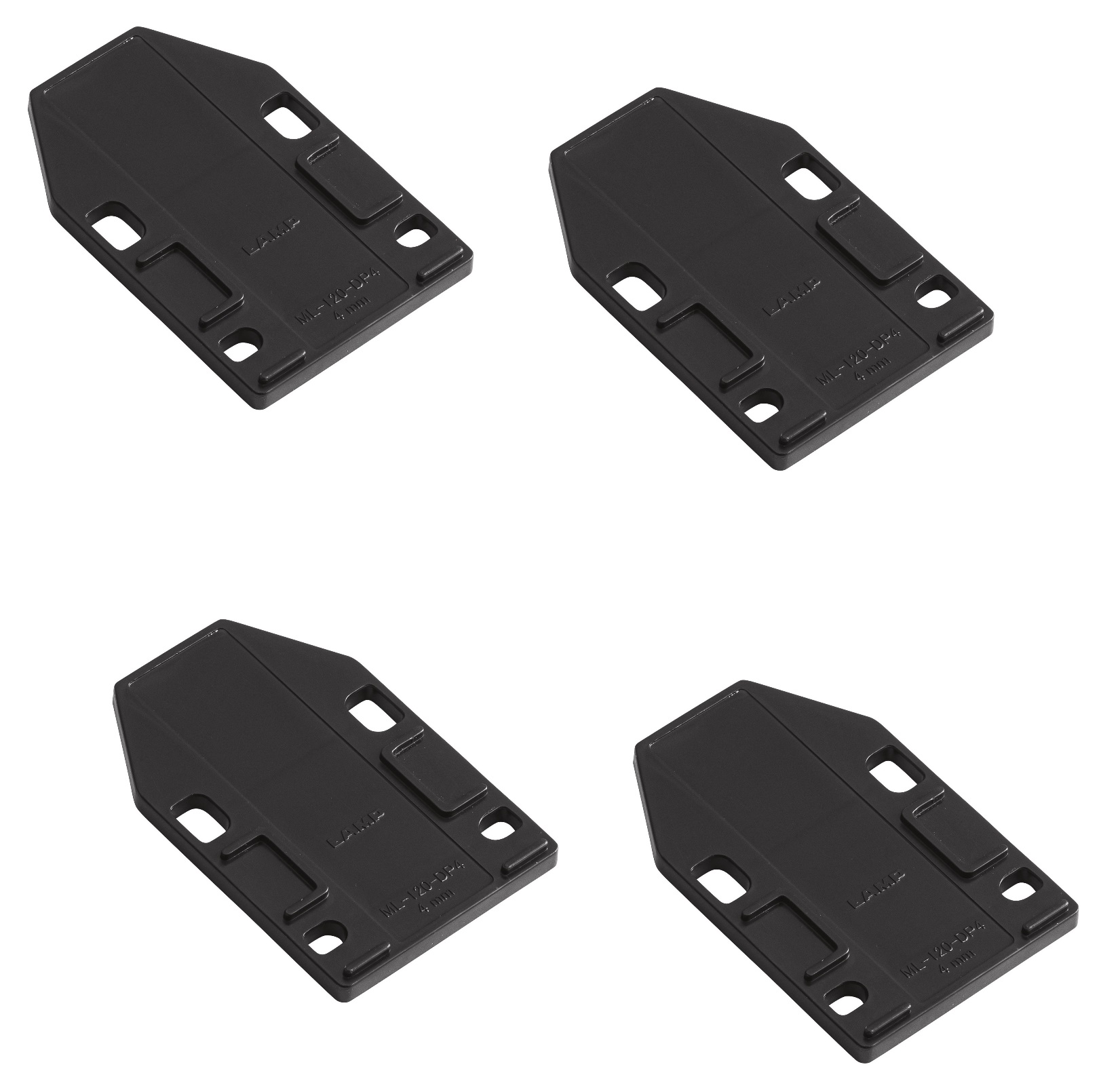

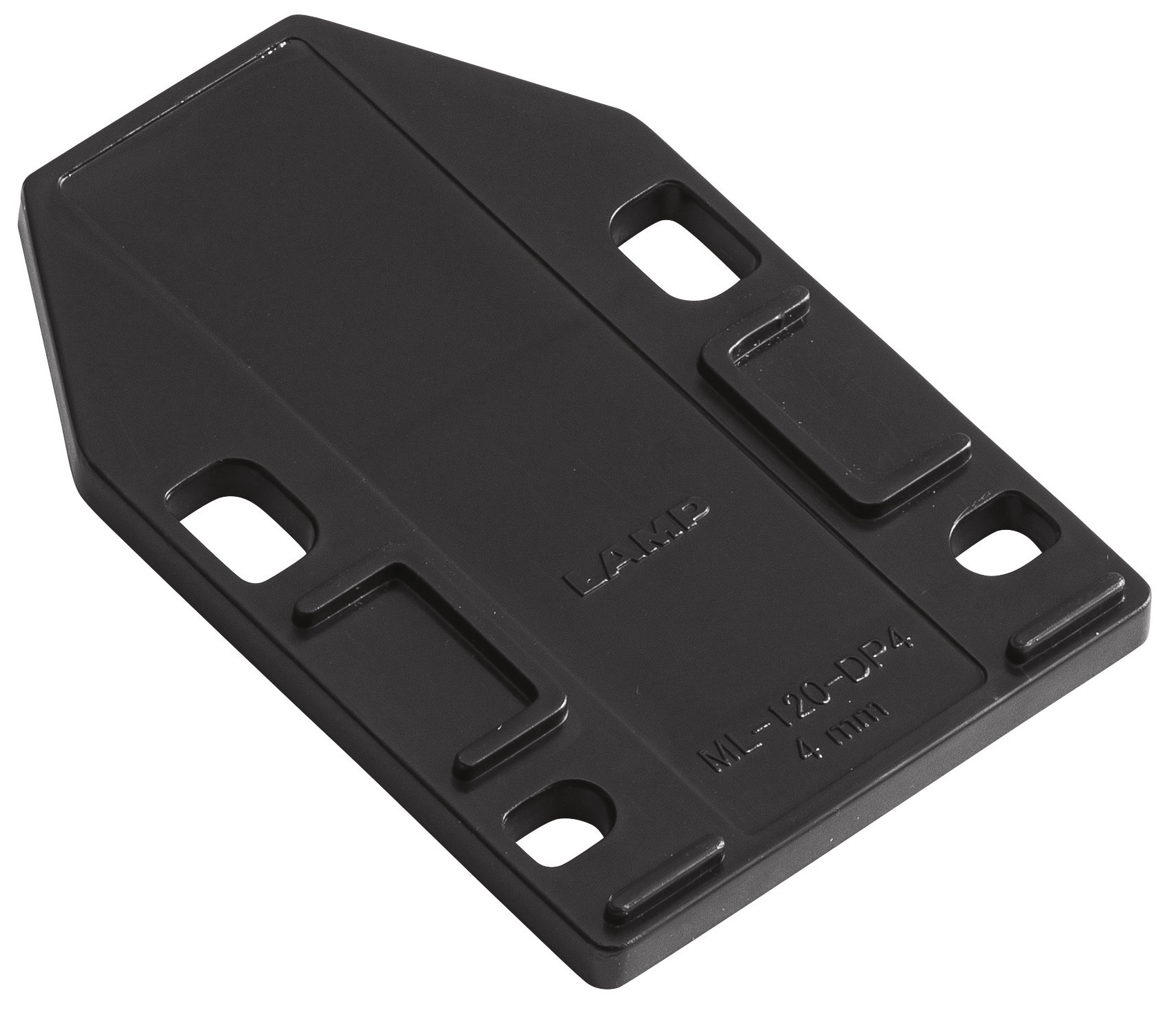

4 pieces practical spacer plate, made of robust polyacetal (POM), surface: black, ML-120-DP4-BL, size: 70 mm (2-3/4″)
Application:
Compensation plate for magnetic latches ML-120BR, ML-120W and ML-120BL from Sugatsune.
The ML-120-DP4-BL spacer plate allows Sugatsune’s ML-120BR, ML-120W and ML-120BL magnetic flycatchers to be mounted in a 4 mm (5/32″) higher position.
This makes it possible, for example, to use the push-to-open door opener with an indented (internal) door.
The ML-120-DP4-BL compensation plate has exactly the same shape as the pressure latch.
The ML-120-DP4-BL spacer plates can be stacked on top of each other to achieve a distance of 8 mm (5/16″) with 2 spacers mounted on top of each other, for example.
The high-quality spacer plates 140-055-360 are a perfect fit for, among other things:
- Interior (inset) door
- Magnetic Snap Catcher ML-120BR
- ML-120W and ML-120BL from Sugatsune
Technical details:
- Weight: 8.87 g
- Size: 70 mm (2-3/4″)

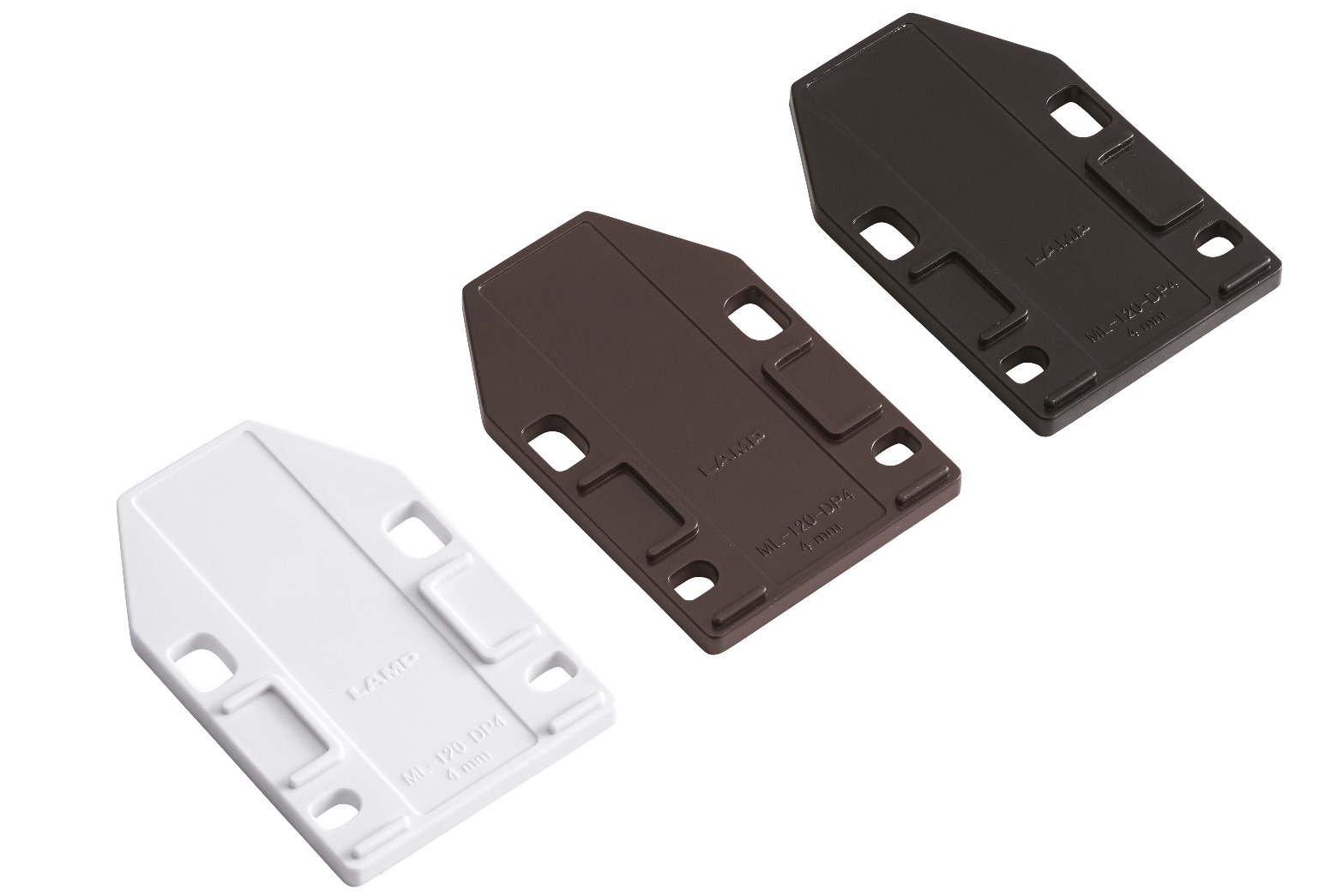

- Available in 3 colours: black, white and brown
- Easy installation, practical, stable
- Position elevation with 1 spacer plate: 4 mm (5/32″)
- Position elevation with 2 spacer plates: 8 mm (5/16″)
- black
- robust (lightweight)
- high brand quality of Sugatsune / LAMP®
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- The ML-120-DP4-BL spacer plate has 4 mounting holes in the same places where Sugatsune’s ML-120BR, ML-120W and ML-120BL magnetic snap latch has its mounting holes
- The ML-120-DP4-BL balance plate is mounted under the Sugatsune ML-120BR, ML-120W and ML-120BL magnetic snap latches to increase its position by 4 mm (5/32″)

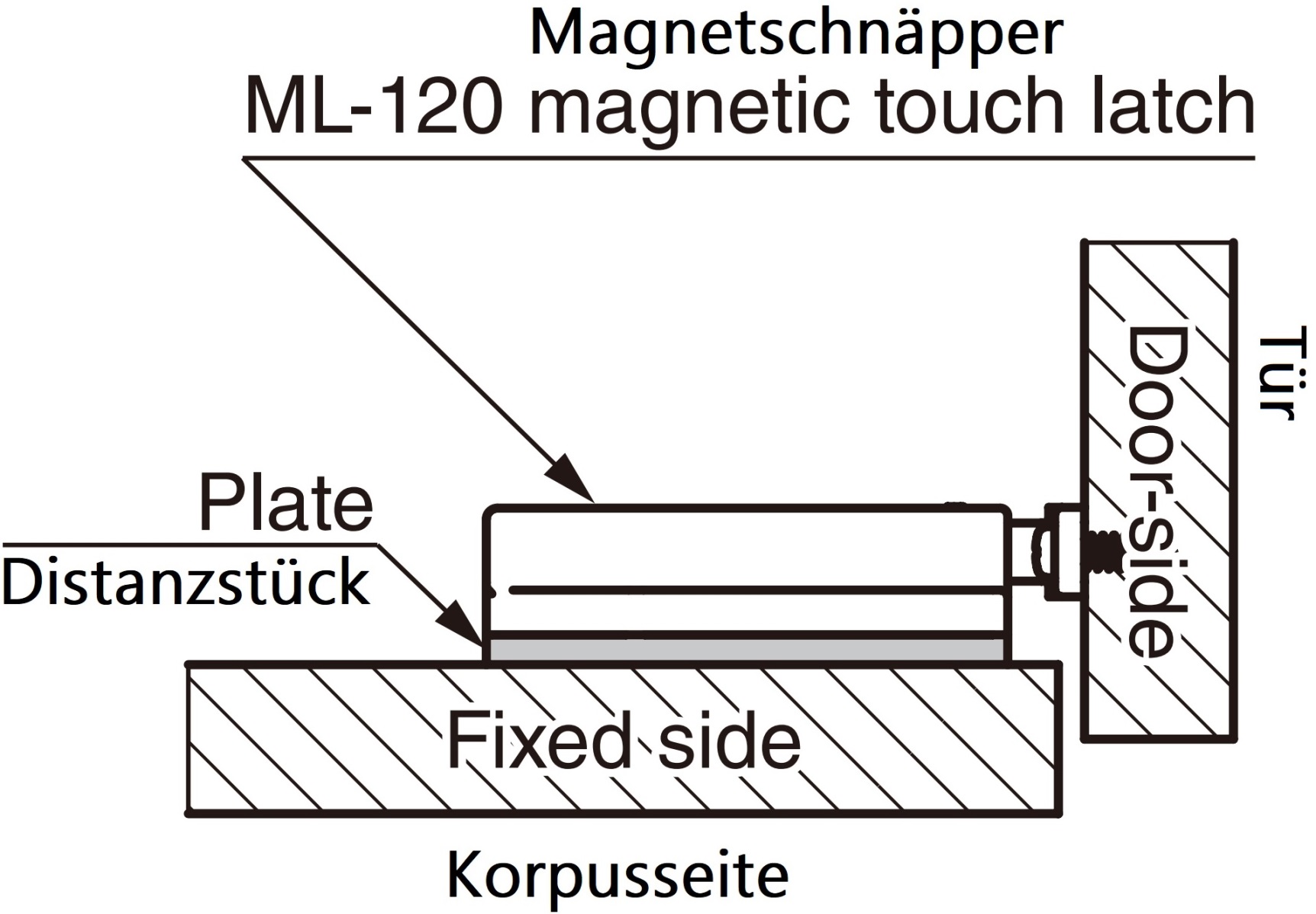

- The four mounting screws go through the mounting holes of the spacer plate and the snapper (for more details, see assembly drawing)
Dimensions:
- Spacer plate width: 46 mm (1-13/16″)
- Spacer Plate Depth: 70 mm (2-3/4″)
- Height: 4 mm (5/32″)

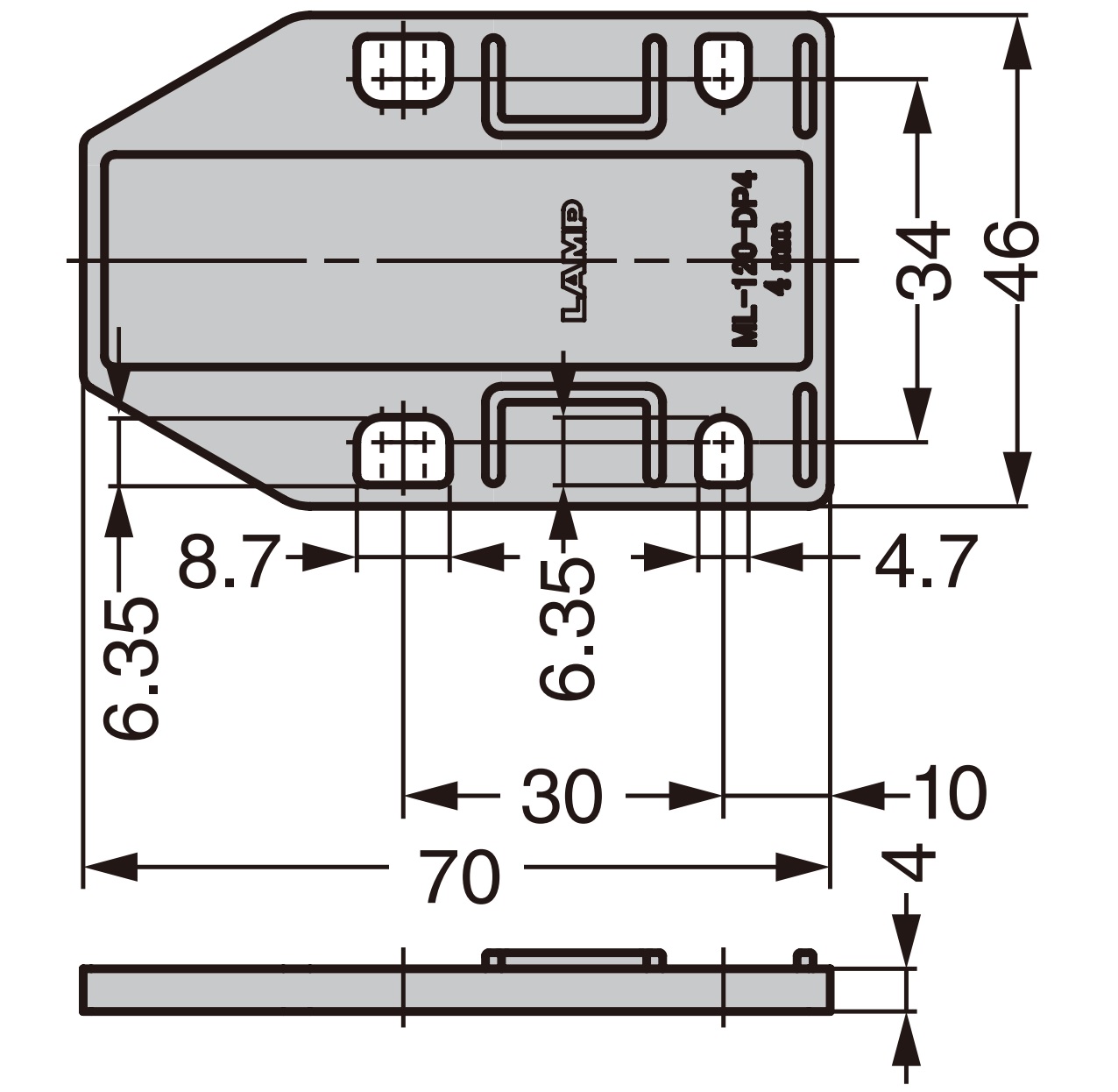

For more dimensions and details, see technical drawing.
Material:
- The spacer plates 140-055-360 are made of robust polyacetal (POM)
- Polyacetal (POM) combines very high abrasion and wear resistance with a low friction coefficient, so that fittings function smoothly over the long term
- Thanks to its high dimensional and dimensional stability, even with changing humidity, the accuracy of fit of hinges, pull-outs or locks is maintained
Included in delivery:
- 4 pieces spacer plate 140-055-360 made of robust polyacetal, black
- Attention: the connecting screws are not included in the scope of delivery
Manufacturer’s part numbers:
- Article ID: 140-055-360
- Item number: ML-120-DP4-BL
- EAN number: 4510932230292
Manufacturer: Sugatsune / LAMP® (Japan)
