Compact magnetic snap flap, incl. counter plate, surface: brown, 25 mm (63/64″), version: with 2 plungers, ML-30WBR. Double door opener for furniture doors, cabinet doors and much more, by Sugatsune / LAMP® (Japan)

Description

Compact, space-saving magnetic snap latch, made of metal and robust plastic (metal and plastic), surface: brown, ML-30WBR, size: 25 mm (63/64″), version: with 2 plungers

Application:

Double door opener for furniture doors, cabinet doors and much more.

The 2 rams are mounted in the same housing and allow you to operate 2 doors with just one fitting.



The ML-30WBR magnetic snap latch enables the convenient opening and closing of handle-free furniture doors by printing.

The ML-30WBR double door opener has a plunger extension of 8.5 mm (21/64″).

Thanks to its compact plastic housing, the ML-30WBR magnetic slide latch can be inconspicuously screwed to the side of the carcass.



The counter plate of the ML-30WBR magnetic snap latch has 4 pointed pins at the corners, which mortise into the wood surface. This allows the counter plate to be securely attached with just one screw.

The high-quality magnetic snap latches 140-050-057 are perfect for, among other things:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Doors

Technical details:

• Version: with 2 rams
• Weight: 42 g
• Load capacity (load capacity): 11.8 N (1.3 kp)
• Size: 25 mm (63/64″)

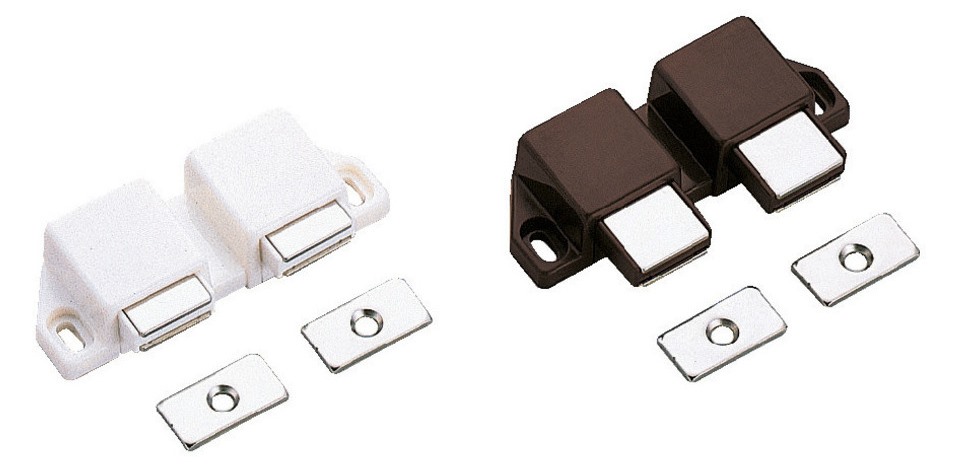

• Available in 2 colours: white and brown
• Easy installation, practical, stable
• Extension distance of plunger: 8.5 mm (21/64″)
• Minimum door gap: 4 mm
• brown
• robust
• high brand quality of Sugatsune / LAMP®

Surface:

• Brown
• Brown gives a feeling of warmth and comfort, which creates a cozy and inviting atmosphere, ideal for living and dining areas
• Brown pairs well with wood, and is a versatile, neutral color that pairs well with other colors and materials, exuding timeless elegance

Assembly:

• The fastening is done using the four screws included in the scope of delivery (wood screws 3.1 x 13 mm (2 pieces of round head wood screw and 2 pieces of countersunk wood screw))
• The ML-30WBR magnetic snap latch has 2 mounting holes
• The distance between the mounting holes is 64 mm (2-33/64″)
• The latch is screwed onto the side of the body
• The minimum distance between the door and the furniture body is 4 mm (for more details, see assembly drawing)

Dimensions:

• Magnetic Flycatcher Width: 75 mm (2-61/64″)
• Depth of the magnetic snap catcher: 25 mm (63/64″)
• Height: 16 mm (5/8″)
• Mounting plate width: 23 mm (29/32″)
• Mounting plate depth: 12 mm (15/32″)

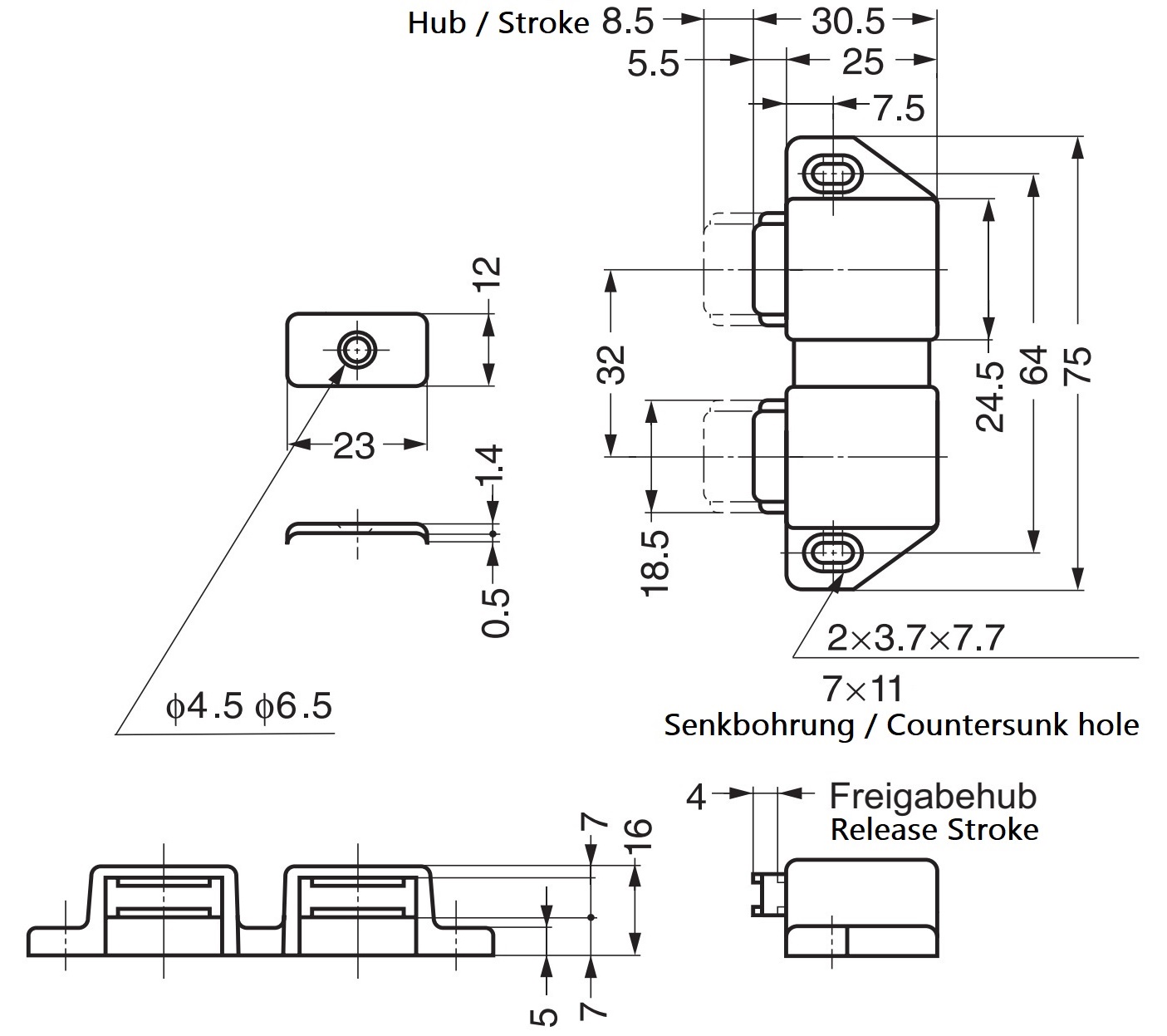

For more dimensions and details, see technical drawing.

Material:

• The magnetic snap latches 140-050-057 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic provides an optimal balance of strength and flexibility, making the fittings robust and adaptable at the same time
• In addition, this combination of materials allows for improved aesthetics and functionality, as it offers both stability and a variety of design options

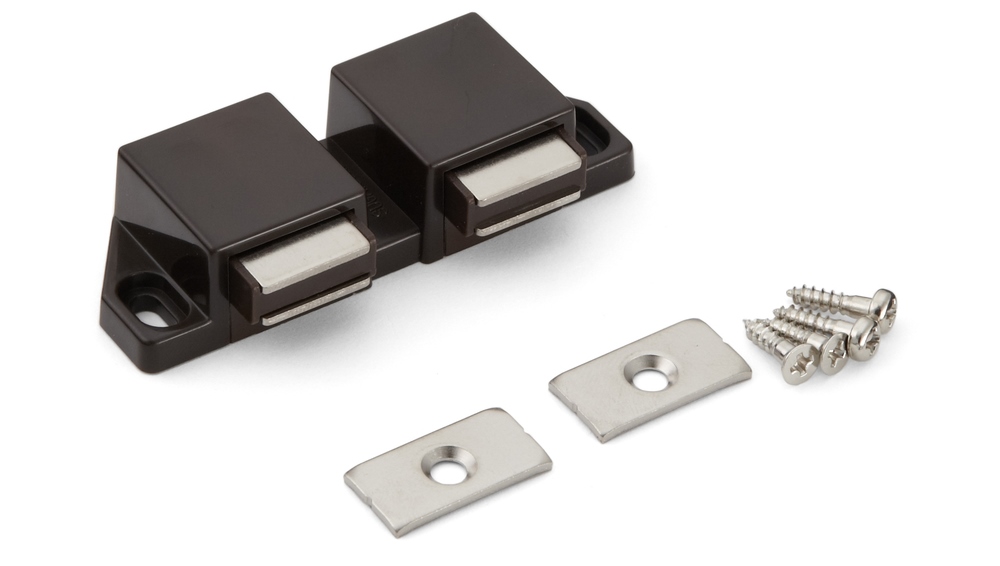

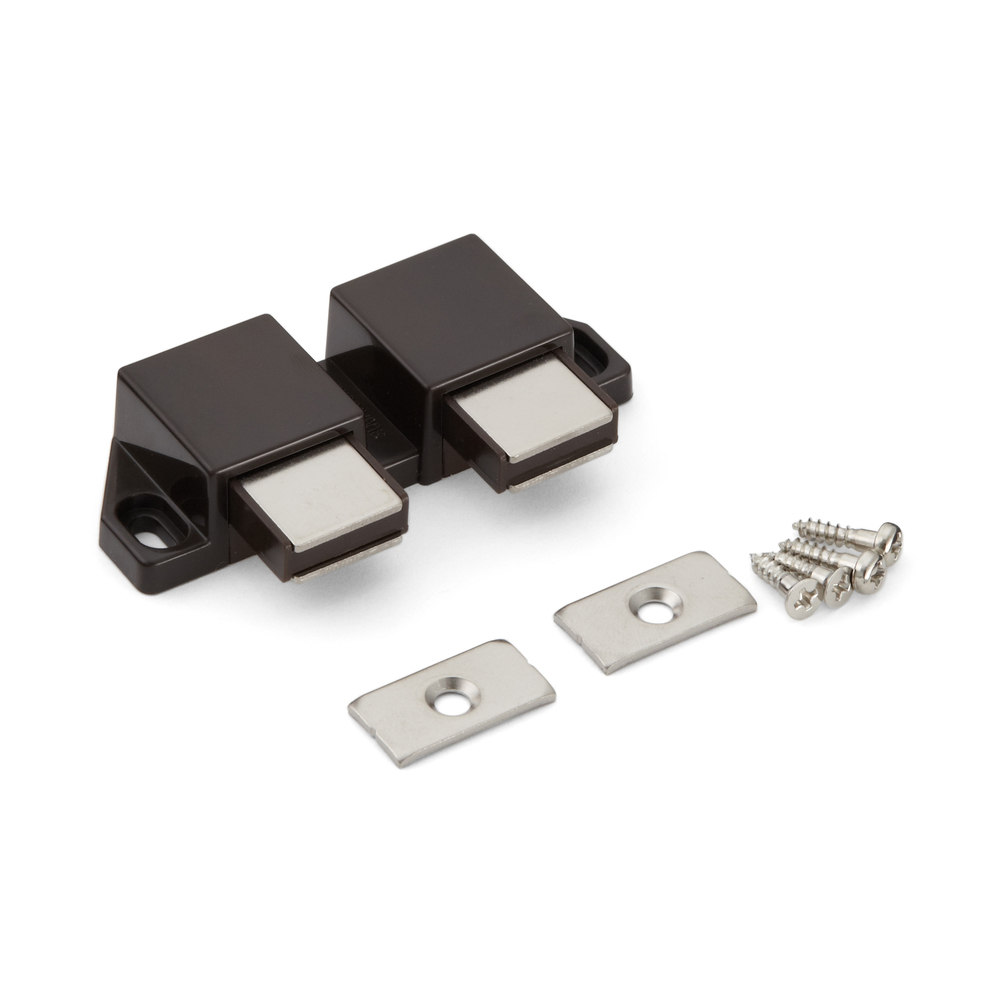

Included in delivery:

• 1 piece magnetic snap latch 140-050-057 made of metal and robust plastic, brown, version: with 2 plungers
• 2 pieces counter plate made of steel, nickel-plated
• 4 pieces of wood screws 3.1 x 13 mm (2 pieces of round head wood screw and 2 pieces of countersunk wood screw)

Manufacturer’s part numbers:

• Article ID: 140-050-057
• Item number: ML-30WBR
• EAN number: 4510932016971

Manufacturer: Sugatsune / LAMP® (Japan)
