Description

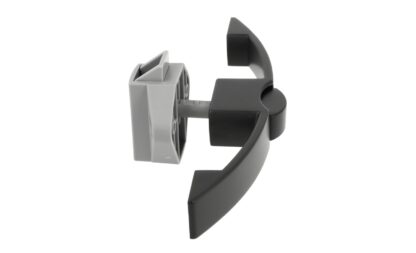

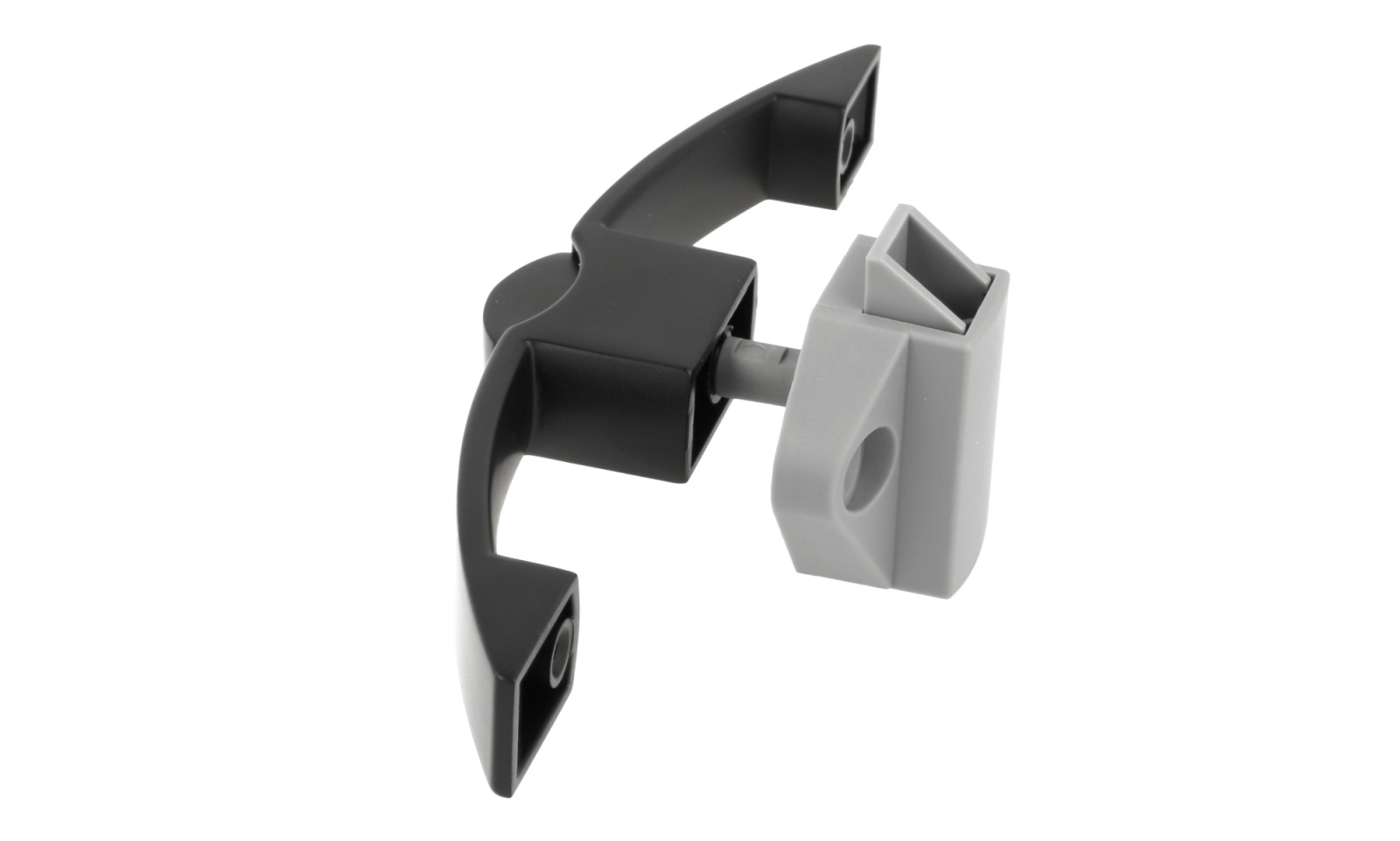

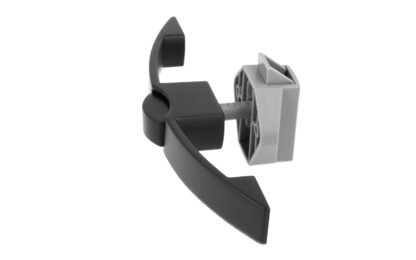

Practical push-button handle 14.03.071-0, with spring damper for soft closing and self-locking lock, made of solid die-cast zinc, surface: black
Application:
Solid handle closure with self-locking lock and soft-close for yacht, caravan, private jet and much more.
The high-quality push-button handle 14.03.071-0 is a furniture handle with a locking function and, when recessed, ensures that the furniture doors or cabinet doors do not open unintentionally during the journey or during the flight.
The handle lock 14.03.071-0 is suitable for door thicknesses between 14 mm (35/64″) and 16 mm (5/8″).
To open the furniture door, the button of the push button handle 14.03.071-0 must be pressed and the push button handle must be released.
The handle lock 14.03.071-0 serves as a practical handle with a depth of 26 mm (1-1/32″).

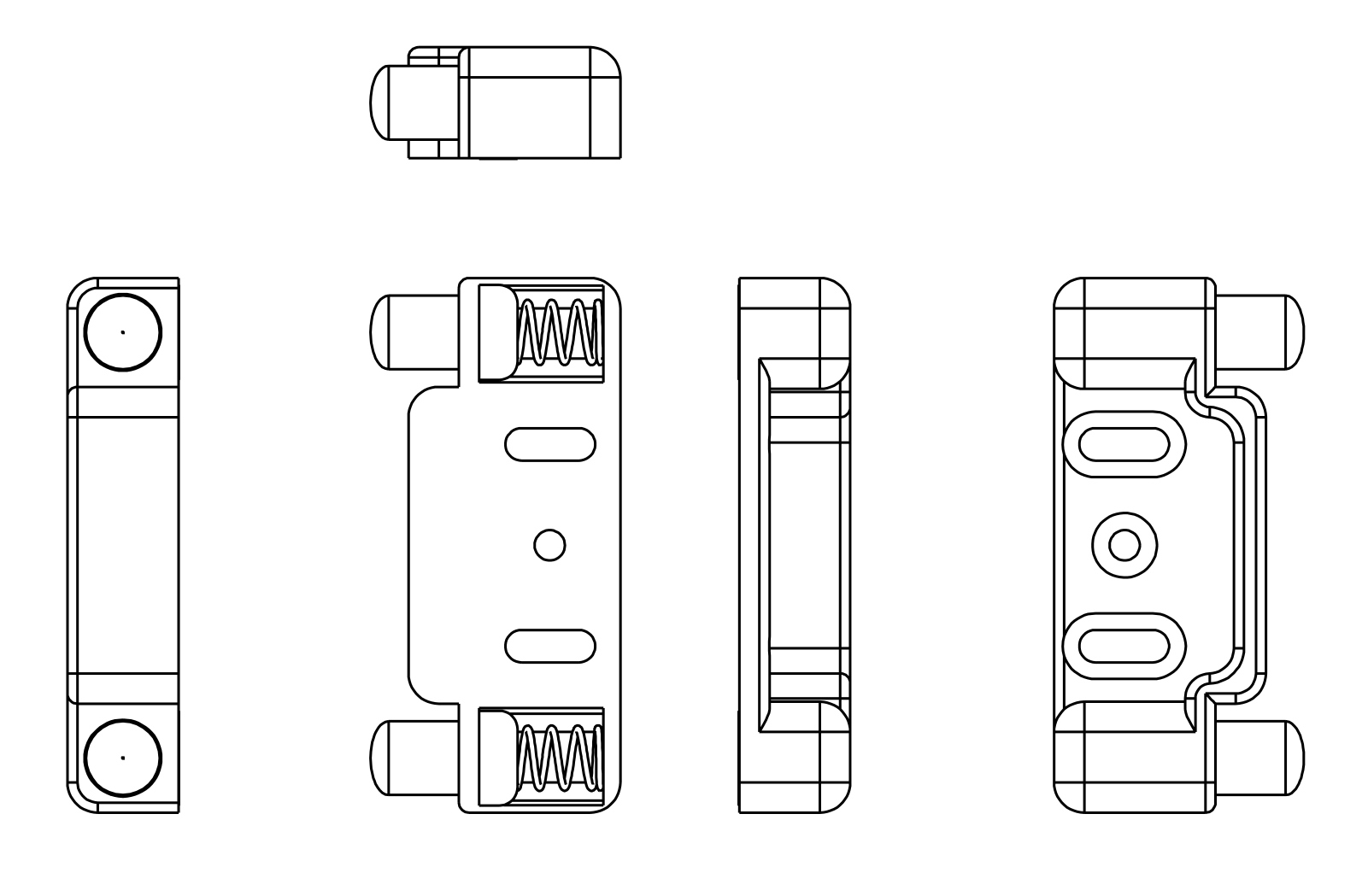

The special feature of the push-button handle 14.03.071-0 is that the counterpart (strike plate) has two spring-loaded buffers. When closing, these buffers ensure that the door closes smoothly and does not make any noise while driving or flying.
These features make the Push Button Handle 14.03.071-0 perfect for ships, private planes, motorhomes and caravans.
The high-quality snap fastener handles 14.03.071-0 are perfect for, among other things:
- Caravan
- Boat
- Camper
- Superyacht
- Camper Van
- Yacht
- Caravan
- Private Jet
Technical details:
- Weight: 173 g
- Size: 162 mm (6-3/8″)
- Available in three surface colours: chrome-plated, black and stainless steel look
- Easy installation, practical, stable
- Modern design
- High-quality optics
- Suitable for internal (enclosed) and surface-mounted (existing) furniture doors
- The snap fastener handles 14.03.071-0 look solid and high-quality
- black
- Zamak
- Zinc die casting
- high brand quality from UMAXO®
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done using the seven screws included in the scope of delivery

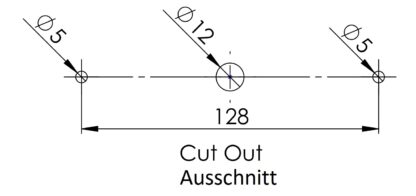

- For mounting, two holes with a diameter of ⌀5 mm (13/64″) and one hole with a diameter of ⌀12 mm (15/32″) must be drilled in the front
- The handle lock 14.03.071-0 is inserted into the front and the housing is screwed on from the back using the supplied screw
- The strike plate is then attached to the carcass side using the screws supplied (for further details, see assembly drawing)
Dimensions:
- Snap handle width: 162 mm (6-3/8″)
- Height: 17 mm (43/64″)
- Handle depth: 26 mm (1-1/32″)

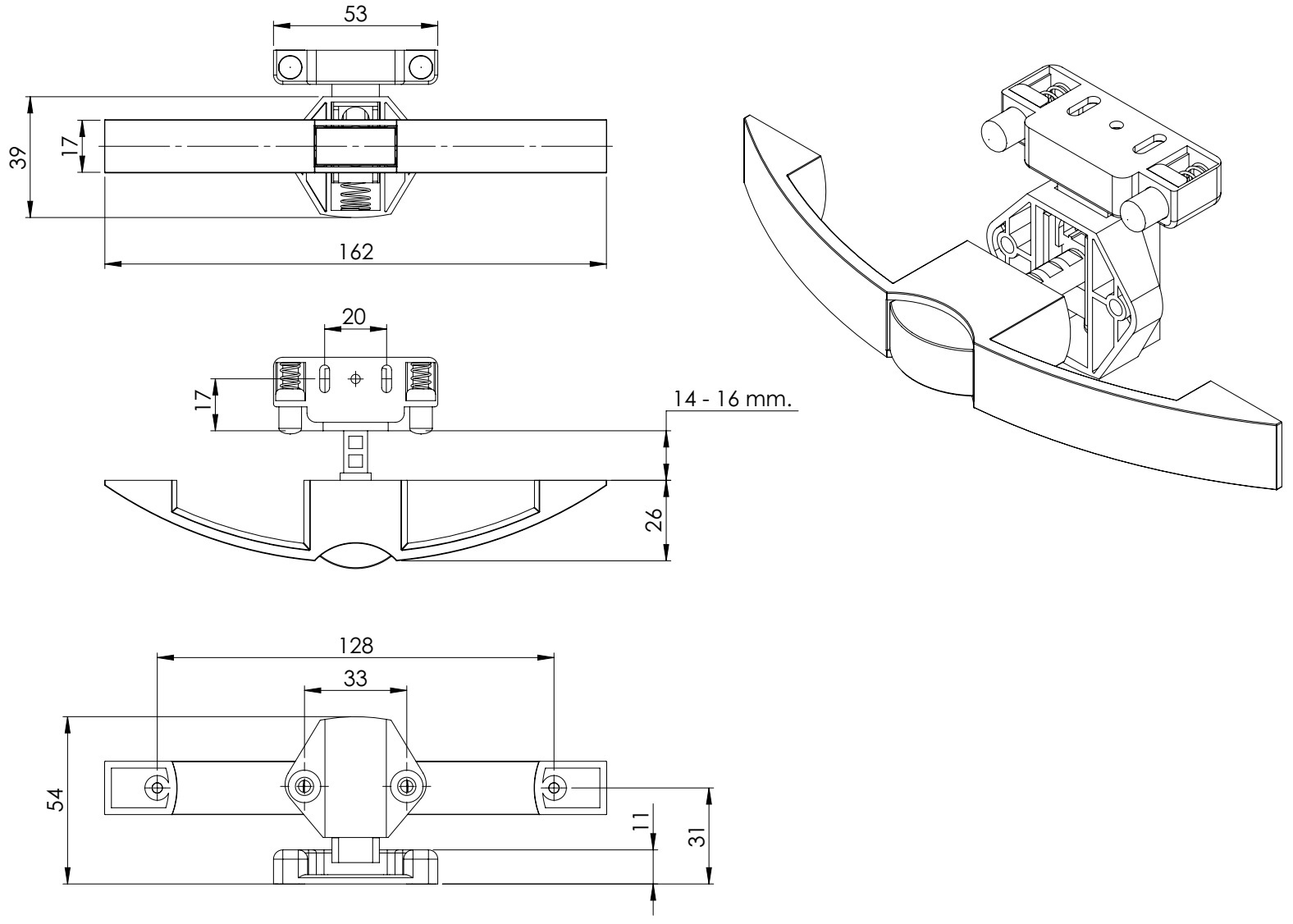

For more dimensions and details, see technical drawing.
Material:
- The push button handles 14.03.071-0 are made of solid die-cast zinc
- Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
- Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
- In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality

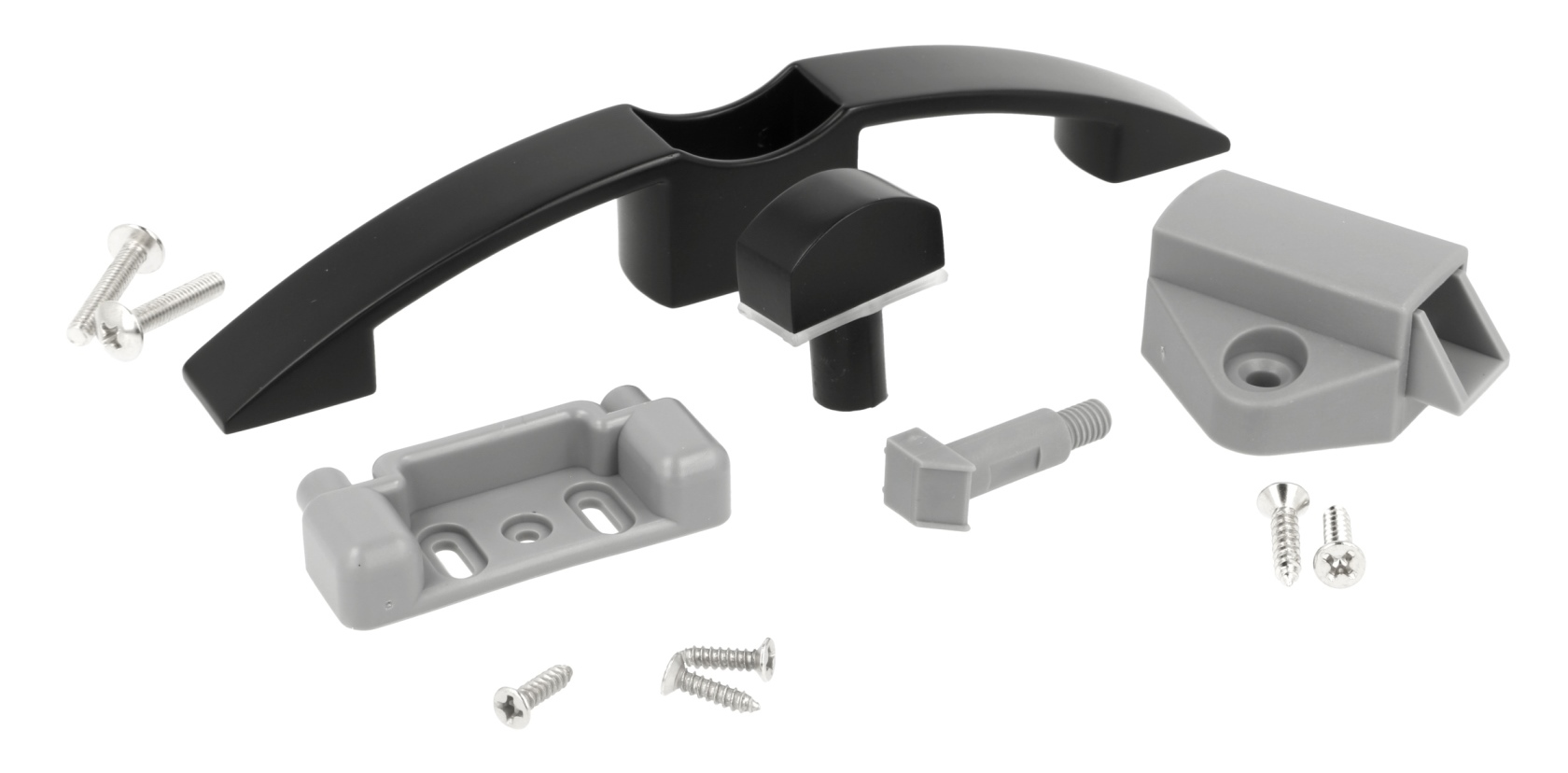

Included in delivery:
- 1 piece push-button handle 14.03.071-0 made of solid die-cast zinc, black
- Seven pieces of fastening screw
- 1 piece lock made of ABS, colour: grey
- 1 piece counterpart made of ABS with spring-loaded buffers, colour: grey
- 1 piece ABS latch, colour: grey
Additional information:
Manufacturer’s part numbers:
- Article ID: 14.03.071-0
- EAN number: 5704866513005
Manufacturer: SISO Denmark
