Description
10 pieces high-quality self-adhesive counter plate, made of robust steel, surface: nickel-plated, 22.01.118, diameter: ⌀19 mm (3/4″), design: round
Application:
High-quality counterpart for magnetic flycatchers and much more.
Design: round. The round design offers ergonomic handling, reduces the risk of injury due to sharp edges and blends harmoniously into different furnishing styles.
The counter plate 22.01.118 made of nickel-plated steel serves as a metallic mating surface for magnetic latches and magnetic push-to-open fittings.
The counterpart 22.01.118 is suitable for all push magnetic closures.

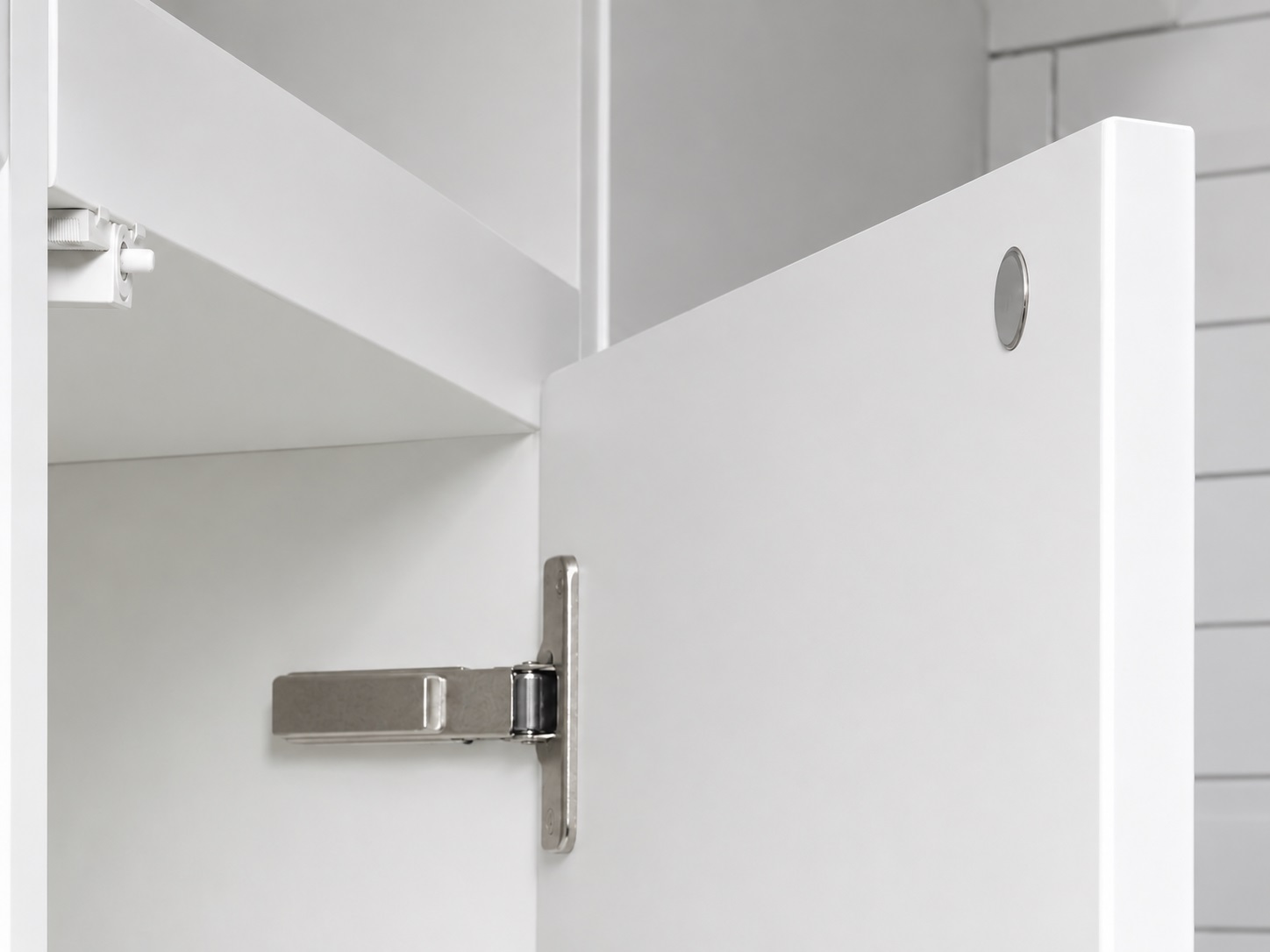

Due to the compact format of only ⌀19 mm (3/4″), it can be mounted inconspicuously on wooden or metal doors.
The 3M adhesive layer on the back allows the counter plate to be mounted without drilling and without visible screws.
The 1.7 mm (1/16″) thin design of the 22.01.118 stop plate prevents gaps and makes it easier to adjust the front.
Adhesive mounting allows it to be used on smooth wood, metal and glass surfaces for a clean appearance.
Thanks to the nickel-plated surface, the counter plate 22.01.118 is corrosion resistant.
This ensures safe closing and opening without handles.
The high-quality counter plates 22.01.118 are perfect for, among other things:
- Furniture doors
- Glass doors
- Wooden fronts
- Metal fronts
- Magnetic closures
- Cabinet doors
- Push-to-Open Magnetic Closures
- Magnetic flycatcher
Technical details:
- Finish: round
- Weight: 1.1g (for 10 pieces: 11g)
- Diameter: ⌀19 mm (3/4″)
- Easy installation, stable
- Material thickness: 1.7 mm (1/16″)
- High corrosion resistance
- Round counter plate for magnetic latches
- Self-adhesive design
- 3M foam adhesive layer on the back
- Installation without drilling
- No visible mounting screws
- Suitable for wood, metal and glass
- Suitable for magnetic latches and magnetic closures
- Nickel-plated
- steel, robust
- High brand quality from UMAXO®
Surface:
- Nickel-plated
- Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
- They offer an elegant, shiny look that looks modern and timeless at the same time
- They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean
Assembly:
- The counterpart 22.01.118 is glued on and has no screw hole. A screw attachment is not necessary with this model
- First, the intended adhesive surface must be cleaned, degreased and dried completely
- The counter plate 22.01.118 is aligned on the inside of the door so that it sits exactly opposite the magnetic closure
- The magnetic strike plate is positioned in the middle opposite the magnetic flycatcher and pressed firmly onto the surface
- The function is then to be tested by closing the door and activating the push-to-open mechanism
Dimensions:
- Stop plate diameter: ⌀19 mm (3/4″)
- Thickness: 1.7 mm (1/16″)

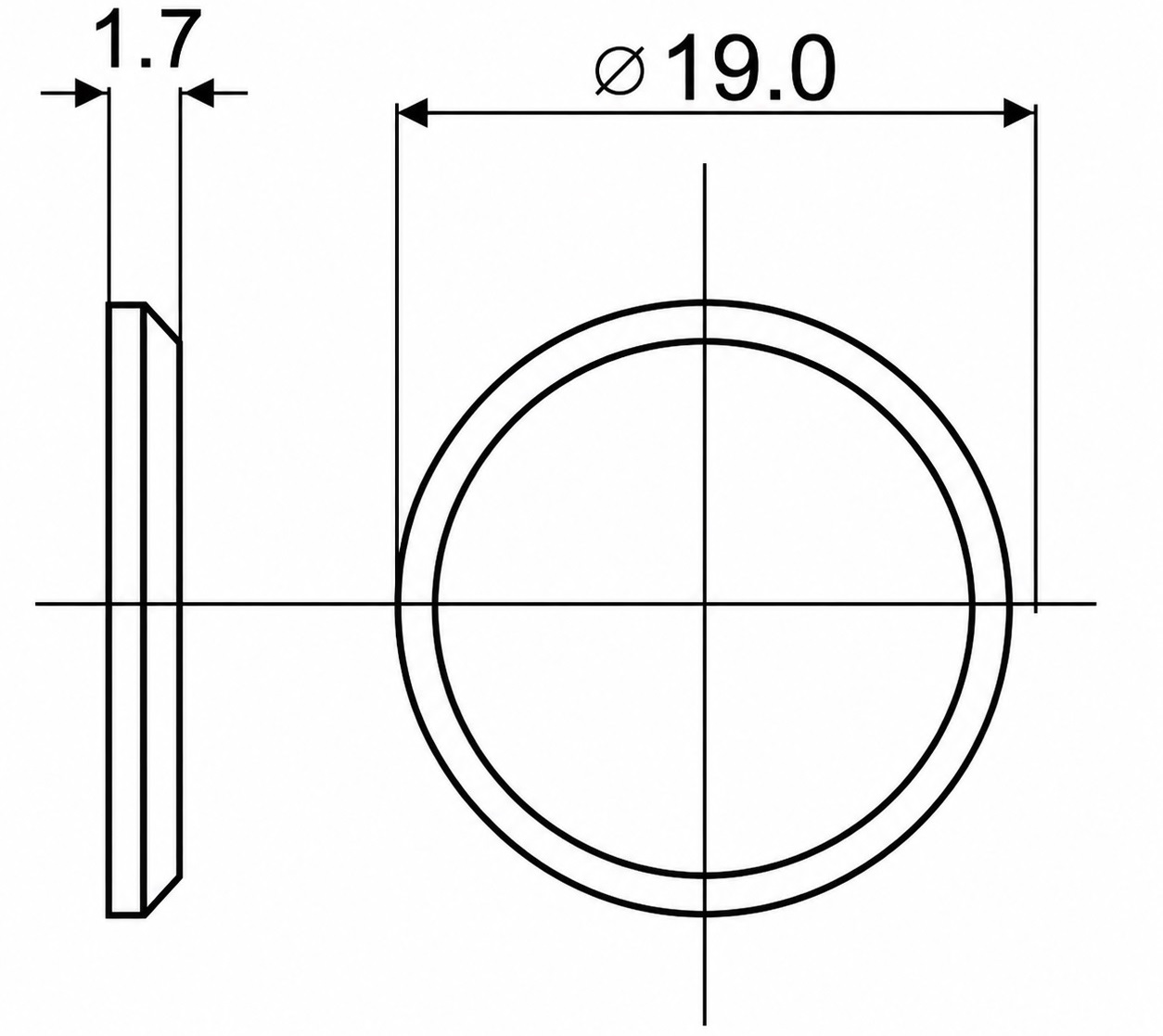

For more dimensions and details , see technical drawing.
Material:
- The counter plates 22.01.118 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:

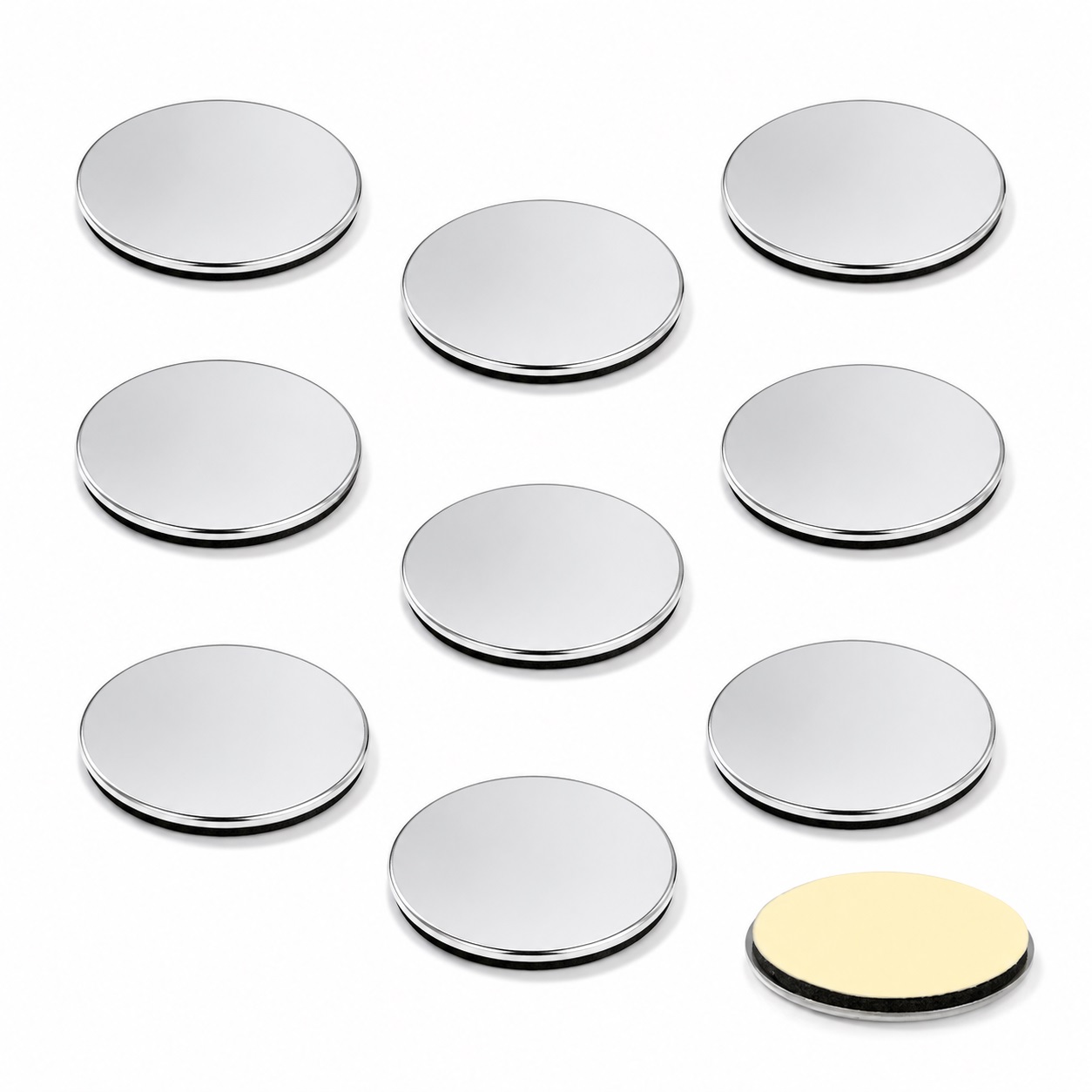

- 10 pieces counter plate 22.01.118 made of robust steel, nickel-plated, 19 mm (3/4″), version: round
- This item does not include mounting screws
Additional information:
Manufacturer’s part numbers:
- Article ID: 22.01.118 (alternative: 22.01.118-0)
- GTIN number (EAN, UPC): 5704866077880
Manufacturer: SISO Denmark
