Description

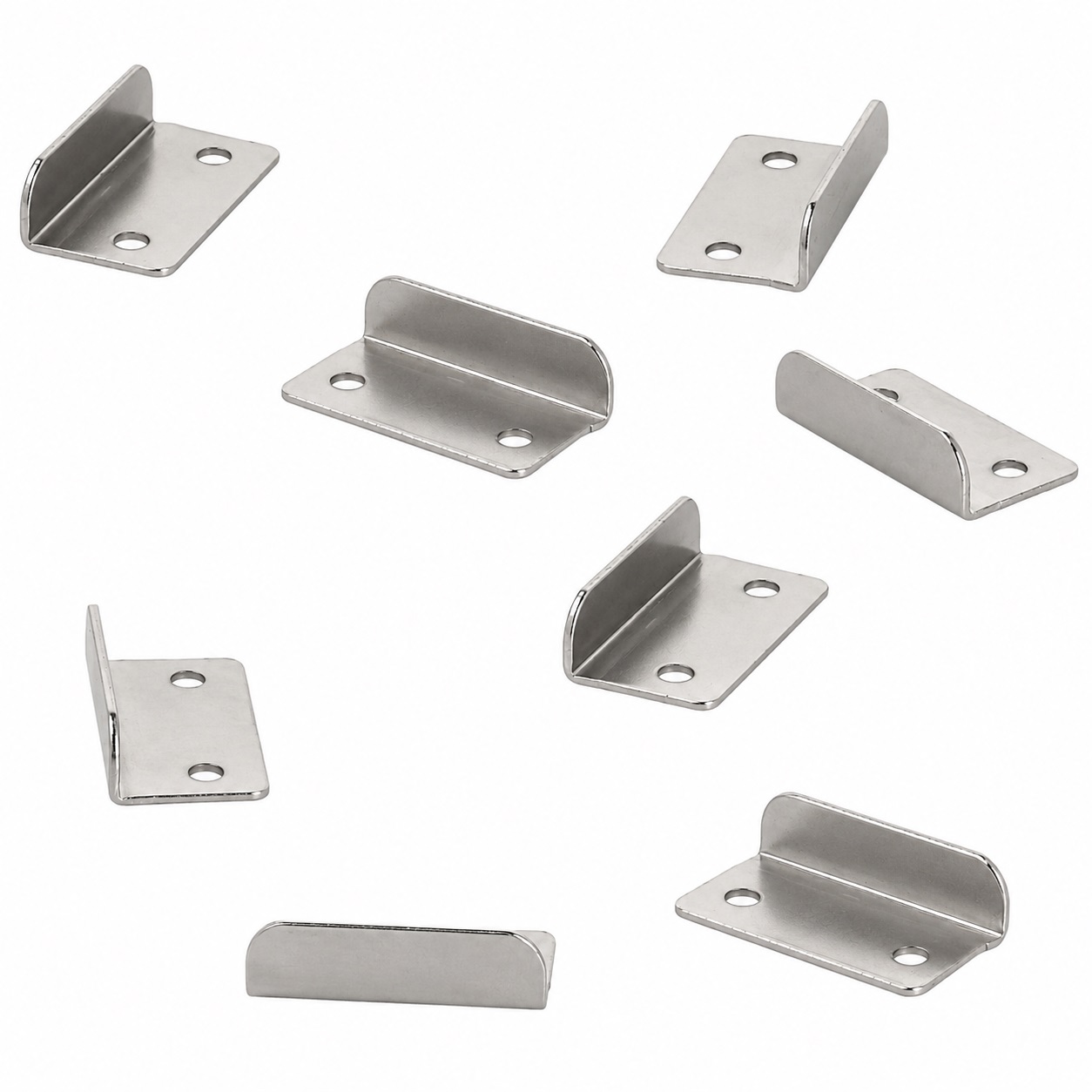

8 pieces robust closing bracket, made of robust steel, surface: nickel-plated, 14.01.064-1, size: 30 mm (1-3/16″)
Application:
Robust strike plate for furniture lock, cabinet lock, screw-on lock, cabinet door and much more.
The locking bracket 14.01.064-1 serves as a counterpart for furniture locks (e.g. the SISO Furniture Lock 850) and enables a clean locking of furniture parts.
Thanks to the L-shape, the strike plate 14.01.064-1 can be mounted on the carcass, door hinge or drawer area.
The bolt of the furniture lock engages with the locking angle and keeps the door or drawer reliably closed.
The nickel-plated steel surface ensures an inconspicuous look and good protection in furniture construction.
The compact design is particularly suitable for cabinets, drawers, display cabinets and other wooden furniture with small furniture locks.
The strike plate 14.01.064-1 is a simple, stable and space-saving solution if a furniture lock is to be locked securely and precisely.
The high-quality locking brackets 14.01.064-1 are perfect for, among other things:
- Drawer
- Furniture flap
- Wooden furniture
- Display case
- Chest of drawers
- Office furniture
- Furniture lock
- Cabinet lock
- Screw-on lock
- Cabinet door
Technical details:
- Weight: 5.6 g (for 8 pieces: 44.8 g)
- Size: 30 mm (1-3/16″)
- Easy installation, stable
- L-shaped striking plate for furniture locks
- Suitable for SISO Furniture Lock 850
- Compact design
- With two mounting holes
- Suitable for wood and furniture constructions
- Can be used for cabinet doors and drawers
- Easy screw mounting
- Discreet look in the interior of the furniture
- Nickel-plated
- steel, robust
- High brand quality from UMAXO®
Surface:
- Nickel-plated
- Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
- They offer an elegant, shiny look that looks modern and timeless at the same time
- They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean
Assembly:
- Fastening is done with countersunk wood screws 3 x 12 mm (not included)
- The closing angle is aligned with the appropriate counter-position to the furniture bolt
- First, the position must be marked with the furniture part closed
- Then the mounting holes are pre-drilled with approx. ⌀2 mm if necessary
- The closing bracket is then fastened with two countersunk wood screws or countersunk chipboard screws
- Finally, it must be checked whether the bolt of the furniture lock engages cleanly in the locking angle and whether the furniture part remains reliably closed
Dimensions:
- Closing Angle Length: 30 mm (1-3/16″)
- Width: 16 mm (5/8″)
- Height (leg height): 9 mm (23/64″)
- Hole spacing: 21 mm (53/64″)
- Distance from hole center to bottom edge: 6 mm (15/64″)
- 2 mounting holes: ⌀3.5 mm (9/64″)
- Material thickness: 1 mm (3/64″)
- Radius at the small corners: R2
- Radius at curved area: R5

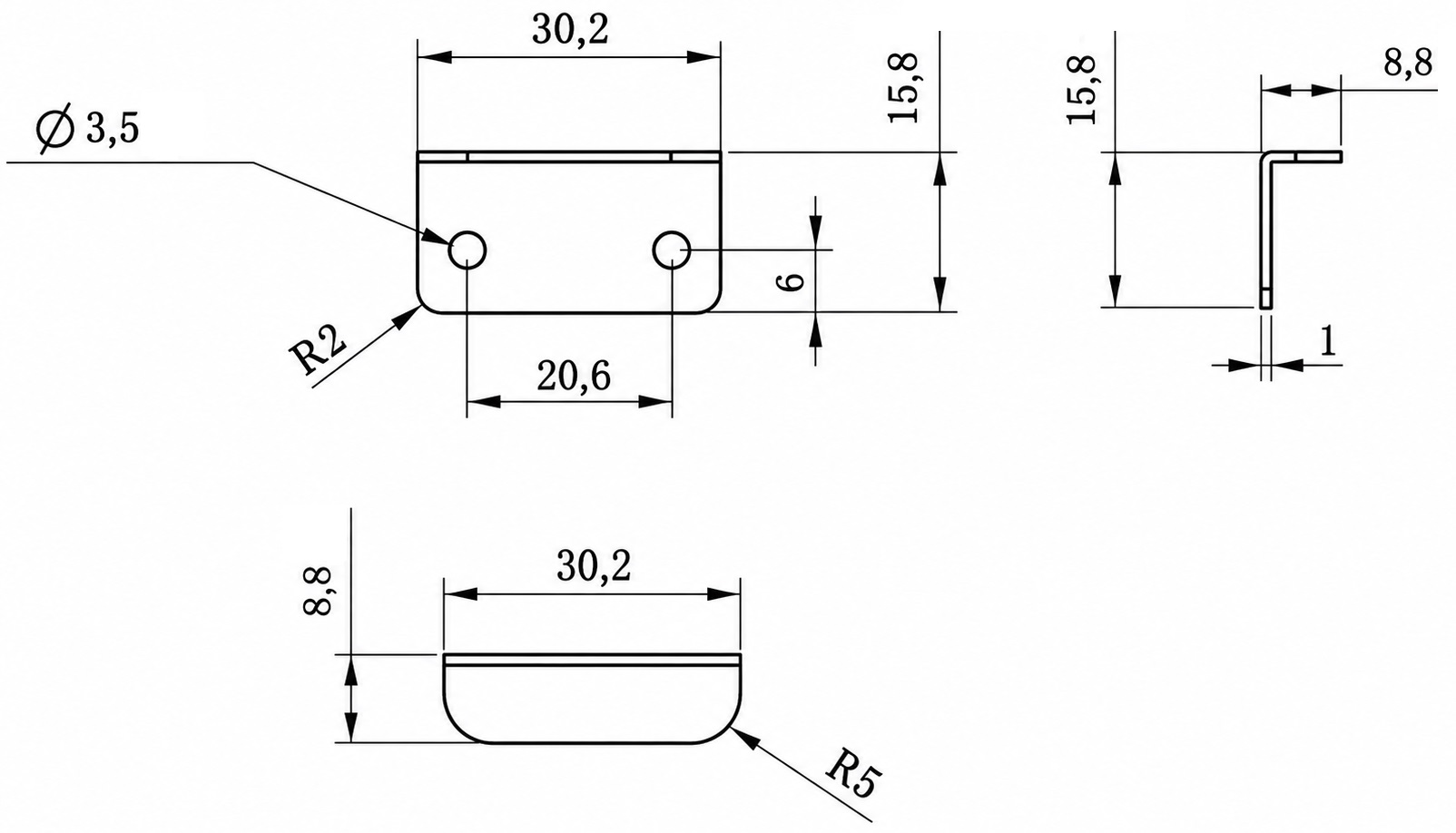

For more dimensions and details , see technical drawing.
Material:
- The locking brackets 14.01.064-1 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:
- 8 pcs locking bracket 14.01.064-1 made of robust steel, nickel-plated, 30 mm (1-3/16″)
- This item does not include mounting screws
Additional information:
Manufacturer’s part numbers:
- Article ID: 14.01.064-1
- GTIN number (EAN, UPC): 5704866453585
Manufacturer: SISO Denmark
