Description

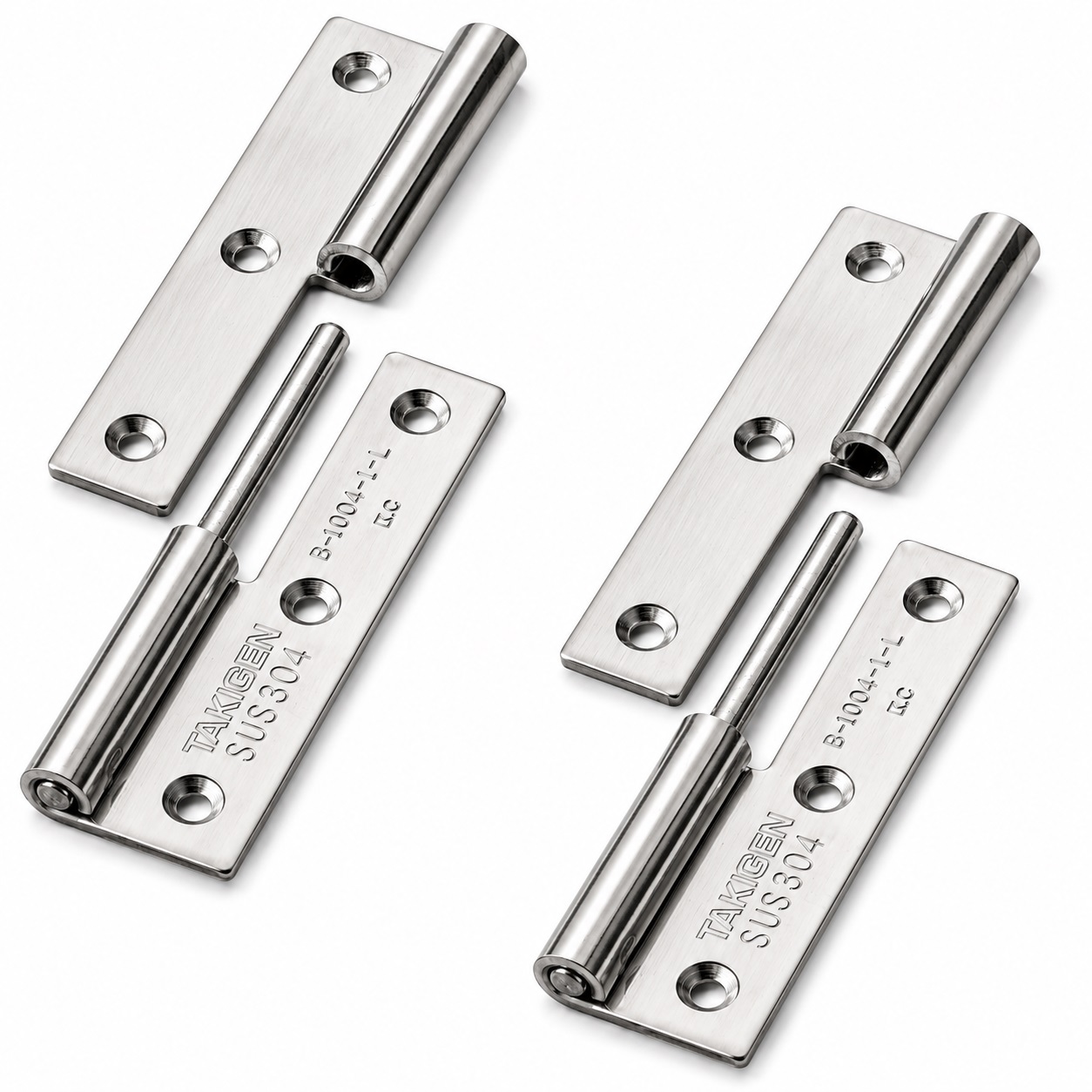

2 pieces high-quality robust display hinge, made of solid stainless steel SUS304 (V2A or 1.4301), surface: glossy polished, B-1004-1-L (10563), height: 75 mm (2-61/64″), version: left, load capacity: 15 kg (34 lbs)
Application:
Robust lifting hinge for doors, maintenance hatches and much more.
Version: left. For left-hinged doors and flaps
The lifting hinge B-1004-1-L (10563) connects doors or flaps to a housing in a detachable manner.
By lifting, the moving component can be separated from the permanently mounted hinge part without loosening the fastening screws.
The left and right versions are intended for appropriately hinged constructions.
The SUS304 material and mirror-polished surface provide high corrosion resistance for kitchen, marine and outdoor applications.
Six countersunk holes enable flush and low-interference fastening with M3 countersunk screws.
When using two hinges vertically, TAKIGEN cites a door mass of 15 kg as a reference value.
The high-quality B-1004-1-L flagship hinges are perfect for, among other things:
- Outer housing
- Equipment doors
- Machine covers
- Kitchen appliance doors
- Doors
- Maintenance hatches
Technical details:
- Version: left
- Weight: 65 g (for 2 pieces: 130 g)
- Load capacity (load capacity): 15 kg (34 lbs) – for 2 pieces
- Height: 75 mm (2-61/64″)
- Available in 2 finishes: left and right, in 3 materials: titanium, SUS304 stainless steel and steel, and in 3 lengths: 50 mm, 64 mm and 75 mm
- Easy installation, stable
- Detachable two-piece construction
- High corrosion resistance
- Material thickness: 2 mm (5/64″)
- Six countersunk holes for M3 screws
- ⌀4 mm (5/32″) hinge pin
- Door can be removed without loosening the screws
- Suitable for indoor and outdoor applications
- RoHS10 compliant
- Glossy polished
- Weather-resistant, rust-free or corrosion-resistant
- High brand quality from TAKIGEN®
Surface:
- Glossy polished
- Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, elegant appearance
- In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and dirt
Assembly:
- Fastening is done with 6 pieces of M3 countersunk screws (not included)
- The flagship hinge B-1004-1-L (10563) has 6 mounting holes
- The distance between the mounting holes is 24 mm (15/16″) horizontally and 30 mm (1-3/16″) vertically
- First of all, the positions of the two hinge halves must be marked and the six attachment points prepared
- The hinge half on the housing side is fastened with three M3 countersunk screws
- The hinge half on the door side is also mounted with three M3 countersunk screws
- Both halves of the hinge must be aligned so that the hinge pin can be inserted without tension
- The door or flap is then attached to the hinge pin from above
- Finally, it is necessary to check the smoothness, complete engagement of the pin and the tight fit of all screws
Dimensions:
- Total Lifting Hinge Height: 75 mm (2-61/64″)
- Width: 38 mm (1-1/2″)
- Hinge pin diameter: ⌀4 mm (5/32″)

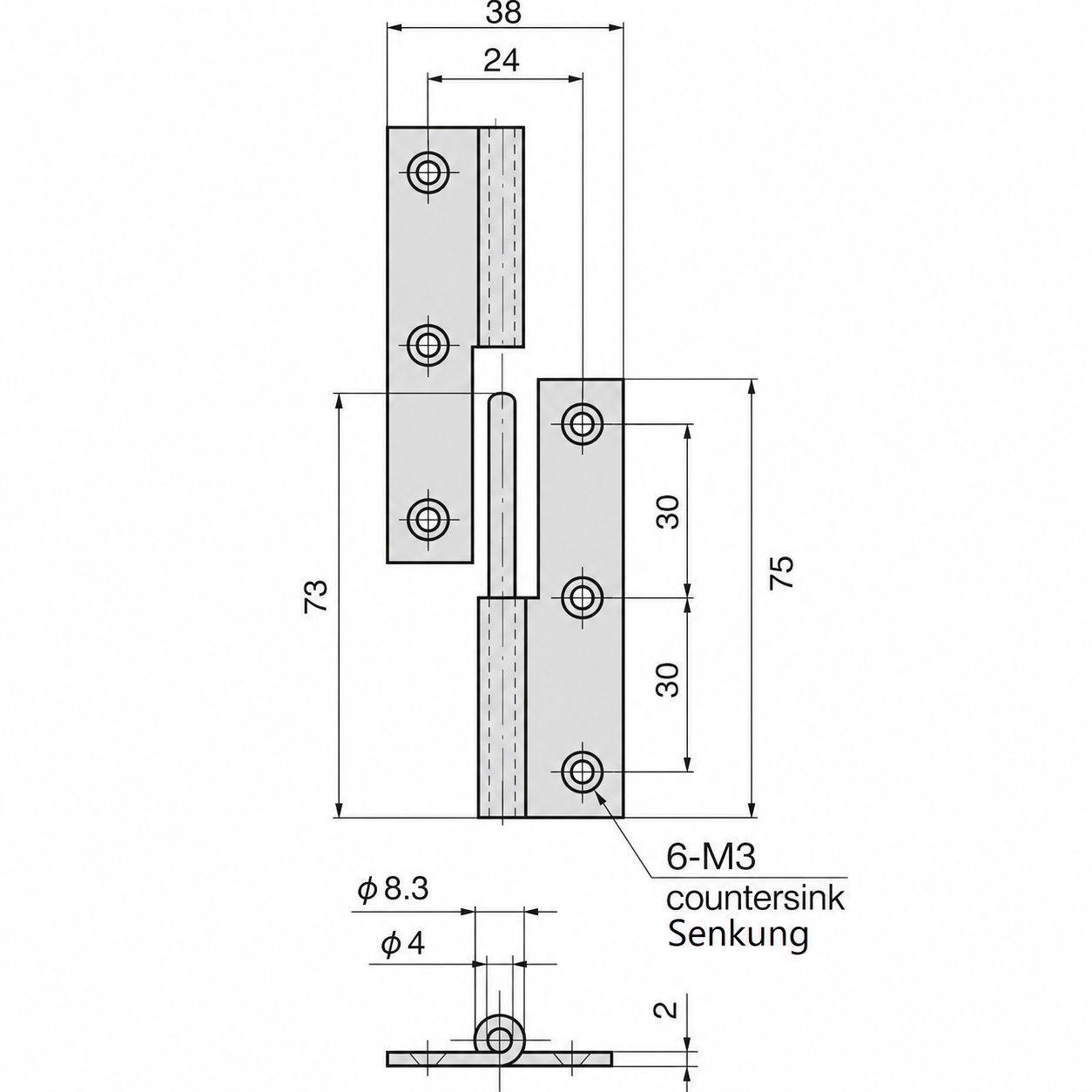

For more dimensions and details , see technical drawing.
Material:
- The B-1004-1-L flagship hinges are made of solid SUS304 stainless steel (V2A or 1.4301)
- SUS304 stainless steel is characterized by its high corrosion resistance and durability, which makes it ideal for use in demanding environments
- In addition, it offers an attractive, polished or satin finish that is both modern and easy to maintain
Included in delivery:
- 2 pieces lifting hinge B-1004-1-L (10563) made of solid stainless steel SUS304, glossy polished, 75 mm (2-61/64″), version: left
- This item does not include mounting screws
Manufacturer’s part numbers:
- Article ID: 10563
- Item number: B-1004-1-L
- GTIN number (EAN, UPC): 0618455525834
Manufacturer: TAKIGEN (Japan)
