Description
4 pieces robust furniture adjuster, made of robust polyacetal (POM), surface: black, B571-19-BK, diameter: ⌀19 mm (3/4″), version: standard, load capacity: 400 kg (882 lbs)
Application:

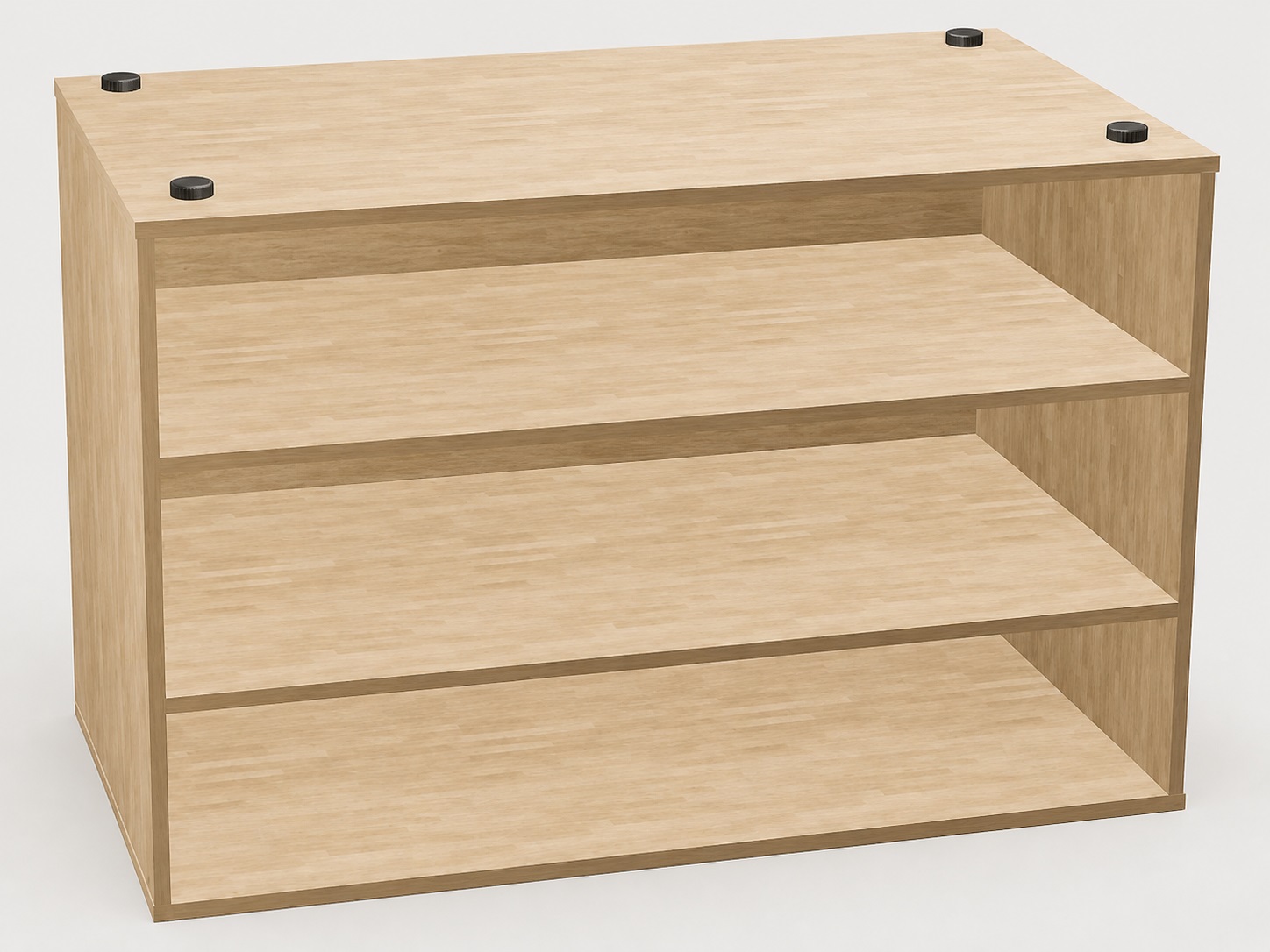

Adjustable foot for table legs, furniture legs, cabinet feet and much more.
This item is the standard version.
The B571-19-BK furniture adjuster is a compact furniture adjuster for height compensation on furniture and fixtures indoors.
It is mounted on the surface and therefore does not require any time-consuming milling or processing of the furniture.
The 5 mm (13/64″) adjustment range helps to compensate for small unevenness in the floor and to keep furniture stably aligned.
The POM material is robust and particularly suitable for applications where an inconspicuous and lightweight plastic solution is desired.
Due to its compact design with ⌀19 mm (3/4″), the B571-19-BK adjustable foot fits well with table legs, cabinet feet, plinths and small furniture constructions.
The high-quality B571-19-BK furniture adjusters are perfect for, among other things:
- Table
- Cabinet
- Sofa
- Shelf Feet
- Socket
- Small Furniture
- Built-in furniture

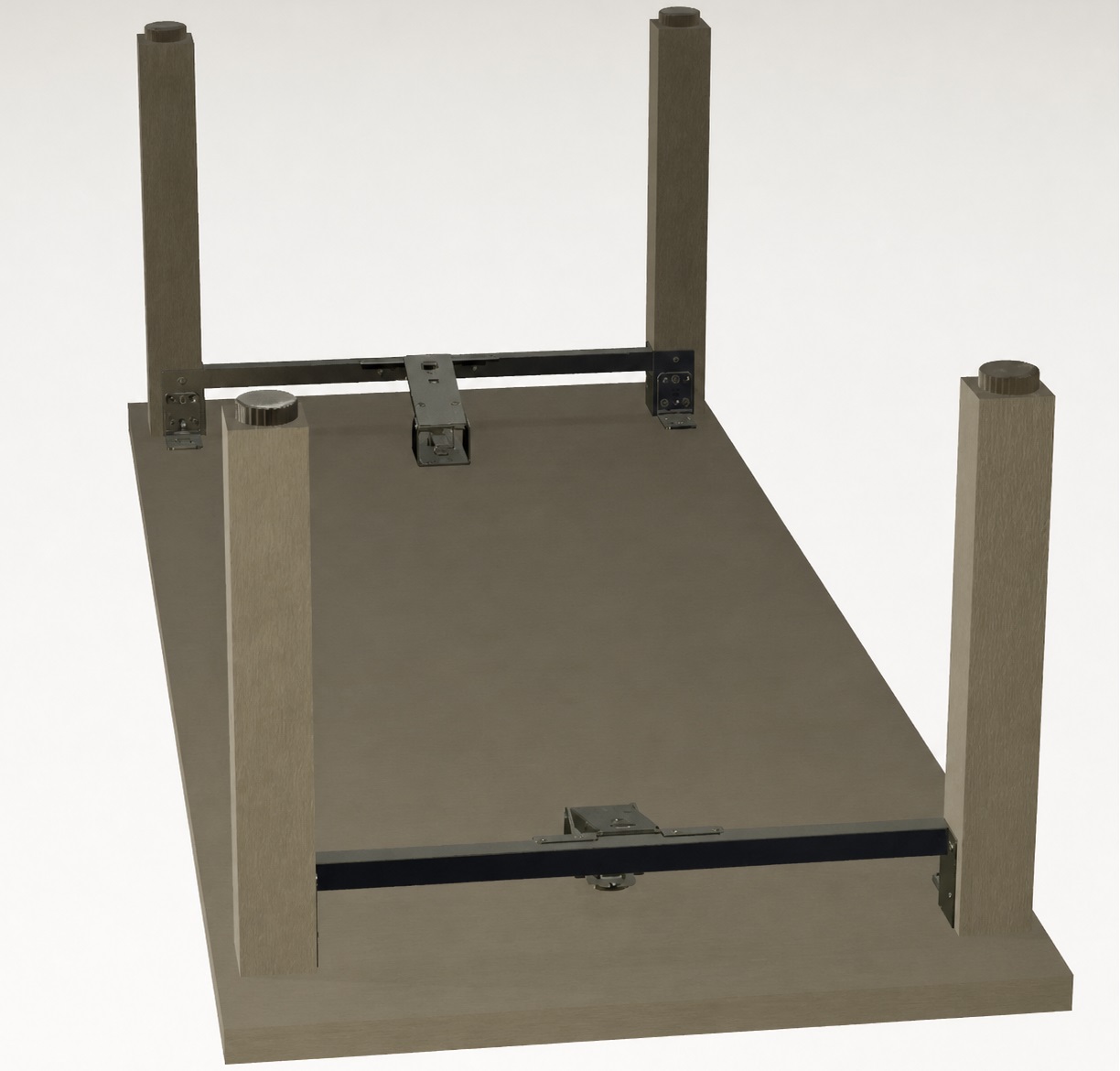

- Table legs
- Furniture legs
- Cabinet feet
Technical details:
- Version: Standard
- Weight: 4 g
- Load capacity (load capacity): 400 kg (882 lbs) – for 4 pieces
- Diameter: ⌀19 mm (3/4″)

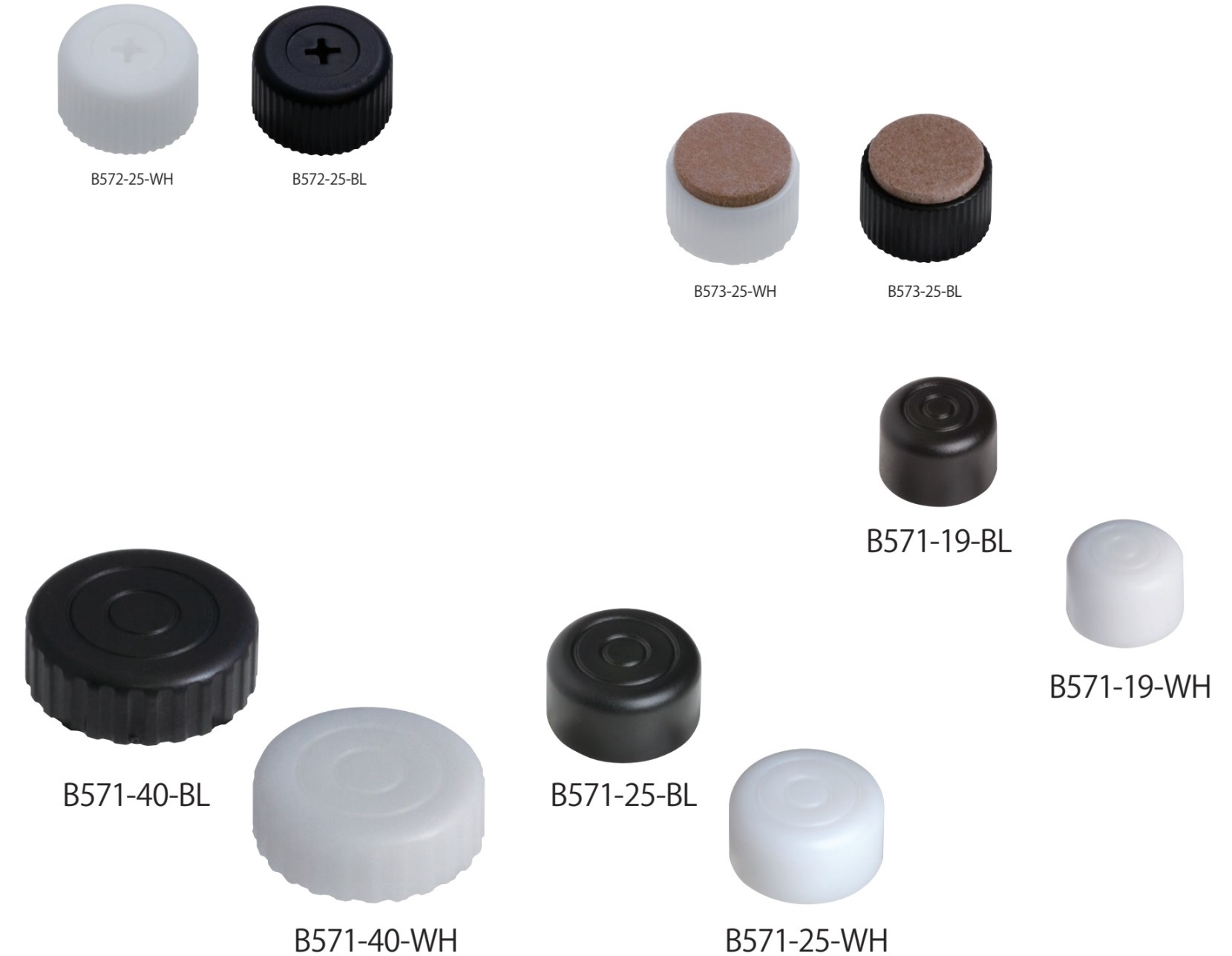

- Available in 2 surface colours: white and black
- Available in 3 diameters: ⌀ 19 mm, ⌀ 25 mm and ⌀ 40 mm
- Available in 3 versions: standard, with cross recess and with felt pad
- Easy installation, stable
- For indoor use
- Surface-mounted mounting without machining the wooden part
- Adjustment range: 5 mm (13/64″)
- Suitable for small and hard-to-reach mounting areas
- Black
- robust, lightweight
- High brand quality from Kojima (Japan)
Surface:
- Black
- Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
- While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
- Black finishes can be used in different rooms, be it the kitchen, living room, or office
Assembly:
- Fastening is done with pan head screw ⌀3.5 mm screws (not included)
- The B571-19-BK adjustable foot has two mounting holes spaced 7 mm (9/32″). The mounting holes are ⌀3.2 mm (1/8″) in diameter
- The furniture adjuster is attached to the surface with two matching screws, without the need for milling into the wood

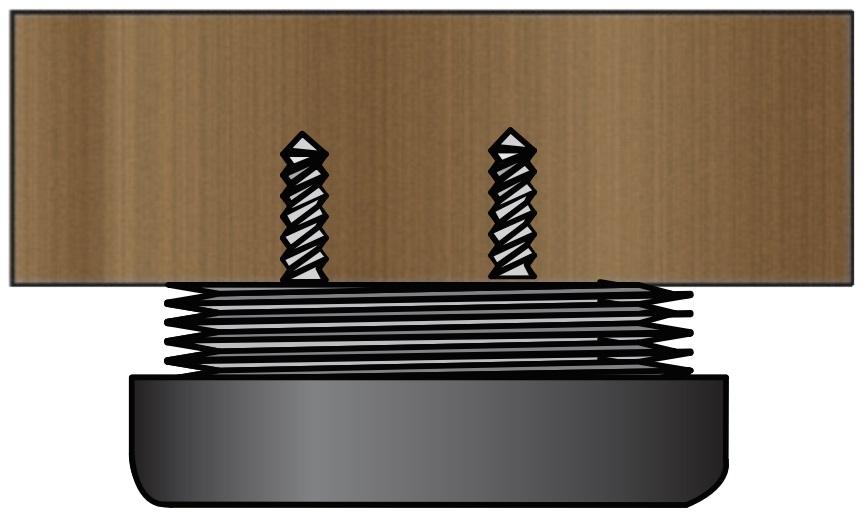

- Then the adjustment cap is placed on the adjustment foot or screwed on (for further details, see assembly drawing)
Dimensions:
- Diameter of the furniture adjuster: ⌀19 mm (3/4″)
- Height: 10 mm (25/64″)
- Width: 7 mm (9/32″)
- Adjustable Cap Height: 13 mm (33/64″)

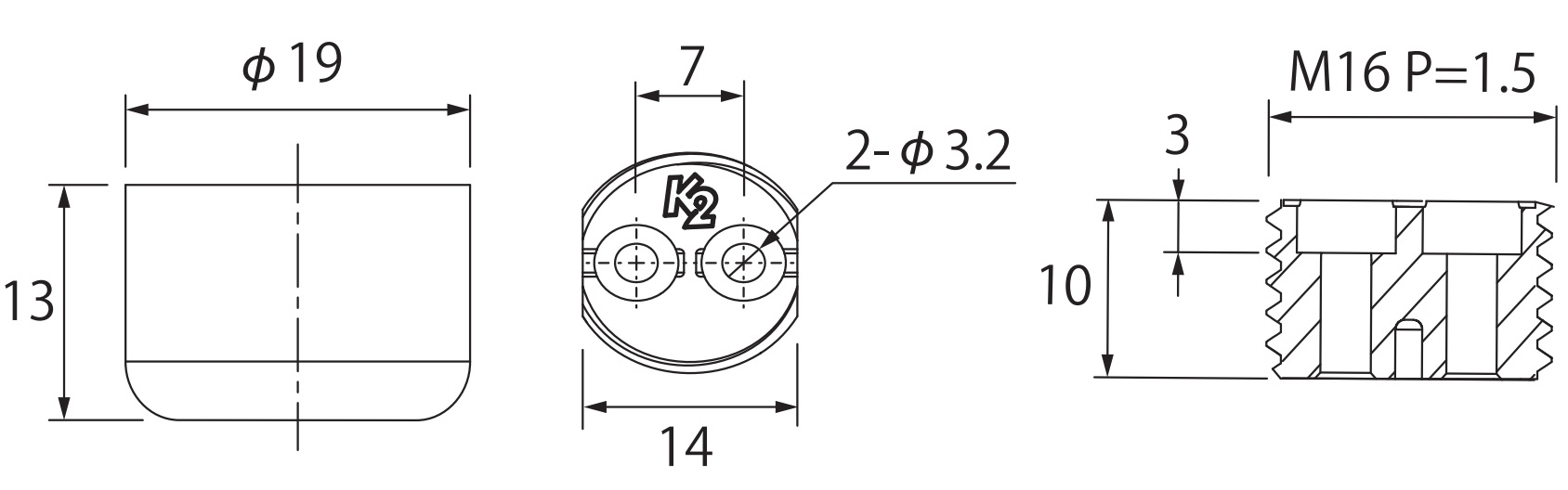

For more dimensions and details , see technical drawing.
Material:
- The B571-19-BK furniture adjusters are made of robust polyacetal (POM)
- Polyacetal (POM) combines very high abrasion and wear resistance with a low friction coefficient, so that fittings function smoothly over the long term
- Thanks to its high dimensional and dimensional stability, even with changing humidity, the accuracy of fit of hinges, pull-outs or locks is maintained
Included in delivery:

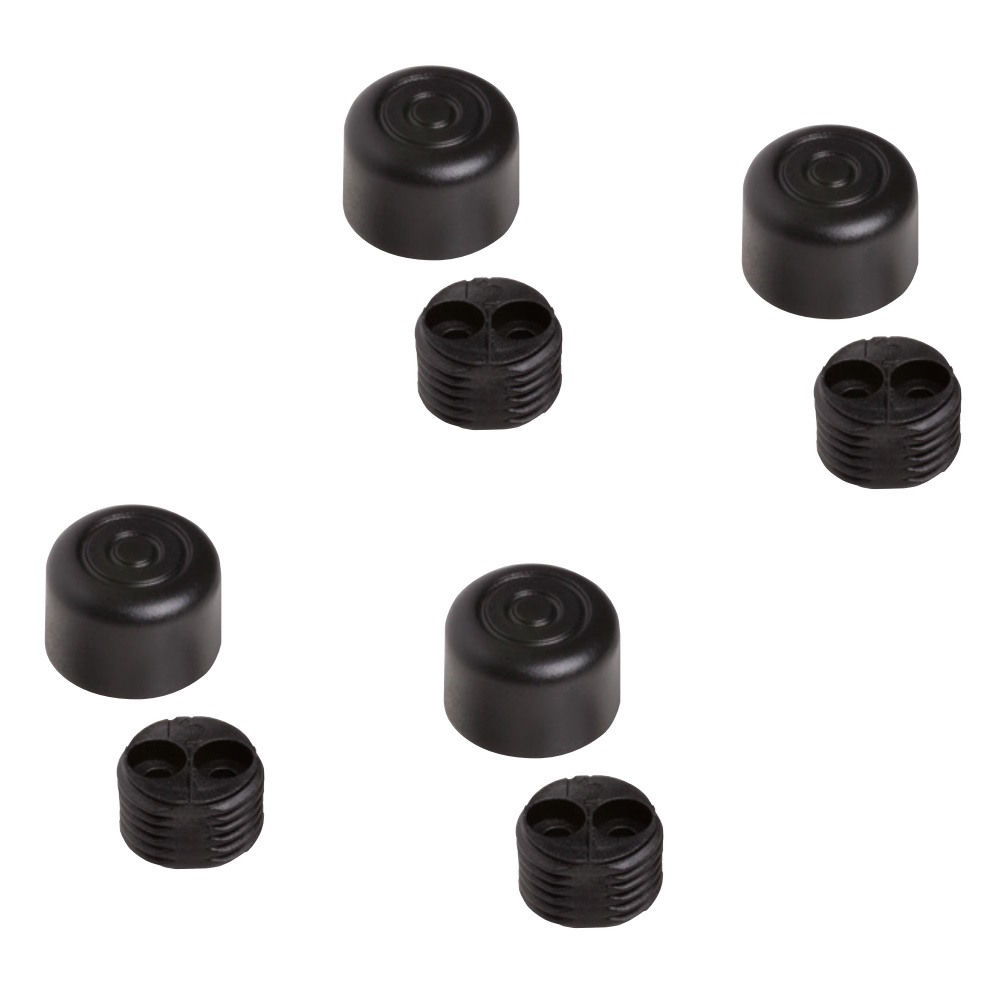

- 4 pieces Furniture Adjuster B571-19-BK made of robust polyacetal, black, 19 mm (3/4″), Version: Standard
- This item does not include mounting screws
Watch the product video:
Additional information:
Manufacturer’s part numbers:
- Article ID: B571-19-BK
- GTIN number (EAN, UPC): 0618455525506
Manufacturer: Kojima (Japan)
