Description
4 pieces of robust practical table angle fitting, made of robust steel, surface: galvanized, yellow, 11.07.040-1, width: 126 mm (4-61/64″), version: 1 hole for central mounting
Application:
Practical table leg angle for table frames, table legs, dining tables and much more.
Design: 1 hole for central mounting. This variant has 1 hole for central attachment
The table leg bracket 11.07.040-1 connects a table leg with two table frames running at right angles to each other.
Its angled shape pulls the frames together in the corner and increases the rigidity of the table frame.
The central mount allows the table leg to be attached via an M8 or M10 bolt.
Six screw holes on the sides ensure an even distribution of force in the wooden frames.
The 2 mm (5/64″) thick steel sheet offers a resilient and permanently dimensionally stable connection.
The galvanised surface protects the fitting from corrosion in the usual interior of furniture and enables unobtrusive installation on the inside of the table frame.
The high-quality table angle fittings 11.07.040-1 are perfect for, among other things:
- Kitchen Tables
- Desks
- Wooden tables
- Workbenches
- Table Frames
- Table frames
- Table legs
- Dining tables
Technical details:
- Design: 1 hole for central attachment
- Weight: 146 g (for 4 pieces: 584 g)
- Width: 126 mm (4-61/64″)
- Available in 13 different sizes and designs
- Easy installation, stable
- Made of 2 mm (5/64″) thick steel
- Galvanized surface
- Central mount for M8 or M10 bolts
- Concealed mounting on the inside of the table frame
- For right-angled rib corners
- Reinforced and profiled construction
- Suitable for detachable table leg connections
- Galvanized, yellow
- steel, robust
- High brand quality from UMAXO®
Surface:
- Galvanized, yellow
- The galvanized surface protects against rust and corrosion
Assembly:
- The fastening is done with e.g. 6 x wood screws or chipboard screws with pan head, 1 x M8 or M10 hanger bolt or threaded bolt (not included)
- The 11.07.040-1 table leg bracket has 6 mounting holes: ⌀5 mm (13/64″) and a central mounting opening: for M8 or M10 bolts
- The exact length of the wood screws must be adapted to the thickness of the table frame. The screws must not penetrate the outside of the frame
- First, the two table frames must be aligned at right angles to the table leg and temporarily fixed
- The frame angle is inserted from the inside into the corner between the two frames
- The fitting is then attached to the table frames through the six side holes with matching wood screws
- Then the M8 or M10 hanger bolt of the table leg is passed through the central opening and evenly tightened with a washer and a suitable nut

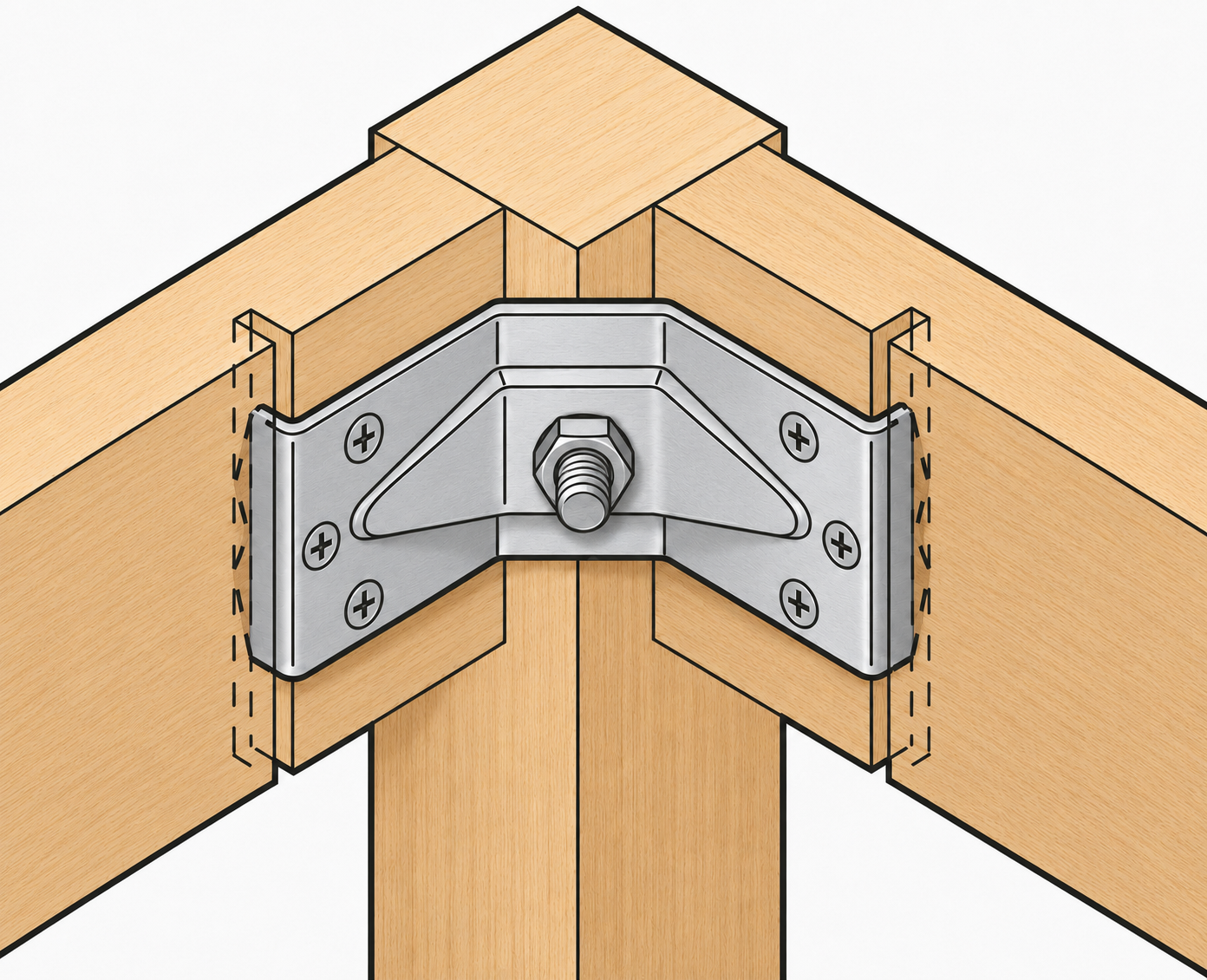

- Finally, the right-angled alignment of the table leg and the tight fit of all screw connections must be checked (for more details, see assembly drawing)
Dimensions:
- Total width of the table leg angle: 126 mm (4-61/64″)
- Height: 60 mm (2-23/64″)
- Center bridge width: 58 mm (2-9/32″)
- Depth of side legs: 48 mm (1-57/64″)

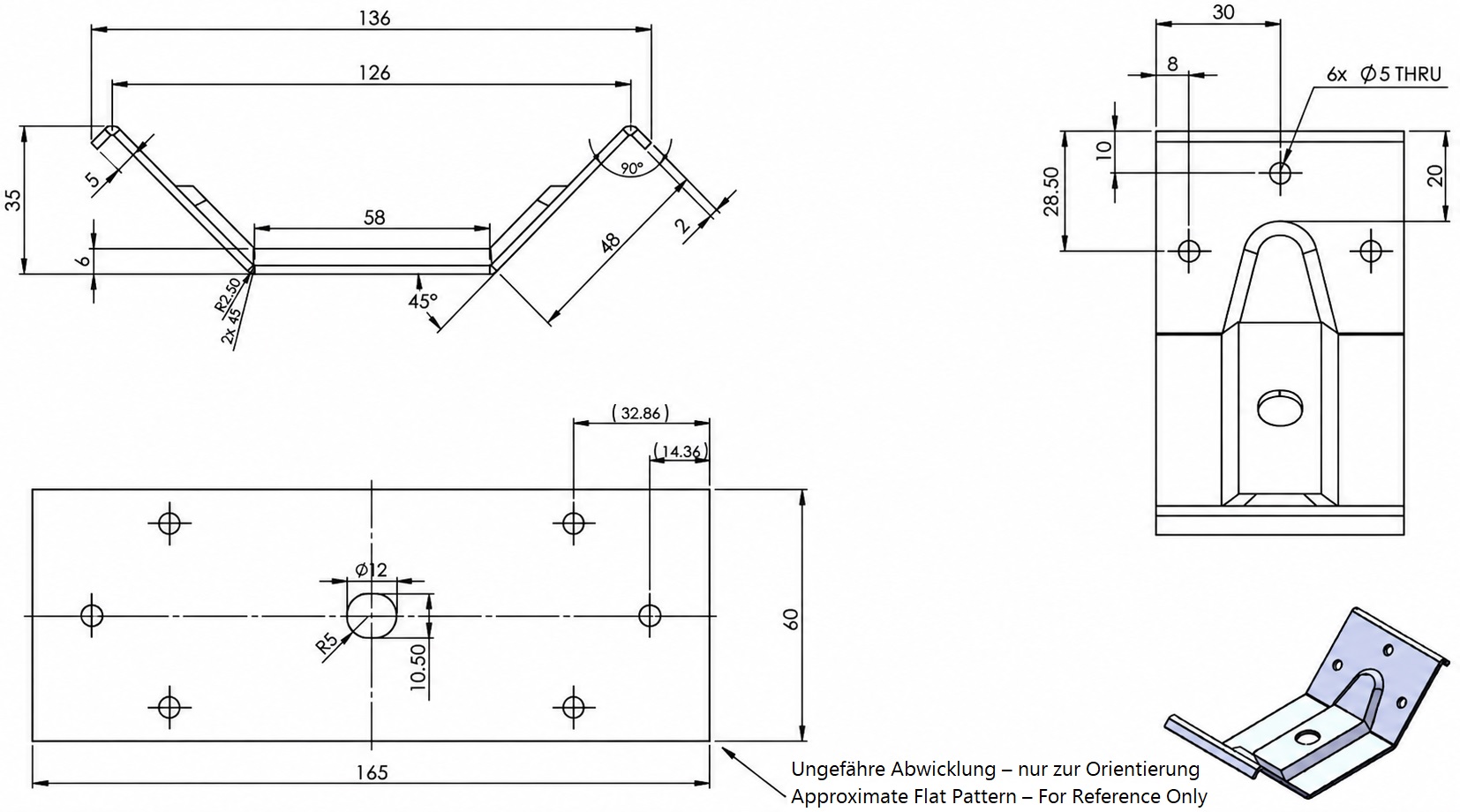

For more dimensions and details , see technical drawing.
Material:
- The table angle fittings 11.07.040-1 are made of robust steel
- Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings
Included in delivery:

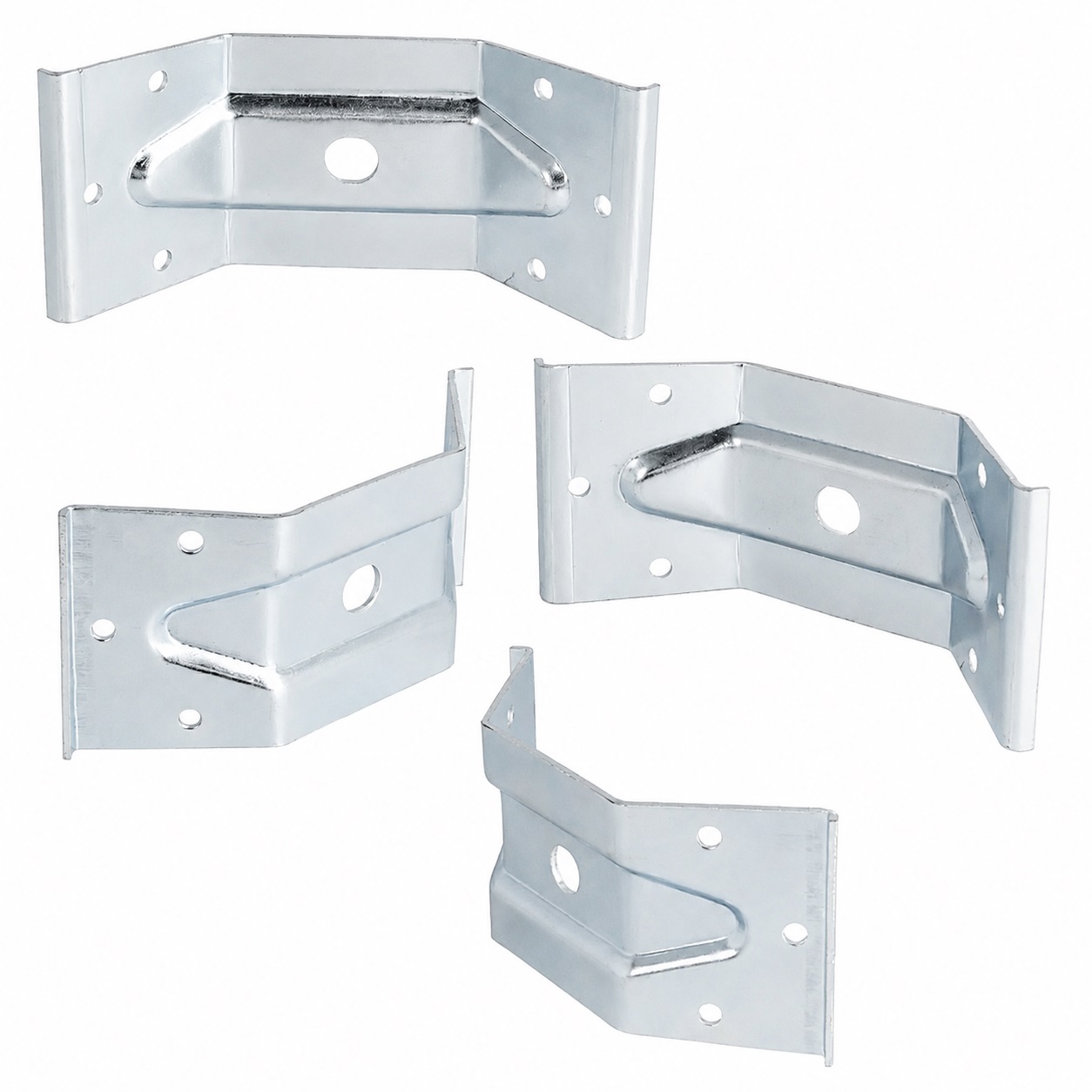

- 4 pieces table leg bracket 11.07.040-1 made of robust steel, galvanized, yellow, 126 mm (4-61/64″), version: 1 hole for central mounting
- This item does not include mounting screws
Additional information:
Manufacturer’s part numbers:
- Article ID: 11.07.040-1 (alternative: 11.07.040-2)
- GTIN number (EAN, UPC): 5704866015769
Manufacturer: SISO Denmark
