Description

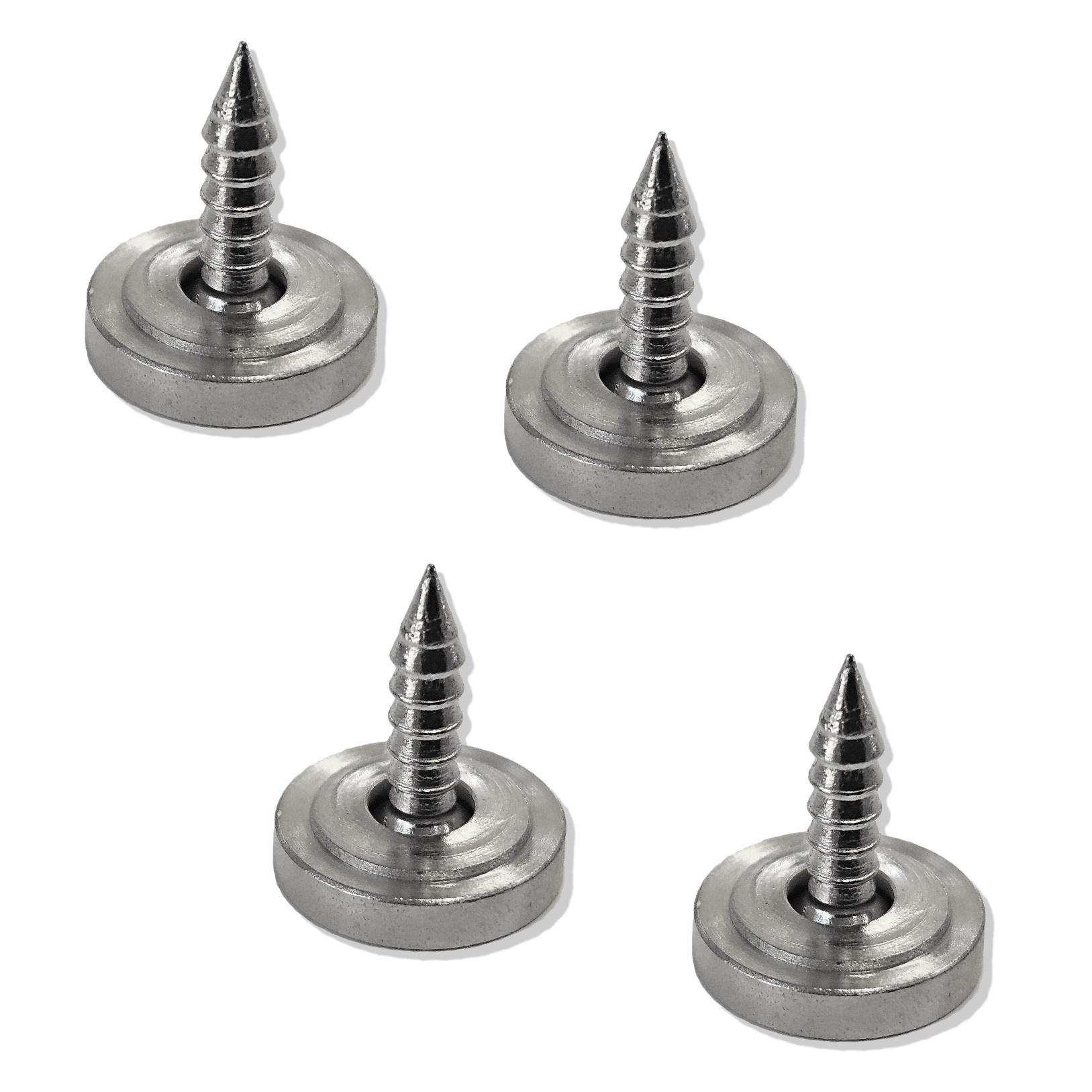

4 pieces high-quality round movable magnetic counter plate for recessing, made of robust steel, surface: nickel-plated, Z4 (140-050-110), size: 12 mm (15/32″)

Application:

Magnetic counterpart for magnetic latches, magnetic lock, cabinet door and much more.

The Z4 (140-050-110) magnetic counter plate made of robust steel serves as a counterpart to magnetic latches and push-to-open magnetic closures.

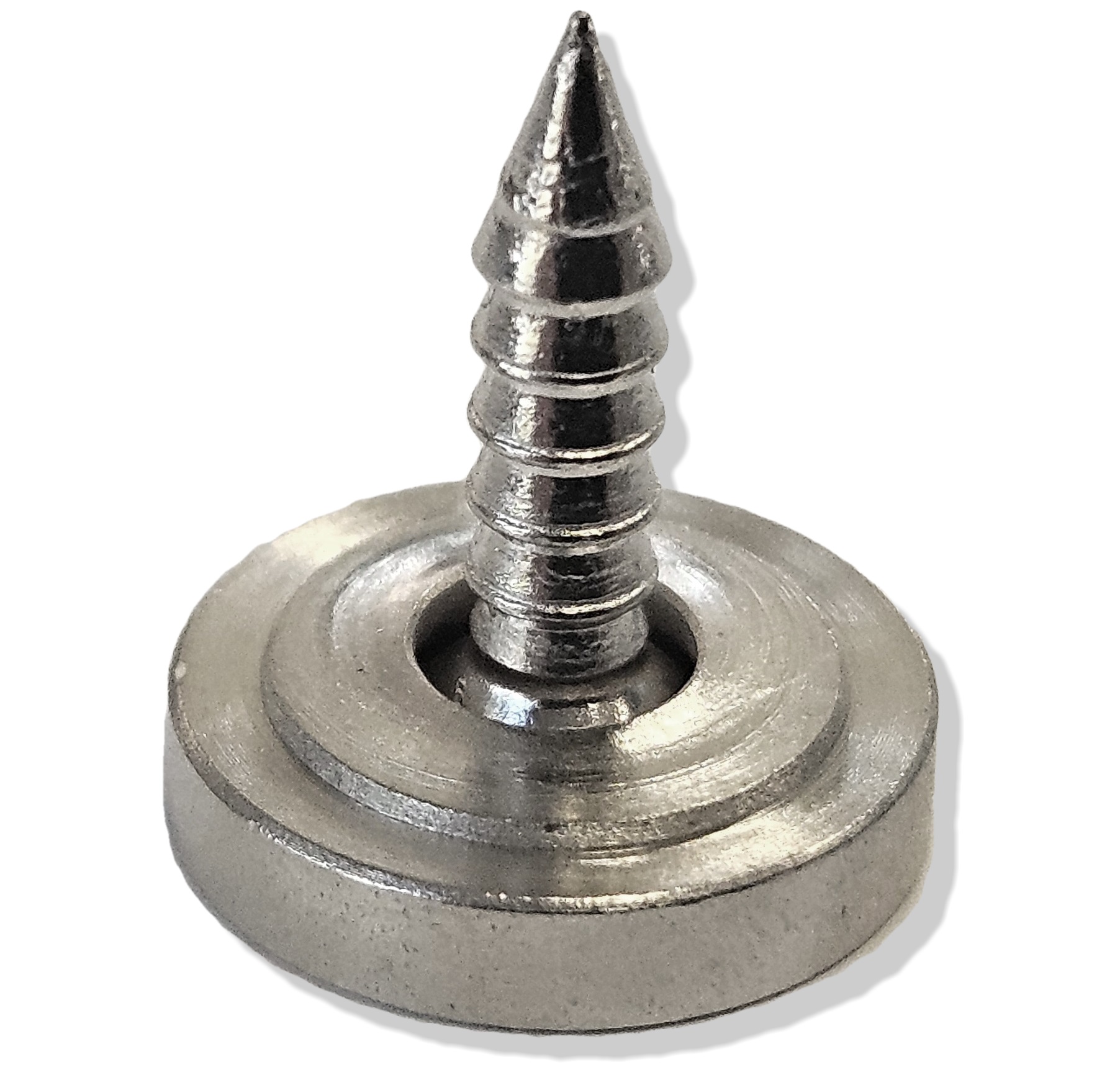

The special feature of the Z4 magnet counterpart is that it can move in all directions and is completely embedded in a hole.

The movable round counter plate accommodates the magnetic flycatcher when closing and ensures optimal rest.

The magnetic counterpart Z4 (140-050-110) is suitable for all magnetic closures and push magnetic closures.

Thanks to the nickel-plated surface, the Z4 magnetic counter plate is corrosion-resistant.

The high-quality magnetic counter plates Z4 are perfect for, among other things:

• Furniture doors
• Push-to-Open Magnetic Closures
• Magnetic flycatcher
• Magnetic closure
• Cabinet door

Technical details:

• Weight: 2 g
• Size: 12 mm (15/32″)
• Easy installation, stable
• Material thickness: 2.5 mm (3/32″)
• round
• High corrosion resistance
• Suitable for wood and MDF
• Nickel-plated
• steel, robust
• High brand quality from Sugatsune / LAMP®.

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that looks modern and timeless at the same time
• They are also easy to clean, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• To mount the magnet counterpart, a hole with a diameter of ⌀13 mm (33/64″) and a depth of 3 mm (1/8″) must first be drilled

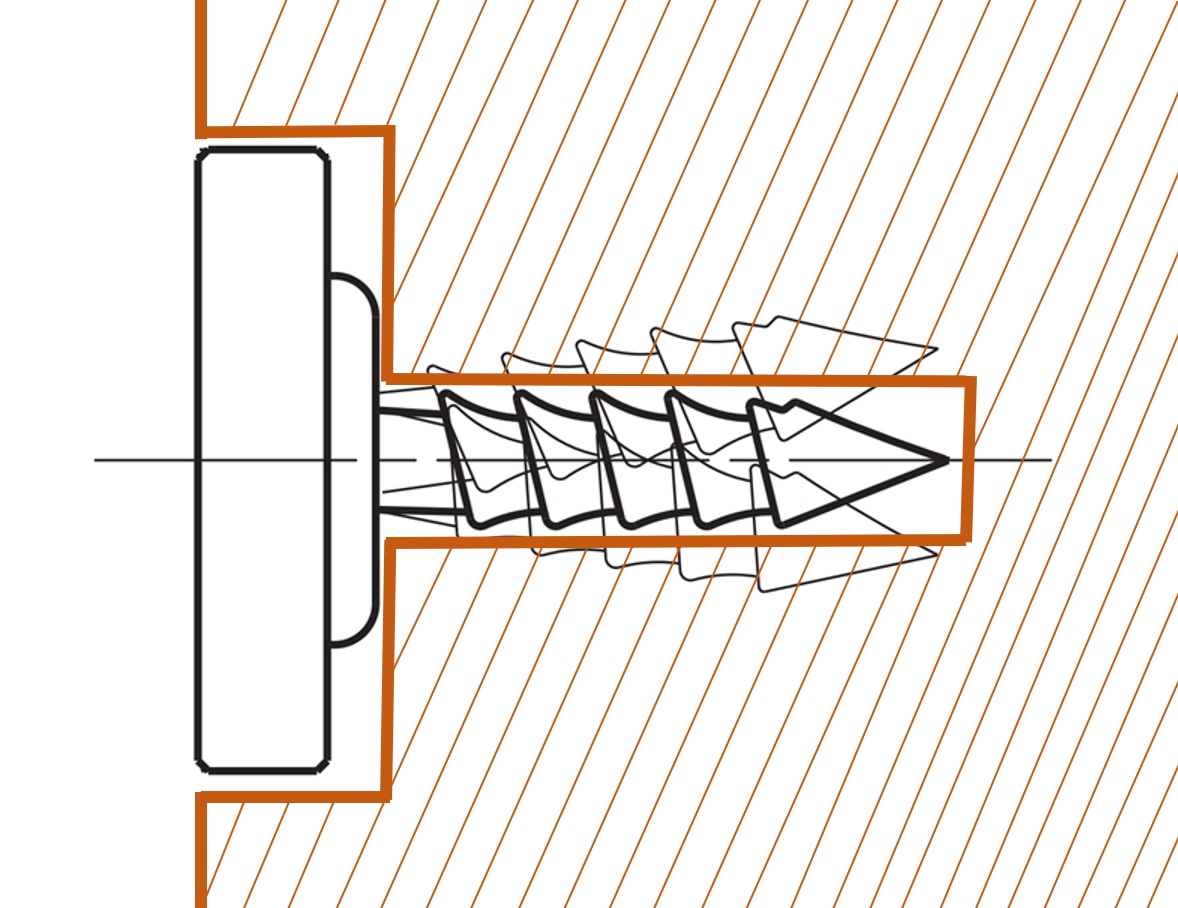

• The magnet counterpart is hammered into the hole with a rubber mallet so that its surface is at the same level as the furniture surface (for more details, see assembly drawing)



Dimensions:

• Magnet Counterpart Diameter: ⌀12 mm (15/32″)
• Depth: 14.5 mm (37/64″)
• Pen length: 12 mm (15/32″)
• Magnet Counterpart Thickness (Material Thickness): 3/32″ (2.5 mm)

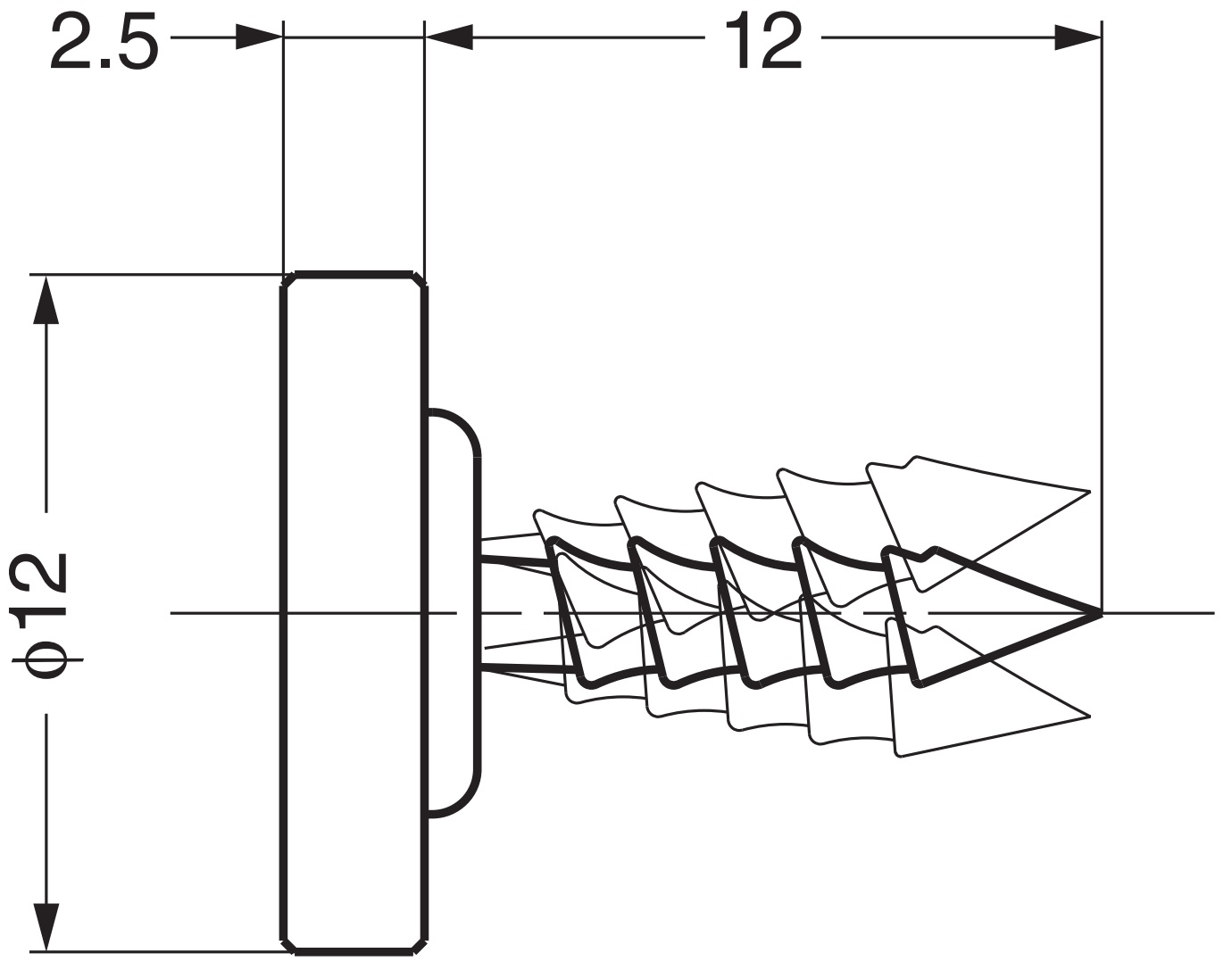

For more dimensions and details , see technical drawing.

Material:

• The Z4 magnetic counter plates are made of robust steel
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Included in delivery:

• 4 pieces magnetic counter plate Z4 (140-050-110) made of robust steel, nickel-plated, 12 mm (15/32″)
• This item does not include mounting screws

Watch the product video:

Manufacturer’s part numbers:

• Article ID: 140-050-110
• Item number: Z4
• EAN number: 4510932018166

Manufacturer: von Sugatsune / LAMP® (Japan)
