Description

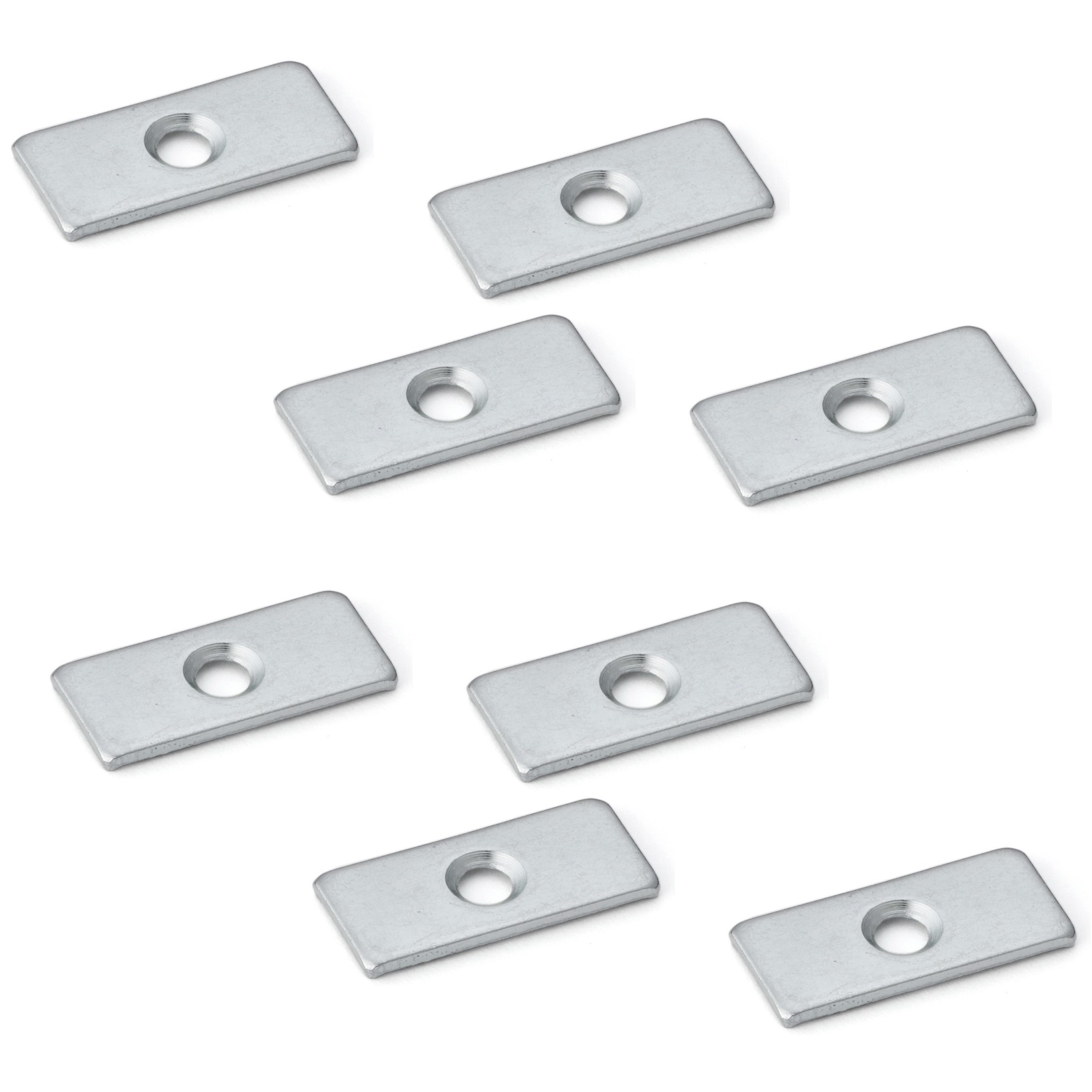

8pcs High Quality Rectangular Counter Plate with Countersunk Hole, Made of Sturdy Steel, Surface: Zinc Chromate, SP0207 (140-050-323), Size: 26mm (1-1/32″)

Application:

Magnetic counterpart for magnetic latches, magnetic lock, cabinet door and much more.

The SP0207 (140-050-323) magnetic counter plate made of robust steel serves as a counterpart to magnetic latches and push-to-open magnetic closures.



The magnetic counterpart SP0207 is suitable for all magnetic closures and push magnetic closures.

The compact size of just 26 mm (1-1/32″) x 12 mm (15/32″) allows it to be mounted unobtrusively on wooden or metal doors.

The 1.4 mm (1/16″) thin design of the magnetic counterpart SP0207 prevents gaps and makes it easier to adjust the front.

The magnetic counterpart SP0207 has 4 claws on the corners that prevent the magnetic counter plate from rotating around the mounting screw when attaching or later when in use.

Thanks to the galvanized surface, the SP0207 magnetic counter plate is corrosion-resistant.

This ensures safe closing and opening without handles.

The high-quality magnetic counter plates SP0207 are perfect for, among other things:

• Furniture doors
• Push-to-Open Magnetic Closures
• Magnetic flycatcher
• Magnetic closure
• Cabinet door

Technical details:

• Weight: 3.1 g
• Size: 26 mm (1-1/32″)
• Easy installation, stable
• Material thickness: 1.4 mm (1/16″)
• rectangular
• High corrosion resistance
• Suitable for wood and MDF
• Zinc chromate
• steel, robust
• High brand quality from Sugatsune / LAMP®.

Surface:

• Zinc chromate
• The galvanized surface protects against rust and corrosion

Assembly:

• Fastening is done with 4 x 16 mm countersunk chipboard screws, self-tapping (not included)
• The SP0207 magnetic counter plate is aligned on the inside of the door so that it sits exactly opposite the magnetic lock
• The counter plate has a mounting hole with a diameter of ⌀4.5 mm (11/64″)
• A 2 mm centering hole is set and the magnetic counterpart SP0207 is then screwed in place with 2 chipboard screws, with the screw head flush in the countersink
• The function is then to be tested by closing the door and activating the push-to-open mechanism

Dimensions:

• Magnet Counterpart Length: 26 mm (1-1/32″)
• Width: 12 mm (15/32″)
• Mounting hole diameter: ⌀4.5 mm (11/64″)
• Magnet Counterpart Thickness (Material Thickness): 1/16″ (1.4 mm)

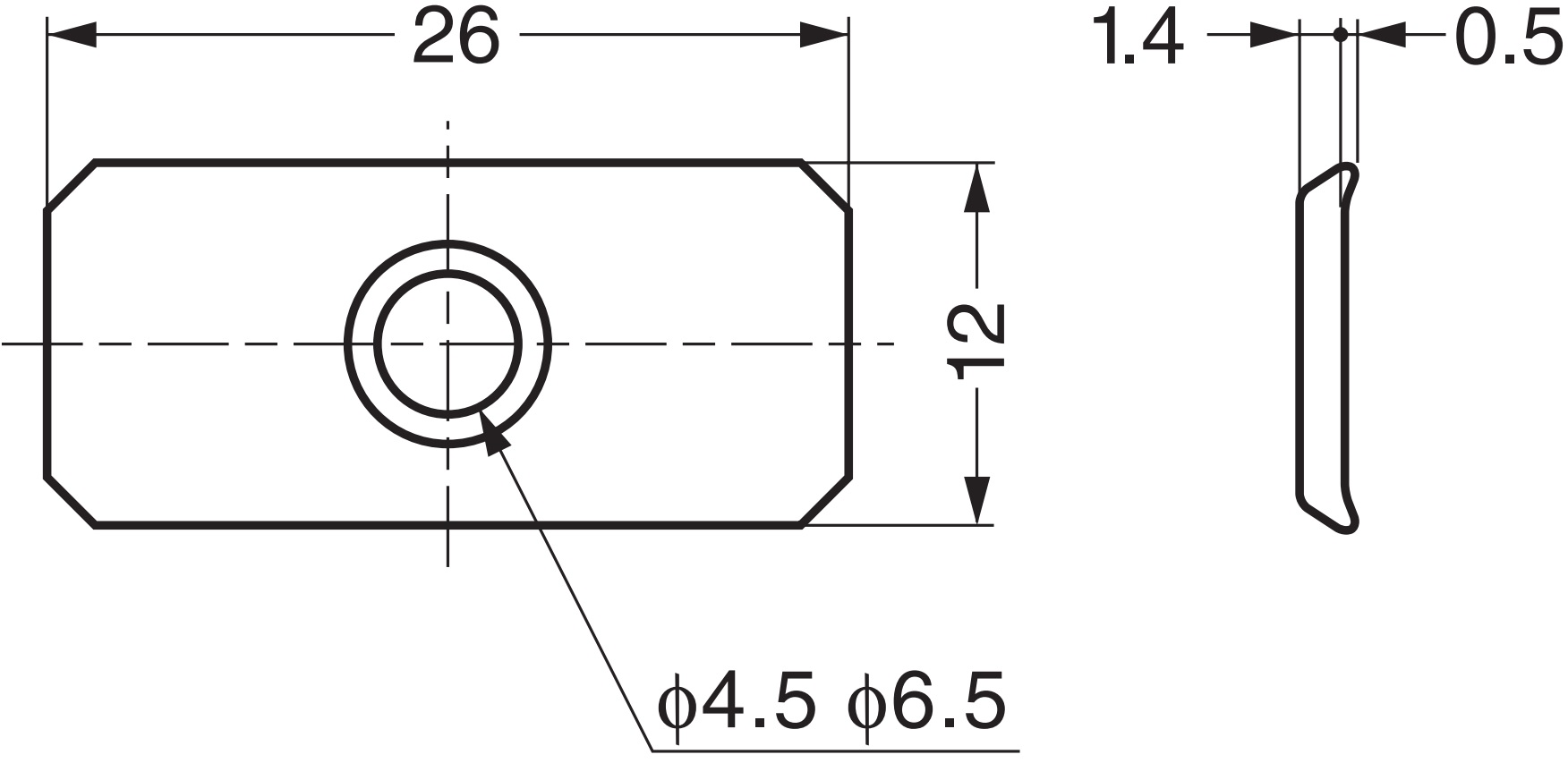

For more dimensions and details , see technical drawing.

Material:

• The SP0207 magnetic counter plates are made of robust steel
• Steel is ideal for furniture fittings because it is both robust and durable, which ensures high resilience and long life of the fittings

Included in delivery:

• 8 pcs magnetic counter plate SP0207 (140-050-323) made of robust steel, zinc chromate, 26 mm (1-1/32″)
• This item does not include mounting screws

Manufacturer’s part numbers:

• Article ID: 140-050-323
• Item number: SP0207
• EAN number: 4510932018173

Manufacturer: von Sugatsune / LAMP® (Japan)
