High-quality table pull-out, made of robust aluminium alloy (aluminium), surface: stainless steel look, anodized, 2046369, extension length: 750 mm (29-17/32″), load capacity: 60 kg (132 lbs)
Application:
Robust table pull-out for kitchen cabinets, kitchen base cabinets, kitchen furniture, extendable tables, folding tables and much more.

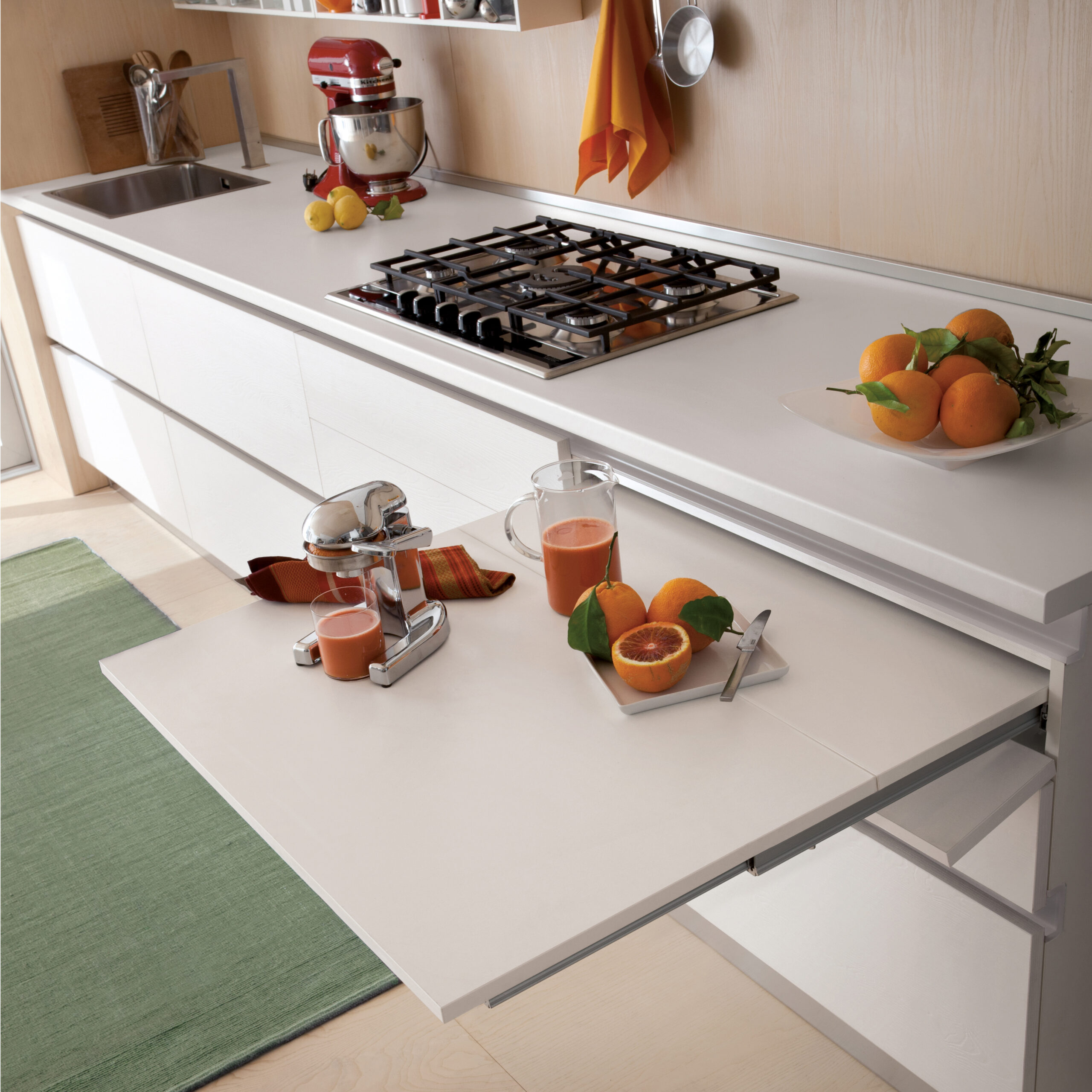

The pull-out table fitting 2046369 enables a pull-out and then hinged table or work surface, which is concealed in a furniture frame to save space.
With a pull-out length of 750 mm (29-17/32″), the system creates a generous additional usable area when required and remains almost completely hidden in the furniture when closed.
It is suitable for carcase widths from 300 mm (11-13/16″) to 1200 mm (47-1/4″) with a minimum installation depth of 545 mm (21-29/64″) and can therefore be used flexibly in kitchen and living room furniture.
The load capacity of up to 60 kg allows stable use as a dining, working or storage surface.
A lock when extended prevents unintentional insertion and increases safety during use.

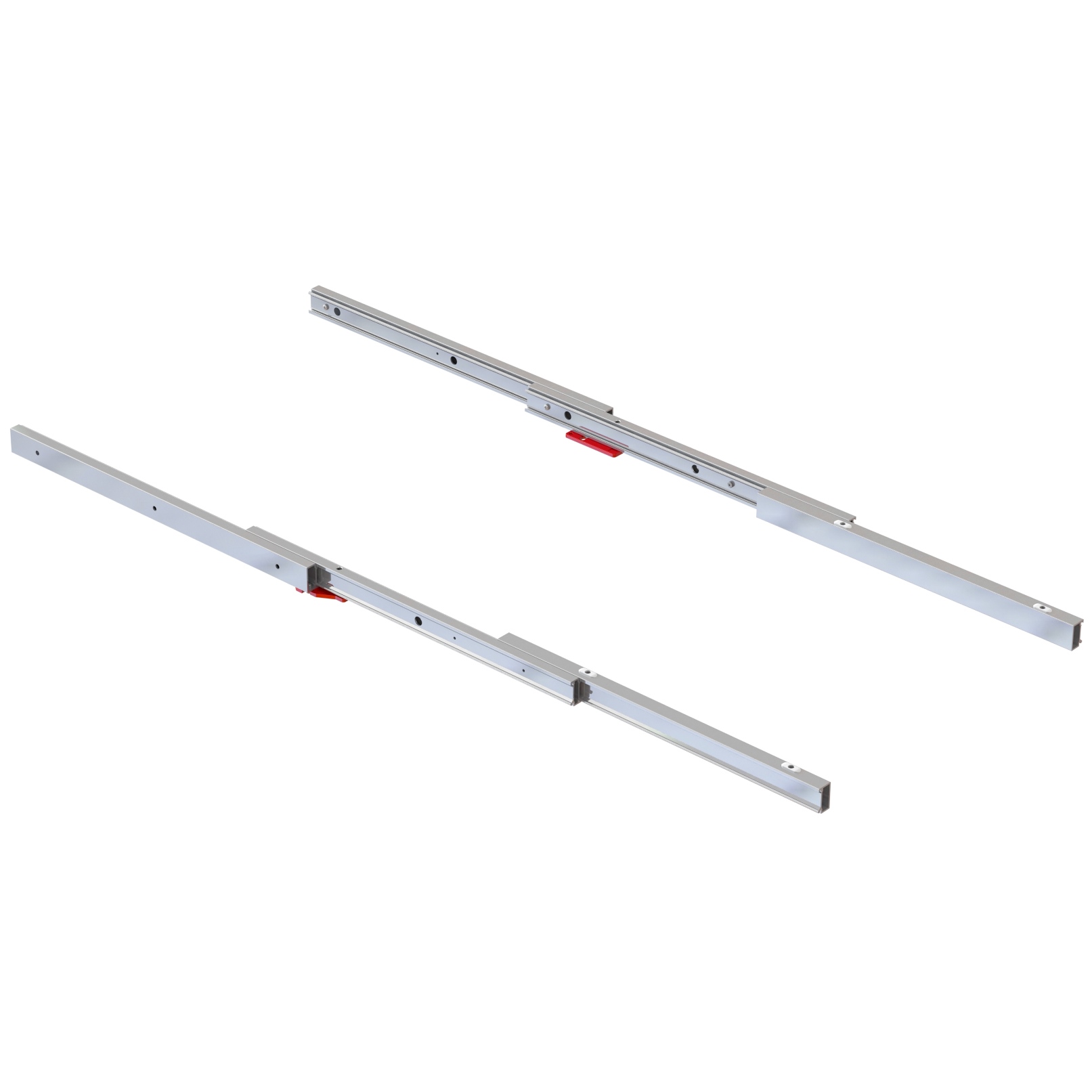

The guide profiles made of extruded, stainless steel-coloured anodised aluminium combine low dead weight, corrosion resistance and a high-quality appearance.
The high-quality table pull-outs 2046369 are perfect for, among other things:
- Breakfast Tables
- Dining tables
- Additional work surfaces
- Desktops
- small kitchens
- Living room furniture
- Home office furniture
- Kitchen cabinets
- Kitchen cabinets
- Kitchen furniture
- Extendable tables
- Folding tables
Technical details:
- Weight: 3000 g
- Load capacity: 60 kg (132 lbs)
- Drawer length: 750 mm (29-17/32″)
- Easy installation, stable
- For module widths from 300 mm (11-13/16″) to 1200 mm (47-1/4″)
- Minimum installation depth 545 mm (21-29/64″)
- Minimum installation height 110 mm (4-21/64″)
- Can be integrated into the furniture body to save space
- Extendable and hinged table surface
- Safety lock when extended
- Protection against unintentional insertion
- Guide profiles made of extruded aluminium
- Suitable for kitchen and home furniture
- Particularly suitable for small rooms
- Table tops can be individually adapted to the width of the carcass
- Table tops not part of the hardware system
- Model No.: Coktail Reverse H35
- Stainless steel look, anodized
- Aluminum alloy, aluminum, rugged
- High brand quality from UMAXO®
Surface:
- Stainless steel look, anodized
Assembly:
- The fastening is done with 6x M6 x 12 mm and 4x M6 x 45 mm, as well as 10x M6 threaded inserts screws (not included)
- Mounting holes in the wood to be prepared: 10 holes with a depth of ⌀8 mm and 13 mm for the M6 threaded inserts, six of which are for fastening in the body and four for the pull-out plate
- First, the furniture body must be prepared with a width of 300 to 1,200 mm, an installation depth of at least 545 mm and a free height of at least 110 mm
- Then the table tops must be cut according to the module width L and the fastening holes must be made according to the specified drilling pattern
- The M6 threaded inserts are inserted into the ⌀8 x 13 mm holes
- The left and right guides are then attached to the body with the supplied M6 x 12 mm screws
- The pull-out plate is attached to the guide mechanism with the M6 x 45 mm screws provided and then connected to the hinged plate

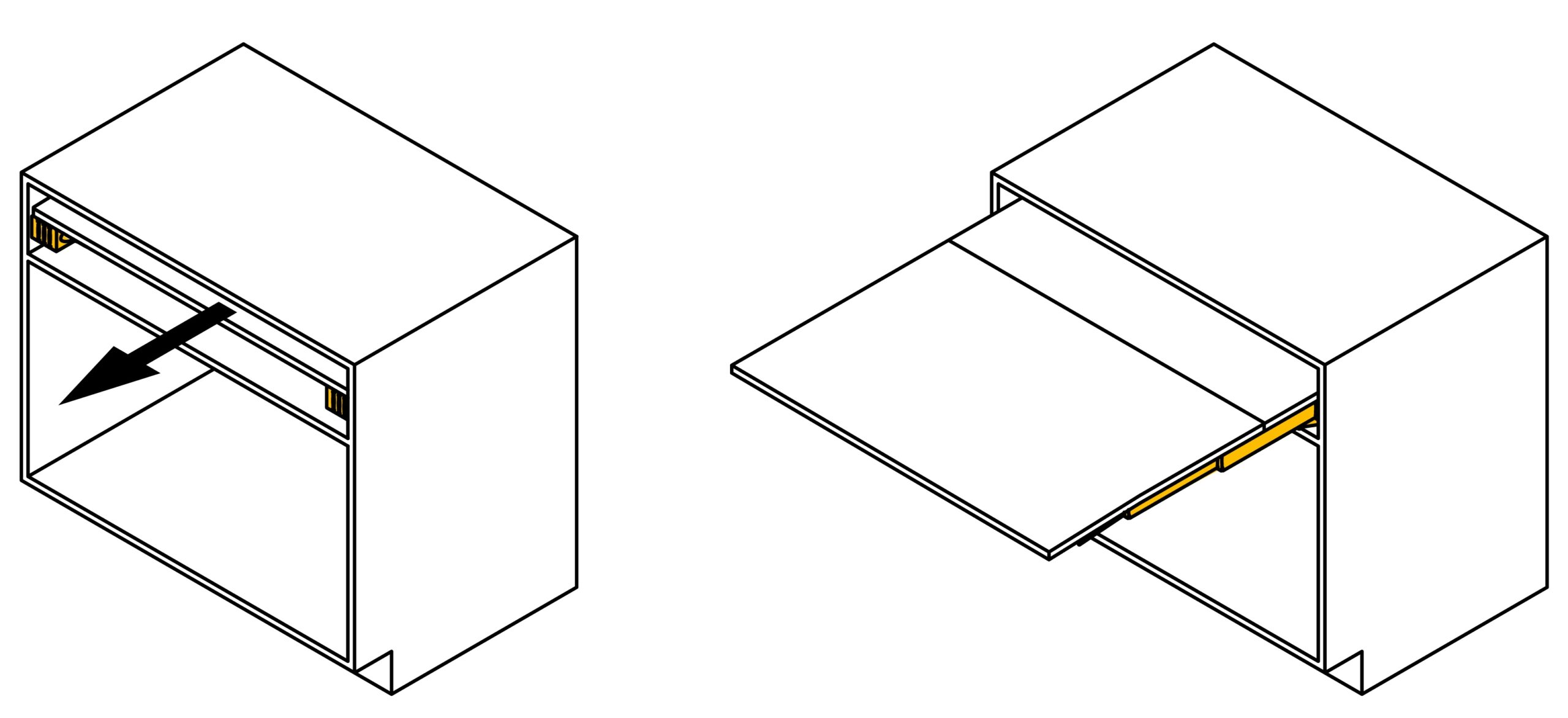

- Finally, the table pull-out is pulled out completely, the hinged plate is unfolded and the correct function of the locking system is checked (for more details, see assembly drawing)
Dimensions:
- Drawer length: 750 mm (29-17/32″)
- Module width: 300 to 1,200 mm (11-13/16″ to 47-1/4″)
- Minimum installation depth: 545 mm (21-15/32″)
- Minimum installation height: 110 mm (4-11/32″)
- Minimum height in the guide area: 35 mm (1-3/8″)
- Depth of large extension plate B: 529 mm (20-13/16″)
- Depth of the folding plate C: 240 mm (9-7/16″)
- Width of the extension plate B: L – 5 mm
- Width of the folding plate C: L – 5 mm
- Dimension L: Module width, maximum 1,200 mm (47-1/4″)
- Holes for M6 Threaded Inserts: ⌀5/16″ x 1/2″ (⌀8 mm x 13 mm) deep
- Slotted Hole Width: 11 mm (7/16″)
- Elongated hole length: 34 mm (1-11/32″)
- Distance slotted hole to edge: 14.5 mm (9/16″)
- Material thickness in the shown slotted hole area: 2.5 mm (3/32″)
- Drill distance extension plate: 300 mm (11-13/16″)
- Extension plate edge distance: 100 mm (3-15/16″)
- Edge distance hinged plate: 38.5 mm (1-17/32″)
- First body drill point: 60 mm (2-3/8″)
- Additional body drill distances: 214.5 mm (8-7/16″) and 214.5 mm (8-7/16″)
- Measurement of the drilling position on plate B: L – 88.5 mm
- Measurement of the drilling position on plate C: L – 51.5 mm

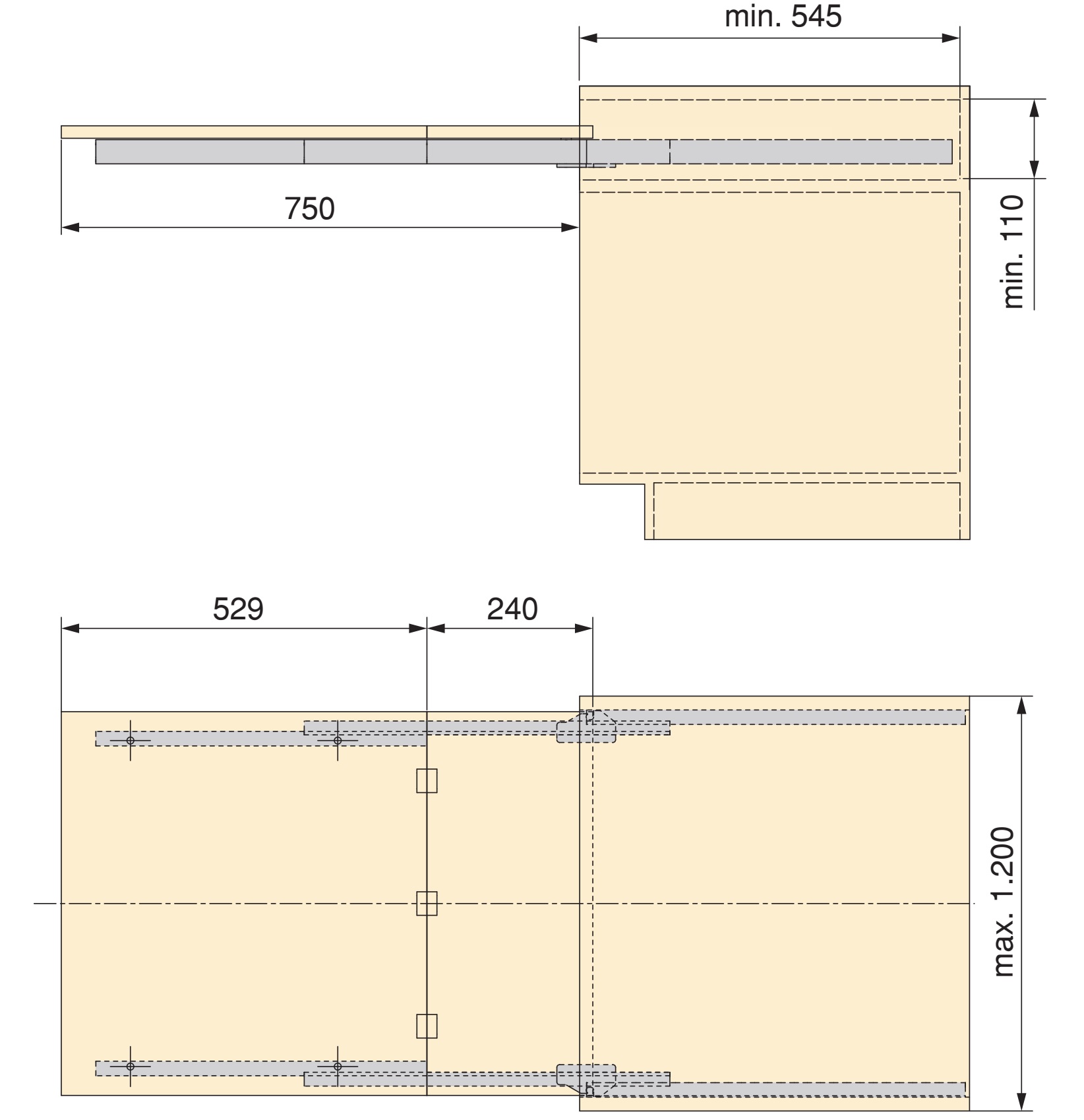

For more dimensions and details , see technical drawing.
Material:
- The 2046369 table pull-outs are made of robust aluminium alloy (aluminium)
- Aluminum alloy offers excellent corrosion resistance and durability, making it ideal for use in furniture hardware
- It is also lightweight yet strong, making it easier to handle and install without sacrificing stability
Included in delivery:
- 1 piece 2046369 table pull-out made of robust aluminium alloy, stainless steel look, anodised, 750 mm (29-17/32″)
- This item does not include mounting screws
Additional information:
Manufacturer’s part numbers:
- Article ID: 2046369
- GTIN number (EAN, UPC): 1111
Manufacturer: EMUCA
