High-quality snap lock with folding handle, made of Zamak, surface: black, 14.03.091-0. Solid inlet handle with self-locking lock for caravan, yacht, caravan, private jet, motorhome and much more, by SISO Denmark

Description

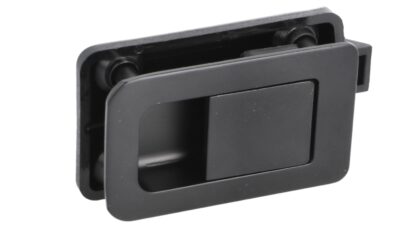

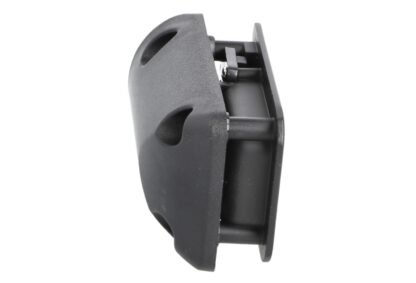

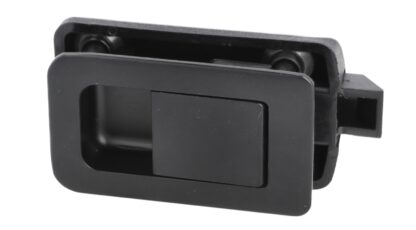

Practical snap lock 14.03.091-0, with foldable inlet handle, made of solid die-cast zinc, surface: black

Application:

Solid inlet handle with self-locking lock for caravan, yacht, caravan, private jet, motorhome and much more.

The high-quality snap lock 14.03.091-0 is a furniture handle with a locking function and, when locked, ensures that the furniture doors, cupboard doors or drawers do not open unintentionally during the journey or flight.



The 14.03.091-0 inlet handle is suitable for door thicknesses from 12 mm (15/32″) to 14 mm (35/64″).

To open the furniture door, the lever in the housing of the recess handle 14.03.091-0 must be pulled forward with a finger and the snap lock must be released.

These features make the Snap Lock 14.03.091-0 perfect for ships, private planes, motorhomes and caravans.



The high-quality recessed handles 14.03.091-0 are perfect for, among other things:

• Boat
• Superyacht
• Camper Van
• Caravan
• Yacht
• Caravan
• Private Jet
• Camper

Technical details:

• Weight: 87 g
• Size: 59.5 mm (2-11/32″)
• Available in two surface colours: chrome and black
• Easy installation, practical, stable
• modern design
• High-quality optics
• Suitable for door thicknesses from 12 mm (15/32″) to 14 mm (35/64″)
• Suitable for interior (inlay) and surface-mounted (existing) furniture doors
• The recessed handles 14.03.091-0 look solid and high-quality
• black
• Zamak
• Zinc die casting
• high brand quality from UMAXO®

Surface:

• Black
• Black finishes exude a timeless elegance and can help make a room look more luxurious and stylish
• While interior styles can change, black always remains a safe choice that can be easily adapted to new trends
• Black finishes can be used in different rooms, be it the kitchen, living room, or office

Assembly:

• Fastening is done using the four screws included in the scope of delivery

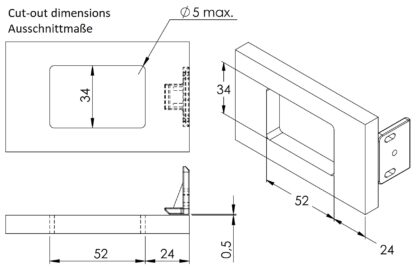

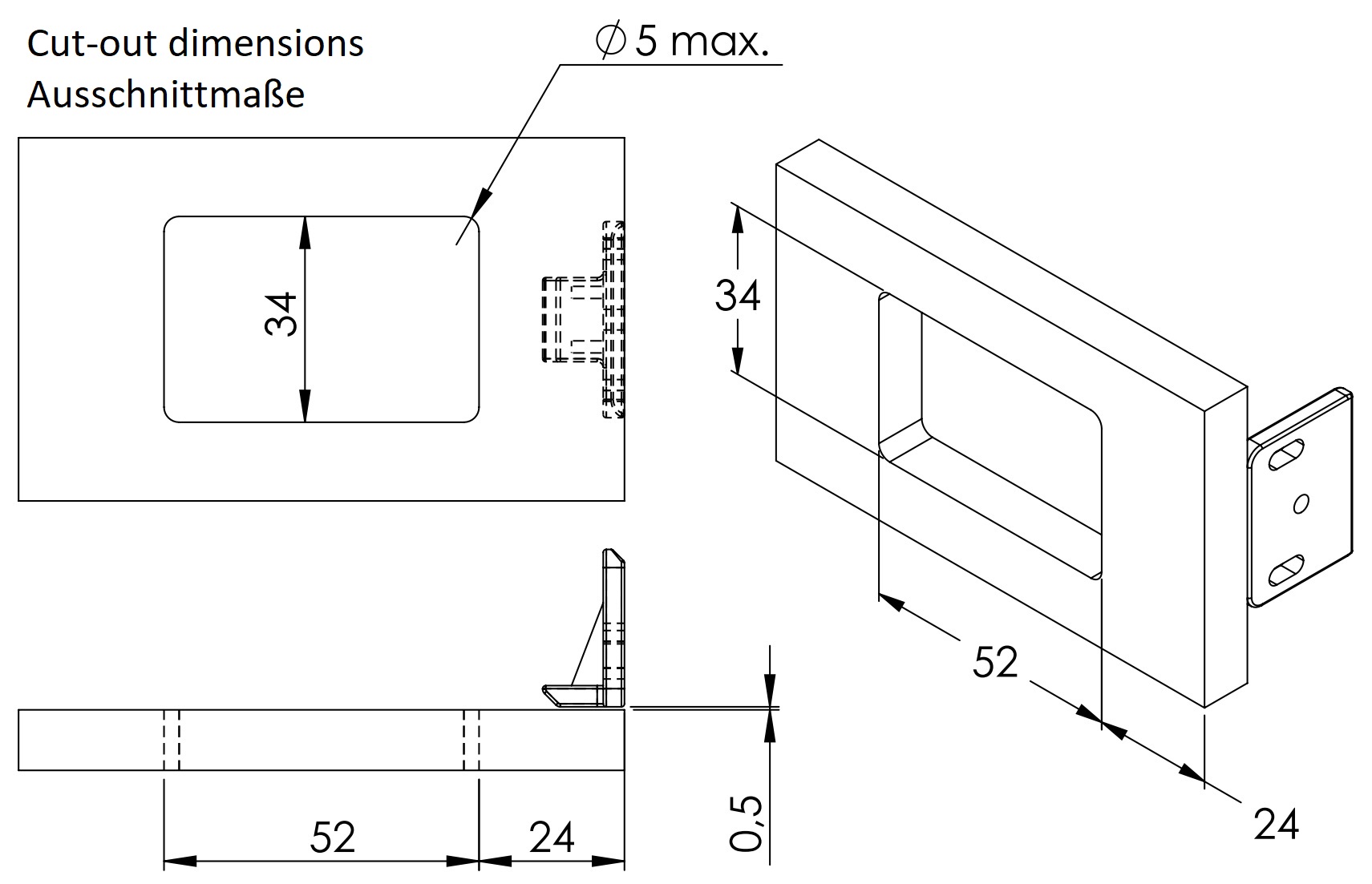

• For mounting, a cut-out with a width of 52 mm (2-3/64″) and a height of 34 mm (1-11/32″) must be made in the front
• The distance between the edge of the door and the cutout should be 24 mm (15/16″)
• The inlet handle 14.03.091-0 is inserted into the front and the housing is screwed on from the back using the screws supplied
• The strike plate is then attached to the carcass side using the screws supplied (for further details, see assembly drawing)



Dimensions:

• Inlet handle width: 59.5 mm (2-11/32″)
• Height: 36 mm (1-27/64″)
• Handle depth: 52 mm (2-3/64″)

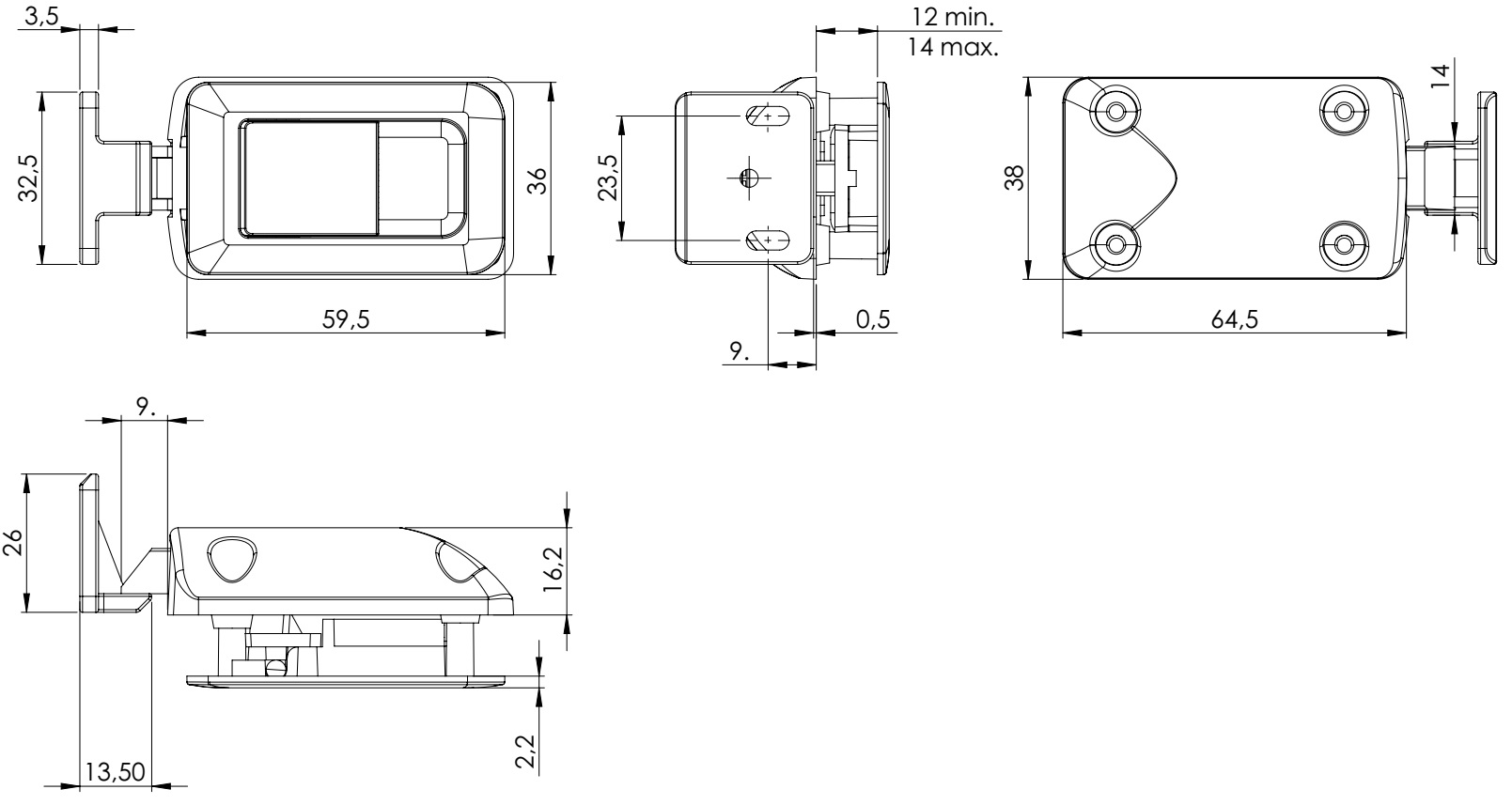

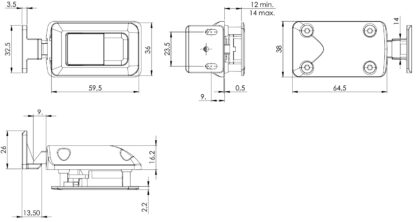

For more dimensions and details, see technical drawing.

Material:

• The recessed handles 14.03.091-0 are made of solid die-cast zinc
• Industrial and furniture fittings made of zamak offer a high-quality look and feel that is durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
• In addition, they are often less expensive than solid brass or stainless steel fittings without compromising on quality

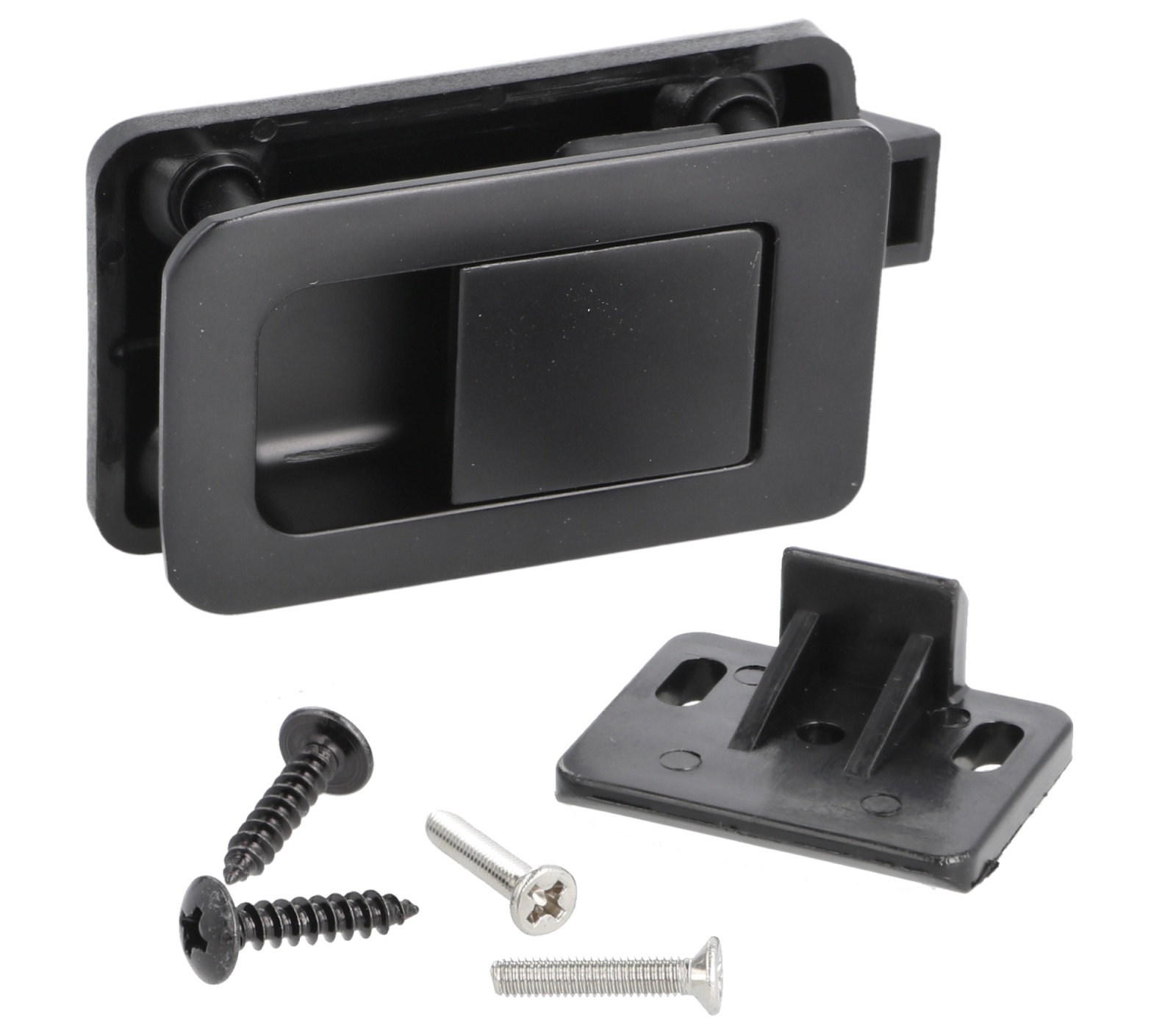

Included in delivery:

• 1 piece snap lock 14.03.091-0 made of solid die-cast zinc, black
• Four Piece Mounting Screw
• 1 piece lock made of ABS, colour: grey
• 1 piece counterpart made of ABS, colour: grey
• 1 piece lever made of zamak, color: black



Additional information:

• Download Reach Declaration

Manufacturer’s part numbers:

• Article ID: 14.03.091-0
• EAN number: 5704866518406

Manufacturer: SISO Denmark
